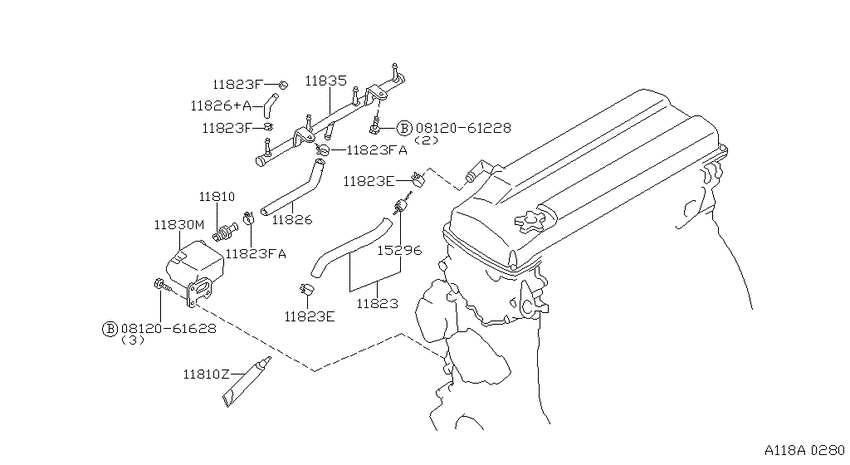

Crankcase ventilation (1994-02-01 ~ ; KA24DE) Diagram Nissan 240SX
- Year
- 1994 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- CAL.C
- trim lvl
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
US $2.21 |
||
|
11810
|
11810
11810-86G00 Valve Assy-Control Blowby1994-02-01 ~ 1997-02-01; KA24DE; , |
11810-86G00 |
US $20.88 |
||
|
11810
|
11810
11810-86G01 Valve Assy-Control Blowby1997-02-01 ~ ; KA24DE; , |
11810-86G01 |
from US $19.35 |
||
|
11810
|
11810
KP710-00150 Gasket-Liquid1994-02-01 ~ ; KA24DE; , |
KP710-00150 |
US $35.41 |
||
|
11810Z
|
11810Z
KP710-00150 Gasket-Liquid1994-02-01 ~ ; KA24DE; , |
KP710-00150 |
US $35.41 |
||
|
11823
|
11823
11823-70F01
Hose-Blowby Gas
1994-02-01 ~ 1995-07-01; KA24DE; , |
11823-70F01 |
— | ||
|
11823
|
11823
11823-72F00
Hose-Blowby Gas
1995-07-01 ~ ; KA24DE; , |
11823-72F00 |
— | ||
|
11823
|
11823
16439-H7200 Clip-Flexible Shaft1994-02-01 ~ ; KA24DE; , |
16439-H7200 |
US $0.86 |
||
|
11823
|
11823
16439-56S00
Clamp-Hose
1994-02-01 ~ ; KA24DE; , |
16439-56S00 |
— | ||
| replacement | |||||
|
11823
|
11823
1643956S0A Clamp-Hose1994-02-01 ~ ; KA24DE; , |
1643956S0A |
from US $3.44 |
||
|
11823
|
11823
16439-42L00
Clamp-Hose, A
1994-02-01 ~ ; KA24DE; , |
16439-42L00 |
— | ||
| replacements | |||||
|
11823
|
11823
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
1994-02-01 ~ ; KA24DE; , |
164394L0A |
— | ||
|
11823
|
11823
1643942L0A Clamp-Hose A1994-02-01 ~ ; KA24DE; , |
1643942L0A |
from US $4.68 |
||
|
11823E
|
11823E
16439-H7200 Clip-Flexible Shaft1994-02-01 ~ ; KA24DE; , |
16439-H7200 |
US $0.86 |
||
|
11823E
|
11823E
16439-H7200 Clip-Flexible Shaft1994-02-01 ~ ; KA24DE; , |
16439-H7200 |
US $0.86 |
||
|
11823F
|
11823F
16439-56S00
Clamp-Hose
1994-02-01 ~ ; KA24DE; , |
16439-56S00 |
— | ||
| replacement | |||||
|
11823F
|
11823F
1643956S0A Clamp-Hose1994-02-01 ~ ; KA24DE; , |
1643956S0A |
from US $3.44 |
||
|
11823F
|
11823F
16439-42L00
Clamp-Hose, A
1994-02-01 ~ ; KA24DE; , |
16439-42L00 |
— | ||
| replacements | |||||
|
11823F
|
11823F
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
1994-02-01 ~ ; KA24DE; , |
164394L0A |
— | ||
|
11823F
|
11823F
1643942L0A Clamp-Hose A1994-02-01 ~ ; KA24DE; , |
1643942L0A |
from US $4.68 |
||
|
11823F
|
11823F
16439-56S00
Clamp-Hose
1994-02-01 ~ ; KA24DE; , |
16439-56S00 |
— | ||
| replacement | |||||
|
11823F
|
11823F
1643956S0A Clamp-Hose1994-02-01 ~ ; KA24DE; , |
1643956S0A |
from US $3.44 |
||
|
11823F
|
11823F
16439-42L00
Clamp-Hose, A
1994-02-01 ~ ; KA24DE; , |
16439-42L00 |
— | ||
| replacements | |||||
|
11823F
|
11823F
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
1994-02-01 ~ ; KA24DE; , |
164394L0A |
— | ||
|
11823F
|
11823F
1643942L0A Clamp-Hose A1994-02-01 ~ ; KA24DE; , |
1643942L0A |
from US $4.68 |
||
|
11823FA
|
11823FA
16439-42L00
Clamp-Hose, A
1994-02-01 ~ ; KA24DE; , |
16439-42L00 |
— | ||
| replacements | |||||
|
11823FA
|
11823FA
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
1994-02-01 ~ ; KA24DE; , |
164394L0A |
— | ||
|
11823FA
|
11823FA
1643942L0A Clamp-Hose A1994-02-01 ~ ; KA24DE; , |
1643942L0A |
from US $4.68 |
||
|
11823FA
|
11823FA
16439-42L00
Clamp-Hose, A
1994-02-01 ~ ; KA24DE; , |
16439-42L00 |
— | ||
| replacements | |||||
|
11823FA
|
11823FA
164394L0A
ｸﾗﾝﾌﾟ,ﾎ-ｽ a
1994-02-01 ~ ; KA24DE; , |
164394L0A |
— | ||
|
11823FA
|
11823FA
1643942L0A Clamp-Hose A1994-02-01 ~ ; KA24DE; , |
1643942L0A |
from US $4.68 |
||
|
11826
|
11826
11826-53F00 Hose-Blow By, A1994-02-01 ~ ; KA24DE; , |
11826-53F00 |
US $27.94 |
||
|
11826
|
11826
1182653F02 Hose-Blow By, A1994-02-01 ~ ; KA24DE; , |
1182653F02 |
US $26.21 |
||
|
11826
|
11826
11829-G5400 Pipe-Extension, Blow By1994-02-01 ~ ; KA24DE; , |
11829-G5400 |
US $13.03 |
||
| replacement | |||||
|
11826
|
11826
11829G540A
Pipe-Extension, Blowby
1994-02-01 ~ ; KA24DE; , |
11829G540A |
— | ||
|
11826+A
|
11826+A
1182653F02 Hose-Blow By, A1994-02-01 ~ ; KA24DE; , |
1182653F02 |
US $26.21 |
||
|
11830M
|
11830M
11830-53F02 Separator Assy-Breather1994-02-01 ~ ; KA24DE; , |
11830-53F02 |
US $90.86 |
||
|
11835
|
11835
11835-53F00 Pipe Assy-Blow By1994-02-01 ~ ; KA24DE; , |
11835-53F00 |
US $48.67 |
||
|
15296
|
15296
15296-N4200 Arrester Flame1994-02-01 ~ ; KA24DE; , |
15296-N4200 |
US $4.99 |
||
