Component List 300ZX
Audio & visual (1983-05-01 ~ ; SPEAKER ANTENNA; VG30+VG30T)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0831052026	0831052026 08310-52026 ｽｸﾘﾕ-,ﾏｼﾝ	08310-52026	—
083606122D	083606122D 08360-6122D Screw	08360-6122D	—
0851351612	0851351612 08513-51612 SCREW	08513-51612	US $2.21
0851361612	0851361612 08513-61612 Bolt	08513-61612	—
0891110637	0891110637 0891110637 NUT	0891110637	from US $0.52
0891134400	0891134400 08911-34400 Nut-hex	08911-34400	—
089151361A	089151361A 089151361A WASHERSPRING	089151361A	—
27361	27361 24118-01P00 Cable-Earth Bonding 1983-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	24118-01P00	US $6.48
27361	27361 27361-P9100 Cable-Earth Bonding 1983-07-01 ~ 1985-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	27361-P9100	—
27361	27361 27362-P7100 Cable-Earth Bonding 1983-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; F/EXH MTG BRKT	27362-P7100	—
27361	27361 28366-01P00 Cable-Earth Bonding 1983-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28366-01P00	US $3.46
27900B	27900B 01461-00061 SCREW 1983-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	01461-00061	US $2.21
27900E	27900E 28218-01P00 Nut 1983-07-01 ~ 1986-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28218-01P00	—
27900E	27900E 28219-V5000 Nut 1983-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28219-V5000	—
27933	27933 28156-12E00 SPEAKER UNIT 1984-08-01 ~ 1985-12-01; 4FED.2S.(SF+GL) +FED.4S.GL +CAL.2S.(SF+GL) +CAL.4S.GL; DOOR SPEAKER	28156-12E00	—
	replacement
27933	27933 28138-36E00 SPEAKER UNIT 1984-08-01 ~ 1985-12-01; 4FED.2S.(SF+GL) +FED.4S.GL +CAL.2S.(SF+GL) +CAL.4S.GL; DOOR SPEAKER	28138-36E00	—
27933	27933 28156-19P05 Speaker Unit 1985-12-01 ~ ; 4FED.2S.(SF+GL) +FED.4S.GL +CAL.2S.(SF+GL) +CAL.4S.GL; DOOR SPEAKER	28156-19P05	US $36.72
27933	27933 28156-N8400 Speaker Unit 1984-08-01 ~ 1985-12-01; 4FED.2S.(SF+GL) +FED.4S.GL +CAL.2S.(SF+GL) +CAL.4S.GL; DOOR SPEAKER	28156-N8400	—
	replacement
27933	27933 28138-36E00 SPEAKER UNIT 1984-08-01 ~ 1985-12-01; 4FED.2S.(SF+GL) +FED.4S.GL +CAL.2S.(SF+GL) +CAL.4S.GL; DOOR SPEAKER	28138-36E00	—
27933	27933 28160-01P00 Bracket-Speaker 1983-10-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; DOOR SPEAKER	28160-01P00	US $17.28
27933	27933 28167-01P01 Bracket-Speaker 1983-07-01 ~ 1983-10-01; FED.2S +FED.4S +CAL.2S +CAL.4S; DOOR SPEAKER	28167-01P01	—
27933	27933 28163-01P00 Bracket-Speaker 1983-07-01 ~ ; FED.2S +CAL.2S; REAR SPEAKER RH	28163-01P00	US $20.74
27933	27933 28164-01P00 Bracket-Speaker 1983-07-01 ~ ; FED.2S +CAL.2S; REAR SPEAKER LH	28164-01P00	US $20.74
27933	27933 28156-01P01 Speaker Unit 1984-04-01 ~ 1985-12-01; 4FED.2S.(SF+GL) +FED.4S.GL +CAL.2S.(SF+GL) +CAL.4S.GL; RR SPEAKER	28156-01P01	—
27933	27933 28156-12E00 SPEAKER UNIT 1983-07-01 ~ 1984-04-01; FED.2S +FED.4S +CAL.2S +CAL.4S; REAR SPEAKER	28156-12E00	—
	replacement
27933	27933 28138-36E00 SPEAKER UNIT 1983-07-01 ~ 1984-04-01; FED.2S +FED.4S +CAL.2S +CAL.4S; REAR SPEAKER	28138-36E00	—
27933	27933 28156-19P15 Speaker Unit 1985-12-01 ~ ; 4FED.2S.(SF+GL) +FED.4S.GL +CAL.2S.(SF+GL) +CAL.4S.GL; RR SPEAKER	28156-19P15	US $34.56
	replacement
27933	27933 28156-36E00 Speaker unit 1985-12-01 ~ ; 4FED.2S.(SF+GL) +FED.4S.GL +CAL.2S.(SF+GL) +CAL.4S.GL; RR SPEAKER	28156-36E00	—
27933	27933 28156-N8400 Speaker Unit 1983-07-01 ~ 1984-04-01; FED.2S +FED.4S +CAL.2S +CAL.4S; REAR SPEAKER	28156-N8400	—
	replacement
27933	27933 28138-36E00 SPEAKER UNIT 1983-07-01 ~ 1984-04-01; FED.2S +FED.4S +CAL.2S +CAL.4S; REAR SPEAKER	28138-36E00	—
27933F	27933F 28160-01P00 Bracket-Speaker 1983-10-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; DOOR SPEAKER	28160-01P00	US $17.28
27933F	27933F 28167-01P01 Bracket-Speaker 1983-07-01 ~ 1983-10-01; FED.2S +FED.4S +CAL.2S +CAL.4S; DOOR SPEAKER	28167-01P01	—
27933H	27933H 28163-01P00 Bracket-Speaker 1983-07-01 ~ ; FED.2S +CAL.2S; REAR SPEAKER RH	28163-01P00	US $20.74
27933L	27933L 28164-01P00 Bracket-Speaker 1983-07-01 ~ ; FED.2S +CAL.2S; REAR SPEAKER LH	28164-01P00	US $20.74
27933M	27933M 28156-01P01 Speaker Unit 1984-04-01 ~ 1985-12-01; 4FED.2S.(SF+GL) +FED.4S.GL +CAL.2S.(SF+GL) +CAL.4S.GL; RR SPEAKER	28156-01P01	—
27933M	27933M 28156-12E00 SPEAKER UNIT 1983-07-01 ~ 1984-04-01; FED.2S +FED.4S +CAL.2S +CAL.4S; REAR SPEAKER	28156-12E00	—
	replacement
27933M	27933M 28138-36E00 SPEAKER UNIT 1983-07-01 ~ 1984-04-01; FED.2S +FED.4S +CAL.2S +CAL.4S; REAR SPEAKER	28138-36E00	—
27933M	27933M 28156-19P15 Speaker Unit 1985-12-01 ~ ; 4FED.2S.(SF+GL) +FED.4S.GL +CAL.2S.(SF+GL) +CAL.4S.GL; RR SPEAKER	28156-19P15	US $34.56
	replacement
27933M	27933M 28156-36E00 Speaker unit 1985-12-01 ~ ; 4FED.2S.(SF+GL) +FED.4S.GL +CAL.2S.(SF+GL) +CAL.4S.GL; RR SPEAKER	28156-36E00	—
27933M	27933M 28156-N8400 Speaker Unit 1983-07-01 ~ 1984-04-01; FED.2S +FED.4S +CAL.2S +CAL.4S; REAR SPEAKER	28156-N8400	—
	replacement
27933M	27933M 28138-36E00 SPEAKER UNIT 1983-07-01 ~ 1984-04-01; FED.2S +FED.4S +CAL.2S +CAL.4S; REAR SPEAKER	28138-36E00	—
27960	27960 28206-01P00 Antenna Assy 1983-07-01 ~ 1985-05-01; FED.2S +FED.4S +CAL.2S +CAL.4S; FULL AUTO ANTENNA	28206-01P00	US $305.86
27960	27960 28206-01P01 Antenna Assy 1983-07-01 ~ 1985-05-01; FED.2S +FED.4S +CAL.2S +CAL.4S; #FULL AUTO ANTENNA W/CONTROL&BRACKET	28206-01P01	—
27960	27960 28206-17P10 Antenna Assy 1985-05-01 ~ 1986-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; W/CONT,BRKT	28206-17P10	—
27960	27960 28206-21P00 Antenna Assy 1986-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; LESS CONT&BRKT	28206-21P00	US $493.51
27960	27960 28236-17P00 Bracket-Antenna 1983-07-01 ~ 1986-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28236-17P00	—
27960	27960 28236-17P60 Bracket-Antenna 1983-07-01 ~ 1986-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28236-17P60	US $20.45
27960	27960 28236-21P00 Bracket-Antenna 1986-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28236-21P00	US $11.95
27960G	27960G 28236-17P00 Bracket-Antenna 1983-07-01 ~ 1986-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28236-17P00	—
27960G	27960G 28236-17P60 Bracket-Antenna 1983-07-01 ~ 1986-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28236-17P60	US $20.45
27960G	27960G 28236-21P00 Bracket-Antenna 1986-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28236-21P00	US $11.95
27961F	27961F 28216-01P00 Mold-Antenna 1983-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28216-01P00	US $2.45
27962	27962 28215-01P00 Rod-Antenna 1983-07-01 ~ 1985-05-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28215-01P00	US $58.61
27962	27962 28215-89900 Rod-Antenna 1985-05-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28215-89900	US $57.46
	replacement
27962	27962 28215F6506 Rod-Antenna 1985-05-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28215F6506	US $124.75
27962	27962 28215-F6503 Rod-Antenna 1985-05-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28215-F6503	—
	replacement
27962	27962 28215F6506 Rod-Antenna 1985-05-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28215F6506	US $124.75
27965	27965 28241-01P01 Cord-Antenna 1985-09-01 ~ 1986-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28241-01P01	—
27965	27965 28241-21P01 Cord-Antenna 1985-09-01 ~ 1986-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28241-21P01	US $16.85
27965	27965 27368-P7100 Grommet 1983-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	27368-P7100	US $4.57
27965	27965 24220-H6600 Clip 1983-07-01 ~ 1986-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	24220-H6600	US $2.49
27965	27965 27466-Q0100 Clip-Hose 1986-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	27466-Q0100	US $0.97
27965	27965 28242-01P02 Cord-Antenna 1985-09-01 ~ ; FED.2S +CAL.2S; SUB CORD	28242-01P02	US $50.83
27965	27965 28243-01P00 Cord-Antenna 1986-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ADAPTER	28243-01P00	US $9.65
27965F	27965F 27368-P7100 Grommet 1983-07-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	27368-P7100	US $4.57
27965H	27965H 24220-H6600 Clip 1983-07-01 ~ 1986-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	24220-H6600	US $2.49
27965H	27965H 27466-Q0100 Clip-Hose 1986-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	27466-Q0100	US $0.97
27968	27968 28233-89903 Timer-Antenna 1987-08-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28233-89903	—
27968	27968 28234-35E00 CONTROL UNIT-ANTENNA 1986-09-01 ~ 1987-08-01; FED.2S +FED.4S +CAL.2S +CAL.4S; FULL AUTO ANTENNA	28234-35E00	—
27968	27968 28234-43E00 TIMER-ANTENNA 1987-08-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28234-43E00	—
27968	27968 28245-01P00 Control Unit-Antenna 1983-07-01 ~ 1985-05-01; FED.2S +FED.4S +CAL.2S +CAL.4S; FULL AUTO ANTENNA	28245-01P00	US $134.21
27968	27968 28245-17P00 Control Unit-Antenna 1985-05-01 ~ 1986-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; FULL AUTO ANTENNA	28245-17P00	—
27983M	27983M 28352-01P00 Condenser-Alternator 1983-07-01 ~ 1984-08-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28352-01P00	—
27983M	27983M 28352-01P01 Condenser-Alternator 1984-08-01 ~ 1985-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; REAR DEFOGGER	28352-01P01	—
27983M	27983M 28352-04E00 CONDENSOR 1985-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28352-04E00	—
28351	28351 27984-N4400 Condenser-Ignition Coil 1983-07-01 ~ 1985-09-01; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	27984-N4400	—
28351	28351 28352-19P00 Condenser-Ignition Coil 1985-09-01 ~ ; FED.2S +FED.4S +CAL.2S +CAL.4S; ,	28352-19P00	—

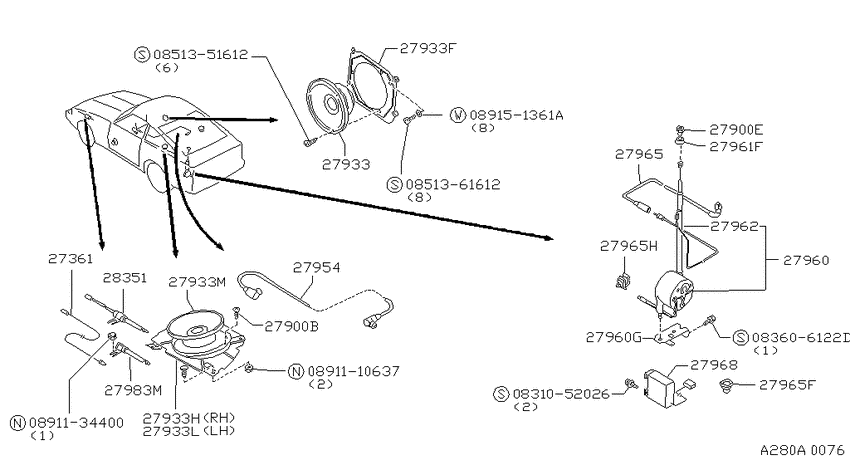

Audio & visual (1983-05-01 ~ ; SPEAKER ANTENNA; VG30+VG30T) Diagram Nissan 300ZX U.S.A. 2309815-182521

Audio & visual (1983-05-01 ~ ; SPEAKER ANTENNA; VG30+VG30T) Diagram Nissan 300ZX U.S.A. 2309815-182521
