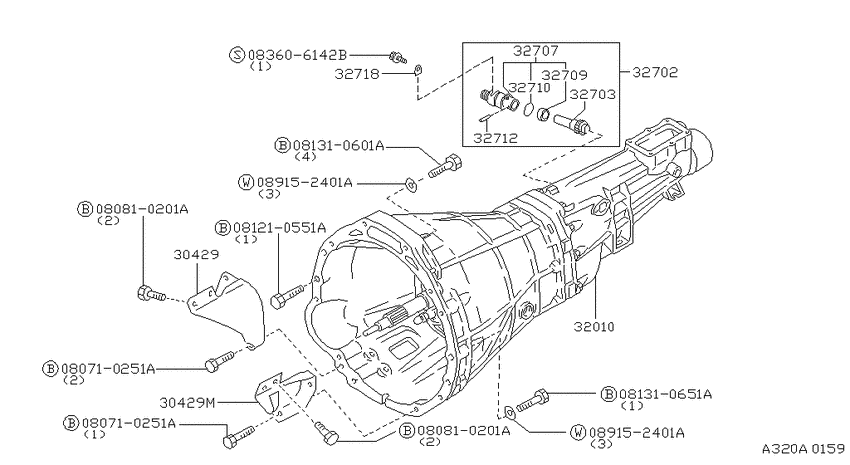

Manual transmission, transaxle & fitting (1983-05-01 ~ ; FS5W71C; VG30.MT.F5) Diagram Nissan 300ZX
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30
- transmission
- MT
- body
- 2S
- trim lvl
- SF
- emission
- FED
- gears/shift type
- F5
- style
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080710251A
|
080710251A
08071-0251A
Bolt-hexagon
|
08071-0251A |
— | ||
|
080710251A
|
080710251A
08071-0251A
Bolt-hexagon
|
08071-0251A |
— | ||
|
080810201A
|
080810201A
080810201A
Bolt-hexagon
|
080810201A |
— | ||
|
080810201A
|
080810201A
080810201A
Bolt-hexagon
|
080810201A |
— | ||
|
081310601A
|
081310601A
08131-0601A
Bolt-hexagon
|
08131-0601A |
— | ||
|
081310651A
|
081310651A
08131-0651A
Bolt-hexagon
|
08131-0651A |
— | ||
|
083606142B
|
083606142B
08360-6142B
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6142B |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
30429
|
30429
30429-V5000 Gusset-Transmission To Engine1983-07-01 ~ ; VG30.MT.F5; FOR RH |
30429-V5000 |
US $63.50 |
||
|
30429
|
30429
30430-V5001 Gusset-Transmission To Engine1983-07-01 ~ ; VG30.MT.F5; FOR LH |
30430-V5001 |
US $31.10 |
||
|
30429M
|
30429M
30430-V5001 Gusset-Transmission To Engine1983-07-01 ~ ; VG30.MT.F5; FOR LH |
30430-V5001 |
US $31.10 |
||
|
32010
|
32010
32010-01P10
Manual Transmission
1983-07-01 ~ 1985-02-01; VG30.MT.F5; FS5W71C |
32010-01P10 |
— | ||
|
32010
|
32010
32010-01P11
Manual Transmission
1985-02-01 ~ 1985-10-01; VG30.MT.F5; FS5W71C |
32010-01P11 |
— | ||
|
32010
|
32010
32010-19P60
Manual Transmission
1985-10-01 ~ 1986-03-01; VG30.MT.F5; FS5W71C |
32010-19P60 |
— | ||
|
32010
|
32010
32010-19P61
Manual Transmission
1986-03-01 ~ 1986-05-01; VG30.MT.F5; FS5W71C |
32010-19P61 |
— | ||
|
32010
|
32010
32010-19P63
Manual Transmission
1986-05-01 ~ 1986-09-01; VG30.MT.F5; FS5W71C |
32010-19P63 |
— | ||
|
32010
|
32010
32010-21P10
Manual Transmission
1986-09-01 ~ 1987-08-01; VG30.MT.F5; FS5W71C |
32010-21P10 |
— | ||
|
32010
|
32010
32010-24P60
Manual Transmission
1987-08-01 ~ 1988-05-01; VG30.MT.F5; FS5W71C |
32010-24P60 |
— | ||
|
32010
|
32010
32010-24P70
Manual Transmission
1988-05-01 ~ ; VG30.MT.F5; FS5W71C |
32010-24P70 |
— | ||
|
32702
|
32702
32702-58S18
Pinion Assy-Speedometer
1986-06-01 ~ 1987-08-01; VG30.MT.F5; 18T |
32702-58S18 |
— | ||
| replacements | |||||
|
32702
|
32702
32703-78102 Pinion-Speedometer1986-06-01 ~ 1987-08-01; VG30.MT.F5; 18T |
32703-78102 |
US $13.86 |
||
|
32702
|
32702
32707-58S10 Sleeve-Speedometer Pinion1986-06-01 ~ 1987-08-01; VG30.MT.F5; 18T |
32707-58S10 |
US $11.51 |
||
|
32702
|
32702
3287314600 Pin-Retainer, Speedometer Pinion1986-06-01 ~ 1987-08-01; VG30.MT.F5; 18T |
3287314600 |
US $2.21 |
||
|
32702
|
32702
32702-58S19 Pinion Assy-Speedometer1987-08-01 ~ ; VG30.MT.F5; 19T |
32702-58S19 |
US $19.41 |
||
|
32702
|
32702
32702-E9818
Pinion Assy-Speedometer
1983-07-01 ~ 1986-06-01; VG30.MT.F5; 18T |
32702-E9818 |
— | ||
| replacements | |||||
|
32702
|
32702
32703-78102 Pinion-Speedometer1983-07-01 ~ 1986-06-01; VG30.MT.F5; 18T |
32703-78102 |
US $13.86 |
||
|
32702
|
32702
32707-58S10 Sleeve-Speedometer Pinion1983-07-01 ~ 1986-06-01; VG30.MT.F5; 18T |
32707-58S10 |
US $11.51 |
||
|
32702
|
32702
3287314600 Pin-Retainer, Speedometer Pinion1983-07-01 ~ 1986-06-01; VG30.MT.F5; 18T |
3287314600 |
US $2.21 |
||
|
32703
|
32703
32703-78102 Pinion-Speedometer1983-07-01 ~ 1987-08-01; VG30.MT.F5; 18T |
32703-78102 |
US $13.86 |
||
|
32703
|
32703
32703-78103
Pinion-Speedometer
1987-08-01 ~ ; VG30.MT.F5; 19T |
32703-78103 |
— | ||
| replacements | |||||
|
32703
|
32703
32702-G5119 Pinion Assy-Speedometer1987-08-01 ~ ; VG30.MT.F5; 19T |
32702-G5119 |
US $18.02 |
||
|
32703
|
32703
32702-R5619 Pinion Assy-Speedometer1987-08-01 ~ ; VG30.MT.F5; 19T |
32702-R5619 |
US $19.41 |
||
|
32703
|
32703
32702-58S19 Pinion Assy-Speedometer1987-08-01 ~ ; VG30.MT.F5; 19T |
32702-58S19 |
US $19.41 |
||
|
32707
|
32707
32707-58S10 Sleeve-Speedometer Pinion1986-06-01 ~ ; VG30.MT.F5; |
32707-58S10 |
US $11.51 |
||
|
32707
|
32707
32707-R5620 Sleeve-Speedometer Pinion1983-07-01 ~ 1986-06-01; VG30.MT.F5; , |
32707-R5620 |
US $11.95 |
||
|
32709
|
32709
3270914600 Seal-Oil, Speedometer Pinion1983-07-01 ~ 1986-06-01; MT.F5; , |
3270914600 |
from US $1.60 |
||
|
32709
|
32709
3270958S00 Seal-Oil, Speedometer Pinion1986-06-01 ~ ; VG30.MT.F5; |
3270958S00 |
US $0.91 |
||
|
32710
|
32710
3271014600 Seal-O Ring, Speedometer Pinion1983-07-01 ~ ; VG30.MT.F5; , |
3271014600 |
from US $0.67 |
||
|
32712
|
32712
3287314600 Pin-Retainer, Speedometer Pinion1983-07-01 ~ ; VG30.MT.F5; |
3287314600 |
US $2.21 |
||
|
32718
|
32718
32718-14600
Plate-Lock, Speedometer Pinion
1983-07-01 ~ ; VG30.MT.F5; , |
32718-14600 |
— | ||
| replacement | |||||
|
32718
|
32718
3271814601 Plate-Lock1983-07-01 ~ ; VG30.MT.F5; , |
3271814601 |
US $2.64 |
||
|
32718
|
32718
3271814601 Plate-Lock1983-07-01 ~ ; VG30.MT.F5; , |
3271814601 |
US $2.64 |
||
