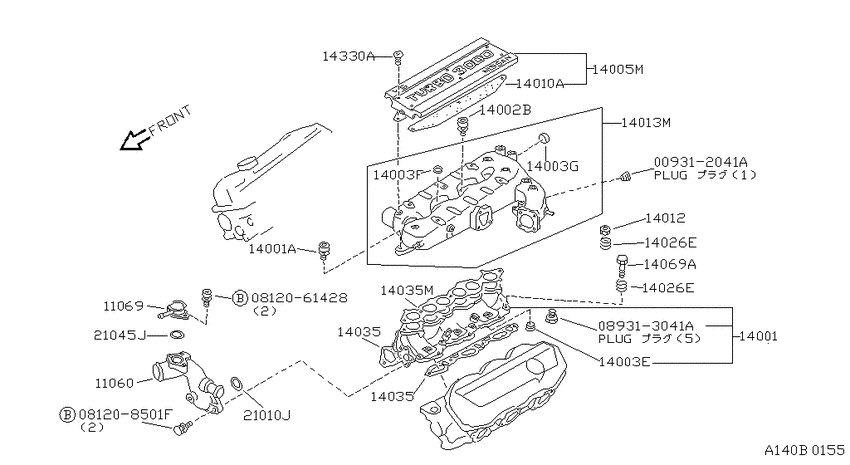

Manifold (1983-05-01 ~ ; INTAKE MANIFOLD; VG30T) Diagram Nissan 300ZX
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30T
- transmission
- AT
- body
- 4S
- trim lvl
- GLL
- emission
- CAL
- gears/shift type
- F4
- style
- T/R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061428
|
0812061428
0812061428
Bolt-hexagon
|
0812061428 |
— | ||
|
081208501F
|
081208501F
081208501F Bolt-hexagon |
081208501F |
US $0.74 |
||
|
089313041A
|
089313041A
089313041A
Plug-Drain
|
089313041A |
— | ||
|
11060
|
11060
11060-01P01
Outlet-Water
1983-07-01 ~ 1987-05-01; VG30T; , |
11060-01P01 |
— | ||
|
11060
|
11060
11060-01P02
Outlet-Water
1987-05-01 ~ ; VG30T; , |
11060-01P02 |
— | ||
|
11060
|
11060
01323-00041 WASHER-LOCK1983-07-01 ~ 1986-09-01; VG30 +VG30T; , |
01323-00041 |
US $1.73 |
||
|
11060
|
11060
0891533610 WASHER-LOCK1986-09-01 ~ ; VG30 +VG30T; , |
0891533610 |
US $1.93 |
||
|
11069
|
11069
1106901P01
Neck Assy-Filler
1983-07-01 ~ ; VG30T; , |
1106901P01 |
— | ||
|
14001
|
14001
14003-03P01
Manifold Assy-Intake
1983-07-01 ~ 1985-09-01; VG30T; , |
14003-03P01 |
— | ||
|
14001
|
14001
14003-19P60
Manifold-Intake
1985-09-01 ~ ; VG30T; , |
14003-19P60 |
— | ||
|
14001
|
14001
16122-V5201
Bolt
1983-07-01 ~ 1984-12-01; VG30T; , |
16122-V5201 |
— | ||
|
14001
|
14001
16163-10V02 Bolt1984-12-01 ~ ; VG30T; , |
16163-10V02 |
US $4.03 |
||
|
14001
|
14001
16163-V5203 Bolt1984-12-01 ~ ; VG30T; , |
16163-V5203 |
US $2.16 |
||
|
14001
|
14001
14039W1500 Nut1983-07-01 ~ ; VG30T; , |
14039W1500 |
US $2.36 |
||
|
14001A
|
14001A
16122-V5201
Bolt
1983-07-01 ~ 1984-12-01; VG30T; , |
16122-V5201 |
— | ||
|
14001A
|
14001A
16163-10V02 Bolt1984-12-01 ~ ; VG30T; , |
16163-10V02 |
US $4.03 |
||
|
14001A
|
14001A
16163-V5203 Bolt1984-12-01 ~ ; VG30T; , |
16163-V5203 |
US $2.16 |
||
|
14002B
|
14002B
16122-V5202 Bolt1983-07-01 ~ 1984-12-01; VG30T; , |
16122-V5202 |
US $2.74 |
||
|
14002B
|
14002B
16163-V5204 Bolt1984-12-01 ~ ; VG30T; , |
16163-V5204 |
US $1.73 |
||
|
14003E
|
14003E
14088-V5000 Plug-Blind1983-07-01 ~ ; VG30T; , |
14088-V5000 |
US $3.31 |
||
|
14003F
|
14003F
14086-V5000 Plug-Welch1983-07-01 ~ ; VG30T; , |
14086-V5000 |
US $1.73 |
||
| replacement | |||||
|
14003F
|
14003F
00933-1121A
PLUG
1983-07-01 ~ ; VG30T; , |
00933-1121A |
— | ||
|
14003G
|
14003G
14086-V5005 Plug-Welch1983-07-01 ~ ; VG30T; , |
14086-V5005 |
US $2.45 |
||
|
14005M
|
14005M
14005-03P62
Cover-Intake Manifold Collector
1983-07-01 ~ ; VG30T; , |
14005-03P62 |
— | ||
|
14010A
|
14010A
14009-V5201
Gasket-Manifold, Upper
1983-07-01 ~ ; VG30T; , |
14009-V5201 |
— | ||
| replacement | |||||
|
14010A
|
14010A
14009-V5210 Gasket-Intake Manifold1983-07-01 ~ ; VG30T; , |
14009-V5210 |
US $18.99 |
||
|
14012
|
14012
14039-V5011 Nut1984-12-01 ~ ; VG30T; , |
14039-V5011 |
US $4.03 |
||
|
14012
|
14012
14039-V5300 Nut1983-07-01 ~ 1984-12-01; VG30T; F/INT-MANIF FIX |
14039-V5300 |
US $4.03 |
||
|
14013M
|
14013M
14013-02P01
Collector-Intake Manifold
1983-07-01 ~ 1983-08-01; VG30T; , |
14013-02P01 |
— | ||
|
14013M
|
14013M
14013-02P05 Collector-Intake Manifold1983-08-01 ~ 1983-10-01; VG30T; , |
14013-02P05 |
US $638.62 |
||
|
14013M
|
14013M
14013-02P07 Collector-Intake Manifold1983-10-01 ~ 1987-08-01; VG30T; , |
14013-02P07 |
US $601.80 |
||
|
14026E
|
14026E
14037-V5200 Spacer1983-07-01 ~ ; VG30T; , |
14037-V5200 |
from US $10.69 |
||
|
14026E
|
14026E
14037-V5200 Spacer1983-07-01 ~ ; VG30T; , |
14037-V5200 |
from US $10.69 |
||
|
14035
|
14035
14035V5202 Gasket-Manifold1983-07-01 ~ ; VG30T; , |
14035V5202 |
from US $52.02 |
||
|
14035
|
14035
14033-88G00 Gasket-Intake Manifold1990-01-01 ~ ; VG30T; , |
14033-88G00 |
US $18.29 |
||
|
14035
|
14035
14080-V5200 Gasket-Intake Manifold, A1983-07-01 ~ 1990-01-01; VG30T; , |
14080-V5200 |
US $18.29 |
||
|
14035
|
14035
14035V5202 Gasket-Manifold1983-07-01 ~ ; VG30T; , |
14035V5202 |
from US $52.02 |
||
|
14035
|
14035
14033-88G00 Gasket-Intake Manifold1990-01-01 ~ ; VG30T; , |
14033-88G00 |
US $18.29 |
||
|
14035
|
14035
14080-V5200 Gasket-Intake Manifold, A1983-07-01 ~ 1990-01-01; VG30T; , |
14080-V5200 |
US $18.29 |
||
|
14035M
|
14035M
14033-88G00 Gasket-Intake Manifold1990-01-01 ~ ; VG30T; , |
14033-88G00 |
US $18.29 |
||
|
14035M
|
14035M
14080-V5200 Gasket-Intake Manifold, A1983-07-01 ~ 1990-01-01; VG30T; , |
14080-V5200 |
US $18.29 |
||
|
14069A
|
14069A
14069-V5001 Bolt1983-07-01 ~ ; VG30T; , |
14069-V5001 |
from US $2.44 |
||
|
14330A
|
14330A
14070-03P65
Screw-Intake Shutter Valve
1983-07-01 ~ 1983-11-01; VG30T; , |
14070-03P65 |
— | ||
|
14330A
|
14330A
14070-03P66 Screw-Intake Shutter Valve1983-11-01 ~ ; VG30T; , |
14070-03P66 |
US $3.46 |
||
|
21010J
|
21010J
11062-01P00
Seal-O Ring
1983-07-01 ~ ; VG30T; , |
11062-01P00 |
— | ||
|
21045J
|
21045J
11062-01P10
Seal-O Ring
1983-07-01 ~ ; VG30T; , |
11062-01P10 |
— | ||
