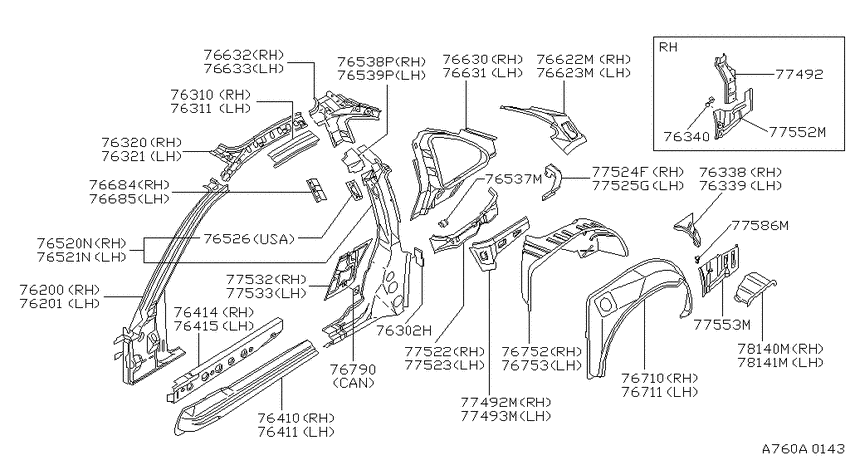

Body side panel (1993-09-01 ~ ; COUPE; .FED.C +FED.T/R +FED.CV +CAL.C +CAL.T/R +CAL.CV) Diagram Nissan 300ZX
- Year
- 1989 - 1991
- Sales region
- U.S.A.
- Engine
- VG30DTT
- transmission
- MT
- grade
- GLL
- Roof
- CAL.T/R
- seat
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76200
|
76200
76200-44P00
Pillar-Front, Rh
1993-09-01 ~ 1994-04-01; FED.T/R +CAL.T/R; , |
76200-44P00 |
— | ||
|
76200
|
76200
76200-48P60
Pillar-Front, Rh
1994-04-01 ~ ; FED.T/R +CAL.T/R; , |
76200-48P60 |
— | ||
|
76200
|
76200
G6200-30P00
Pillar-Front, Rh
1990-07-01 ~ 1993-09-01; FED.T/R +CAL.T/R; , |
G6200-30P00 |
— | ||
| replacement | |||||
|
76200
|
76200
76200-30P50
Pillar-front,rh
1990-07-01 ~ 1993-09-01; FED.T/R +CAL.T/R; , |
76200-30P50 |
— | ||
|
76201
|
76201
76201-30P10
Pillar-Front, Lh
1993-09-01 ~ 1994-04-01; &FED.T/R.VG30DTT.MT +CAL.T/R.VG30DTT.MT; , |
76201-30P10 |
— | ||
|
76201
|
76201
76201-48P70
Pillar-Front, Lh
1994-04-01 ~ 1995-07-01; &FED.T/R.VG30DTT.MT +CAL.T/R.VG30DTT.MT; , |
76201-48P70 |
— | ||
|
76201
|
76201
76201-54P66
Pillar-Front, Lh
1995-07-01 ~ ; &FED.T/R.VG30DTT.MT +CAL.T/R.VG30DTT.MT; , |
76201-54P66 |
— | ||
|
76201
|
76201
G6201-30P00
Pillar-Front, Lh
1991-09-01 ~ 1993-09-01; FED.T/R +CAL.T/R; , |
G6201-30P00 |
— | ||
| replacement | |||||
|
76201
|
76201
76201-30P50
Pillar-front,lh
1991-09-01 ~ 1993-09-01; FED.T/R +CAL.T/R; , |
76201-30P50 |
— | ||
|
76201
|
76201
G6201-30P10
Pillar-Front, Lh
1990-07-01 ~ 1991-09-01; &FED.T/R.VG30DTT.MT +CAL.T/R.VG30DTT.MT; , |
G6201-30P10 |
— | ||
| replacement | |||||
|
76201
|
76201
76201-30P55
Pillar-front,lh
1990-07-01 ~ 1991-09-01; &FED.T/R.VG30DTT.MT +CAL.T/R.VG30DTT.MT; , |
76201-30P55 |
— | ||
|
76302H
|
76302H
76594-30P00 Plate-Tapping1990-07-01 ~ 1991-09-01; FED.T/R +CAL.T/R; , |
76594-30P00 |
US $7.63 |
||
|
76338
|
76338
77556-30P00 Retainer-Rear Side Finish, Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
77556-30P00 |
US $77.33 |
||
|
76339
|
76339
77557-30P00 Retainer-Rear Side Finish, Lh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
77557-30P00 |
US $77.33 |
||
|
76340
|
76340
77596-30P00 Bracket-Body Inner, Rh1991-09-01 ~ 1993-09-01; (FED.T/R+CAL.T/R).2S; , |
77596-30P00 |
US $42.62 |
||
|
76410
|
76410
76412-30P00 Sill-Outer, Rh1989-02-01 ~ 1990-07-01; FED.T/R +CAL.T/R; , |
76412-30P00 |
US $390.82 |
||
|
76410
|
76410
76412-30P60 Sill-Outer, Rh1990-07-01 ~ ; FED.T/R +CAL.T/R; , |
76412-30P60 |
US $390.82 |
||
|
76411
|
76411
76413-30P00 Sill-Outer, Lh1989-02-01 ~ 1990-07-01; FED.T/R +CAL.T/R; , |
76413-30P00 |
US $390.82 |
||
|
76411
|
76411
76413-30P60 Sill-Outer, Lh1990-07-01 ~ ; FED.T/R +CAL.T/R; , |
76413-30P60 |
US $527.23 |
||
|
76414
|
76414
76424-30P00 Reinforcement-Sill Outer, Rh1990-07-01 ~ ; FED.T/R +CAL.T/R; , |
76424-30P00 |
US $73.15 |
||
|
76415
|
76415
76425-30P00 Reinforcement-Sill Outer, Lh1990-07-01 ~ ; FED.T/R +CAL.T/R; , |
76425-30P00 |
US $73.15 |
||
|
76520N
|
76520N
76530-30P50 Pillar-Center, Inner Upper Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76530-30P50 |
US $572.06 |
||
|
76520N
|
76520N
G6530-30P50
Pillar-Center, Inner Upper Rh
1991-09-01 ~ 1993-09-01; (FED.T/R+CAL.T/R).2S; , |
G6530-30P50 |
— | ||
|
76520N
|
76520N
G6530-40P50
Pillar-Center, Inner Upper Rh
1990-07-01 ~ 1991-09-01; T/R.2S; , |
G6530-40P50 |
— | ||
| replacement | |||||
|
76520N
|
76520N
76530-40P50
Pillar-center,inner upper rh
1990-07-01 ~ 1991-09-01; T/R.2S; , |
76530-40P50 |
— | ||
|
76521N
|
76521N
76531-30P50 Pillar-Center, Inner Upper Lh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76531-30P50 |
US $572.06 |
||
|
76521N
|
76521N
G6531-30P50
Pillar-Center, Inner Upper Lh
1991-09-01 ~ 1993-09-01; (FED.T/R+CAL.T/R).2S; , |
G6531-30P50 |
— | ||
|
76521N
|
76521N
G6531-40P50
Pillar-Center, Inner Upper Lh
1990-07-01 ~ 1991-09-01; T/R.2S; , |
G6531-40P50 |
— | ||
| replacement | |||||
|
76521N
|
76521N
76531-40P50
Pillar-center,inner upper lh
1990-07-01 ~ 1991-09-01; T/R.2S; , |
76531-40P50 |
— | ||
|
76526
|
76526
76580-30P00 Anchor Assy-Front Shoulder Belt, Rh1990-07-01 ~ 1991-09-01; FED.T/R +CAL.T/R; , |
76580-30P00 |
US $69.70 |
||
|
76537M
|
76537M
77598-30P00 Plate-Rear Side1990-07-01 ~ ; FED.T/R +CAL.T/R; , |
77598-30P00 |
US $21.89 |
||
|
76622M
|
76622M
76616-30P00 Reinforce-Rear Pillar Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76616-30P00 |
US $80.64 |
||
|
76623M
|
76623M
76617-30P00 Reinforce-Rear Pillar Lh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76617-30P00 |
US $80.64 |
||
|
76630
|
76630
76652-30P00 Pillar-Rear, Inner Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76652-30P00 |
US $455.95 |
||
|
76631
|
76631
76653-30P00 Pillar-Rear, Inner Lh1989-02-01 ~ 1990-07-01; FED.T/R.2S +CAL.T/R.2S; , |
76653-30P00 |
US $455.95 |
||
|
76632
|
76632
76630-30P00 Pillar-Rear, Inner Upper Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76630-30P00 |
US $88.13 |
||
|
76633
|
76633
76631-30P00 Pillar-Rear, Inner Upper Lh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76631-30P00 |
US $88.13 |
||
|
76684
|
76684
76584-40P00 Reinforce-Seat Belt Anchor, Rh1993-09-01 ~ ; FED.T/R +CAL.T/R; , |
76584-40P00 |
US $96.48 |
||
|
76685
|
76685
76585-40P00 Reinforce-Seat Belt Anchor, Lh1993-09-01 ~ ; FED.T/R +CAL.T/R; , |
76585-40P00 |
US $96.48 |
||
|
76710
|
76710
76712-30P00 Wheel House-Rear, Outer Rh1990-07-01 ~ ; FED.T/R +CAL.T/R; , |
76712-30P00 |
US $331.34 |
||
|
76711
|
76711
76713-30P00 Wheel House-Rear, Outer Lh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76713-30P00 |
US $331.34 |
||
|
76752
|
76752
76750-30P00 Wheel House-Rear, Inner Rh1989-02-01 ~ 1990-07-01; FED.T/R.2S +CAL.T/R.2S; , |
76750-30P00 |
US $355.42 |
||
|
76752
|
76752
76750-30P60 Wheel House-Rear, Inner Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76750-30P60 |
US $355.42 |
||
|
76753
|
76753
76751-30P00 Wheel House-Rear, Inner Lh1989-02-01 ~ 1990-07-01; FED.T/R.2S +CAL.T/R.2S; , |
76751-30P00 |
US $355.42 |
||
|
76753
|
76753
76751-30P60 Wheel House-Rear, Inner Lh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76751-30P60 |
US $355.42 |
||
|
77492
|
77492
77578-30P00 Reinforce-Side Panel, Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
77578-30P00 |
US $58.18 |
||
|
77492
|
77492
76654-30P00 Reinforce-Side Panel, Upper Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76654-30P00 |
US $76.61 |
||
|
77492M
|
77492M
76654-30P00 Reinforce-Side Panel, Upper Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76654-30P00 |
US $76.61 |
||
|
77493M
|
77493M
76655-30P00 Reinforce-Side Panel, Upper Lh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76655-30P00 |
US $76.61 |
||
|
77522
|
77522
77522-30P00 Side Panel-Inner, Rear Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
77522-30P00 |
US $233.28 |
||
|
77523
|
77523
77521-30P00 Side Panel-Inner, Rear Lh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
77521-30P00 |
US $233.28 |
||
|
77524F
|
77524F
77524-30P00 Extension-Side Panel, Inner Lower Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
77524-30P00 |
US $76.61 |
||
|
77525G
|
77525G
77525-30P00 Extension-Side Panel, Inner Lower Lh1989-02-01 ~ 1990-07-01; FED.T/R.2S +CAL.T/R.2S; , |
77525-30P00 |
US $76.61 |
||
|
77532
|
77532
77530-30P00 Side Panel-Inner, Front Lower Rh1991-09-01 ~ 1993-09-01; (FED.T/R+CAL.T/R).2S; , |
77530-30P00 |
US $54 |
||
| replacement | |||||
|
77532
|
77532
G7530-30P00
Side panel-inner,front lower rh
1991-09-01 ~ 1993-09-01; (FED.T/R+CAL.T/R).2S; , |
G7530-30P00 |
— | ||
|
77532
|
77532
77530-48P00 Side Panel-Inner, Front Lower Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
77530-48P00 |
US $54 |
||
| replacement | |||||
|
77532
|
77532
G7530-48P00
Side panel-inner,front lower rh
1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
G7530-48P00 |
— | ||
|
77533
|
77533
77531-30P00 Side Panel-Inner, Front Lower Lh1991-09-01 ~ 1993-09-01; (FED.T/R+CAL.T/R).2S; , |
77531-30P00 |
US $54 |
||
| replacement | |||||
|
77533
|
77533
G7531-30P00
Side panel-inner,front lower lh
1991-09-01 ~ 1993-09-01; (FED.T/R+CAL.T/R).2S; , |
G7531-30P00 |
— | ||
|
77533
|
77533
77531-48P00 Side Panel-Inner, Front Lower Lh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
77531-48P00 |
US $54 |
||
| replacement | |||||
|
77533
|
77533
G7531-48P00
Side panel-inner,front lower lh
1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
G7531-48P00 |
— | ||
|
77552M
|
77552M
77552-30P00 Side Panel-Inner, Rear Lower Rh1989-02-01 ~ 1990-07-01; FED.T/R.2S +CAL.T/R.2S; , |
77552-30P00 |
US $69.84 |
||
|
77552M
|
77552M
77552-30P60 Side Panel-Inner, Rear Lower Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
77552-30P60 |
US $69.84 |
||
|
77553M
|
77553M
77553-30P00 Side Panel-Inner, Rear Lower Lh1989-02-01 ~ 1990-07-01; FED.T/R.2S +CAL.T/R.2S; , |
77553-30P00 |
US $69.84 |
||
|
77553M
|
77553M
77553-30P60 Side Panel-Inner, Rear Lower Lh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
77553-30P60 |
US $69.84 |
||
|
77586M
|
77586M
77586-30P00 Bracket-Washer Tank1993-09-01 ~ 1995-07-01; CAL.T/R.VG30DTT; , |
77586-30P00 |
US $11.66 |
||
|
78140M
|
78140M
76808-30P00 Base-Drafter, Rh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76808-30P00 |
US $58.18 |
||
|
78141M
|
78141M
76809-30P00 Base-Drafter, Lh1993-09-01 ~ ; CAL.T/R.VG30DTT; , |
76809-30P00 |
US $58.18 |
||
