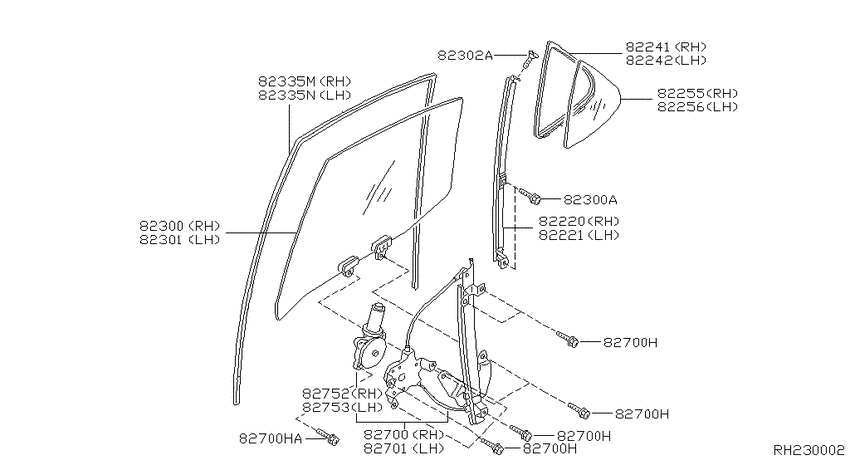

Rear door window & regulator (1997-06-01 ~ 1999-08-01; 4S) Diagram Nissan ALTIMA
- Year
- 1997 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82220
|
82220
82222-0Z800
Sash assy-rear door,center rh
2000-04-01 ~ ; 4S; , |
82222-0Z800 |
— | ||
|
82220
|
82220
82222-9E000
Sash assy-rear door,center rh
1997-06-01 ~ 1999-08-01; 4S; , |
82222-9E000 |
— | ||
|
82221
|
82221
82223-0Z800
Sash assy-rear door,center lh
2000-04-01 ~ ; 4S; , |
82223-0Z800 |
— | ||
|
82221
|
82221
82223-9E000
Sash assy-rear door,center lh
1997-06-01 ~ 1999-08-01; 4S; , |
82223-9E000 |
— | ||
|
82241
|
82241
82272-9E000
Weatherstrip-rear corner,rh
1997-06-01 ~ 1999-08-01; 4S; , |
82272-9E000 |
— | ||
|
82242
|
82242
82273-9E000
Weatherstrip-rear corner,lh
1997-06-01 ~ 1999-08-01; 4S; , |
82273-9E000 |
— | ||
|
82255
|
82255
82262-9E000
Glass-rear door corner,rh
1997-06-01 ~ 1999-08-01; 4S; , |
82262-9E000 |
— | ||
|
82256
|
82256
82263-9E000
Glass-rear door corner,lh
1997-06-01 ~ 1999-08-01; 4S; , |
82263-9E000 |
— | ||
|
82300
|
82300
82300-9E000
Glass assy-rear door window,rh
1997-06-01 ~ 1999-08-01; 4S; , |
82300-9E000 |
— | ||
|
82300
|
82300
01125-0023U
Bolt
2000-07-01 ~ ; 4S; , |
01125-0023U |
— | ||
|
82300
|
82300
0112503241 BOLT1997-06-01 ~ 1999-08-01; 4S; , |
0112503241 |
US $1.73 |
||
|
82300A
|
82300A
01125-0023U
Bolt
2000-07-01 ~ ; 4S; , |
01125-0023U |
— | ||
|
82300A
|
82300A
0112503241 BOLT1997-06-01 ~ 1999-08-01; 4S; , |
0112503241 |
US $1.73 |
||
|
82301
|
82301
82301-9E000
Glass assy-rear door window,lh
1997-06-01 ~ 1999-08-01; 4S; , |
82301-9E000 |
— | ||
|
82302A
|
82302A
01431-00401
SCREW
1997-06-01 ~ 1999-08-01; 4S; , |
01431-00401 |
— | ||
|
82335M
|
82335M
82330-8Z801
Glass run-rear door window,rh
2000-05-01 ~ ; 4S; , |
82330-8Z801 |
— | ||
|
82335M
|
82335M
82330-9E000
Glass run-rear door window,rh
1997-06-01 ~ 1999-08-01; 4S; , |
82330-9E000 |
— | ||
|
82335M
|
82335M
82330-9E010
Glass run-rear door window,rh
1999-08-01 ~ 2000-05-01; 4S; , |
82330-9E010 |
— | ||
|
82335N
|
82335N
82331-8Z801
Glass run-rear door window,lh
2000-05-01 ~ ; 4S; , |
82331-8Z801 |
— | ||
|
82335N
|
82335N
82331-9E000
Glass run-rear door window,lh
1997-06-01 ~ 1999-08-01; 4S; , |
82331-9E000 |
— | ||
|
82335N
|
82335N
82331-9E010
Glass run-rear door window,lh
1999-08-01 ~ 2000-05-01; 4S; , |
82331-9E010 |
— | ||
|
82700
|
82700
82720-9E010
Regulator assy-door window,rh
1997-06-01 ~ 1999-08-01; 4S; , |
82720-9E010 |
— | ||
|
82700
|
82700
01125-0023U
Bolt
2000-07-01 ~ ; 4S; , |
01125-0023U |
— | ||
|
82700
|
82700
0112503241 BOLT1997-06-01 ~ 1999-08-01; 4S; , |
0112503241 |
US $1.73 |
||
|
82700
|
82700
01456-00641 SCREW1999-08-01 ~ ; 4S; , |
01456-00641 |
US $0.86 |
||
|
82700H
|
82700H
01125-0023U
Bolt
2000-07-01 ~ ; 4S; , |
01125-0023U |
— | ||
|
82700H
|
82700H
0112503241 BOLT1997-06-01 ~ 1999-08-01; 4S; , |
0112503241 |
US $1.73 |
||
|
82700H
|
82700H
01456-00641 SCREW1999-08-01 ~ ; 4S; , |
01456-00641 |
US $0.86 |
||
|
82700H
|
82700H
01125-0023U
Bolt
2000-07-01 ~ ; 4S; , |
01125-0023U |
— | ||
|
82700H
|
82700H
0112503241 BOLT1997-06-01 ~ 1999-08-01; 4S; , |
0112503241 |
US $1.73 |
||
|
82700H
|
82700H
01456-00641 SCREW1999-08-01 ~ ; 4S; , |
01456-00641 |
US $0.86 |
||
|
82700H
|
82700H
01125-0023U
Bolt
2000-07-01 ~ ; 4S; , |
01125-0023U |
— | ||
|
82700H
|
82700H
0112503241 BOLT1997-06-01 ~ 1999-08-01; 4S; , |
0112503241 |
US $1.73 |
||
|
82700H
|
82700H
01456-00641 SCREW1999-08-01 ~ ; 4S; , |
01456-00641 |
US $0.86 |
||
|
82700H
|
82700H
01125-0023U
Bolt
2000-07-01 ~ ; 4S; , |
01125-0023U |
— | ||
|
82700H
|
82700H
0112503241 BOLT1997-06-01 ~ 1999-08-01; 4S; , |
0112503241 |
US $1.73 |
||
|
82700H
|
82700H
01456-00641 SCREW1999-08-01 ~ ; 4S; , |
01456-00641 |
US $0.86 |
||
|
82700HA
|
82700HA
01456-00641 SCREW1999-08-01 ~ ; 4S; , |
01456-00641 |
US $0.86 |
||
|
82701
|
82701
82721-9E010
Regulator assy-door window,lh
1997-06-01 ~ 1999-08-01; 4S; , |
82721-9E010 |
— | ||
|
82752
|
82752
82730-9E010
Motor assy-regulator,rh
1997-06-01 ~ 1999-08-01; 4S; , |
82730-9E010 |
— | ||
| replacement | |||||
|
82752
|
82752
82730-0Z400
Motor assy-regulator,rh
1997-06-01 ~ 1999-08-01; 4S; , |
82730-0Z400 |
— | ||
|
82753
|
82753
82731-9E010
Motor assy-regulator,lh
1997-06-01 ~ 1999-08-01; 4S; , |
82731-9E010 |
— | ||
| replacement | |||||
|
82753
|
82753
82731-0Z400
Motor assy-regulator,lh
1997-06-01 ~ 1999-08-01; 4S; , |
82731-0Z400 |
— | ||
