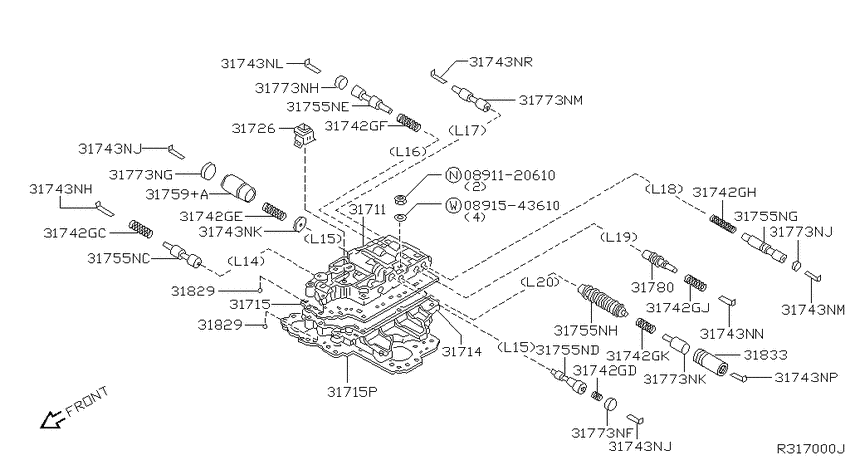

Control valve (atm) (2004-01-01 ~ ; UPPER; 4AT) Diagram Nissan ALTIMA
- Year
- 2003 - 2011
- Sales region
- U.S.A.
- Engine
- QR25DE
- transmission
- 4AT
- body
- 4S
- trim lvl
- 25S
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
31711
|
31711
31711-85X00
Body-Upper, Control Valve
2003-09-01 ~ 2004-01-01; 4AT; , |
31711-85X00 |
— | ||
|
31714
|
31714
31714-85X00 Body-Inter, Control Valve2004-01-01 ~ ; 4AT; , |
31714-85X00 |
US $71.14 |
||
|
31715
|
31715
31715-80L02
Plate-Separator
2003-09-01 ~ 2004-01-01; 4AT; LOCAL PART |
31715-80L02 |
— | ||
|
31715
|
31715
31715-85X01
Plate-Separator
2003-09-01 ~ 2004-01-01; 4AT; UPPER |
31715-85X01 |
— | ||
|
31715
|
31715
31715-85X11 Plate-Separator2004-01-01 ~ ; 4AT; NML PART |
31715-85X11 |
US $23.18 |
||
|
31715
|
31715
31715-85X12 Plate-Separator2004-01-01 ~ ; 4AT; LOCAL PART |
31715-85X12 |
US $23.18 |
||
|
31715
|
31715
31719-80L04
Plate-Separator
2003-09-01 ~ 2004-01-01; 4AT; LOCAL PART |
31719-80L04 |
— | ||
|
31715
|
31715
31719-85X10 Plate-Separator2003-09-01 ~ 2004-01-01; 4AT; NML PART |
31719-85X10 |
US $37.58 |
||
|
31715
|
31715
31719-89X10 Plate-Separator2004-01-01 ~ ; 4AT; , |
31719-89X10 |
US $37.58 |
||
|
31715P
|
31715P
31719-80L04
Plate-Separator
2003-09-01 ~ 2004-01-01; 4AT; LOCAL PART |
31719-80L04 |
— | ||
|
31715P
|
31715P
31719-85X10 Plate-Separator2003-09-01 ~ 2004-01-01; 4AT; NML PART |
31719-85X10 |
US $37.58 |
||
|
31715P
|
31715P
31719-89X10 Plate-Separator2004-01-01 ~ ; 4AT; , |
31719-89X10 |
US $37.58 |
||
|
31726
|
31726
31726-3AX01
Filter Assy-Oil, Auto Transmission
2004-01-01 ~ ; 4AT; , |
31726-3AX01 |
— | ||
| replacement | |||||
|
31726
|
31726
31726-3AX0A Filter Assy-Oil, Auto Transmission2004-01-01 ~ ; 4AT; , |
31726-3AX0A |
from US $5.68 |
||
|
31742GC
|
31742GC
31742-3AX03 Spring-Valve2003-09-01 ~ 2004-01-01; 4AT; L14 |
31742-3AX03 |
US $4.18 |
||
|
31742GC
|
31742GC
31742-41X15 Spring-Valve2004-01-01 ~ ; 4AT; L13 |
31742-41X15 |
US $0.86 |
||
|
31742GD
|
31742GD
31742-80X16 Spring-Valve2004-01-01 ~ ; 4AT; L13 |
31742-80X16 |
US $2.45 |
||
|
31742GE
|
31742GE
31742-3AX00 Spring-Valve2004-01-01 ~ ; 4AT; L15 |
31742-3AX00 |
US $4.18 |
||
|
31742GE
|
31742GE
31742-3AX03 Spring-Valve2004-01-01 ~ ; 4AT; L14 |
31742-3AX03 |
US $4.18 |
||
|
31742GF
|
31742GF
31742-3AX08 Spring-Valve2004-01-01 ~ ; 4AT; L15 |
31742-3AX08 |
US $4.18 |
||
|
31742GF
|
31742GF
31742-80X05 Spring-Valve2004-01-01 ~ ; 4AT; L16 |
31742-80X05 |
US $0.86 |
||
|
31742GF
|
31742GF
31742-80X15 Spring-Valve2003-09-01 ~ 2004-01-01; 4AT; L18 |
31742-80X15 |
US $2.45 |
||
|
31742GF
|
31742GF
31742-85X05 Spring-Valve2003-09-01 ~ 2004-01-01; 4AT; L16 |
31742-85X05 |
US $4.18 |
||
|
31742GH
|
31742GH
31742-80X15 Spring-Valve2004-01-01 ~ ; 4AT; L18 |
31742-80X15 |
US $2.45 |
||
|
31742GJ
|
31742GJ
31742-80X07 Spring-Valve2004-01-01 ~ ; 4AT; L19 |
31742-80X07 |
US $0.86 |
||
|
31742GK
|
31742GK
31742-80X15 Spring-Valve2004-01-01 ~ ; 4AT; L18 |
31742-80X15 |
US $2.45 |
||
|
31742GK
|
31742GK
31742-85X01 Spring-Valve2004-01-01 ~ ; 4AT; L21 |
31742-85X01 |
US $4.18 |
||
|
31743NH
|
31743NH
31743-31X02 Plate-Retainer2004-01-01 ~ ; 4AT; L16 |
31743-31X02 |
US $2.02 |
||
|
31743NJ
|
31743NJ
31743-3AX00 Plate-Retainer2004-01-01 ~ ; 4AT; L15 |
31743-3AX00 |
US $1.73 |
||
|
31743NJ
|
31743NJ
31743-3AX00 Plate-Retainer2004-01-01 ~ ; 4AT; L15 |
31743-3AX00 |
US $1.73 |
||
|
31743NK
|
31743NK
31743-80X05 Plate-Retainer2004-01-01 ~ ; 4AT; L12 |
31743-80X05 |
US $0.86 |
||
|
31743NK
|
31743NK
31743-80X06 Plate-Retainer2004-01-01 ~ ; 4AT; L15 |
31743-80X06 |
US $2.02 |
||
|
31743NL
|
31743NL
31743-31X02 Plate-Retainer2004-01-01 ~ ; 4AT; L14 |
31743-31X02 |
US $2.02 |
||
|
31743NM
|
31743NM
31743-80X04 Plate-Retainer2004-01-01 ~ ; 4AT; L18 |
31743-80X04 |
US $0.86 |
||
|
31743NN
|
31743NN
31743-31X02 Plate-Retainer2004-01-01 ~ ; 4AT; L14 |
31743-31X02 |
US $2.02 |
||
|
31743NP
|
31743NP
31743-80X04 Plate-Retainer2004-01-01 ~ ; 4AT; L18 |
31743-80X04 |
US $0.86 |
||
|
31743NP
|
31743NP
31743-80X05 Plate-Retainer2003-09-01 ~ 2004-01-01; 4AT; L12 |
31743-80X05 |
US $0.86 |
||
|
31743NP
|
31743NP
31743-80X06 Plate-Retainer2003-09-01 ~ 2004-01-01; 4AT; L18 |
31743-80X06 |
US $2.02 |
||
|
31743NR
|
31743NR
31743-31X02 Plate-Retainer2004-01-01 ~ ; 4AT; L16 |
31743-31X02 |
US $2.02 |
||
|
31755NC
|
31755NC
31772-80X11 Valve-Spool2004-01-01 ~ ; 4AT; L14 |
31772-80X11 |
US $10.80 |
||
|
31755ND
|
31755ND
31772-3AX01 Valve-Spool2004-01-01 ~ ; 4AT; L15 |
31772-3AX01 |
US $10.80 |
||
|
31755NE
|
31755NE
31772-21X00 Valve-Spool2004-01-01 ~ ; 4AT; L16 |
31772-21X00 |
US $6.94 |
||
|
31755NG
|
31755NG
31772-80X04 Valve-Spool2004-01-01 ~ ; 4AT; L18 |
31772-80X04 |
US $10.22 |
||
|
31755NH
|
31755NH
31772-21X00 Valve-Spool2003-09-01 ~ 2004-01-01; 4AT; L16 |
31772-21X00 |
US $6.94 |
||
|
31755NH
|
31755NH
31772-80X60
Valve-Spool
2004-01-01 ~ ; 4AT; L5 |
31772-80X60 |
— | ||
|
31759+A
|
31759+A
31675-31X06 Piston-Accumulator Servo2003-09-01 ~ 2004-01-01; 4AT; N-D |
31675-31X06 |
US $10.39 |
||
|
31759+A
|
31759+A
31675-3AX00 Piston-Accumulator2004-01-01 ~ ; 4AT; L15 |
31675-3AX00 |
US $14.40 |
||
|
31773NF
|
31773NF
31845-27X62 Plug2004-01-01 ~ ; 4AT; L12 |
31845-27X62 |
US $7.34 |
||
|
31773NG
|
31773NG
31845-60X00 Plug2004-01-01 ~ ; 4AT; L18 |
31845-60X00 |
US $2.45 |
||
|
31773NG
|
31773NG
31845-80X04 Plug2004-01-01 ~ ; 4AT; L15 |
31845-80X04 |
US $6.19 |
||
|
31773NH
|
31773NH
31845-31X07 Plug2003-09-01 ~ 2004-01-01; 4AT; L16 |
31845-31X07 |
US $2.45 |
||
|
31773NJ
|
31773NJ
31845-60X00 Plug2004-01-01 ~ ; 4AT; L12 |
31845-60X00 |
US $2.45 |
||
|
31773NK
|
31773NK
31845-31X07 Plug2004-01-01 ~ ; 4AT; L16 |
31845-31X07 |
US $2.45 |
||
|
31773NK
|
31773NK
31845-80X03 Plug2004-01-01 ~ ; 4AT; L21 |
31845-80X03 |
US $7.34 |
||
|
31773NM
|
31773NM
31845-31X00 Plug2004-01-01 ~ ; 4AT; L4 |
31845-31X00 |
US $6.19 |
||
|
31780
|
31780
31780-80X00 Valve-Relief2004-01-01 ~ ; 4AT; L19 |
31780-80X00 |
US $13.25 |
||
|
31829
|
31829
31829-68300 Ball-Steel2004-01-01 ~ ; 4AT; , |
31829-68300 |
US $1.73 |
||
|
31829
|
31829
32829-26760 Ball-Check2004-01-01 ~ ; 4AT; , |
32829-26760 |
from US $0.74 |
||
|
31829
|
31829
31829-68300 Ball-Steel2004-01-01 ~ ; 4AT; , |
31829-68300 |
US $1.73 |
||
|
31829
|
31829
32829-26760 Ball-Check2004-01-01 ~ ; 4AT; , |
32829-26760 |
from US $0.74 |
||
|
31833
|
31833
31833-3AX00 Sleeve-Lock Up Control2004-01-01 ~ ; 4AT; L20 |
31833-3AX00 |
US $13.10 |
||
