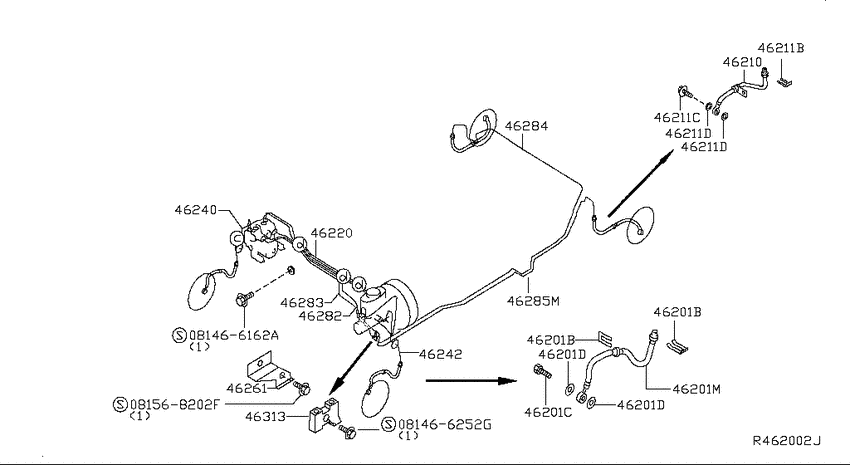

Brake piping & control (2004-01-01 ~ ; PIPING (ABS); 4S) Diagram Nissan ALTIMA
- Year
- 2004 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- 5MT
- body
- 4S
- trim lvl
- 35SE
- emission
- 50STATE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162A
|
081466162A
08146-6162A
Боли с шестигранной головкой
|
08146-6162A |
— | ||
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081568202F
|
081568202F
081568202F BOLTHEXPP WW |
081568202F |
from US $0.85 |
||
|
46201B
|
46201B
46206M0200 Spring-Lock2004-01-01 ~ ; 4S; , |
46206M0200 |
US $1.67 |
||
|
46201B
|
46201B
46206M0200 Spring-Lock2004-01-01 ~ ; 4S; , |
46206M0200 |
US $1.67 |
||
|
46201C
|
46201C
46356-0E000
BOLT-UNION,FRONT BRAKE HOSE
2004-01-01 ~ ; 4S; , |
46356-0E000 |
— | ||
| replacement | |||||
|
46201C
|
46201C
463560E00A Bolt-Union, Front Brake Hose2004-01-01 ~ ; 4S; , |
463560E00A |
from US $1.52 |
||
|
46201D
|
46201D
46237A4600 Gasket-Clutch Hose2004-01-01 ~ ; 4S; , |
46237A4600 |
from US $0.35 |
||
|
46201D
|
46201D
46237A4600 Gasket-Clutch Hose2004-01-01 ~ ; 4S; , |
46237A4600 |
from US $0.35 |
||
|
46201M
|
46201M
46210-8J005
Hose Assy-Brake, Front
2004-01-01 ~ ; 4S; F/RH |
46210-8J005 |
— | ||
|
46201M
|
46201M
46210-8J015
Hose Assy-Brake, Front
2004-01-01 ~ 2004-12-01; 4S; F/LH |
46210-8J015 |
— | ||
|
46201M
|
46201M
46210-ZB51A
Hose Assy-Brake, Front
2004-12-01 ~ ; 4S; F/LH |
46210-ZB51A |
— | ||
|
46210
|
46210
46210-8J011
Hose Assy-Brake, Rear
2004-01-01 ~ ; 4S; , |
46210-8J011 |
— | ||
|
46210
|
46210
46211-8J011
Hose Assy-Brake, Rear
2004-01-01 ~ ; 4S; , |
46211-8J011 |
— | ||
|
46211B
|
46211B
46206M0200 Spring-Lock2004-01-01 ~ ; 4S; , |
46206M0200 |
US $1.67 |
||
|
46211C
|
46211C
46356-0E000
BOLT-UNION,FRONT BRAKE HOSE
2004-01-01 ~ ; 4S; , |
46356-0E000 |
— | ||
| replacement | |||||
|
46211C
|
46211C
463560E00A Bolt-Union, Front Brake Hose2004-01-01 ~ ; 4S; , |
463560E00A |
from US $1.52 |
||
|
46211D
|
46211D
46237A4600 Gasket-Clutch Hose2004-01-01 ~ ; 4S; , |
46237A4600 |
from US $0.35 |
||
|
46211D
|
46211D
46237A4600 Gasket-Clutch Hose2004-01-01 ~ ; 4S; , |
46237A4600 |
from US $0.35 |
||
|
46220
|
46220
46220-8J010
Tube Compl-Brake
2004-01-01 ~ ; #*4S.VQ35DE +*4S.(25S+25S/CONV+25SL); , |
46220-8J010 |
— | ||
|
46220
|
46220
0156100241 CLAMP2004-01-01 ~ ; 4S; , |
0156100241 |
from US $0.57 |
||
|
46240
|
46240
46240-8J000
Tube Assy-Brake, Front Rh
2004-01-01 ~ ; 4S.QR25DE +4S.VQ35DE.5MT +4S.6MT; , |
46240-8J000 |
— | ||
|
46240
|
46240
46240-8J010
Tube Assy-Brake, Front Rh
2004-01-01 ~ ; #*4S.VQ35DE +*4S.(25S+25S/CONV+25SL); , |
46240-8J010 |
— | ||
|
46242
|
46242
46242-8J000
Tube Assy-Brake, Front Lh
2004-01-01 ~ ; 4S; , |
46242-8J000 |
— | ||
|
46261
|
46261
46261-5M000
Bracket-Brake Tube
2004-01-01 ~ ; 4S; , |
46261-5M000 |
— | ||
|
46282
|
46282
46282-8J000
Tube Assy-Brake, Rear
2004-01-01 ~ ; 4S.QR25DE +4S.VQ35DE.5MT +4S.6MT; , |
46282-8J000 |
— | ||
|
46282
|
46282
46282-8J010
Tube Assy-Brake, Rear
2004-01-01 ~ ; #*4S.VQ35DE +*4S.(25S+25S/CONV+25SL); , |
46282-8J010 |
— | ||
|
46283
|
46283
46283-8J000
Tube Assy-Brake, Rear
2004-01-01 ~ ; 4S.QR25DE +4S.VQ35DE.5MT +4S.6MT; , |
46283-8J000 |
— | ||
|
46283
|
46283
46283-8J010
Tube Assy-Brake, Rear
2004-01-01 ~ ; #*4S.VQ35DE +*4S.(25S+25S/CONV+25SL); , |
46283-8J010 |
— | ||
|
46284
|
46284
46284-9J300
Tube Assy-Brake, Rear
2004-01-01 ~ ; 4S; , |
46284-9J300 |
— | ||
|
46285M
|
46285M
46285-9J300
Tube Assy-Brake, Rear
2004-01-01 ~ ; 4S; , |
46285-9J300 |
— | ||
|
46313
|
46313
46313-40U00 Connector-Brake Tube2004-01-01 ~ ; 4S; , |
46313-40U00 |
from US $11.66 |
||
