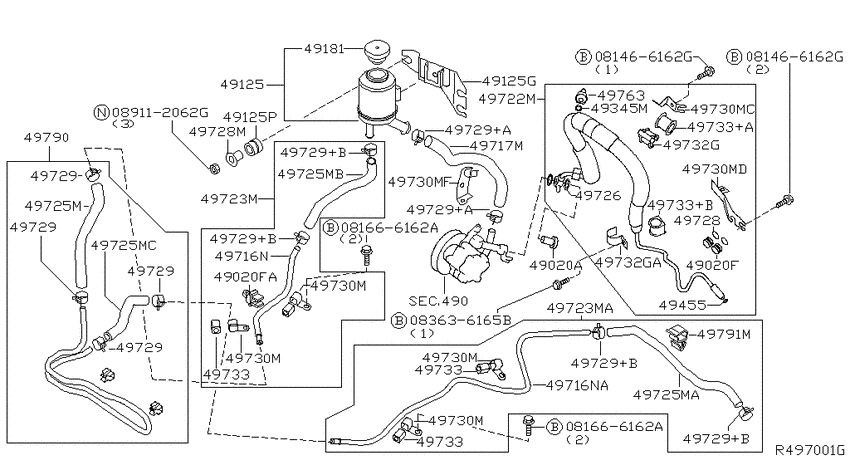

Power steering piping (2004-01-01 ~ ; VQ35DE) Diagram Nissan ALTIMA
- Year
- 2004 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- 5MT
- body
- 4S
- trim lvl
- 35SE
- emission
- 50STATE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081666162A
|
081666162A
08166-6162A
SCREW
|
08166-6162A |
— | ||
|
081666162A
|
081666162A
08166-6162A
SCREW
|
08166-6162A |
— | ||
|
083636165B
|
083636165B
08363-6165B
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6165B |
— | ||
|
089112062G
|
089112062G
08911-2062G NUTHEX |
08911-2062G |
from US $0.57 |
||
|
49020A
|
49020A
0161900011 BOLT2004-01-01 ~ ; VQ35DE; , |
0161900011 |
from US $3.76 |
||
|
49020F
|
49020F
18316S3260 Bush2004-01-01 ~ ; VQ35DE; , |
18316S3260 |
from US $3.42 |
||
|
49020F
|
49020F
46271-66C00 Insulator2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
46271-66C00 |
US $2.45 |
||
|
49020FA
|
49020FA
46271-66C00 Insulator2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
46271-66C00 |
US $2.45 |
||
|
49125
|
49125
49180-8J000 Tank Assy-Reservoir, Power Steering2004-01-01 ~ ; VQ35DE; , |
49180-8J000 |
US $164.35 |
||
|
49125
|
49125
49190-8J000
Bracket-Reservoir Tank
2004-01-01 ~ ; VQ35DE; , |
49190-8J000 |
— | ||
|
49125
|
49125
49195-4Z000
Insulator
2004-01-01 ~ ; VQ35DE; , |
49195-4Z000 |
— | ||
|
49125G
|
49125G
49190-8J000
Bracket-Reservoir Tank
2004-01-01 ~ ; VQ35DE; , |
49190-8J000 |
— | ||
|
49125P
|
49125P
49195-4Z000
Insulator
2004-01-01 ~ ; VQ35DE; , |
49195-4Z000 |
— | ||
|
49181
|
49181
49181-8B400 Cap Assy-Power Steering Reservoir Tank2004-01-01 ~ ; VQ35DE; , |
49181-8B400 |
US $16.02 |
||
|
49345M
|
49345M
493456N200 Seal-O Ring2004-01-01 ~ ; VQ35DE; , |
493456N200 |
from US $3.72 |
||
|
49455
|
49455
4974501E00 SEAL-O RING2004-01-01 ~ ; VQ35DE; , |
4974501E00 |
US $2.78 |
||
|
49716N
|
49716N
49723-8J010
Tube-power steering
2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49723-8J010 |
— | ||
|
49716N
|
49716N
49723-7Y000
Tube-Power Steering
2004-01-01 ~ ; VQ35DE; , |
49723-7Y000 |
— | ||
|
49716NA
|
49716NA
49723-7Y000
Tube-Power Steering
2004-01-01 ~ ; VQ35DE; , |
49723-7Y000 |
— | ||
|
49717M
|
49717M
49717-ZB000 Hose Assy-Suction, Power Steering2004-01-01 ~ ; VQ35DE; , |
49717-ZB000 |
US $38.31 |
||
|
49722M
|
49722M
49720-8J100
Hose & Tube Assy-Pressure, Power Steering
2004-01-01 ~ ; VQ35DE; , |
49720-8J100 |
— | ||
|
49723M
|
49723M
49721-8J010
Hose & tube assy-power steering
2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49721-8J010 |
— | ||
|
49723M
|
49723M
49721-7Y000
Hose & Tube Assy-Power Steering
2004-01-01 ~ ; VQ35DE; , |
49721-7Y000 |
— | ||
|
49723MA
|
49723MA
49721-7Y000
Hose & Tube Assy-Power Steering
2004-01-01 ~ ; VQ35DE; , |
49721-7Y000 |
— | ||
|
49725M
|
49725M
49725-8J001 Hose-Return, Power Steering2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49725-8J001 |
US $21.39 |
||
|
49725M
|
49725M
49725-8J100 Hose-Return, Power Steering2004-01-01 ~ ; VQ35DE; , |
49725-8J100 |
US $21.53 |
||
|
49725M
|
49725M
49725-8J000 Hose-Return, Power Steering2004-01-01 ~ ; VQ35DE; , |
49725-8J000 |
US $22.20 |
||
|
49725MA
|
49725MA
49725-8J100 Hose-Return, Power Steering2004-01-01 ~ ; VQ35DE; , |
49725-8J100 |
US $21.53 |
||
|
49725MB
|
49725MB
49725-8J000 Hose-Return, Power Steering2004-01-01 ~ ; VQ35DE; , |
49725-8J000 |
US $22.20 |
||
|
49726
|
49726
49726Y0100 Washer-Copper2004-01-01 ~ ; VQ35DE; , |
49726Y0100 |
from US $1.74 |
||
|
49728
|
49728
49728-55S00
Collar
2004-01-01 ~ ; VQ35DE; , |
49728-55S00 |
— | ||
| replacement | |||||
|
49728
|
49728
49728-55S0A Collar-Insulator2004-01-01 ~ ; VQ35DE; , |
49728-55S0A |
US $2.64 |
||
|
49728
|
49728
49728-4Z000
Collar-Insulator
2004-01-01 ~ ; VQ35DE; , |
49728-4Z000 |
— | ||
|
49728M
|
49728M
49728-4Z000
Collar-Insulator
2004-01-01 ~ ; VQ35DE; , |
49728-4Z000 |
— | ||
|
49729
|
49729
49729-2J001 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J001 |
US $2.45 |
||
|
49729
|
49729
49729-2J015 Clamp2004-01-01 ~ ; VQ35DE; , |
49729-2J015 |
US $2.45 |
||
|
49729
|
49729
49729-2J000 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J000 |
US $2.45 |
||
|
49729
|
49729
49729-2J001 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J001 |
US $2.45 |
||
|
49729
|
49729
49729-2J015 Clamp2004-01-01 ~ ; VQ35DE; , |
49729-2J015 |
US $2.45 |
||
|
49729
|
49729
49729-2J000 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J000 |
US $2.45 |
||
|
49729
|
49729
49729-2J001 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J001 |
US $2.45 |
||
|
49729
|
49729
49729-2J015 Clamp2004-01-01 ~ ; VQ35DE; , |
49729-2J015 |
US $2.45 |
||
|
49729
|
49729
49729-2J000 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J000 |
US $2.45 |
||
|
49729
|
49729
49729-2J001 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J001 |
US $2.45 |
||
|
49729
|
49729
49729-2J015 Clamp2004-01-01 ~ ; VQ35DE; , |
49729-2J015 |
US $2.45 |
||
|
49729
|
49729
49729-2J000 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J000 |
US $2.45 |
||
|
49729+A
|
49729+A
49729-2J015 Clamp2004-01-01 ~ ; VQ35DE; , |
49729-2J015 |
US $2.45 |
||
|
49729+A
|
49729+A
49729-2J015 Clamp2004-01-01 ~ ; VQ35DE; , |
49729-2J015 |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J000 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J000 |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J000 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J000 |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J000 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J000 |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J000 Clamp2004-01-01 ~ ; VQ35DE.(5MT+6MT); , |
49729-2J000 |
US $2.45 |
||
|
49730M
|
49730M
49730-8J105 Bracket-Tube2004-01-01 ~ ; VQ35DE; , |
49730-8J105 |
US $7.63 |
||
|
49730M
|
49730M
49730-8J101
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J101 |
— | ||
|
49730M
|
49730M
49730-8J102
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J102 |
— | ||
|
49730M
|
49730M
49730-8J100
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J100 |
— | ||
|
49730M
|
49730M
49730-8J105 Bracket-Tube2004-01-01 ~ ; VQ35DE; , |
49730-8J105 |
US $7.63 |
||
|
49730M
|
49730M
49730-8J101
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J101 |
— | ||
|
49730M
|
49730M
49730-8J102
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J102 |
— | ||
|
49730M
|
49730M
49730-8J100
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J100 |
— | ||
|
49730M
|
49730M
49730-8J105 Bracket-Tube2004-01-01 ~ ; VQ35DE; , |
49730-8J105 |
US $7.63 |
||
|
49730M
|
49730M
49730-8J101
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J101 |
— | ||
|
49730M
|
49730M
49730-8J102
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J102 |
— | ||
|
49730M
|
49730M
49730-8J100
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J100 |
— | ||
|
49730M
|
49730M
49730-8J105 Bracket-Tube2004-01-01 ~ ; VQ35DE; , |
49730-8J105 |
US $7.63 |
||
|
49730M
|
49730M
49730-8J101
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J101 |
— | ||
|
49730M
|
49730M
49730-8J102
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J102 |
— | ||
|
49730M
|
49730M
49730-8J100
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J100 |
— | ||
|
49730MC
|
49730MC
49730-8J101
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J101 |
— | ||
|
49730MD
|
49730MD
49730-8J102
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J102 |
— | ||
|
49730MF
|
49730MF
49730-8J100
Bracket-Tube
2004-01-01 ~ ; VQ35DE; , |
49730-8J100 |
— | ||
|
49732G
|
49732G
49732-4N004 Clamp2004-01-01 ~ ; VQ35DE; , |
49732-4N004 |
US $12.53 |
||
|
49732G
|
49732G
49732-79911 Clamp2004-01-01 ~ ; VQ35DE; , |
49732-79911 |
US $6.19 |
||
| replacement | |||||
|
49732G
|
49732G
497327991B Clamp2004-01-01 ~ ; VQ35DE; , |
497327991B |
US $6.19 |
||
|
49732GA
|
49732GA
49732-79911 Clamp2004-01-01 ~ ; VQ35DE; , |
49732-79911 |
US $6.19 |
||
| replacement | |||||
|
49732GA
|
49732GA
497327991B Clamp2004-01-01 ~ ; VQ35DE; , |
497327991B |
US $6.19 |
||
|
49733
|
49733
49733-55M00 Insulator2004-01-01 ~ ; VQ35DE; , |
49733-55M00 |
US $4.57 |
||
|
49733
|
49733
49733-4N000 Insulator2004-01-01 ~ ; VQ35DE; , |
49733-4N000 |
US $9.07 |
||
|
49733
|
49733
49733-AD200 Insulator2004-01-01 ~ ; VQ35DE; , |
49733-AD200 |
US $7.20 |
||
|
49733
|
49733
49733-55M00 Insulator2004-01-01 ~ ; VQ35DE; , |
49733-55M00 |
US $4.57 |
||
|
49733
|
49733
49733-4N000 Insulator2004-01-01 ~ ; VQ35DE; , |
49733-4N000 |
US $9.07 |
||
|
49733
|
49733
49733-AD200 Insulator2004-01-01 ~ ; VQ35DE; , |
49733-AD200 |
US $7.20 |
||
|
49733
|
49733
49733-55M00 Insulator2004-01-01 ~ ; VQ35DE; , |
49733-55M00 |
US $4.57 |
||
|
49733
|
49733
49733-4N000 Insulator2004-01-01 ~ ; VQ35DE; , |
49733-4N000 |
US $9.07 |
||
|
49733
|
49733
49733-AD200 Insulator2004-01-01 ~ ; VQ35DE; , |
49733-AD200 |
US $7.20 |
||
|
49733+A
|
49733+A
49733-4N000 Insulator2004-01-01 ~ ; VQ35DE; , |
49733-4N000 |
US $9.07 |
||
|
49733+B
|
49733+B
49733-AD200 Insulator2004-01-01 ~ ; VQ35DE; , |
49733-AD200 |
US $7.20 |
||
|
49763
|
49763
49763-6N200 Sensor Assy-Pressure, Power Steering2004-01-01 ~ ; VQ35DE; , |
49763-6N200 |
US $103.82 |
||
|
49791M
|
49791M
49791-WA000 Clip2004-01-01 ~ ; VQ35DE; , |
49791-WA000 |
US $9.07 |
||
