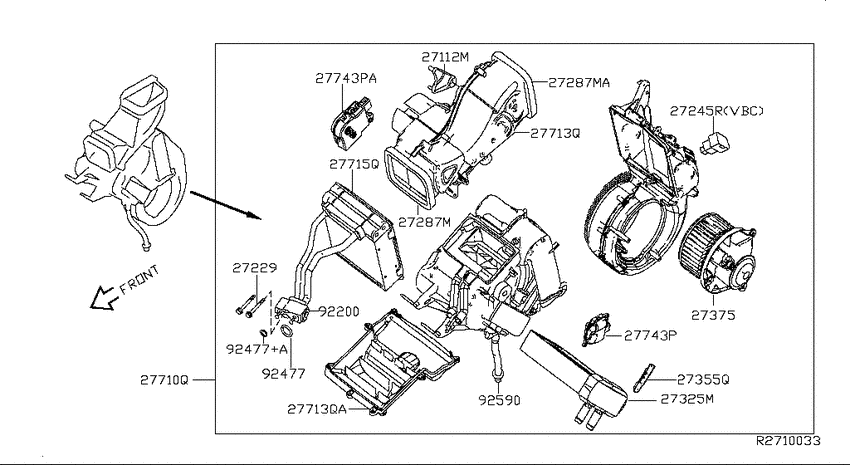

Cooling unit (2008-04-01 ~ ; REAR UNIT; W) Diagram Nissan ARMADA
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Engine
- VK56DE
- drive
- 4WD
- transmission
- AT
- grade
- SE
- body
- W
- emission
- FED
- fuel
- FLX/FUEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27112M
|
27112M
27155-7S000
Link Assy-Side
2008-04-01 ~ ; W; , |
27155-7S000 |
— | ||
|
27229
|
27229
92796-5Z000
Bolt
2008-04-01 ~ ; W; , |
92796-5Z000 |
— | ||
|
27245R
|
27245R
27151-ZT00A Vbc2008-04-01 ~ ; W; , |
27151-ZT00A |
US $431.31 |
||
|
27287M
|
27287M
27287-ZQ00B
Seal-Cooling Unit
2008-04-01 ~ ; W; , |
27287-ZQ00B |
— | ||
|
27287M
|
27287M
27287-ZR00B
Seal-Cooling Unit
2009-04-01 ~ ; *W; , |
27287-ZR00B |
— | ||
|
27287M
|
27287M
27287-ZQ00A
Seal-Cooling Unit
2008-04-01 ~ ; W; , |
27287-ZQ00A |
— | ||
|
27287MA
|
27287MA
27287-ZQ00A
Seal-Cooling Unit
2008-04-01 ~ ; W; , |
27287-ZQ00A |
— | ||
|
27325M
|
27325M
27325-ZQ00A
Core Assy-Rear Heater
2008-04-01 ~ ; W; , |
27325-ZQ00A |
— | ||
|
27355Q
|
27355Q
27355-ZQ00A
Bracket-Rear Heater
2008-04-01 ~ ; W; , |
27355-ZQ00A |
— | ||
|
27375
|
27375
27375-ZC30A
Blower Assy-Rear
2008-04-01 ~ ; W; , |
27375-ZC30A |
— | ||
|
27710Q
|
27710Q
27400-9GA0A Cooling Unit2010-01-01 ~ ; W; , |
27400-9GA0A |
US $733.47 |
||
|
27710Q
|
27710Q
27400-ZQ00A
Cooling Unit
2008-04-01 ~ 2010-01-01; W; , |
27400-ZQ00A |
— | ||
|
27713Q
|
27713Q
27415-ZQ00A
Case-Cooling Unit
2009-04-01 ~ ; W; , |
27415-ZQ00A |
— | ||
|
27713Q
|
27713Q
27416-ZM70A
Case-Cooling Unit
2009-04-01 ~ ; W; , |
27416-ZM70A |
— | ||
|
27713QA
|
27713QA
27416-ZM70A
Case-Cooling Unit
2009-04-01 ~ ; W; , |
27416-ZM70A |
— | ||
|
27715Q
|
27715Q
27411-ZQ00A Evaporator Assy-Cooler2008-04-01 ~ ; W; , |
27411-ZQ00A |
US $701.09 |
||
|
27743P
|
27743P
27743-ZQ00A
Actuator Assy
2009-04-01 ~ ; W; , |
27743-ZQ00A |
— | ||
|
27743P
|
27743P
27743-ZS00A
Actuator Assy-Rear Duct
2009-04-01 ~ ; W; , |
27743-ZS00A |
— | ||
|
27743PA
|
27743PA
27743-ZS00A
Actuator Assy-Rear Duct
2009-04-01 ~ ; W; , |
27743-ZS00A |
— | ||
|
92200
|
92200
92200-5Z000 Valve Assy-Expansion2008-04-01 ~ ; W; , |
92200-5Z000 |
US $100.81 |
||
|
92200
|
92200
92200-ZC00A Valve Assy-Expansion2008-04-01 ~ ; W; , |
92200-ZC00A |
US $136.75 |
||
|
92477
|
92477
92476-5Z000 Seal-O Ring2008-04-01 ~ ; W; , |
92476-5Z000 |
US $10.49 |
||
|
92477
|
92477
92477-5Z000 Seal-O Ring2008-04-01 ~ ; W; , |
92477-5Z000 |
US $15.76 |
||
|
92477+A
|
92477+A
92477-5Z000 Seal-O Ring2008-04-01 ~ ; W; , |
92477-5Z000 |
US $15.76 |
||
|
92590
|
92590
92590-7S010
Hose-Drain
2008-04-01 ~ 2009-04-01; W; , |
92590-7S010 |
— | ||
|
92590
|
92590
92590-ZQ01A
Hose-drain
2009-04-01 ~ ; W; , |
92590-ZQ01A |
— | ||
|
92590
|
92590
92590-EA000 Nozzle-Heater2008-04-01 ~ 2008-05-01; W; , |
92590-EA000 |
US $14.97 |
||
|
92590
|
92590
92590-ZQ01A
Hose-drain
2008-05-01 ~ ; W; , |
92590-ZQ01A |
— |
