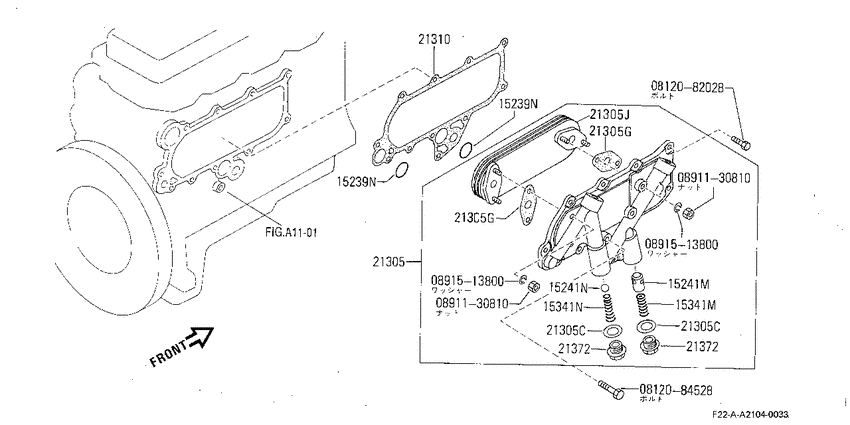

engine Oil cooler (1986-11-01 ~ ; TD23 +TD27) Diagram Nissan ATLAS/CONDOR
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- TD27
- transmission
- MT
- body
- TL
- body type
- SB/15T
- transmission/shift type
- R5
- drive/tire
- 2WD/ST
- chassis
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812082028
|
0812082028
08120-82028
Bolt-hexagon
|
08120-82028 |
— | ||
| replacement | |||||
|
0812082028
|
0812082028
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0812084528
|
0812084528
08120-84528 Bolt-hexagon |
08120-84528 |
US $1.73 |
||
|
0891130810
|
0891130810
08911-30810
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-30810 |
— | ||
|
0891130810
|
0891130810
08911-30810
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-30810 |
— | ||
|
15239N
|
15239N
01001-23004 SEAL-O RING8611--01 ~ 8710--01; TD23+TD27 |
01001-23004 |
US $3.46 |
||
|
15239N
|
15239N
2133402N00 Seal-O Ring8710--01 ~ ; TD23+TD27 |
2133402N00 |
from US $7.49 |
||
|
15239N
|
15239N
01001-23004 SEAL-O RING8611--01 ~ 8710--01; TD23+TD27 |
01001-23004 |
US $3.46 |
||
|
15239N
|
15239N
2133402N00 Seal-O Ring8710--01 ~ ; TD23+TD27 |
2133402N00 |
from US $7.49 |
||
|
15241M
|
15241M
15280-90001 Valve Assy-Relief, Oil Cooler8611--01 ~ ; TD23+TD27 |
15280-90001 |
US $26.47 |
||
|
15241N
|
15241N
15300-76200 Valve Assy-Relief, Oil Cooler8611--01 ~ ; TD23+TD27 |
15300-76200 |
US $2.03 |
||
|
15341M
|
15341M
15341-61500 Spring-Valve, Oil Cooler8611--01 ~ ; TD23+TD27 |
15341-61500 |
US $5.76 |
||
|
15341N
|
15341N
15341-T9000 Spring-Valve, Oil Cooler8611--01 ~ ; TD23+TD27 |
15341-T9000 |
US $4.32 |
||
|
21305
|
21305
21305-43G01
Cooler Assy-Oil
8611--01 ~ 8805--01; TD23+TD27 |
21305-43G01 |
— | ||
|
21305
|
21305
21305-54T00 Cooler Assy-Oil8805--01 ~ ; TD23+TD27; |
21305-54T00 |
US $450.29 |
||
|
21305
|
21305
15304-61501 Gasket-Oil Filter8611--01 ~ ; TD23+TD27 |
15304-61501 |
US $2.59 |
||
| replacement | |||||
|
21305
|
21305
15304-Y1400
Gasket-oil filter
8611--01 ~ ; TD23+TD27 |
15304-Y1400 |
— | ||
|
21305
|
21305
21303-C6800 Packing8611--01 ~ ; TD23+TD27 |
21303-C6800 |
US $9.07 |
||
|
21305
|
21305
21355-43G01 Element-Oil Cooler8712--01 ~ ; TD23+TD27 |
21355-43G01 |
US $180 |
||
|
21305C
|
21305C
15304-61501 Gasket-Oil Filter8611--01 ~ ; TD23+TD27 |
15304-61501 |
US $2.59 |
||
| replacement | |||||
|
21305C
|
21305C
15304-Y1400
Gasket-oil filter
8611--01 ~ ; TD23+TD27 |
15304-Y1400 |
— | ||
|
21305C
|
21305C
15304-61501 Gasket-Oil Filter8611--01 ~ ; TD23+TD27 |
15304-61501 |
US $2.59 |
||
| replacement | |||||
|
21305C
|
21305C
15304-Y1400
Gasket-oil filter
8611--01 ~ ; TD23+TD27 |
15304-Y1400 |
— | ||
|
21305G
|
21305G
21303-C6800 Packing8611--01 ~ ; TD23+TD27 |
21303-C6800 |
US $9.07 |
||
|
21305G
|
21305G
21303-C6800 Packing8611--01 ~ ; TD23+TD27 |
21303-C6800 |
US $9.07 |
||
|
21305J
|
21305J
21355-43G01 Element-Oil Cooler8712--01 ~ ; TD23+TD27 |
21355-43G01 |
US $180 |
||
|
21310
|
21310
2130434N00 Gasket9004--01 ~ ; TD23+TD27; |
2130434N00 |
US $34.42 |
||
|
21310
|
21310
21304-43G00
Gasket
8611--01 ~ 8704--01; TD23+TD27 |
21304-43G00 |
— | ||
|
21310
|
21310
21304-43G02 Gasket8704--01 ~ 9004--01; TD23+TD27 |
21304-43G02 |
US $5.33 |
||
|
21372
|
21372
15303-61503 Plug-Oil Cooler8611--01 ~ ; TD23+TD27 |
15303-61503 |
US $12.10 |
||
| replacement | |||||
|
21372
|
21372
15134-6150A Plug-Oil Cooler8611--01 ~ ; TD23+TD27 |
15134-6150A |
US $12.10 |
||
|
21372
|
21372
15303-61503 Plug-Oil Cooler8611--01 ~ ; TD23+TD27 |
15303-61503 |
US $12.10 |
||
| replacement | |||||
|
21372
|
21372
15134-6150A Plug-Oil Cooler8611--01 ~ ; TD23+TD27 |
15134-6150A |
US $12.10 |
||
