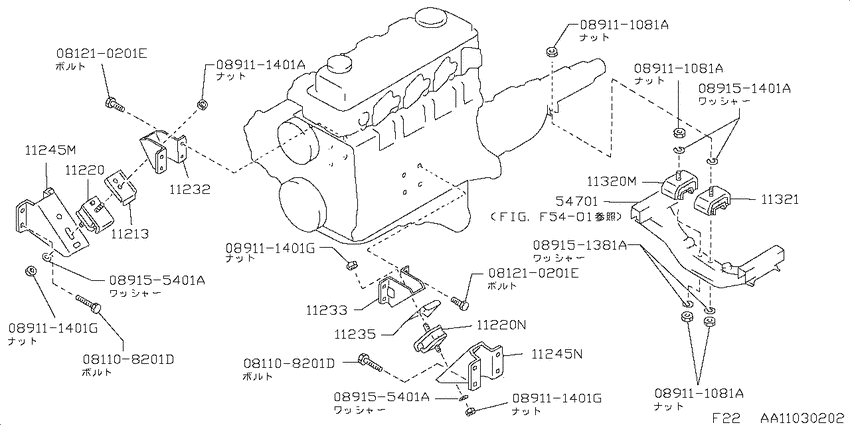

engine & transmission mounting (1986-11-01 ~ ; TD27.MT.2WD) Diagram Nissan ATLAS/CONDOR
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- TD27
- transmission
- MT
- body
- TL
- body type
- SB/15T
- transmission/shift type
- R5
- drive/tire
- 2WD/ST
- chassis
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081108201D
|
081108201D
081108201D
Bolt-hexagon
|
081108201D |
— | ||
|
081108201D
|
081108201D
081108201D
Bolt-hexagon
|
081108201D |
— | ||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.04 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.04 |
||
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
089111401A
|
089111401A
089111401A
NUTHEX
|
089111401A |
— | ||
|
089111401G
|
089111401G
089111401G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111401G |
— | ||
|
089111401G
|
089111401G
089111401G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111401G |
— | ||
|
089111401G
|
089111401G
089111401G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111401G |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089155401A
|
089155401A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
089155401A
|
089155401A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
11213
|
11213
11213-T6200 Cover-Insulator, Engine Mounting8202--01 ~ 8508--01; DIE |
11213-T6200 |
US $7.63 |
||
|
11220
|
11220
11220-10T03 Insulator-Engine Mounting, Front8611--01 ~ ; DIE; ﾐｷﾞ ﾖｳ |
11220-10T03 |
US $53.71 |
||
|
11220
|
11220
11220-T6000 Insulator-Engine Mounting, Front8202--01 ~ 8411--01; ALL; ﾐｷﾞ ﾖｳ |
11220-T6000 |
US $81.50 |
||
|
11220
|
11220
11220-T6010 Insulator-Engine Mounting, Front8411--01 ~ 8611--01; ALL; ﾐｷﾞ ﾖｳ |
11220-T6010 |
US $60.29 |
||
|
11220
|
11220
11220-10T11 Insulator-Engine Mounting, Front8611--01 ~ ; DIE; ﾋﾀﾞﾘ ﾖｳ |
11220-10T11 |
US $63.22 |
||
|
11220
|
11220
11220-T6000 Insulator-Engine Mounting, Front8202--01 ~ 8411--01; ALL; ﾋﾀﾞﾘ ﾖｳ |
11220-T6000 |
US $81.50 |
||
|
11220
|
11220
11220-T6010 Insulator-Engine Mounting, Front8411--01 ~ 8611--01; ALL; ﾋﾀﾞﾘ ﾖｳ |
11220-T6010 |
US $60.29 |
||
|
11220N
|
11220N
11220-10T11 Insulator-Engine Mounting, Front8611--01 ~ ; DIE; ﾋﾀﾞﾘ ﾖｳ |
11220-10T11 |
US $63.22 |
||
|
11220N
|
11220N
11220-T6000 Insulator-Engine Mounting, Front8202--01 ~ 8411--01; ALL; ﾋﾀﾞﾘ ﾖｳ |
11220-T6000 |
US $81.50 |
||
|
11220N
|
11220N
11220-T6010 Insulator-Engine Mounting, Front8411--01 ~ 8611--01; ALL; ﾋﾀﾞﾘ ﾖｳ |
11220-T6010 |
US $60.29 |
||
|
11232
|
11232
11232-10T01 Bracket-Engine Mounting, Rh8611--01 ~ ; DIE |
11232-10T01 |
US $46.08 |
||
|
11232
|
11232
11232-T6200 Bracket-Engine Mounting, Rh8202--01 ~ 8301--01; DIE |
11232-T6200 |
US $62.93 |
||
|
11232
|
11232
11232-T6201 Bracket-Engine Mounting, Rh8301--01 ~ 8611--01; DIE |
11232-T6201 |
US $62.93 |
||
|
11233
|
11233
11232-10T01 Bracket-Engine Mounting, Rh8611--01 ~ ; DIE |
11232-10T01 |
US $46.08 |
||
|
11233
|
11233
11233-T6200 Bracket-Engine Mounting, Lh8202--01 ~ 8301--01; DIE |
11233-T6200 |
US $62.93 |
||
|
11233
|
11233
11233-T6201 Bracket-Engine Mounting, Lh8301--01 ~ 8611--01; DIE |
11233-T6201 |
US $62.93 |
||
|
11235
|
11235
11235-T6001 Plate-Heat Shield8611--01 ~ 9007--01; ALL |
11235-T6001 |
US $11.81 |
||
|
11245M
|
11245M
11251-T6000 Support-Engine Mounting, Front8202--01 ~ 8611--01; ALL; ﾐｷﾞ ﾖｳ |
11251-T6000 |
US $18.29 |
||
|
11245M
|
11245M
11252-10T01 Support-Engine Mounting, Front8611--01 ~ ; DIE.2WD; ﾐｷﾞ ﾖｳ |
11252-10T01 |
US $19.73 |
||
|
11245N
|
11245N
11251-T6000 Support-Engine Mounting, Front8202--01 ~ 8611--01; ALL; ﾋﾀﾞﾘ ﾖｳ |
11251-T6000 |
US $18.29 |
||
|
11245N
|
11245N
11253-10T01 Support-Engine Mounting, Front8611--01 ~ ; DIE.2WD; ﾋﾀﾞﾘ ﾖｳ |
11253-10T01 |
US $19.73 |
||
|
11320M
|
11320M
11320-11T00 Insulator-Engine Mounting, Rear Rh8611--01 ~ 8810--01; TD27.MT |
11320-11T00 |
US $49.54 |
||
|
11321
|
11321
11321-11T00 Insulator-Engine Mounting, Rear Lh8611--01 ~ 8810--01; TD27.MT |
11321-11T00 |
US $49.54 |
||
|
54701
|
54701
54701-T6000 ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｱﾝｶ-8202--01 ~ 8212--01; ALL |
54701-T6000 |
US $254.88 |
||
|
54701
|
54701
54701T6001 Member Assy-Anchor8212--01 ~ 8810--01; ALL |
54701T6001 |
US $213.12 |
