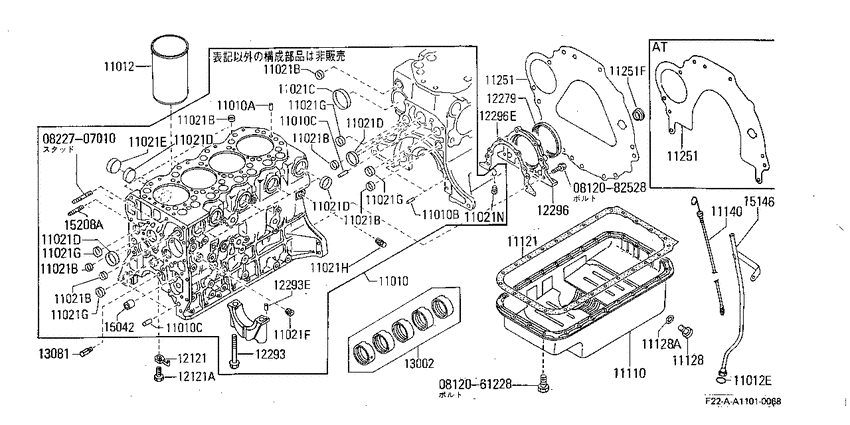

Cylinder - block & ｵｲﾙﾊﾟﾝ (1986-11-01 ~ ; TD23 +TD27) Diagram Nissan ATLAS/CONDOR
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- TD27
- transmission
- MT
- body
- TL
- body type
- SB/15T
- transmission/shift type
- R5
- drive/tire
- 2WD/ST
- chassis
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812082528
|
0812082528
08120-82528
Bolt-hexagon
|
08120-82528 |
— | ||
| replacement | |||||
|
0812082528
|
0812082528
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
0822707010
|
0822707010
08227-07010
ｽﾀﾂﾄﾞ
|
08227-07010 |
— | ||
|
11010
|
11010
11009-03T00
Block Assy-Cylinder
8611--01 ~ 8710--01; TD27 |
11009-03T00 |
— | ||
|
11010
|
11010
11009-03T02 Block Assy-Cylinder8710--01 ~ 9005--01; TD27; |
11009-03T02 |
US $2,324 |
||
|
11010
|
11010
11009-38N00 Block Assy-Cylinder9005--01 ~ ; TD27; |
11009-38N00 |
US $2,324 |
||
|
11010
|
11010
01522-08144 Bolt8611--01 ~ 8710--01; TD23+TD27 |
01522-08144 |
US $1.73 |
||
|
11010
|
11010
11013-T9000 Pin8710--01 ~ ; TD23+TD27 |
11013-T9000 |
US $2.88 |
||
|
11010
|
11010
1231310600 Dowel-Clutch To Flywheel8611--01 ~ ; TD23+TD27 |
1231310600 |
from US $0.33 |
||
|
11010
|
11010
30412P5100 Dowel-Block8611--01 ~ ; TD23+TD27 |
30412P5100 |
from US $0.56 |
||
|
11010A
|
11010A
01522-08144 Bolt8611--01 ~ 8710--01; TD23+TD27 |
01522-08144 |
US $1.73 |
||
|
11010A
|
11010A
11013-T9000 Pin8710--01 ~ ; TD23+TD27 |
11013-T9000 |
US $2.88 |
||
|
11010B
|
11010B
1231310600 Dowel-Clutch To Flywheel8611--01 ~ ; TD23+TD27 |
1231310600 |
from US $0.33 |
||
|
11010C
|
11010C
30412P5100 Dowel-Block8611--01 ~ ; TD23+TD27 |
30412P5100 |
from US $0.56 |
||
|
11010C
|
11010C
30412P5100 Dowel-Block8611--01 ~ ; TD23+TD27 |
30412P5100 |
from US $0.56 |
||
|
11012
|
11012
11012-43G00 Liner-Cylinder8611--01 ~ ; TD27 |
11012-43G00 |
US $288.86 |
||
|
11012
|
11012
15056-02N00 Ring-Level Gauge8611--01 ~ ; TD23+TD27 |
15056-02N00 |
US $11.93 |
||
|
11012E
|
11012E
15056-02N00 Ring-Level Gauge8611--01 ~ ; TD23+TD27 |
15056-02N00 |
US $11.93 |
||
|
11021B
|
11021B
01648-00224 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00224 |
US $5.04 |
||
|
11021B
|
11021B
01648-00224 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00224 |
US $5.04 |
||
|
11021B
|
11021B
01648-00224 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00224 |
US $5.04 |
||
|
11021B
|
11021B
01648-00224 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00224 |
US $5.04 |
||
|
11021B
|
11021B
01648-00224 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00224 |
US $5.04 |
||
|
11021B
|
11021B
01648-00224 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00224 |
US $5.04 |
||
|
11021C
|
11021C
11019-90002 Plug-Welch8611--01 ~ ; TD23+TD27 |
11019-90002 |
US $2.88 |
||
|
11021D
|
11021D
01648-00044 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00044 |
US $5.47 |
||
|
11021D
|
11021D
01648-00044 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00044 |
US $5.47 |
||
|
11021D
|
11021D
01648-00044 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00044 |
US $5.47 |
||
|
11021D
|
11021D
01648-00044 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00044 |
US $5.47 |
||
|
11021E
|
11021E
01648-00154 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00154 |
US $3.46 |
||
|
11021F
|
11021F
0164202114 PLUG-THREAD8611--01 ~ ; TD23+TD27 |
0164202114 |
US $3.35 |
||
|
11021G
|
11021G
01648-00024 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00024 |
US $4.18 |
||
|
11021G
|
11021G
01648-00024 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00024 |
US $4.18 |
||
|
11021G
|
11021G
01648-00024 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00024 |
US $4.18 |
||
|
11021G
|
11021G
01648-00024 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00024 |
US $4.18 |
||
|
11021H
|
11021H
11021-J2000 Plug8611--01 ~ ; TD23+TD27 |
11021-J2000 |
US $4.18 |
||
|
11021N
|
11021N
01647-00044 Plug-Taper8611--01 ~ ; TD23+TD27 |
01647-00044 |
US $2.45 |
||
|
11110
|
11110
11110-02N05 Pan Assy-Oil8902--01 ~ ; TD27.2WD; |
11110-02N05 |
US $348.34 |
||
|
11110
|
11110
11110-10T04 Pan Assy-Oil8611--01 ~ 8810--01; TD23+TD27 |
11110-10T04 |
US $705.17 |
||
|
11121
|
11121
11121-10G00
Gasket-Oil Pan
9004--01 ~ ; TD23+TD27 |
11121-10G00 |
— | ||
| replacement | |||||
|
11121
|
11121
1112163G03 Gasket-Oil Pan9004--01 ~ ; TD23+TD27 |
1112163G03 |
from US $48.71 |
||
|
11121
|
11121
11121-43G00 Gasket-Oil Pan8611--01 ~ 9004--01; TD23+TD27 |
11121-43G00 |
US $40.90 |
||
|
11128
|
11128
1112869200
Plug-Drain
8611--01 ~ ; TD23+TD27 |
1112869200 |
— | ||
| replacement | |||||
|
11128
|
11128
11128-6920A Plug-Drain8611--01 ~ ; TD23+TD27 |
11128-6920A |
from US $7.44 |
||
|
11128
|
11128
1102661000 Washer-Drain Plug8611--01 ~ ; TD23+TD27 |
1102661000 |
from US $0.85 |
||
|
11128A
|
11128A
1102661000 Washer-Drain Plug8611--01 ~ ; TD23+TD27 |
1102661000 |
from US $0.85 |
||
|
11140
|
11140
11140-02N00 Gauge-Oil Level8611--01 ~ 8801--01; TD23+TD27 |
11140-02N00 |
US $14.40 |
||
|
11140
|
11140
11140-02N01 Gauge-Oil Level8902--01 ~ ; TD27.2WD; |
11140-02N01 |
from US $11.53 |
||
|
11140
|
11140
11140-21N00 Gauge-Oil Level8801--01 ~ 8902--01; TD23+TD27 |
11140-21N00 |
US $12.67 |
||
| replacement | |||||
|
11140
|
11140
11140-02N00 Gauge-Oil Level8801--01 ~ 8902--01; TD23+TD27 |
11140-02N00 |
US $14.40 |
||
|
11251
|
11251
30411-43G01 Plate-Engine, Rear8611--01 ~ 8711--01; TD23+TD27.MT |
30411-43G01 |
US $42.19 |
||
|
11251
|
11251
30411-43G02 Plate-Engine, Rear8711--01 ~ ; TD23+TD27.MT |
30411-43G02 |
US $72.58 |
||
|
11251
|
11251
27035-V0700 Plug-Rubber, Rear Plate8611--01 ~ 8711--01; TD23+TD27 |
27035-V0700 |
US $3.02 |
||
|
11251
|
11251
30411-43G01 Plate-Engine, Rear8611--01 ~ 8711--01; TD23+TD27.MT |
30411-43G01 |
US $42.19 |
||
|
11251
|
11251
30411-43G02 Plate-Engine, Rear8711--01 ~ ; TD23+TD27.MT |
30411-43G02 |
US $72.58 |
||
|
11251
|
11251
27035-V0700 Plug-Rubber, Rear Plate8611--01 ~ 8711--01; TD23+TD27 |
27035-V0700 |
US $3.02 |
||
|
11251F
|
11251F
27035-V0700 Plug-Rubber, Rear Plate8611--01 ~ 8711--01; TD23+TD27 |
27035-V0700 |
US $3.02 |
||
|
12121
|
12121
12124-43G02 Jet Assy-Oil8611--01 ~ ; TD23+TD27 |
12124-43G02 |
from US $9.51 |
||
|
12121
|
12121
12123-Z5501 Bolt-Oil Jet8611--01 ~ ; TD23+TD27 |
12123-Z5501 |
US $13.03 |
||
|
12121A
|
12121A
12123-Z5501 Bolt-Oil Jet8611--01 ~ ; TD23+TD27 |
12123-Z5501 |
US $13.03 |
||
|
12279
|
12279
12279-43G00
Seal-Oil, Crankshaft Rear
8611--01 ~ ; TD23+TD27 |
12279-43G00 |
— | ||
|
12293
|
12293
12293-43G00 Bolt-Main Bearing Cap8611--01 ~ ; TD23+TD27 |
12293-43G00 |
US $4.03 |
||
|
12293
|
12293
01522-05104 PIN-HOLLOW8611--01 ~ ; TD23+TD27 |
01522-05104 |
US $2.45 |
||
|
12293E
|
12293E
01522-05104 PIN-HOLLOW8611--01 ~ ; TD23+TD27 |
01522-05104 |
US $2.45 |
||
|
12296
|
12296
12297-43G02
Retainer-Oil Seal, Rear
8611--01 ~ ; TD23+TD27; |
12297-43G02 |
— | ||
| replacements | |||||
|
12296
|
12296
12297-43G05 Retainer-Oil Seal, Rear8611--01 ~ ; TD23+TD27; |
12297-43G05 |
US $147.86 |
||
|
12296
|
12296
0891280610 NUT8611--01 ~ ; TD23+TD27; |
0891280610 |
US $2.34 |
||
|
12296
|
12296
1229834N00 Gasket-Retainer9004--01 ~ ; TD23+TD27 |
1229834N00 |
from US $9.77 |
||
|
12296
|
12296
12298-43G00 Gasket-Retainer8611--01 ~ 9004--01; TD23+TD27 |
12298-43G00 |
US $9.07 |
||
|
12296E
|
12296E
1229834N00 Gasket-Retainer9004--01 ~ ; TD23+TD27 |
1229834N00 |
from US $9.77 |
||
|
12296E
|
12296E
12298-43G00 Gasket-Retainer8611--01 ~ 9004--01; TD23+TD27 |
12298-43G00 |
US $9.07 |
||
|
13002
|
13002
13002-43G00 Bush Set8611--01 ~ ; TD23+TD27; ｾﾝﾀｸ STD |
13002-43G00 |
US $34.93 |
||
|
13002
|
13002
13003-43G01 Bush Set8611--01 ~ ; TD23+TD27; ｾﾝﾀｸ US=0.25 |
13003-43G01 |
US $47.23 |
||
|
13002
|
13002
13003-43G02 Bush Set8611--01 ~ ; TD23+TD27; ｾﾝﾀｸ US=0.50 |
13003-43G02 |
US $47.23 |
||
|
13002
|
13002
13003-43G03 Bush Set8611--01 ~ ; TD23+TD27; ｾﾝﾀｸ US=0.75 |
13003-43G03 |
US $47.23 |
||
|
13081
|
13081
13081-43G00 Jet-Oil, Timing Chain8611--01 ~ 8812--01; TD23+TD27 |
13081-43G00 |
US $5.90 |
||
|
13081
|
13081
13081-76202 Jet-Oil, Timing Chain8812--01 ~ ; TD23+TD27 |
13081-76202 |
US $5.18 |
||
|
15042
|
15042
15075-43G00 Bush-Oil Pump Drive Spindle8611--01 ~ ; TD23+TD27 |
15075-43G00 |
US $16.50 |
||
|
15146
|
15146
11150-02N00 Guide-Oil Level Gauge8611--01 ~ 8802--01; TD23+TD27 |
11150-02N00 |
US $18.72 |
||
|
15146
|
15146
11150-54T00 Guide-Oil Level Gauge8802--01 ~ ; TD23+TD27 |
11150-54T00 |
US $33.70 |
||
|
15208A
|
15208A
15213-43G00 Stud-Oil Filter8611--01 ~ ; TD23+TD27 |
15213-43G00 |
US $12.67 |
||
