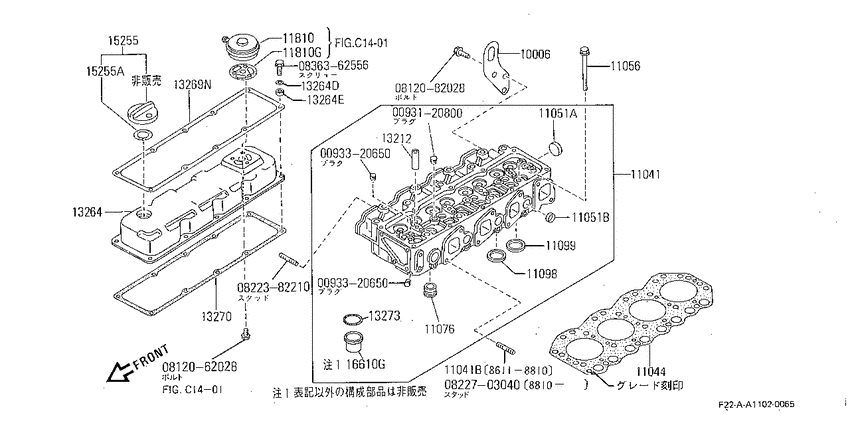

Cylinder - head & ﾛﾂｶ- ｶﾊﾞ- (1986-11-01 ~ ; TD23 +TD27) Diagram Nissan ATLAS/CONDOR
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- TD27
- transmission
- MT
- body
- TL
- body type
- SB/15T
- transmission/shift type
- R5
- drive/tire
- 2WD/ST
- chassis
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093320650
|
0093320650
00933-20650 PLUG |
00933-20650 |
US $1.73 |
||
|
0093320650
|
0093320650
00933-20650 PLUG |
00933-20650 |
US $1.73 |
||
|
0812062028
|
0812062028
08120-62028
Bolt-hexagon
|
08120-62028 |
— | ||
| replacement | |||||
|
0812062028
|
0812062028
081X0-62028 Bolt-hexagon |
081X0-62028 |
US $2.49 |
||
|
0812082028
|
0812082028
08120-82028
Bolt-hexagon
|
08120-82028 |
— | ||
| replacement | |||||
|
0812082028
|
0812082028
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0822382210
|
0822382210
0822382210 STUD |
0822382210 |
US $3.06 |
||
|
0822703040
|
0822703040
08227-03040
STUD
|
08227-03040 |
— | ||
|
0836362556
|
0836362556
08363-62556
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62556 |
— | ||
|
10006
|
10006
10006-43G00 Slinger-Engine8611--01 ~ ; TD23+TD27 |
10006-43G00 |
US $14.54 |
||
|
11041
|
11041
11039-43G02 Head Assy-Cylinder8611--01 ~ 8707--01; TD27 |
11039-43G02 |
US $1,708 |
||
|
11041
|
11041
11039-43G03 Head Assy-Cylinder8707--01 ~ ; TD27; |
11039-43G03 |
US $1,708 |
||
|
11041
|
11041
01151-03024 STUD8611--01 ~ 8810--01; TD23+TD27 |
01151-03024 |
US $4.18 |
||
|
11041B
|
11041B
01151-03024 STUD8611--01 ~ 8810--01; TD23+TD27 |
01151-03024 |
US $4.18 |
||
|
11044
|
11044
11044-43G01 Gasket-Cylinder Head8611--01 ~ ; TD27; T=1.30 ｸﾞﾚ-ﾄﾞ 1 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
11044-43G01 |
from US $33.82 |
||
|
11044
|
11044
11044-43G02 Gasket-Cylinder Head8611--01 ~ ; TD27; T=1.35 ｸﾞﾚ-ﾄﾞ 2 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
11044-43G02 |
US $213.12 |
||
|
11044
|
11044
11044-43G03 Gasket-Cylinder Head8611--01 ~ ; TD27; T=1.40 ｸﾞﾚ-ﾄﾞ 3 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
11044-43G03 |
US $213.12 |
||
|
11051A
|
11051A
01648-00044 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00044 |
US $5.47 |
||
|
11051B
|
11051B
01648-00024 Plug-Taper8611--01 ~ ; TD23+TD27 |
01648-00024 |
US $4.18 |
||
|
11056
|
11056
11056-43G00
Bolt-Cylinder Head
8611--01 ~ ; TD23+TD27 |
11056-43G00 |
— | ||
| replacement | |||||
|
11056
|
11056
11056-09D61 Bolt-Cylinder Head8611--01 ~ ; TD23+TD27 |
11056-09D61 |
from US $2.83 |
||
|
11076
|
11076
11076-43G02 Chamber Assy-Combustion8611--01 ~ 8701--01; TD27 |
11076-43G02 |
US $58.32 |
||
|
11076
|
11076
11076-43G03 Chamber Assy-Combustion8701--01 ~ ; TD27; |
11076-43G03 |
US $48.38 |
||
|
11098
|
11098
11098-43G01 Seat-Valve, Intake8611--01 ~ ; TD27; |
11098-43G01 |
US $95.90 |
||
|
11099
|
11099
11099-43G00 Seat-Valve, Exhaust8611--01 ~ ; TD27; STD |
11099-43G00 |
US $95.90 |
||
|
11099
|
11099
11099-43G10 Seat-Valve, Exhaust8611--01 ~ ; TD27; ｾﾝﾀｸ OS=0.2 |
11099-43G10 |
US $42.05 |
||
|
11099
|
11099
11099-43G11 Seat-Valve, Exhaust8611--01 ~ ; TD27; ｾﾝﾀｸ OS=0.4 |
11099-43G11 |
US $23.33 |
||
|
11810
|
11810
11810-64W00
Valve Assy-Air Control
8611--01 ~ ; TD23+TD27 |
11810-64W00 |
— | ||
| replacement | |||||
|
11810
|
11810
11810-43G00 Valve Assy-Air Control8611--01 ~ ; TD23+TD27 |
11810-43G00 |
US $282.77 |
||
|
11810
|
11810
11033-43G00
Gasket-Air Control Valve
8611--01 ~ 8711--01; TD23+TD27 |
11033-43G00 |
— | ||
| replacement | |||||
|
11810
|
11810
1103343G03 Gasket-Air Control Valve8611--01 ~ 8711--01; TD23+TD27 |
1103343G03 |
from US $3.83 |
||
|
11810
|
11810
11033-43G02
Gasket-Air Control Valve
8711--01 ~ ; TD23+TD27; |
11033-43G02 |
— | ||
| replacement | |||||
|
11810
|
11810
1103343G03 Gasket-Air Control Valve8711--01 ~ ; TD23+TD27; |
1103343G03 |
from US $3.83 |
||
|
11810G
|
11810G
11033-43G00
Gasket-Air Control Valve
8611--01 ~ 8711--01; TD23+TD27 |
11033-43G00 |
— | ||
| replacement | |||||
|
11810G
|
11810G
1103343G03 Gasket-Air Control Valve8611--01 ~ 8711--01; TD23+TD27 |
1103343G03 |
from US $3.83 |
||
|
11810G
|
11810G
11033-43G02
Gasket-Air Control Valve
8711--01 ~ ; TD23+TD27; |
11033-43G02 |
— | ||
| replacement | |||||
|
11810G
|
11810G
1103343G03 Gasket-Air Control Valve8711--01 ~ ; TD23+TD27; |
1103343G03 |
from US $3.83 |
||
|
13212
|
13212
13212-43G01 Guide-Valve, Intake8611--01 ~ 8902--01; TD23+TD27 |
13212-43G01 |
US $34.13 |
||
|
13212
|
13212
13212-54T00 Guide-Valve, Intake8902--01 ~ ; TD27; |
13212-54T00 |
US $23.18 |
||
|
13264
|
13264
13264-43G85
Cover Assy-Valve Rocker
8611--01 ~ 8810--01; TD27 |
13264-43G85 |
— | ||
|
13264
|
13264
13265-02N00 Cover Assy-Valve Rocker8810--01 ~ ; TD27.2WD; |
13265-02N00 |
US $171.36 |
||
|
13264
|
13264
13268-D0102
Washer
8611--01 ~ ; TD23+TD27 |
13268-D0102 |
— | ||
| replacement | |||||
|
13264
|
13264
1326829N0A Washer8611--01 ~ ; TD23+TD27 |
1326829N0A |
from US $3.35 |
||
|
13264
|
13264
13268-D0104
Tray-Rocker Cover Washer
8611--01 ~ ; TD23+TD27 |
13268-D0104 |
— | ||
| replacement | |||||
|
13264
|
13264
13268D010C Tray-Rocker Cover Washer8611--01 ~ ; TD23+TD27 |
13268D010C |
from US $1.09 |
||
|
13264D
|
13264D
13268-D0102
Washer
8611--01 ~ ; TD23+TD27 |
13268-D0102 |
— | ||
| replacement | |||||
|
13264D
|
13264D
1326829N0A Washer8611--01 ~ ; TD23+TD27 |
1326829N0A |
from US $3.35 |
||
|
13264E
|
13264E
13268-D0104
Tray-Rocker Cover Washer
8611--01 ~ ; TD23+TD27 |
13268-D0104 |
— | ||
| replacement | |||||
|
13264E
|
13264E
13268D010C Tray-Rocker Cover Washer8611--01 ~ ; TD23+TD27 |
13268D010C |
from US $1.09 |
||
|
13269N
|
13269N
13269-43G00 Tray-Rocker Cover Washer8611--01 ~ ; TD23+TD27 |
13269-43G00 |
US $45.36 |
||
|
13270
|
13270
13270-43G01
Gasket-Rocker Cover
8611--01 ~ ; TD23+TD27; |
13270-43G01 |
— | ||
| replacement | |||||
|
13270
|
13270
1327043G03 Gasket-Rocker Cover8611--01 ~ ; TD23+TD27; |
1327043G03 |
from US $16.04 |
||
|
13273
|
13273
1662543G02 Gasket8611--01 ~ ; TD23+TD27 |
1662543G02 |
from US $1.78 |
||
|
15255
|
15255
15255-40F00 Cap Assy-Oil Filler8806--01 ~ 8903--01; TD27 |
15255-40F00 |
US $11.52 |
||
| replacement | |||||
|
15255
|
15255
1525540F01 Cap Assy-Oil Filler8806--01 ~ 8903--01; TD27 |
1525540F01 |
US $9.84 |
||
|
15255
|
15255
15255-42L01 Cap Assy-Oil Filler8611--01 ~ 8806--01; TD23+TD27 |
15255-42L01 |
US $11.81 |
||
| replacement | |||||
|
15255
|
15255
1525540F01 Cap Assy-Oil Filler8611--01 ~ 8806--01; TD23+TD27 |
1525540F01 |
US $9.84 |
||
|
15255
|
15255
15270D0103 Packing-Oil Filler Cap8611--01 ~ ; TD23+TD27 |
15270D0103 |
from US $1.92 |
||
|
15255A
|
15255A
15270D0103 Packing-Oil Filler Cap8611--01 ~ ; TD23+TD27 |
15270D0103 |
from US $1.92 |
||
|
16610G
|
16610G
16650-43G00 Protector-Nozzle8611--01 ~ ; TD23+TD27 |
16650-43G00 |
US $5.18 |
||
