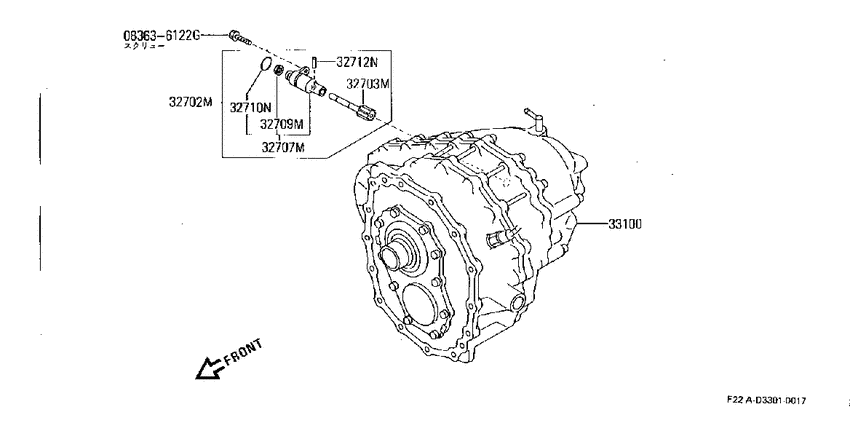

transfer assembly & mounting (1988-10-01 ~ ; 4WD) Diagram Nissan ATLAS/CONDOR
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- TD27
- transmission
- MT
- body
- TLF
- body type
- LB/15T
- transmission/shift type
- F5
- drive/tire
- 4WD/ST
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
32702M
|
32702M
32702-33G20 Pinion Assy-Speedometer8810--01 ~ ; 4WD; 20T |
32702-33G20 |
from US $27.22 |
||
|
32703M
|
32703M
32703-31G20 Pinion-Speedometer8810--01 ~ ; 4WD; 20T |
32703-31G20 |
US $21.90 |
||
|
32707M
|
32707M
3270733G01 Sleeve-Speedometer Pinion8810--01 ~ ; 4WD; |
3270733G01 |
from US $18.43 |
||
|
32709M
|
32709M
3270958S00 Seal-Oil, Speedometer Pinion8810--01 ~ ; 4WD; |
3270958S00 |
US $0.91 |
||
|
32710N
|
32710N
3271014600 Seal-O Ring, Speedometer Pinion8810--01 ~ ; 4WD |
3271014600 |
from US $0.67 |
||
|
32712N
|
32712N
3287314600 Pin-Retainer, Speedometer Pinion8810--01 ~ ; 4WD; |
3287314600 |
US $2.21 |
||
|
33100
|
33100
33100-22T01 Transfer Assy8810--01 ~ ; 4WD; TX12A |
33100-22T01 |
US $2,674 |
