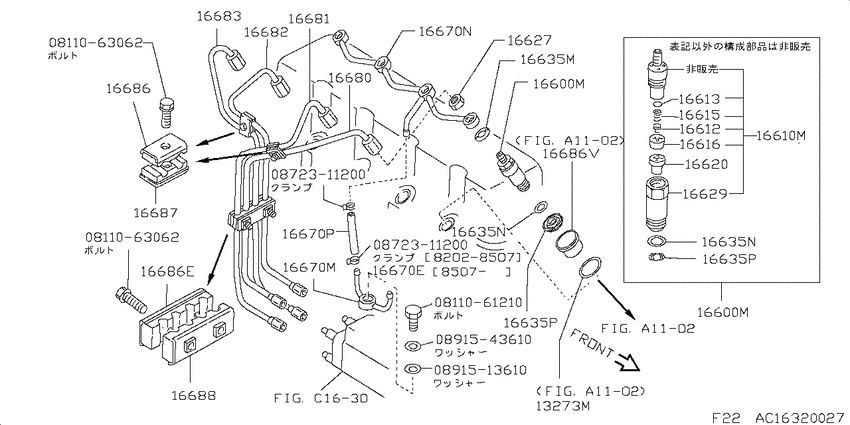

ｲﾝｼﾞｴｸｼﾖﾝ ﾊﾟｲﾌﾟ & ﾉｽﾞﾙ (1982-02-01 ~ 1986-11-01; SD23,SD25) Diagram Nissan ATLAS/CONDOR
- Year
- 1982 - 1986
- Sales region
- Japan
- Engine
- SD25
- transmission
- MT
- body
- CV
- body type
- LB/15T
- transmission/shift type
- R5
- drive/tire
- 2WD/ST
- chassis
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061210
|
0811061210
08110-61210
Bolt-hexagon
|
08110-61210 |
— | ||
|
0811063062
|
0811063062
08110-63062
Bolt-hexagon
|
08110-63062 |
— | ||
|
0811063062
|
0811063062
08110-63062
Bolt-hexagon
|
08110-63062 |
— | ||
|
0872311200
|
0872311200
08723-11200
CLAMP-HOSE
|
08723-11200 |
— | ||
| replacement | |||||
|
0872311200
|
0872311200
0155500771 CLIP |
0155500771 |
US $2.78 |
||
|
0872311200
|
0872311200
08723-11200
CLAMP-HOSE
|
08723-11200 |
— | ||
| replacement | |||||
|
0872311200
|
0872311200
0155500771 CLIP |
0155500771 |
US $2.78 |
||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
16600M
|
16600M
16600-36W00
Nozzle Assy & Holder
8202--01 ~ 8508--01; SD25; [B421] |
16600-36W00 |
— | ||
|
16600M
|
16600M
16600-T7225 Nozzle Assy & Holder8508--01 ~ 8611--01; SD23+SD25; [B421] |
16600-T7225 |
US $115.06 |
||
|
16600M
|
16600M
16600-36W00
Nozzle Assy & Holder
8202--01 ~ 8508--01; SD25; [B421] |
16600-36W00 |
— | ||
|
16600M
|
16600M
16600-T7225 Nozzle Assy & Holder8508--01 ~ 8611--01; SD23+SD25; [B421] |
16600-T7225 |
US $115.06 |
||
|
16610M
|
16610M
16610-36W00 Holder Assy-Nozzle8202--01 ~ 8611--01; SD25 |
16610-36W00 |
US $111.02 |
||
|
16612
|
16612
16612-37500 Rod-Push8202--01 ~ 8611--01; SD23+SD25 |
16612-37500 |
US $5.76 |
||
|
16613
|
16613
16613V0700 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.50 |
16613V0700 |
US $2.74 |
||
|
16613
|
16613
16613V0702 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.54 |
16613V0702 |
US $2.74 |
||
|
16613
|
16613
16613V0704 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.58 |
16613V0704 |
US $2.74 |
||
|
16613
|
16613
16613V0706 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.62 |
16613V0706 |
US $2.74 |
||
|
16613
|
16613
16613V0708 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.66 |
16613V0708 |
US $2.74 |
||
|
16613
|
16613
16613-V0710 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.70 |
16613-V0710 |
US $2.74 |
||
|
16613
|
16613
16613V0712 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.74 |
16613V0712 |
US $2.74 |
||
|
16613
|
16613
16613V0714 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.78 |
16613V0714 |
US $2.74 |
||
|
16613
|
16613
16613V0716 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.82 |
16613V0716 |
US $2.74 |
||
|
16613
|
16613
16613V0718 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.86 |
16613V0718 |
US $2.74 |
||
|
16613
|
16613
16613V0720 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.90 |
16613V0720 |
US $2.74 |
||
|
16613
|
16613
16613V0722 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.94 |
16613V0722 |
US $2.74 |
||
|
16613
|
16613
16613V0724 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=0.98 |
16613V0724 |
US $2.74 |
||
|
16613
|
16613
16613V0760 Washer-Adjusting8202--01 ~ 8508--01; SD25; ｾﾝﾀｸ T=1.00 |
16613V0760 |
US $2.74 |
||
|
16615
|
16615
16615-37500
Spring-Nozzle
8202--01 ~ 8508--01; SD25 |
16615-37500 |
— | ||
|
16616
|
16616
16616-37500 Piece-Distance8202--01 ~ 8508--01; SD25 |
16616-37500 |
US $20.59 |
||
|
16620
|
16620
16620-W4900 Nozzle Assy8508--01 ~ 8611--01; SD23+SD25; [B421] |
16620-W4900 |
US $58.03 |
||
|
16620
|
16620
16620-Y8400 Nozzle Assy8202--01 ~ 8508--01; SD25; [B421] |
16620-Y8400 |
US $68.98 |
||
|
16627
|
16627
16627-J5570 Nut8202--01 ~ 8611--01; SD23+SD25 |
16627-J5570 |
US $6.19 |
||
|
16629
|
16629
16629-37502 Nut-Nozzle8202--01 ~ 8508--01; SD25 |
16629-37502 |
US $27.94 |
||
|
16635M
|
16635M
16635-J5570 Gasket8202--01 ~ 8611--01; SD23+SD25 |
16635-J5570 |
US $2.45 |
||
|
16635N
|
16635N
16602-V1701 Gasket-Nozzle8202--01 ~ 8611--01; SD23+SD25 |
16602-V1701 |
US $6.94 |
||
|
16635N
|
16635N
16602-V1701 Gasket-Nozzle8202--01 ~ 8611--01; SD23+SD25 |
16602-V1701 |
US $6.94 |
||
|
16635P
|
16635P
16626-09W00 Gasket-Nozzle8312--01 ~ 8611--01; SD23+SD25 |
16626-09W00 |
US $7.32 |
||
|
16635P
|
16635P
16626-V1700
Gasket-Nozzle
8202--01 ~ 8312--01; SD23+SD25 |
16626-V1700 |
— | ||
| replacement | |||||
|
16635P
|
16635P
16626-09W00 Gasket-Nozzle8202--01 ~ 8312--01; SD23+SD25 |
16626-09W00 |
US $7.32 |
||
|
16635P
|
16635P
16626-09W00 Gasket-Nozzle8312--01 ~ 8611--01; SD23+SD25 |
16626-09W00 |
US $7.32 |
||
|
16635P
|
16635P
16626-V1700
Gasket-Nozzle
8202--01 ~ 8312--01; SD23+SD25 |
16626-V1700 |
— | ||
| replacement | |||||
|
16635P
|
16635P
16626-09W00 Gasket-Nozzle8202--01 ~ 8312--01; SD23+SD25 |
16626-09W00 |
US $7.32 |
||
|
16670E
|
16670E
01555-00411
CLAMP-HOSE
8507--01 ~ 8611--01; SD23+SD25 |
01555-00411 |
— | ||
| replacement | |||||
|
16670E
|
16670E
0155500771 CLIP8507--01 ~ 8611--01; SD23+SD25 |
0155500771 |
US $2.78 |
||
|
16670M
|
16670M
16678-R8101 Tube-Fuel Spill8202--01 ~ 8207--01; SD25 |
16678-R8101 |
US $34.56 |
||
|
16670M
|
16670M
16678-T7201
Tube-Fuel Spill
8207--01 ~ 8212--01; SD25 |
16678-T7201 |
— | ||
|
16670M
|
16670M
16678-T7202 Tube-Fuel Spill8212--01 ~ 8611--01; SD25 |
16678-T7202 |
US $30.10 |
||
|
16670N
|
16670N
16671-R8101 Tube-Fuel Spill8202--01 ~ 8212--01; SD23+SD25 |
16671-R8101 |
US $39.74 |
||
|
16670N
|
16670N
16671-T7201 Tube-Fuel Spill8212--01 ~ 8611--01; SD23+SD25 |
16671-T7201 |
US $39.74 |
||
|
16670P
|
16670P
08740-09010 HOSE-FUEL SPILL,A8202--01 ~ 8611--01; SD23+SD25; L=90S/#A8742-20010 |
08740-09010 |
US $3.46 |
||
|
16680
|
16680
16680-R8100 Tube Assy-Injection, No 18202--01 ~ 8212--01; SD25 |
16680-R8100 |
US $24.48 |
||
|
16680
|
16680
16680-T7200 Tube Assy-Injection, No 18212--01 ~ 8611--01; SD25 |
16680-T7200 |
US $24.48 |
||
|
16681
|
16681
16681-R8100 Tube Assy-Injection, No 28202--01 ~ 8212--01; SD25 |
16681-R8100 |
US $24.48 |
||
|
16681
|
16681
16681-T7200 Tube Assy-Injection, No 28212--01 ~ 8611--01; SD25 |
16681-T7200 |
US $24.48 |
||
|
16682
|
16682
16682-R8100 Tube Assy-Injection, No 38202--01 ~ 8212--01; SD25 |
16682-R8100 |
US $24.48 |
||
|
16682
|
16682
16682-T7200 Tube Assy-Injection, No 38212--01 ~ 8611--01; SD25 |
16682-T7200 |
US $24.48 |
||
|
16683
|
16683
16683-R8100 Tube Assy-Injection, No 48202--01 ~ 8212--01; SD25 |
16683-R8100 |
US $24.48 |
||
|
16683
|
16683
16683-T7200 Tube Assy-Injection, No 48212--01 ~ 8611--01; SD25 |
16683-T7200 |
US $24.48 |
||
|
16686
|
16686
16697-96000 Support-Injection Tube8202--01 ~ 8611--01; SD23+SD25 |
16697-96000 |
US $5.76 |
||
| replacement | |||||
|
16686
|
16686
16697-Z5501 Support8202--01 ~ 8611--01; SD23+SD25 |
16697-Z5501 |
US $6.48 |
||
|
16686
|
16686
16695-R8100 Support8202--01 ~ 8611--01; SD25 |
16695-R8100 |
US $9.79 |
||
|
16686E
|
16686E
16695-R8100 Support8202--01 ~ 8611--01; SD25 |
16695-R8100 |
US $9.79 |
||
|
16687
|
16687
16698-96000 Support-Injection Tube8202--01 ~ 8611--01; SD23+SD25 |
16698-96000 |
US $4.32 |
||
| replacement | |||||
|
16687
|
16687
16698-Z5501 Support-Injection Tube8202--01 ~ 8611--01; SD23+SD25 |
16698-Z5501 |
US $7.20 |
||
|
16688
|
16688
16696-R8100 Support-Injection Tube8202--01 ~ 8611--01; SD25 |
16696-R8100 |
US $9.79 |
||
