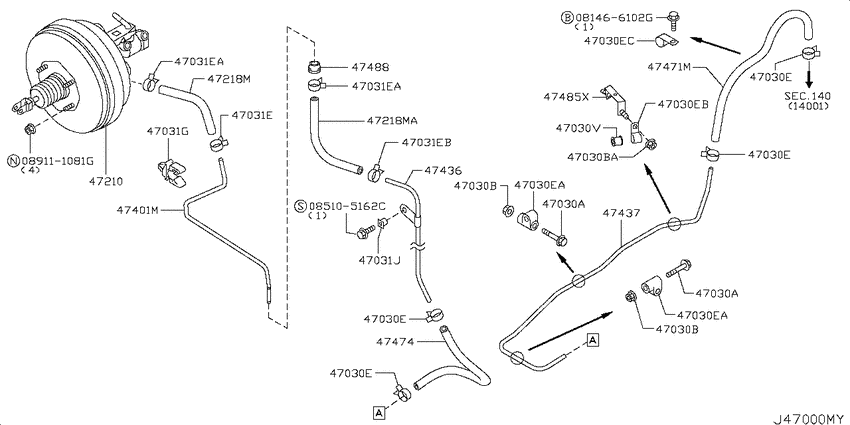

Brake servo & servo control (2007-06-01 ~ ; QR20DE) Diagram Nissan ATLAS/CONDOR
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 2WD.STD
- transmission
- MT.F5
- grade
- BASE
- body
- C.O.STD
- tire & max load
- HST.15T
- cabin
- S.CAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466102G
|
081466102G
081466102G
Bolt-hexagon
|
081466102G |
— | ||
|
085105162C
|
085105162C
08510-5162C SCREW |
08510-5162C |
US $2.36 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
47030A
|
47030A
01125-08454 BOLT0706--01 ~ ; QR20DE |
01125-08454 |
US $3.31 |
||
|
47030A
|
47030A
01125-08454 BOLT0706--01 ~ ; QR20DE |
01125-08454 |
US $3.31 |
||
|
47030B
|
47030B
0122500331 NUT-WIPER ARM0706--01 ~ ; QR20DE |
0122500331 |
US $1.93 |
||
|
47030B
|
47030B
0122501004 NUT0706--01 ~ ; QR20DE |
0122501004 |
US $4.18 |
||
|
47030B
|
47030B
0122500331 NUT-WIPER ARM0706--01 ~ ; QR20DE |
0122500331 |
US $1.93 |
||
|
47030B
|
47030B
0122501004 NUT0706--01 ~ ; QR20DE |
0122501004 |
US $4.18 |
||
|
47030BA
|
47030BA
0122501004 NUT0706--01 ~ ; QR20DE |
0122501004 |
US $4.18 |
||
|
47030E
|
47030E
22316-0T000 Clamp-Hose0706--01 ~ 0708--01; QR20DE |
22316-0T000 |
US $4.18 |
||
|
47030E
|
47030E
22316-0T00B Clamp-Hose0708--01 ~ ; QR20DE |
22316-0T00B |
US $4.18 |
||
|
47030E
|
47030E
46255-00Z08 Clip0706--01 ~ ; QR20DE |
46255-00Z08 |
US $2.45 |
||
|
47030E
|
47030E
01551-10144 CLIP0706--01 ~ ; QR20DE |
01551-10144 |
US $2.45 |
||
|
47030E
|
47030E
01551-16144 CLIP0706--01 ~ ; QR20DE |
01551-16144 |
US $4.18 |
||
|
47030E
|
47030E
22316-0T000 Clamp-Hose0706--01 ~ 0708--01; QR20DE |
22316-0T000 |
US $4.18 |
||
|
47030E
|
47030E
22316-0T00B Clamp-Hose0708--01 ~ ; QR20DE |
22316-0T00B |
US $4.18 |
||
|
47030E
|
47030E
46255-00Z08 Clip0706--01 ~ ; QR20DE |
46255-00Z08 |
US $2.45 |
||
|
47030E
|
47030E
01551-10144 CLIP0706--01 ~ ; QR20DE |
01551-10144 |
US $2.45 |
||
|
47030E
|
47030E
01551-16144 CLIP0706--01 ~ ; QR20DE |
01551-16144 |
US $4.18 |
||
|
47030E
|
47030E
22316-0T000 Clamp-Hose0706--01 ~ 0708--01; QR20DE |
22316-0T000 |
US $4.18 |
||
|
47030E
|
47030E
22316-0T00B Clamp-Hose0708--01 ~ ; QR20DE |
22316-0T00B |
US $4.18 |
||
|
47030E
|
47030E
46255-00Z08 Clip0706--01 ~ ; QR20DE |
46255-00Z08 |
US $2.45 |
||
|
47030E
|
47030E
01551-10144 CLIP0706--01 ~ ; QR20DE |
01551-10144 |
US $2.45 |
||
|
47030E
|
47030E
01551-16144 CLIP0706--01 ~ ; QR20DE |
01551-16144 |
US $4.18 |
||
|
47030E
|
47030E
22316-0T000 Clamp-Hose0706--01 ~ 0708--01; QR20DE |
22316-0T000 |
US $4.18 |
||
|
47030E
|
47030E
22316-0T00B Clamp-Hose0708--01 ~ ; QR20DE |
22316-0T00B |
US $4.18 |
||
|
47030E
|
47030E
46255-00Z08 Clip0706--01 ~ ; QR20DE |
46255-00Z08 |
US $2.45 |
||
|
47030E
|
47030E
01551-10144 CLIP0706--01 ~ ; QR20DE |
01551-10144 |
US $2.45 |
||
|
47030E
|
47030E
01551-16144 CLIP0706--01 ~ ; QR20DE |
01551-16144 |
US $4.18 |
||
|
47030EA
|
47030EA
46255-00Z08 Clip0706--01 ~ ; QR20DE |
46255-00Z08 |
US $2.45 |
||
|
47030EA
|
47030EA
46255-00Z08 Clip0706--01 ~ ; QR20DE |
46255-00Z08 |
US $2.45 |
||
|
47030EB
|
47030EB
01551-10144 CLIP0706--01 ~ ; QR20DE |
01551-10144 |
US $2.45 |
||
|
47030EC
|
47030EC
01551-16144 CLIP0706--01 ~ ; QR20DE |
01551-16144 |
US $4.18 |
||
|
47030V
|
47030V
01561-00104 INSULATOR0706--01 ~ ; QR20DE |
01561-00104 |
US $3.46 |
||
|
47031E
|
47031E
22316-0T000 Clamp-Hose0706--01 ~ 0708--01; QR20DE |
22316-0T000 |
US $4.18 |
||
|
47031E
|
47031E
22316-0T00B Clamp-Hose0708--01 ~ ; QR20DE |
22316-0T00B |
US $4.18 |
||
|
47031E
|
47031E
22316-0T000 Clamp-Hose0706--01 ~ 0708--01; QR20DE |
22316-0T000 |
US $4.18 |
||
|
47031E
|
47031E
22316-0T00B Clamp-Hose0708--01 ~ ; QR20DE |
22316-0T00B |
US $4.18 |
||
|
47031E
|
47031E
22316-0T000 Clamp-Hose0706--01 ~ 0708--01; QR20DE |
22316-0T000 |
US $4.18 |
||
|
47031E
|
47031E
22316-0T00B Clamp-Hose0708--01 ~ ; QR20DE |
22316-0T00B |
US $4.18 |
||
|
47031EA
|
47031EA
22316-0T000 Clamp-Hose0706--01 ~ 0708--01; QR20DE |
22316-0T000 |
US $4.18 |
||
|
47031EA
|
47031EA
22316-0T00B Clamp-Hose0708--01 ~ ; QR20DE |
22316-0T00B |
US $4.18 |
||
|
47031EA
|
47031EA
22316-0T000 Clamp-Hose0706--01 ~ 0708--01; QR20DE |
22316-0T000 |
US $4.18 |
||
|
47031EA
|
47031EA
22316-0T00B Clamp-Hose0708--01 ~ ; QR20DE |
22316-0T00B |
US $4.18 |
||
|
47031EB
|
47031EB
22316-0T000 Clamp-Hose0706--01 ~ 0708--01; QR20DE |
22316-0T000 |
US $4.18 |
||
|
47031EB
|
47031EB
22316-0T00B Clamp-Hose0708--01 ~ ; QR20DE |
22316-0T00B |
US $4.18 |
||
|
47031G
|
47031G
01561-00651 INSULATOR0706--01 ~ ; QR20DE |
01561-00651 |
US $6.34 |
||
|
47031J
|
47031J
96706P0105 Grommet-Screw0706--01 ~ ; QR20DE |
96706P0105 |
from US $1.93 |
||
|
47210
|
47210
D7210MA00A ﾌﾞ-ｽﾀ- ｱｯｼ-0706--01 ~ ; QR20DE |
D7210MA00A |
US $363.91 |
||
|
47218M
|
47218M
47218-MA00A ﾎ-ｽ ﾊﾞｷﾕ-ﾑ ﾁﾕ-ﾌﾞ ﾂ- ﾊﾞﾙﾌﾞ0706--01 ~ ; QR20DE |
47218-MA00A |
US $9.36 |
||
|
47218M
|
47218M
47218-MA11A ﾎ-ｽ ﾊﾞｷﾕ-ﾑ ﾁﾕ-ﾌﾞ ﾂ- ﾊﾞﾙﾌﾞ0706--01 ~ ; QR20DE |
47218-MA11A |
US $9.36 |
||
|
47218MA
|
47218MA
47218-MA11A ﾎ-ｽ ﾊﾞｷﾕ-ﾑ ﾁﾕ-ﾌﾞ ﾂ- ﾊﾞﾙﾌﾞ0706--01 ~ ; QR20DE |
47218-MA11A |
US $9.36 |
||
|
47401M
|
47401M
47401-MA00B ﾁﾕ-ﾌﾞ,ﾊﾞｷﾕ-ﾑ ﾌﾞﾚ-ｷ ﾌﾞ-ｽﾀ-0706--01 ~ ; QR20DE |
47401-MA00B |
US $15.41 |
||
|
47436
|
47436
47436-MA10A ﾁﾕ-ﾌﾞ,ﾊﾞｷﾕ-ﾑ0706--01 ~ ; QR20DE |
47436-MA10A |
US $12.96 |
||
|
47437
|
47437
47437-MA00A ﾁﾕ-ﾌﾞ,ﾊﾞｷﾕ-ﾑ0706--01 ~ ; QR20DE |
47437-MA00A |
US $29.09 |
||
|
47471M
|
47471M
47473-MA010 ﾎ-ｽ,ﾊﾞｷﾕ-ﾑ0706--01 ~ ; QR20DE |
47473-MA010 |
US $16.13 |
||
|
47474
|
47474
47471-MA000 ﾎ-ｽ,ﾌﾞ-ｽﾀ-0706--01 ~ ; QR20DE |
47471-MA000 |
US $22.32 |
||
|
47485X
|
47485X
49730-MA00E Bracket0706--01 ~ ; QR20DE |
49730-MA00E |
US $7.63 |
||
|
47488
|
47488
41740-0T000 Grommet0706--01 ~ ; QR20DE |
41740-0T000 |
US $4.18 |
||
