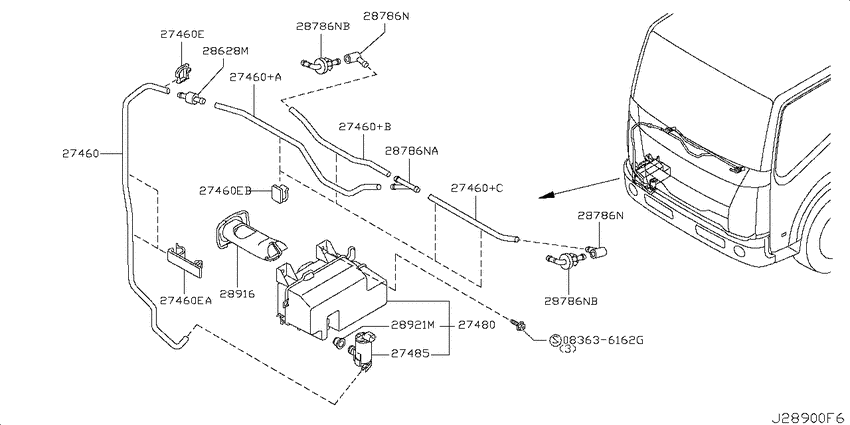

Windshield washer (2007-06-01 ~ ; C.O.STD +C.O.RW +REFRIG) Diagram Nissan ATLAS/CONDOR
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 2WD.STD
- transmission
- MT.F5
- grade
- BASE
- body
- C.O.STD
- tire & max load
- HST.15T
- cabin
- S.CAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
27460
|
27460
27461-89900
Hose-Washer
0706--01 ~ ; C.O.STD +C.O.RW +REFRIG; B7460 89911 CUT USE |
27461-89900 |
— | ||
|
27460
|
27460
27460-89955 Hose-Washer0706--01 ~ ; C.O.STD +C.O.RW +REFRIG; L=550 S/#B7460 89911 |
27460-89955 |
US $45.50 |
||
|
27460
|
27460
27460-89933
Hose-Washer
0706--01 ~ ; C.O.STD +C.O.RW +REFRIG; L=330 S/#B7460 89911 |
27460-89933 |
— | ||
|
27460
|
27460
27460-89929
Tube-Washer, Windshield
0706--01 ~ ; C.O.STD +C.O.RW +REFRIG; L=290 S/#B7460 89911 |
27460-89929 |
— | ||
|
27460
|
27460
2894561Y00 Clip0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
2894561Y00 |
US $6.48 |
||
|
27460
|
27460
2894550M00 Clip0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
2894550M00 |
US $0.97 |
||
|
27460
|
27460
24210-11A00 Clip-Hose0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
24210-11A00 |
US $11.38 |
||
|
27460+A
|
27460+A
27460-89955 Hose-Washer0706--01 ~ ; C.O.STD +C.O.RW +REFRIG; L=550 S/#B7460 89911 |
27460-89955 |
US $45.50 |
||
|
27460+B
|
27460+B
27460-89933
Hose-Washer
0706--01 ~ ; C.O.STD +C.O.RW +REFRIG; L=330 S/#B7460 89911 |
27460-89933 |
— | ||
|
27460+C
|
27460+C
27460-89929
Tube-Washer, Windshield
0706--01 ~ ; C.O.STD +C.O.RW +REFRIG; L=290 S/#B7460 89911 |
27460-89929 |
— | ||
|
27460E
|
27460E
2894561Y00 Clip0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
2894561Y00 |
US $6.48 |
||
|
27460E
|
27460E
2894550M00 Clip0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
2894550M00 |
US $0.97 |
||
|
27460E
|
27460E
24210-11A00 Clip-Hose0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
24210-11A00 |
US $11.38 |
||
|
27460EA
|
27460EA
2894550M00 Clip0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
2894550M00 |
US $0.97 |
||
|
27460EB
|
27460EB
24210-11A00 Clip-Hose0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
24210-11A00 |
US $11.38 |
||
|
27480
|
27480
28910MB400 Tank Assy-Windshield Washer0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
28910MB400 |
US $97.49 |
||
|
27485
|
27485
28920AR000 Pump Assy-Washer0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
28920AR000 |
from US $25.92 |
||
|
28628M
|
28628M
28628D2700 Valve-Check Cleaner Pump0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
28628D2700 |
US $8.05 |
||
|
28786N
|
28786N
289371W300 Connector-Hose0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
289371W300 |
from US $5.27 |
||
|
28786N
|
28786N
2893689900 Joint0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
2893689900 |
US $4.18 |
||
|
28786N
|
28786N
28937VB010 Connector-Tube0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
28937VB010 |
US $9.36 |
||
|
28786N
|
28786N
289371W300 Connector-Hose0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
289371W300 |
from US $5.27 |
||
|
28786N
|
28786N
2893689900 Joint0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
2893689900 |
US $4.18 |
||
|
28786N
|
28786N
28937VB010 Connector-Tube0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
28937VB010 |
US $9.36 |
||
|
28786NA
|
28786NA
2893689900 Joint0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
2893689900 |
US $4.18 |
||
|
28786NB
|
28786NB
28937VB010 Connector-Tube0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
28937VB010 |
US $9.36 |
||
|
28786NB
|
28786NB
28937VB010 Connector-Tube0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
28937VB010 |
US $9.36 |
||
|
28916
|
28916
28915MB400 Inlet-Washer Tank0706--01 ~ ; C.O.STD +C.O.RW +REFRIG |
28915MB400 |
US $14.54 |
||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor0706--01 ~ ; C.O.STD +C.O.RW +REFRIG; ﾌﾛﾝﾄ ﾓｰﾀｰ ﾖｳ |
2892150Y00 |
US $4.57 |
