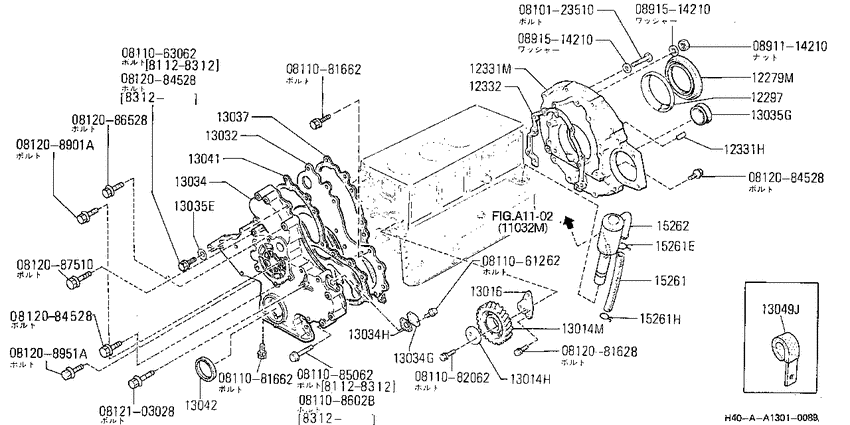

front cover (1983-01-01 ~ 1986-11-01; FD33T) Diagram Nissan ATLAS/CONDOR
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- FD33T
- transmission
- MT
- body
- TH
- body type
- LB/2T
- transmission/shift type
- F6
- tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0810123510
|
0810123510
08101-23510
Bolt-hexagon
|
08101-23510 |
— | ||
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0811063062
|
0811063062
08110-63062
Bolt-hexagon
|
08110-63062 |
— | ||
|
0811081662
|
0811081662
08110-81662
Bolt-hexagon
|
08110-81662 |
— | ||
|
0811081662
|
0811081662
08110-81662
Bolt-hexagon
|
08110-81662 |
— | ||
|
0811082062
|
0811082062
08110-82062
Bolt-hexagon
|
08110-82062 |
— | ||
| replacement | |||||
|
0811082062
|
0811082062
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0811085062
|
0811085062
08110-85062
Bolt-hexagon
|
08110-85062 |
— | ||
|
081108602B
|
081108602B
08110-8602B
Bolt-hexagon
|
08110-8602B |
— | ||
|
0812081628
|
0812081628
08120-81628
Bolt-hexagon
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E Bolt-hexagon |
081208161E |
from US $0.59 |
||
|
0812084528
|
0812084528
08120-84528 Bolt-hexagon |
08120-84528 |
US $1.73 |
||
|
0812084528
|
0812084528
08120-84528 Bolt-hexagon |
08120-84528 |
US $1.73 |
||
|
0812084528
|
0812084528
08120-84528 Bolt-hexagon |
08120-84528 |
US $1.73 |
||
|
0812086528
|
0812086528
08120-86528
Bolt-hexagon
|
08120-86528 |
— | ||
|
0812087510
|
0812087510
08120-87510
Bolt-hexagon
|
08120-87510 |
— | ||
|
081208901A
|
081208901A
081208901A Bolt-hexagon |
081208901A |
US $0.72 |
||
|
081208951A
|
081208951A
08120-8951A
Bolt-hexagon
|
08120-8951A |
— | ||
|
0812103028
|
0812103028
08121-03028
Bolt-hexagon
|
08121-03028 |
— | ||
|
0891114210
|
0891114210
08911-14210
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-14210 |
— | ||
|
0891514210
|
0891514210
08915-14210 WASHER-LOCK |
08915-14210 |
US $1.73 |
||
|
0891514210
|
0891514210
08915-14210 WASHER-LOCK |
08915-14210 |
US $1.73 |
||
|
12279M
|
12279M
12278-T9001
Seal-Oil
8301--01 ~ 8611--01; FD33T |
12278-T9001 |
— | ||
| replacement | |||||
|
12279M
|
12279M
1227901T00 Seal-Oil8301--01 ~ 8611--01; FD33T |
1227901T00 |
from US $47.96 |
||
|
12297
|
12297
12297-J2001 Slinger-Oil Rear8301--01 ~ 8611--01; FD33T |
12297-J2001 |
US $12.96 |
||
|
12331H
|
12331H
01522-10204 DOWEL-BLOCK8301--01 ~ 8611--01; FD33T |
01522-10204 |
US $2.45 |
||
|
12331M
|
12331M
12331-T9002 Housing-Flywheel8301--01 ~ 8611--01; FD33T |
12331-T9002 |
US $453.12 |
||
|
12332
|
12332
12332-T9001 Gasket-Flywheel Housing8301--01 ~ 8611--01; FD33T |
12332-T9001 |
US $10.22 |
||
|
13014H
|
13014H
13011-Z5001 Plate-Idler Gear8301--01 ~ 8611--01; FD33T |
13011-Z5001 |
US $9.65 |
||
|
13014M
|
13014M
13012-T9000 Gear-Idler8301--01 ~ 8406--01; FD33T |
13012-T9000 |
US $282.24 |
||
|
13016
|
13016
13016-T9300 Shaft-Idler Gear8301--01 ~ 8611--01; FD33T |
13016-T9300 |
US $108.86 |
||
|
13032
|
13032
13032-90005 Plate-Front8405--01 ~ 8611--01; FD33T |
13032-90005 |
US $226.08 |
||
|
13032
|
13032
13032-T9005 Plate-Front8301--01 ~ 8405--01; FD33T |
13032-T9005 |
US $148.32 |
||
|
13034
|
13034
13034-T9304
Case-Front Cover
8301--01 ~ 8306--01; FD33T |
13034-T9304 |
— | ||
|
13034
|
13034
13034-T9306
Case-Front Cover
8306--01 ~ 8312--01; FD33T |
13034-T9306 |
— | ||
|
13034
|
13034
13034-T9307 Case-Front Cover8312--01 ~ 8406--01; FD33T |
13034-T9307 |
US $257.76 |
||
|
13034
|
13034
13034-T9312 Case-Front Cover8406--01 ~ 8611--01; FD33T |
13034-T9312 |
US $366.74 |
||
|
13034
|
13034
13036-J2001 Cover-Front8301--01 ~ 8611--01; FD33T |
13036-J2001 |
US $5.47 |
||
|
13034
|
13034
13044-J2001 Gasket-Sensor8301--01 ~ 8611--01; FD33T |
13044-J2001 |
US $2.45 |
||
| replacement | |||||
|
13034
|
13034
21073-D9901 Gasket-Cover8301--01 ~ 8611--01; FD33T |
21073-D9901 |
US $2.45 |
||
|
13034G
|
13034G
13036-J2001 Cover-Front8301--01 ~ 8611--01; FD33T |
13036-J2001 |
US $5.47 |
||
|
13034H
|
13034H
13044-J2001 Gasket-Sensor8301--01 ~ 8611--01; FD33T |
13044-J2001 |
US $2.45 |
||
| replacement | |||||
|
13034H
|
13034H
21073-D9901 Gasket-Cover8301--01 ~ 8611--01; FD33T |
21073-D9901 |
US $2.45 |
||
|
13035E
|
13035E
01323-00124 WASHER8301--01 ~ 8611--01; FD33T |
01323-00124 |
US $1.73 |
||
|
13037
|
13037
13037-Z5000 Gasket-Plate8301--01 ~ 8611--01; FD33T |
13037-Z5000 |
US $21.02 |
||
|
13041
|
13041
13041-T9001 Gasket-Case, Front Cover8301--01 ~ 8312--01; FD33T |
13041-T9001 |
US $14.98 |
||
|
13041
|
13041
13041-T9301
Gasket-Case, Front Cover
8312--01 ~ 8403--01; FD33T |
13041-T9301 |
— | ||
|
13041
|
13041
13041-T9302 Gasket-Case, Front Cover8403--01 ~ 8611--01; FD33T |
13041-T9302 |
US $14.98 |
||
|
13042
|
13042
12278-T9000 Seal-Oil, Crankshaft Front8301--01 ~ 8611--01; FD33T |
12278-T9000 |
from US $11.77 |
||
|
13049J
|
13049J
24045-Z5001 Clip-Accelerator Wire8406--01 ~ 8611--01; FD33T |
24045-Z5001 |
US $5.90 |
||
|
15261
|
15261
15261-J2002 Hose-Rubber8301--01 ~ 8611--01; FD33T |
15261-J2002 |
US $19.01 |
||
|
15261
|
15261
21383-J2000 Clamp8301--01 ~ 8611--01; FD33T |
21383-J2000 |
US $3.60 |
||
|
15261
|
15261
24045-T9000 Clamp8301--01 ~ 8611--01; FD33T |
24045-T9000 |
US $7.20 |
||
|
15261E
|
15261E
21383-J2000 Clamp8301--01 ~ 8611--01; FD33T |
21383-J2000 |
US $3.60 |
||
|
15261H
|
15261H
24045-T9000 Clamp8301--01 ~ 8611--01; FD33T |
24045-T9000 |
US $7.20 |
||
|
15262
|
15262
15262-T9002 Breather8401--01 ~ 8611--01; FD33T |
15262-T9002 |
US $167.04 |
||
|
15262
|
15262
15262-T9300 Breather8301--01 ~ 8401--01; FD33T |
15262-T9300 |
US $181.44 |
||
