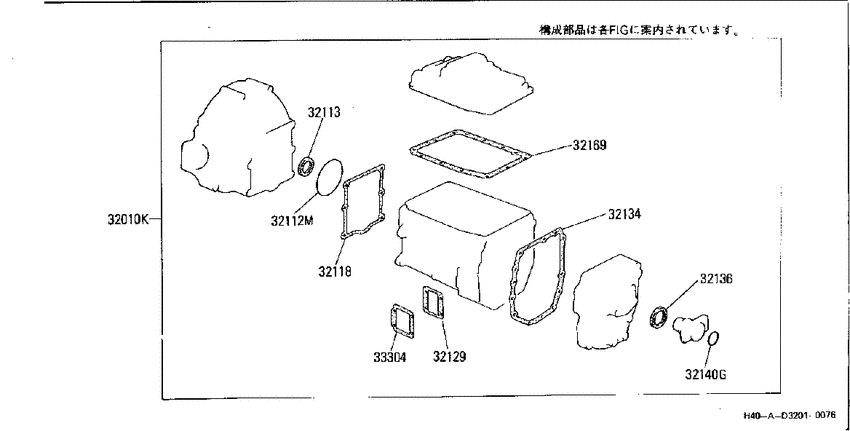

Transmission & transaxle assembly (1981-12-01 ~ 1986-11-01; ガスケット & シール キット; F6 (RS6R40A)) Diagram Nissan ATLAS/CONDOR
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- FD33T
- transmission
- MT
- body
- TH
- body type
- LB/2T
- transmission/shift type
- F6
- tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32010K
|
32010K
32169-Z5025 Gasket & Seal Kit-Transmission8112--01 ~ 8611--01; F6; RS6R40A |
32169-Z5025 |
US $98.64 |
||
|
32112M
|
32112M
32112-Z5000 Seal-O Ring, Front Cover8112--01 ~ 8611--01; F6 |
32112-Z5000 |
US $5.18 |
||
|
32113
|
32113
32219Z5004
Seal-Oil, Front Cover
8112--01 ~ 8611--01; F6 |
32219Z5004 |
— | ||
| replacement | |||||
|
32113
|
32113
C2219-Z5004 Seal-oil cover8112--01 ~ 8611--01; F6 |
C2219-Z5004 |
from US $13.23 |
||
|
32118
|
32118
32011-Z5001 Gasket-Case, Front8112--01 ~ 8611--01; F6 |
32011-Z5001 |
US $15.84 |
||
|
32129
|
32129
32110-Z5000 Packing-Pto Cover8112--01 ~ 8611--01; F6 |
32110-Z5000 |
US $4.18 |
||
|
32134
|
32134
32129-Z5002 Gasket-Rear Extension8112--01 ~ 8611--01; F6 |
32129-Z5002 |
US $15.41 |
||
|
32136
|
32136
32136-Z5002 Seal-Oil, Rear Extension8112--01 ~ 8611--01; F6 |
32136-Z5002 |
US $14.69 |
||
|
32140G
|
32140G
38217-Z5002 Seal-O Ring8112--01 ~ 8611--01; F6 |
38217-Z5002 |
US $4.75 |
||
|
32169
|
32169
32169-Z5001 Gasket-Shift Housing8112--01 ~ 8611--01; F6 |
32169-Z5001 |
US $15.41 |
||
|
33304
|
33304
32110-Z5001 Gasket-Side Cover8406--01 ~ 8611--01; *LB; PTO ﾂｷ |
32110-Z5001 |
US $4.18 |
||
