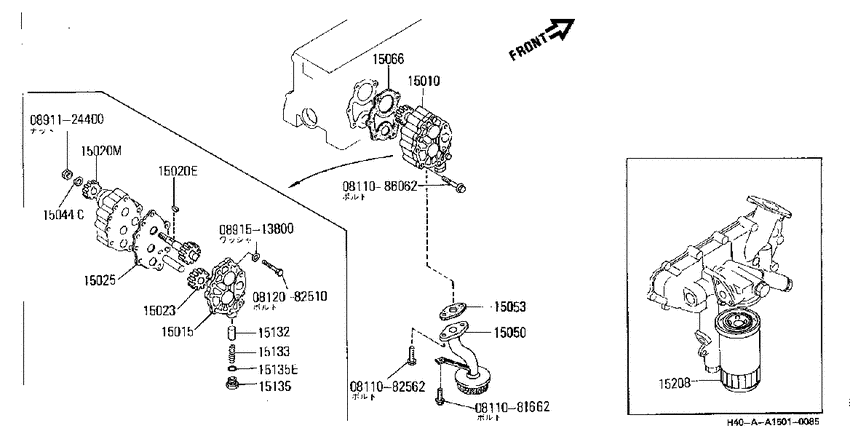

Lubricating system (1981-12-01 ~ 1990-06-01; ED33) Diagram Nissan ATLAS/CONDOR
- Year
- 1981 - 1986
- Sales region
- Japan
- Engine
- ED33
- transmission
- MT
- body
- TH
- body type
- SB/2T
- transmission/shift type
- R5
- tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082562
|
0811082562
08110-82562
Bolt-hexagon
|
08110-82562 |
— | ||
|
0811086062
|
0811086062
08110-86062
Bolt-hexagon
|
08110-86062 |
— | ||
|
0811681662
|
0811681662
08116-81662
Болт с двухгранной головкой
|
08116-81662 |
— | ||
|
0812082510
|
0812082510
08120-82510
Bolt-hexagon
|
08120-82510 |
— | ||
|
15010
|
15010
15010-01T00 Pump Assy-Oil8611--01 ~ 8906--01; ED33; 08110-85562(05)ﾄｾﾂﾄ |
15010-01T00 |
US $321.43 |
||
|
15010
|
15010
15010-01T01 Pump Assy-Oil8906--01 ~ 9006--01; ED33 |
15010-01T01 |
US $427.63 |
||
|
15010
|
15010
15010-J2001 Pump Assy-Oil8112--01 ~ 8611--01; ED33 |
15010-J2001 |
US $321.43 |
||
|
15015
|
15015
15015-01T00 Cover-Oil Pump8611--01 ~ 8906--01; ED33 |
15015-01T00 |
US $72.86 |
||
|
15015
|
15015
15015-01T01 Cover-Oil Pump8906--01 ~ 9006--01; ED33 |
15015-01T01 |
US $67.54 |
||
|
15015
|
15015
15053-Z9001 Cover-Oil Pump8112--01 ~ 8611--01; ED33 |
15053-Z9001 |
US $38.59 |
||
|
15020E
|
15020E
15029-J2000 Key8112--01 ~ 8611--01; ED33 |
15029-J2000 |
US $4.18 |
||
|
15020M
|
15020M
15026-J2001 Gear Assy-Drive8112--01 ~ 8611--01; ED33 |
15026-J2001 |
US $38.59 |
||
|
15023
|
15023
15023-J2000 Gear-Idler8112--01 ~ 8611--01; ED33 |
15023-J2000 |
US $21.31 |
||
|
15025
|
15025
15013-Z9001
Gasket-Oil Pump
8112--01 ~ 9006--01; ED33 |
15013-Z9001 |
— | ||
| replacement | |||||
|
15025
|
15025
15025-0T00A Gasket oil pump8112--01 ~ 9006--01; ED33 |
15025-0T00A |
US $3.60 |
||
|
15044C
|
15044C
15031-J2000 Washer-Lock8112--01 ~ 8611--01; ED33 |
15031-J2000 |
US $4.32 |
||
|
15050
|
15050
15050-01T00 Strainer Assy-Oil8611--01 ~ 9006--01; ED33 |
15050-01T00 |
US $48.82 |
||
|
15050
|
15050
15050-J6500
Strainer Assy-Oil
8202--01 ~ 8406--01; ED33 |
15050-J6500 |
— | ||
|
15050
|
15050
15050-T9300 Strainer Assy-Oil8406--01 ~ 8611--01; ED33+FD33+FD33T |
15050-T9300 |
US $33.55 |
||
|
15053
|
15053
15066-J2000 Gasket-Oil Strainer8202--01 ~ 8406--01; ED33 |
15066-J2000 |
US $2.45 |
||
|
15066
|
15066
15016-J2000
Gasket-Oil Pump To Cylinder Block
8112--01 ~ 9006--01; ED33 |
15016-J2000 |
— | ||
| replacement | |||||
|
15066
|
15066
15025-50T01 Gasket-oil pump8112--01 ~ 9006--01; ED33 |
15025-50T01 |
US $7.63 |
||
|
15132
|
15132
15132-37501 Valve Assy-Oil Regulator8906--01 ~ 9006--01; ED33; |
15132-37501 |
US $6.91 |
||
|
15132
|
15132
15132-J2000 Valve Assy-Oil Regulator8112--01 ~ 8906--01; ED33 |
15132-J2000 |
US $8.64 |
||
|
15133
|
15133
15133-37500 Spring-Oil Regulator8906--01 ~ 9006--01; ED33; |
15133-37500 |
US $5.47 |
||
|
15133
|
15133
15133-J2000 Spring-Oil Regulator8112--01 ~ 8611--01; ED33 |
15133-J2000 |
US $4.18 |
||
|
15135
|
15135
15030-01T00 Plug8611--01 ~ 8906--01; ED33; |
15030-01T00 |
US $6.19 |
||
|
15135
|
15135
15068-01T00 Plug8906--01 ~ 9006--01; ED33 |
15068-01T00 |
US $6.19 |
||
|
15135
|
15135
15135-Z9000 Plug8112--01 ~ 8611--01; ED33 |
15135-Z9000 |
US $6.05 |
||
|
15135
|
15135
15134-J2000 Gasket8112--01 ~ 9006--01; ED33 |
15134-J2000 |
US $4.18 |
||
|
15135E
|
15135E
15134-J2000 Gasket8112--01 ~ 9006--01; ED33 |
15134-J2000 |
US $4.18 |
||
|
15208
|
15208
AY100NS031 Filter Assy-Oil8112--01 ~ 8202--01; ED33 |
AY100NS031 |
US $23 |
||
