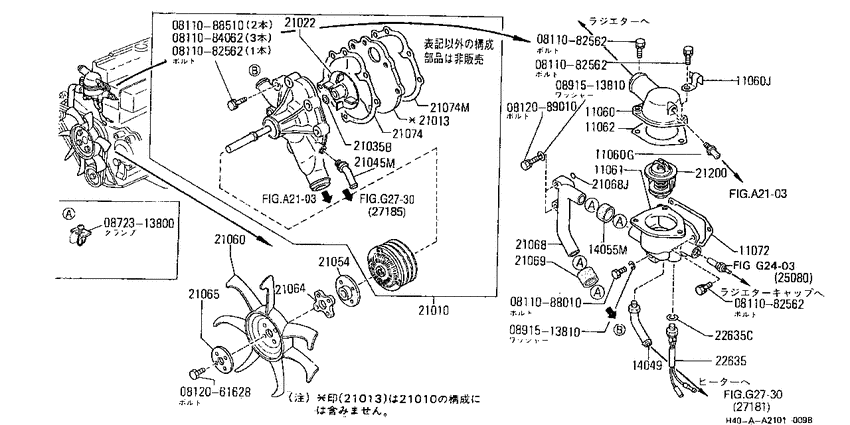

water pump & ｻ-ﾓｽﾀﾂﾄ (1984-06-01 ~ 1986-11-01; ED33) Diagram Nissan ATLAS/CONDOR
- Year
- 1981 - 1986
- Sales region
- Japan
- Engine
- ED33
- transmission
- MT
- body
- TH
- body type
- SB/2T
- transmission/shift type
- R5
- tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082562
|
0811082562
08110-82562
Bolt-hexagon
|
08110-82562 |
— | ||
|
0811082562
|
0811082562
08110-82562
Bolt-hexagon
|
08110-82562 |
— | ||
|
0811082562
|
0811082562
08110-82562
Bolt-hexagon
|
08110-82562 |
— | ||
|
0811082562
|
0811082562
08110-82562
Bolt-hexagon
|
08110-82562 |
— | ||
|
0811084062
|
0811084062
08110-84062
Bolt-hexagon
|
08110-84062 |
— | ||
|
0811088010
|
0811088010
08110-88010
Bolt-hexagon
|
08110-88010 |
— | ||
|
0811088510
|
0811088510
08110-88510
Bolt-hexagon
|
08110-88510 |
— | ||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0812089010
|
0812089010
08120-89010
Bolt-hexagon
|
08120-89010 |
— | ||
|
0872313800
|
0872313800
08723-13800
ｸﾗﾝﾌﾟ,ﾎ-ｽ
|
08723-13800 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
11060
|
11060
11060-T9002 Outlet-Water8112--01 ~ 8202--01; ED33 |
11060-T9002 |
US $39.74 |
||
|
11060
|
11060
11060-T9301 Outlet-Water8202--01 ~ 9006--01; ED33 |
11060-T9301 |
US $57.60 |
||
|
11060
|
11060
11061-86000
Connecter-Water
8112--01 ~ 8905--01; ED33 |
11061-86000 |
— | ||
| replacement | |||||
|
11060
|
11060
A1061-86000 Connecter-Water8112--01 ~ 8905--01; ED33 |
A1061-86000 |
US $18.08 |
||
|
11060
|
11060
24210-89991 Clip8112--01 ~ 9006--01; ED33 |
24210-89991 |
US $0.86 |
||
|
11060G
|
11060G
11061-86000
Connecter-Water
8112--01 ~ 8905--01; ED33 |
11061-86000 |
— | ||
| replacement | |||||
|
11060G
|
11060G
A1061-86000 Connecter-Water8112--01 ~ 8905--01; ED33 |
A1061-86000 |
US $18.08 |
||
|
11060J
|
11060J
24210-89991 Clip8112--01 ~ 9006--01; ED33 |
24210-89991 |
US $0.86 |
||
|
11061
|
11061
21202-T9001 Housing-Thermostat8112--01 ~ 8202--01; ED33; 2ｱﾅ |
21202-T9001 |
US $84.10 |
||
|
11061
|
11061
21202-T9002 Housing-Thermostat8202--01 ~ 9006--01; ED33; 3ｱﾅ |
21202-T9002 |
US $92.45 |
||
|
11062
|
11062
11062-T9003 Gasket-Water Outlet8202--01 ~ 8301--01; ED33; 3ｱﾅ |
11062-T9003 |
US $5.62 |
||
|
11062
|
11062
11062-T9004 Gasket-Water Outlet8112--01 ~ 8202--01; ED33; 2ｱﾅ |
11062-T9004 |
US $9.22 |
||
|
11072
|
11072
11045-T9000 Gasket-Thermostat Housing8112--01 ~ 8410--01; ED33 |
11045-T9000 |
US $3.46 |
||
|
11072
|
11072
11072-T9000 Gasket-Thermostat Housing8410--01 ~ 9006--01; ED33 |
11072-T9000 |
US $3.46 |
||
|
14049
|
14049
27042-T9000 Connector Assy-Heater8112--01 ~ 8205--01; ED33 |
27042-T9000 |
US $7.63 |
||
|
14049
|
14049
27070-M0200 Connector-Water Hose8205--01 ~ 8406--01; ED33 |
27070-M0200 |
US $11.52 |
||
|
14049
|
14049
92500V5400 Connector Assy-Heater8406--01 ~ 8611--01; ED33+FD33+FD33T |
92500V5400 |
US $32.60 |
||
|
14055M
|
14055M
21069-90061 Hose-Water8905--01 ~ 9006--01; ED33 |
21069-90061 |
US $25.06 |
||
|
14055M
|
14055M
21069-T9001 Hose-Water8112--01 ~ 8905--01; ED33 |
21069-T9001 |
US $23.33 |
||
|
21010
|
21010
21010-01T25 Pump Assy-Water8611--01 ~ 8905--01; ED33; [B106] |
21010-01T25 |
US $433.30 |
||
|
21010
|
21010
21010-01T85
Pump Assy-Water
8905--01 ~ 9006--01; ED33 |
21010-01T85 |
— | ||
|
21010
|
21010
21010-T9026 Pump Assy-Water8112--01 ~ 8301--01; ED33; [B106] |
21010-T9026 |
US $315.77 |
||
|
21010
|
21010
21010-T9027 Pump Assy-Water8301--01 ~ 8306--01; ED33; [B106] |
21010-T9027 |
US $315.77 |
||
|
21010
|
21010
21010-T9085 Pump Assy-Water8306--01 ~ 8309--01; ED33; [B106] |
21010-T9085 |
US $315.77 |
||
|
21010
|
21010
21010-T9086 Pump Assy-Water8309--01 ~ 8406--01; ED33; [B106] |
21010-T9086 |
US $315.77 |
||
|
21010
|
21010
21010-T9390 Pump Assy-Water8406--01 ~ 8611--01; ED33+FD33T; ｶﾂﾌﾟﾘﾝｸﾞﾂｷ[B106] |
21010-T9390 |
US $614.54 |
||
|
21010
|
21010
21010-01T25 Pump Assy-Water8611--01 ~ 8905--01; ED33; [B106] |
21010-01T25 |
US $433.30 |
||
|
21010
|
21010
21010-01T85
Pump Assy-Water
8905--01 ~ 9006--01; ED33 |
21010-01T85 |
— | ||
|
21010
|
21010
21010-T9026 Pump Assy-Water8112--01 ~ 8301--01; ED33; [B106] |
21010-T9026 |
US $315.77 |
||
|
21010
|
21010
21010-T9027 Pump Assy-Water8301--01 ~ 8306--01; ED33; [B106] |
21010-T9027 |
US $315.77 |
||
|
21010
|
21010
21010-T9085 Pump Assy-Water8306--01 ~ 8309--01; ED33; [B106] |
21010-T9085 |
US $315.77 |
||
|
21010
|
21010
21010-T9086 Pump Assy-Water8309--01 ~ 8406--01; ED33; [B106] |
21010-T9086 |
US $315.77 |
||
|
21010
|
21010
21010-T9390 Pump Assy-Water8406--01 ~ 8611--01; ED33+FD33T; ｶﾂﾌﾟﾘﾝｸﾞﾂｷ[B106] |
21010-T9390 |
US $614.54 |
||
|
21013
|
21013
21013-T9001 Cover-Water Pump8112--01 ~ 8211--01; ED33 |
21013-T9001 |
US $6.05 |
||
|
21013
|
21013
21013-T9002 Cover-Water Pump8211--01 ~ 9006--01; ED33 |
21013-T9002 |
US $8.78 |
||
|
21013
|
21013
21013-T9001 Cover-Water Pump8112--01 ~ 8211--01; ED33 |
21013-T9001 |
US $6.05 |
||
|
21013
|
21013
21013-T9002 Cover-Water Pump8211--01 ~ 9006--01; ED33 |
21013-T9002 |
US $8.78 |
||
|
21022
|
21022
21022-T9000 Vane-Water Pump8112--01 ~ 8611--01; ED33 |
21022-T9000 |
US $23.90 |
||
|
21035B
|
21035B
21027-T9000 Washer-Bearing8112--01 ~ 8611--01; ED33 |
21027-T9000 |
US $7.34 |
||
|
21045M
|
21045M
27042-T9001 Connector-Water Pump8112--01 ~ 8611--01; ED33 |
27042-T9001 |
US $11.09 |
||
|
21054
|
21054
21054-T9000 Hub-Water Pump Pulley8112--01 ~ 8611--01; ED33 |
21054-T9000 |
US $23.90 |
||
|
21060
|
21060
21060C8600 Fan-Cooling8611--01 ~ 9006--01; ED33+FD35+FD35T |
21060C8600 |
US $122.54 |
||
|
21060
|
21060
21060-T9000
Fan-Cooling
8112--01 ~ 8406--01; ED33 |
21060-T9000 |
— | ||
|
21060
|
21060
21060-T9302 Fan-Cooling8406--01 ~ 8611--01; ED33 |
21060-T9302 |
US $112.61 |
||
|
21064
|
21064
21063-01T00 Spacer-Fan8611--01 ~ 8905--01; ED33 |
21063-01T00 |
US $27.50 |
||
|
21064
|
21064
21063-S9002 Spacer-Fan8112--01 ~ 8611--01; ED33 |
21063-S9002 |
US $194.40 |
||
|
21065
|
21065
21065-S9000 Plate-Fan8308--01 ~ 8611--01; ED33 |
21065-S9000 |
US $29.09 |
||
|
21068
|
21068
21068-T9002 Connector-Suction8112--01 ~ 9006--01; ED33 |
21068-T9002 |
US $89.86 |
||
|
21068
|
21068
21049-T9000 Seal-O Ring8905--01 ~ 9006--01; ED33 |
21049-T9000 |
US $2.16 |
||
|
21068
|
21068
21074-Z5000 Seal-O Ring8112--01 ~ 8905--01; ED33 |
21074-Z5000 |
US $4.61 |
||
|
21068J
|
21068J
21049-T9000 Seal-O Ring8905--01 ~ 9006--01; ED33 |
21049-T9000 |
US $2.16 |
||
|
21068J
|
21068J
21074-Z5000 Seal-O Ring8112--01 ~ 8905--01; ED33 |
21074-Z5000 |
US $4.61 |
||
|
21069
|
21069
21069-90060 Hose-Water, Bypass8611--01 ~ 9006--01; ED33 |
21069-90060 |
US $15.84 |
||
|
21069
|
21069
21069-T9000 Hose-Water, Bypass8112--01 ~ 8611--01; ED33 |
21069-T9000 |
US $16.85 |
||
|
21069
|
21069
01555-00033 CLAMP-HOSE8611--01 ~ 8905--01; ED33 |
01555-00033 |
US $2.45 |
||
| replacement | |||||
|
21069
|
21069
0155500253
CLAMP
8611--01 ~ 8905--01; ED33 |
0155500253 |
— | ||
|
21069
|
21069
01555-00281
CLAMP-HOSE
8905--01 ~ 9006--01; ED33 |
01555-00281 |
— | ||
| replacement | |||||
|
21069
|
21069
0155501181 CLIP8905--01 ~ 9006--01; ED33 |
0155501181 |
US $3.06 |
||
|
21074
|
21074
21074-T9000
Gasket-Water Pump, Block Side
8112--01 ~ 8301--01; ED33 |
21074-T9000 |
— | ||
|
21074
|
21074
21074-T9300
Gasket-Water Pump, Block Side
8309--01 ~ 8406--01; ED33+FD33T |
21074-T9300 |
— | ||
|
21074
|
21074
21074-T9302 Gasket-Water Pump, Block Side8505--01 ~ 8611--01; ED33+FD33+FD33T |
21074-T9302 |
US $6.19 |
||
|
21074
|
21074
21074-T9001
Gasket-Water Pump, Block Side
8211--01 ~ 8301--01; ED33 |
21074-T9001 |
— | ||
|
21074
|
21074
21074-T9301
Gasket-Water Pump, Block Side
8309--01 ~ 8406--01; ED33+FD33T |
21074-T9301 |
— | ||
|
21074
|
21074
21074-T9303 Gasket-Water Pump, Block Side8505--01 ~ 8611--01; ED33+FD33+FD33T |
21074-T9303 |
US $6.19 |
||
|
21074M
|
21074M
21074-T9001
Gasket-Water Pump, Block Side
8211--01 ~ 8301--01; ED33 |
21074-T9001 |
— | ||
|
21074M
|
21074M
21074-T9301
Gasket-Water Pump, Block Side
8309--01 ~ 8406--01; ED33+FD33T |
21074-T9301 |
— | ||
|
21074M
|
21074M
21074-T9303 Gasket-Water Pump, Block Side8505--01 ~ 8611--01; ED33+FD33+FD33T |
21074-T9303 |
US $6.19 |
||
|
21200
|
21200
21200-T9000 Thermostat Assy8112--01 ~ 8406--01; ED33; 82ﾟC |
21200-T9000 |
US $51.70 |
||
|
21200
|
21200
21200T9003 Thermostat Assy8112--01 ~ 8406--01; *ED33; RUBBER,JV 82ﾟC |
21200T9003 |
from US $19.15 |
||
|
22635
|
22635
11023G7000 Switch Assy-Thermo Time8112--01 ~ 8611--01; ED33 |
11023G7000 |
US $71.14 |
||
|
22635
|
22635
01351-10124 GASKET-SENSOR8112--01 ~ 8405--01; ED33 |
01351-10124 |
US $2.45 |
||
| replacement | |||||
|
22635
|
22635
1679410G00 Gasket-Sensor8112--01 ~ 8405--01; ED33 |
1679410G00 |
from US $1.02 |
||
|
22635
|
22635
01351-21124 GASKET-SENSOR8405--01 ~ 8611--01; ED33+FD33T |
01351-21124 |
US $2.91 |
||
|
22635C
|
22635C
01351-10124 GASKET-SENSOR8112--01 ~ 8405--01; ED33 |
01351-10124 |
US $2.45 |
||
| replacement | |||||
|
22635C
|
22635C
1679410G00 Gasket-Sensor8112--01 ~ 8405--01; ED33 |
1679410G00 |
from US $1.02 |
||
|
22635C
|
22635C
01351-21124 GASKET-SENSOR8405--01 ~ 8611--01; ED33+FD33T |
01351-21124 |
US $2.91 |
||
