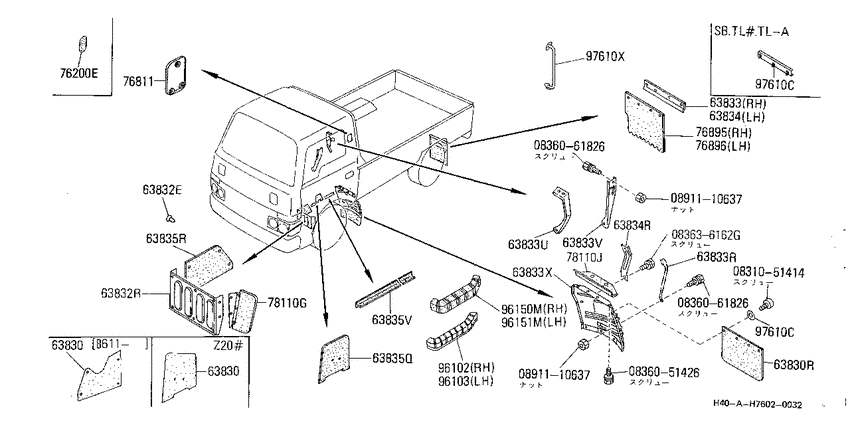

Body side fitting (1984-06-01 ~ 1986-11-01; (SB-WC)+LB.ED33.R5) Diagram Nissan ATLAS/CONDOR
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- Z20D
- transmission
- MT
- body
- TH
- body type
- SB/2T
- transmission/shift type
- R5
- tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831051414
|
0831051414
08310-51414
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51414 |
— | ||
|
0836051426
|
0836051426
08360-51426
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51426 |
— | ||
|
0836061826
|
0836061826
08360-61826
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61826 |
— | ||
|
0836061826
|
0836061826
08360-61826
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61826 |
— | ||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
63830
|
63830
78121-T8000 Mudguard Set-Front Fender, Rh8611--01 ~ 9006--01; Z20# |
78121-T8000 |
US $8.64 |
||
|
63830
|
63830
78117-T8000 Mudguard Assy-Front Fender8112--01 ~ 8205--01; SB.MT-WC |
78117-T8000 |
US $60.91 |
||
|
63830
|
63830
78117-T8003 Mudguard Assy-Front Fender8611--01 ~ 8905--01; SB.(TL#+TH#+DP+VC) LB.(TLF+TH) |
78117-T8003 |
US $41.47 |
||
|
63830
|
63830
78117-T9001 Mudguard Assy-Front Fender8112--01 ~ 8406--01; LB |
78117-T9001 |
US $60.91 |
||
|
63830
|
63830
78121-T8000 Mudguard Set-Front Fender, Rh8611--01 ~ 9006--01; Z20# |
78121-T8000 |
US $8.64 |
||
|
63830
|
63830
78117-T8000 Mudguard Assy-Front Fender8112--01 ~ 8205--01; SB.MT-WC |
78117-T8000 |
US $60.91 |
||
|
63830
|
63830
78117-T8003 Mudguard Assy-Front Fender8611--01 ~ 8905--01; SB.(TL#+TH#+DP+VC) LB.(TLF+TH) |
78117-T8003 |
US $41.47 |
||
|
63830
|
63830
78117-T9001 Mudguard Assy-Front Fender8112--01 ~ 8406--01; LB |
78117-T9001 |
US $60.91 |
||
|
63830R
|
63830R
78117-T8000 Mudguard Assy-Front Fender8112--01 ~ 8205--01; SB.MT-WC |
78117-T8000 |
US $60.91 |
||
|
63830R
|
63830R
78117-T8003 Mudguard Assy-Front Fender8611--01 ~ 8905--01; SB.(TL#+TH#+DP+VC) LB.(TLF+TH) |
78117-T8003 |
US $41.47 |
||
|
63830R
|
63830R
78117-T9001 Mudguard Assy-Front Fender8112--01 ~ 8406--01; LB |
78117-T9001 |
US $60.91 |
||
|
63832E
|
63832E
0155300541 CLIP-TRIM8112--01 ~ ; ALL |
0155300541 |
from US $1.18 |
||
|
63832R
|
63832R
78110-01T00 Board-Splash, Front8611--01 ~ 8905--01; *SB.(TL#+TH#+DP); ﾁﾙﾄｷﾔﾋﾞﾝ ﾖｳ |
78110-01T00 |
US $44.93 |
||
|
63832R
|
63832R
78110-T8000 Board-Splash, Front8112--01 ~ 8406--01; SB; ﾋﾀﾞﾘ |
78110-T8000 |
US $30.67 |
||
|
63832R
|
63832R
78110-T8001 Board-Splash, Front8112--01 ~ 8406--01; SB; ﾐｷﾞ |
78110-T8001 |
US $30.67 |
||
|
63832R
|
63832R
78110-T8003 Board-Splash, Front8611--01 ~ 8905--01; SB LB.(TLF+TH); ﾐｷﾞ SPLASH |
78110-T8003 |
US $44.93 |
||
|
63832R
|
63832R
78110-T9000 Board-Splash, Front8112--01 ~ 8206--01; LB; ﾋﾀﾞﾘ |
78110-T9000 |
US $44.93 |
||
|
63832R
|
63832R
78110-T9001 Board-Splash, Front8112--01 ~ 8406--01; LB; ﾐｷﾞ |
78110-T9001 |
US $44.93 |
||
|
63832R
|
63832R
78110-T9002 Board-Splash, Front8206--01 ~ 8301--01; LB; ﾋﾀﾞﾘ |
78110-T9002 |
US $44.93 |
||
|
63833
|
63833
93824-T8001 Plate-Mudguard, Rh8212--01 ~ 8611--01; SB.TH#.ST-A; ﾐｷﾞ/ﾋﾀﾞﾘ |
93824-T8001 |
US $14.11 |
||
|
63833
|
63833
78124-T9000 Plate-Splash Board8112--01 ~ 8406--01; LB |
78124-T9000 |
US $11.95 |
||
|
63833
|
63833
78135-T8000 Stay-Splash Guard Mounting, Rh8112--01 ~ 8205--01; SB.MT-WC; ﾋﾀﾞﾘ |
78135-T8000 |
US $27.07 |
||
|
63833
|
63833
78135-T8001 Stay-Splash Guard Mounting, Rh8406--01 ~ 8611--01; Z20#; ﾐｷﾞ |
78135-T8001 |
US $27.07 |
||
|
63833
|
63833
78136-T8000 Stay-Splash Guard Mounting, Rh8112--01 ~ 8406--01; Z20#; ﾐｷﾞ |
78136-T8000 |
US $27.07 |
||
|
63833
|
63833
78136-T8001 Stay-Splash Guard Mounting, Rh8406--01 ~ 8611--01; SB-WC LB.ED33.R5; ﾋﾀﾞﾘ |
78136-T8001 |
US $27.07 |
||
|
63833
|
63833
78120-T8000 Bracket Assy-Splash Board, Front8112--01 ~ 8406--01; SB.MT-WC; ﾀｲﾔﾉｳｼﾛ ﾐｷﾞ |
78120-T8000 |
US $171.36 |
||
|
63833
|
63833
78120-T8001 Bracket Assy-Splash Board, Front8112--01 ~ 8406--01; SB.MT-WC; ﾀｲﾔﾉｳｼﾛ ﾋﾀﾞﾘ |
78120-T8001 |
US $171.36 |
||
|
63833
|
63833
78120-T8007 Bracket Assy-Splash Board, Front8412--01 ~ 8905--01; Z20#; ﾀｲﾔﾉｳｼﾛ ﾐｷﾞ ﾋﾀﾞﾘ |
78120-T8007 |
US $171.36 |
||
|
63833
|
63833
78120-T9008 Bracket Assy-Splash Board, Front8112--01 ~ 8406--01; LB; ﾀｲﾔﾉｳｼﾛ ﾐｷﾞ |
78120-T9008 |
US $171.36 |
||
|
63833
|
63833
78121-T8001 Bracket Assy-Splash Board, Front8406--01 ~ 8611--01; Z20#; ﾀｲﾔﾉｳｼﾛ ﾋﾀﾞﾘ |
78121-T8001 |
US $171.36 |
||
|
63833R
|
63833R
78135-T8000 Stay-Splash Guard Mounting, Rh8112--01 ~ 8205--01; SB.MT-WC; ﾋﾀﾞﾘ |
78135-T8000 |
US $27.07 |
||
|
63833R
|
63833R
78135-T8001 Stay-Splash Guard Mounting, Rh8406--01 ~ 8611--01; Z20#; ﾐｷﾞ |
78135-T8001 |
US $27.07 |
||
|
63833R
|
63833R
78136-T8000 Stay-Splash Guard Mounting, Rh8112--01 ~ 8406--01; Z20#; ﾐｷﾞ |
78136-T8000 |
US $27.07 |
||
|
63833R
|
63833R
78136-T8001 Stay-Splash Guard Mounting, Rh8406--01 ~ 8611--01; SB-WC LB.ED33.R5; ﾋﾀﾞﾘ |
78136-T8001 |
US $27.07 |
||
|
63833X
|
63833X
78120-T8000 Bracket Assy-Splash Board, Front8112--01 ~ 8406--01; SB.MT-WC; ﾀｲﾔﾉｳｼﾛ ﾐｷﾞ |
78120-T8000 |
US $171.36 |
||
|
63833X
|
63833X
78120-T8001 Bracket Assy-Splash Board, Front8112--01 ~ 8406--01; SB.MT-WC; ﾀｲﾔﾉｳｼﾛ ﾋﾀﾞﾘ |
78120-T8001 |
US $171.36 |
||
|
63833X
|
63833X
78120-T8007 Bracket Assy-Splash Board, Front8412--01 ~ 8905--01; Z20#; ﾀｲﾔﾉｳｼﾛ ﾐｷﾞ ﾋﾀﾞﾘ |
78120-T8007 |
US $171.36 |
||
|
63833X
|
63833X
78120-T9008 Bracket Assy-Splash Board, Front8112--01 ~ 8406--01; LB; ﾀｲﾔﾉｳｼﾛ ﾐｷﾞ |
78120-T9008 |
US $171.36 |
||
|
63833X
|
63833X
78121-T8001 Bracket Assy-Splash Board, Front8406--01 ~ 8611--01; Z20#; ﾀｲﾔﾉｳｼﾛ ﾋﾀﾞﾘ |
78121-T8001 |
US $171.36 |
||
|
63834
|
63834
78115-T9000 Plate-Mudguard, Lh8206--01 ~ 8301--01; LB; ﾌﾛﾝﾄ |
78115-T9000 |
US $19.01 |
||
|
63834
|
63834
78135-T8001 Stay-Splash Guard Mounting, Rh8611--01 ~ 8905--01; Z20#; ﾐｷﾞｶﾞﾜ |
78135-T8001 |
US $27.07 |
||
|
63834
|
63834
78136-T9001 Stay-Splash Guard Mounting, Lh8112--01 ~ 8212--01; LB; ﾋﾀﾞﾘ |
78136-T9001 |
US $14.26 |
||
|
63834
|
63834
78137-T9001 Stay-Splash Guard Mounting, Lh8112--01 ~ 8212--01; LB; ﾐｷﾞ |
78137-T9001 |
US $14.26 |
||
|
63834R
|
63834R
78135-T8001 Stay-Splash Guard Mounting, Rh8611--01 ~ 8905--01; Z20#; ﾐｷﾞｶﾞﾜ |
78135-T8001 |
US $27.07 |
||
|
63834R
|
63834R
78136-T9001 Stay-Splash Guard Mounting, Lh8112--01 ~ 8212--01; LB; ﾋﾀﾞﾘ |
78136-T9001 |
US $14.26 |
||
|
63834R
|
63834R
78137-T9001 Stay-Splash Guard Mounting, Lh8112--01 ~ 8212--01; LB; ﾐｷﾞ |
78137-T9001 |
US $14.26 |
||
|
63835Q
|
63835Q
78121-T8000 Mudguard Set-Front Fender, Rh8112--01 ~ 8611--01; Z20# |
78121-T8000 |
US $8.64 |
||
|
63835R
|
63835R
78118-T8000 Mudguard Set-Front Fender, Rh8112--01 ~ 8406--01; SB; ｼﾙ ｾﾝﾀ- ﾖｳ |
78118-T8000 |
US $6.48 |
||
|
63835R
|
63835R
78118-T9001 Mudguard Set-Front Fender, Rh8112--01 ~ 8406--01; LB; ｼﾙ ｾﾝﾀ- ﾐｷﾞ ﾖｳ |
78118-T9001 |
US $6.48 |
||
|
63835R
|
63835R
78118-T9002 Mudguard Set-Front Fender, Rh8112--01 ~ 8406--01; LB; ｼﾙ ｾﾝﾀ- ﾋﾀﾞﾘ ﾖｳ |
78118-T9002 |
US $11.52 |
||
|
63835V
|
63835V
78119-T8000 Seal Rubber-Splash8112--01 ~ 8210--01; ALL; ﾌﾛﾝﾄ |
78119-T8000 |
US $2.74 |
||
|
63835V
|
63835V
78119-T8001 Seal Rubber-Splash8112--01 ~ 8210--01; ALL; ﾘﾔ |
78119-T8001 |
US $5.76 |
||
|
63835V
|
63835V
78123-T8003 Seal Rubber-Splash8210--01 ~ 9006--01; ALL; ﾌﾛﾝﾄ |
78123-T8003 |
US $14.83 |
||
|
63835V
|
63835V
78123-T8004 Seal Rubber-Splash8210--01 ~ 9006--01; ALL; ｼﾙｾﾝﾀ- ﾘﾔ |
78123-T8004 |
US $19.01 |
||
|
76200E
|
76200E
64890U7400 Plug-Rubber8112--01 ~ 8905--01; ALL; D=30 |
64890U7400 |
from US $0.97 |
||
| replacement | |||||
|
76200E
|
76200E
0165802121 PLUG8112--01 ~ 8905--01; ALL; D=30 |
0165802121 |
from US $1.37 |
||
|
76200E
|
76200E
74891-T8000 Seal Stopper8112--01 ~ 8905--01; ALL; T=0.4 |
74891-T8000 |
US $2.30 |
||
|
76811
|
76811
76985-T6000 ｶﾊﾞ-,ﾄﾘﾑ ﾎﾞﾃﾞ- ｻｲﾄﾞ8112--01 ~ 8611--01; ALL; ﾛﾂｸ ﾋﾟﾗ- ｲﾝﾅ- ﾖｳ |
76985-T6000 |
US $9.36 |
||
|
76895
|
76895
93822-01T00 ﾏﾂﾄﾞｶﾞ-ﾄﾞ8611--01 ~ ; SB.2T.ST; ｱﾄﾗｽ ﾖｳ |
93822-01T00 |
US $34.56 |
||
|
76895
|
76895
93822-T8112 ﾏﾂﾄﾞｶﾞ-ﾄﾞ8201--01 ~ 8208--01; SB.ST-(VC,A); ｱﾄﾗｽ ﾖｳ |
93822-T8112 |
US $32.40 |
||
|
76895
|
76895
93822-T8113 ﾏﾂﾄﾞｶﾞ-ﾄﾞ ｾﾂﾄ,ﾘﾔ rh8112--01 ~ 8201--01; *SB.TH#.ST-A; ｺﾝﾄﾞﾙ ﾖｳ |
93822-T8113 |
US $41.76 |
||
|
76895
|
76895
93822-T8114 ﾏﾂﾄﾞｶﾞ-ﾄﾞ8208--01 ~ 8212--01; SB.ST-(VC,A); ｱﾄﾗｽ ﾖｳ |
93822-T8114 |
US $32.40 |
||
|
76895
|
76895
93822-T8115 ﾏﾂﾄﾞｶﾞ-ﾄﾞ ｾﾂﾄ,ﾘﾔ rh8208--01 ~ 8212--01; *SB.ST-(VC,A); ｺﾝﾄﾞﾙ ﾖｳ |
93822-T8115 |
US $41.76 |
||
|
76896
|
76896
93823-01T00 ﾏﾂﾄﾞｶﾞ-ﾄﾞ8611--01 ~ ; SB.2T.ST; ｱﾄﾗｽ ﾖｳ |
93823-01T00 |
US $34.56 |
||
|
76896
|
76896
93823-T8112 ﾏﾂﾄﾞｶﾞ-ﾄﾞ8112--01 ~ 8201--01; SB.TH#.ST-A; ｱﾄﾗｽ ﾖｳ |
93823-T8112 |
US $32.40 |
||
|
76896
|
76896
93823-T8113 ﾏﾂﾄﾞｶﾞ-ﾄﾞ ｾﾂﾄ,ﾘﾔ lh8112--01 ~ 8201--01; *SB.TH#.ST-A; ｺﾝﾄﾞﾙ ﾖｳ |
93823-T8113 |
US $41.76 |
||
|
76896
|
76896
93823-T8114 ﾏﾂﾄﾞｶﾞ-ﾄﾞ8208--01 ~ 8212--01; SB.ST-(VC,A); ｱﾄﾗｽ ﾖｳ |
93823-T8114 |
US $32.40 |
||
|
76896
|
76896
93823-T8115 ﾏﾂﾄﾞｶﾞ-ﾄﾞ ｾﾂﾄ,ﾘﾔ lh8208--01 ~ 8212--01; *SB.ST-(VC,A); ｺﾝﾄﾞﾙ ﾖｳ |
93823-T8115 |
US $41.76 |
||
|
78110G
|
78110G
62700-T8000 ｼ-ﾘﾝｸﾞ,ﾎﾞﾃﾞ- ｲﾝｻｲﾄﾞ ﾒﾝﾊﾞ-8209--01 ~ 8212--01; MT-WC; ﾐｷﾞ |
62700-T8000 |
US $33.98 |
||
|
78110G
|
78110G
62701-T8000 ｼ-ﾘﾝｸﾞ,ﾎﾞﾃﾞ- ｲﾝｻｲﾄﾞ ﾒﾝﾊﾞ-8209--01 ~ 8212--01; MT-WC; ﾋﾀﾞﾘ |
62701-T8000 |
US $33.98 |
||
|
78110J
|
78110J
78122-T9000 ｼ-ﾙ ﾗﾊﾞ-8112--01 ~ 8611--01; LB |
78122-T9000 |
US $31.82 |
||
|
96102
|
96102
96130-T8001 ｽﾃﾂﾌﾟ ｱﾂｾﾝﾌﾞﾘ-,ｻｲﾄﾞ ﾘﾔ rh8406--01 ~ ; *ALL; ｽﾃﾂﾌﾟ ｱﾙﾐ |
96130-T8001 |
US $114.48 |
||
|
96103
|
96103
96131-T8001 ｽﾃﾂﾌﾟ ｱﾂｾﾝﾌﾞﾘ-,ｻｲﾄﾞ ﾘﾔ lh8406--01 ~ ; *ALL; ｽﾃﾂﾌﾟ ｱﾙﾐ |
96131-T8001 |
US $114.48 |
||
|
96150M
|
96150M
96120T8001 ﾏﾂﾄ ｽﾃﾂﾌﾟ8406--01 ~ ; ALL; ﾗﾊﾞ-ｽﾃﾂﾌﾟ |
96120T8001 |
US $35.14 |
||
|
96151M
|
96151M
96121T8001 ﾏﾂﾄ ｽﾃﾂﾌﾟ8406--01 ~ ; ALL; ﾗﾊﾞ-ｽﾃﾂﾌﾟ |
96121T8001 |
US $35.14 |
||
|
97610C
|
97610C
62328-32200 ﾜﾂｼﾔ-8112--01 ~ 8205--01; MT-WC; ﾘﾔ ﾌｴﾝﾀﾞ- ﾖｳ |
62328-32200 |
US $1.73 |
||
|
97610C
|
97610C
62328-T8000
ﾜﾂｼﾔ-
8508--01 ~ 8611--01; ALL-WC; ﾘﾔ ﾌｴﾝﾀﾞ- ﾖｳ |
62328-T8000 |
— | ||
|
97610C
|
97610C
74340-12161 Washer8112--01 ~ 8206--01; ALL; ﾌﾛｱ ﾖｳ |
74340-12161 |
US $4.03 |
||
|
97610C
|
97610C
62328-32200 ﾜﾂｼﾔ-8112--01 ~ 8205--01; MT-WC; ﾘﾔ ﾌｴﾝﾀﾞ- ﾖｳ |
62328-32200 |
US $1.73 |
||
|
97610C
|
97610C
62328-T8000
ﾜﾂｼﾔ-
8508--01 ~ 8611--01; ALL-WC; ﾘﾔ ﾌｴﾝﾀﾞ- ﾖｳ |
62328-T8000 |
— | ||
|
97610C
|
97610C
74340-12161 Washer8112--01 ~ 8206--01; ALL; ﾌﾛｱ ﾖｳ |
74340-12161 |
US $4.03 |
||
