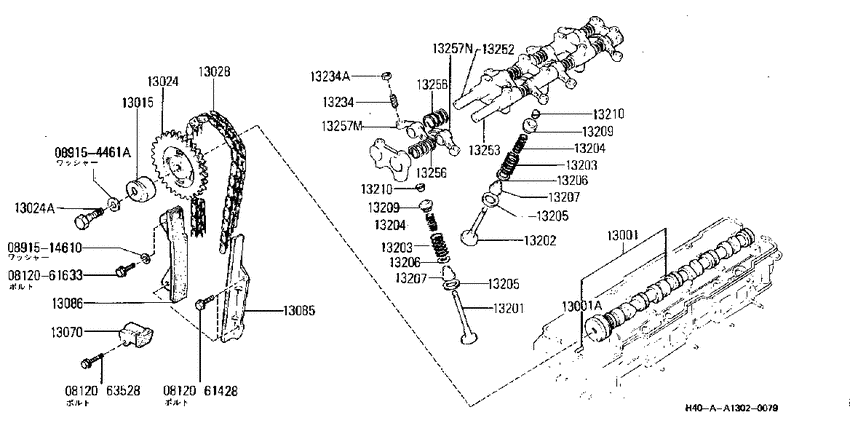

cam shaft & ﾊﾞﾙﾌﾞ ﾒｶﾆｽﾞﾑ (1981-12-01 ~ 1990-06-01; Z20) Diagram Nissan ATLAS/CONDOR
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- Z20D
- transmission
- MT
- body
- TH
- body type
- SB/2T
- transmission/shift type
- R5
- tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061428
|
0812061428
0812061428
Bolt-hexagon
|
0812061428 |
— | ||
|
0812061633
|
0812061633
08120-61633
Bolt-hexagon
|
08120-61633 |
— | ||
| replacement | |||||
|
0812061633
|
0812061633
08120-6161F Bolt-hexagon |
08120-6161F |
from US $2.36 |
||
|
0812063528
|
0812063528
08120-63528
Bolt-hexagon
|
08120-63528 |
— | ||
|
0891514610
|
0891514610
08915-14610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-14610 |
— | ||
|
089154461A
|
089154461A
08915-4461A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-4461A |
— | ||
|
13001
|
13001
13001-W0480
Camshaft Assy
8301--01 ~ 8611--01; Z20S+Z20D |
13001-W0480 |
— | ||
|
13001
|
13001
13001-W0483 Camshaft Assy8611--01 ~ 9006--01; Z20S+Z20D; |
13001-W0483 |
US $522.50 |
||
|
13001
|
13001
1303218000 Dowel-Camshaft8301--01 ~ 9006--01; Z20S+Z20D |
1303218000 |
from US $0.57 |
||
|
13001A
|
13001A
1303218000 Dowel-Camshaft8301--01 ~ 9006--01; Z20S+Z20D |
1303218000 |
from US $0.57 |
||
|
13015
|
13015
13015-W0400 Cam Assy-Fuel Pump8301--01 ~ 9006--01; Z20S+Z20D |
13015-W0400 |
US $11.79 |
||
|
13024
|
13024
13024-03G00 Sprocket-Camshaft8801--01 ~ 9006--01; Z20S+Z20D |
13024-03G00 |
from US $42 |
||
|
13024
|
13024
13024-21000
Sprocket-Camshaft
8301--01 ~ 8801--01; Z20S+Z20D; ﾌｼﾞﾃﾂｺｳ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
13024-21000 |
— | ||
|
13024
|
13024
13024-U8001
Sprocket-Camshaft
8301--01 ~ 8801--01; Z20S+Z20D; ﾆﾂｻﾝ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
13024-U8001 |
— | ||
| replacement | |||||
|
13024
|
13024
13024-U8000 Sprocket-Camshaft8301--01 ~ 8801--01; Z20S+Z20D; ﾆﾂｻﾝ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
13024-U8000 |
US $81.24 |
||
|
13024
|
13024
13012-W0400 Bolt-Sprocket, Camshaft8301--01 ~ 8901--01; Z20S+Z20D |
13012-W0400 |
US $5.90 |
||
|
13024
|
13024
13012-W0401 Bolt-Sprocket, Camshaft8901--01 ~ 9006--01; Z20S+Z20D |
13012-W0401 |
US $4.03 |
||
|
13024A
|
13024A
13012-W0400 Bolt-Sprocket, Camshaft8301--01 ~ 8901--01; Z20S+Z20D |
13012-W0400 |
US $5.90 |
||
|
13024A
|
13024A
13012-W0401 Bolt-Sprocket, Camshaft8901--01 ~ 9006--01; Z20S+Z20D |
13012-W0401 |
US $4.03 |
||
|
13028
|
13028
13028-27G00 Chain-Timing Camshaft8801--01 ~ 9006--01; Z20S+Z20D |
13028-27G00 |
US $188.64 |
||
|
13028
|
13028
13028-N8400 Chain-Timing Camshaft8301--01 ~ 8801--01; Z20S+Z20D |
13028-N8400 |
from US $57.31 |
||
|
13070
|
13070
1307021002 Tensioner Assy-Chain8301--01 ~ 9006--01; Z20S+Z20D |
1307021002 |
from US $37.65 |
||
|
13085
|
13085
13085N8400 Guide-Chain, Tension Side8301--01 ~ 9006--01; Z20S+Z20D |
13085N8400 |
US $11.81 |
||
|
13086
|
13086
13091-W0400 Guide-Chain, Slack Side8301--01 ~ 9006--01; Z20S+Z20D |
13091-W0400 |
from US $10.22 |
||
| replacement | |||||
|
13086
|
13086
13091-11W00 Guide-Chain, Slack Side8301--01 ~ 9006--01; Z20S+Z20D |
13091-11W00 |
from US $10.54 |
||
|
13201
|
13201
13201-Y8780 Valve-Intake8301--01 ~ 9006--01; Z20D |
13201-Y8780 |
from US $21.94 |
||
|
13202
|
13202
13202Y8780 Valve-Exhaust8301--01 ~ 9006--01; Z20D |
13202Y8780 |
US $41.76 |
||
|
13203
|
13203
13203-W0400 Spring-Valve, Outer8301--01 ~ 9006--01; Z20S+Z20D |
13203-W0400 |
US $7.76 |
||
|
13203
|
13203
13203-W0400 Spring-Valve, Outer8301--01 ~ 9006--01; Z20S+Z20D |
13203-W0400 |
US $7.76 |
||
|
13204
|
13204
13204-W7000 Spring-Valve, Inner8301--01 ~ 9006--01; Z20S+Z20D |
13204-W7000 |
from US $2.39 |
||
|
13204
|
13204
13204-W7000 Spring-Valve, Inner8301--01 ~ 9006--01; Z20S+Z20D |
13204-W7000 |
from US $2.39 |
||
|
13205
|
13205
13205-D0200
Seat-Valve Spring, Outer
8301--01 ~ 9006--01; Z20S+Z20D |
13205-D0200 |
— | ||
| replacement | |||||
|
13205
|
13205
13205D020A SEAT VALVE SPR8301--01 ~ 9006--01; Z20S+Z20D |
13205D020A |
US $1.93 |
||
|
13205
|
13205
13205-D0200
Seat-Valve Spring, Outer
8301--01 ~ 9006--01; Z20S+Z20D |
13205-D0200 |
— | ||
| replacement | |||||
|
13205
|
13205
13205D020A SEAT VALVE SPR8301--01 ~ 9006--01; Z20S+Z20D |
13205D020A |
US $1.93 |
||
|
13206
|
13206
13206-23000
Seat-Valve Spring, Inner
8301--01 ~ 9006--01; Z20S+Z20D |
13206-23000 |
— | ||
| replacement | |||||
|
13206
|
13206
13206-2300A Seat-Valve Spring, Inner8301--01 ~ 9006--01; Z20S+Z20D |
13206-2300A |
from US $0.61 |
||
|
13206
|
13206
13206-23000
Seat-Valve Spring, Inner
8301--01 ~ 9006--01; Z20S+Z20D |
13206-23000 |
— | ||
| replacement | |||||
|
13206
|
13206
13206-2300A Seat-Valve Spring, Inner8301--01 ~ 9006--01; Z20S+Z20D |
13206-2300A |
from US $0.61 |
||
|
13207
|
13207
13207-21002
Seal-Oil, Valve
8301--01 ~ 8611--01; Z20S+Z20D |
13207-21002 |
— | ||
| replacement | |||||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8301--01 ~ 8611--01; Z20S+Z20D |
1320781W00 |
from US $3.19 |
||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8611--01 ~ 9006--01; Z20S+Z20D |
1320781W00 |
from US $3.19 |
||
|
13207
|
13207
13207-21002
Seal-Oil, Valve
8301--01 ~ 8611--01; Z20S+Z20D |
13207-21002 |
— | ||
| replacement | |||||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8301--01 ~ 8611--01; Z20S+Z20D |
1320781W00 |
from US $3.19 |
||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8611--01 ~ 9006--01; Z20S+Z20D |
1320781W00 |
from US $3.19 |
||
|
13209
|
13209
13209-W0400 Retainer-valve spring8301--01 ~ 9006--01; Z20S+Z20D |
13209-W0400 |
from US $2.44 |
||
|
13209
|
13209
13209-W0400 Retainer-valve spring8301--01 ~ 9006--01; Z20S+Z20D |
13209-W0400 |
from US $2.44 |
||
|
13210
|
13210
13210U0100 Collet-Valve Spring8301--01 ~ 9006--01; Z20S+Z20D |
13210U0100 |
from US $0.81 |
||
|
13210
|
13210
13210U0100 Collet-Valve Spring8301--01 ~ 9006--01; Z20S+Z20D |
13210U0100 |
from US $0.81 |
||
|
13234
|
13234
13287-W0400 Screw-Adjust, Valve Rocker8301--01 ~ 9006--01; Z20S+Z20D |
13287-W0400 |
US $5.55 |
||
|
13234
|
13234
13288-H5000 Nut-Lock, Rocker Pivot Screw8301--01 ~ 9006--01; Z20S+Z20D |
13288-H5000 |
US $2.36 |
||
|
13234A
|
13234A
13288-H5000 Nut-Lock, Rocker Pivot Screw8301--01 ~ 9006--01; Z20S+Z20D |
13288-H5000 |
US $2.36 |
||
|
13252
|
13252
13253-W0402 Shaft-Rocker8301--01 ~ 9006--01; Z20S+Z20D |
13253-W0402 |
from US $46.08 |
||
|
13253
|
13253
13246-W0402 Shaft-Rocker8301--01 ~ 9006--01; Z20S+Z20D |
13246-W0402 |
US $70.97 |
||
|
13256
|
13256
13256-W0400 Spring-Rocker8301--01 ~ 9006--01; Z20S+Z20D |
13256-W0400 |
US $7.06 |
||
|
13256
|
13256
13256-W0400 Spring-Rocker8301--01 ~ 9006--01; Z20S+Z20D |
13256-W0400 |
US $7.06 |
||
|
13257M
|
13257M
13257-W0560 Rocker-Valve8301--01 ~ 9006--01; Z20D |
13257-W0560 |
US $62.79 |
||
|
13257N
|
13257N
13261-W0560 Rocker-Valve8301--01 ~ 9006--01; Z20D |
13261-W0560 |
US $61.12 |
||
