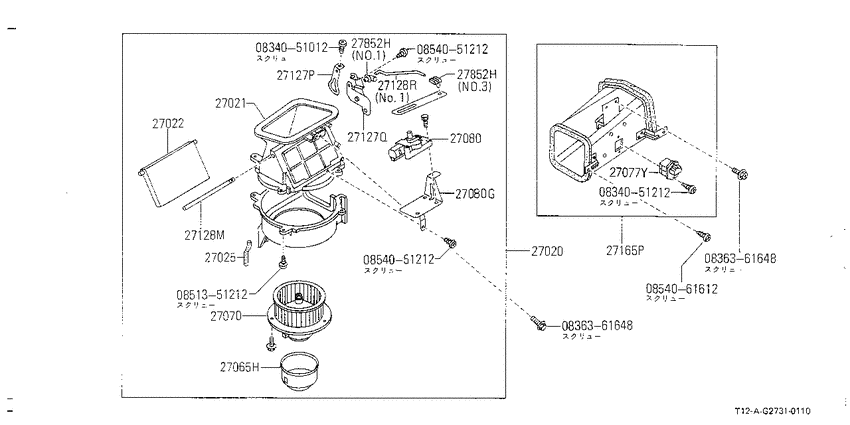

heater,cooler & air conditioner (unit) (1988-01-01 ~ ; インテーク ユニット; S.(XIB+XT+XTT)) Diagram Nissan AUSTER/STANZA
- Year
- 1985 - 1988
- Sales region
- Japan
- Engine
- CA18T
- transmission
- AT
- grade
- XT
- body
- S
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0834051012
|
0834051012
08340-51012
ｽｸﾘﾕ-,ﾏｼﾝ
|
08340-51012 |
— | ||
|
0834051212
|
0834051212
08340-51212
ｽｸﾘﾕ-,ﾏｼﾝ
|
08340-51212 |
— | ||
|
0836361648
|
0836361648
08363-61648
SCREW
|
08363-61648 |
— | ||
| replacement | |||||
|
0836361648
|
0836361648
083636162H SCREWMACHINE |
083636162H |
US $2.21 |
||
|
0836361648
|
0836361648
08363-61648
SCREW
|
08363-61648 |
— | ||
| replacement | |||||
|
0836361648
|
0836361648
083636162H SCREWMACHINE |
083636162H |
US $2.21 |
||
|
0851351212
|
0851351212
08513-51212
SCREW
|
08513-51212 |
— | ||
|
0854051212
|
0854051212
08540-51212
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-51212 |
— | ||
|
0854051212
|
0854051212
08540-51212
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-51212 |
— | ||
|
0854061612
|
0854061612
08540-61612
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-61612 |
— | ||
|
27020
|
27020
27200-28E00 BLOWER ASSY-FRONT8602--01 ~ 8801--01; ALL |
27200-28E00 |
US $375.24 |
||
|
27020
|
27020
27200-D4000 Blower Assy-Front8510--01 ~ 8602--01; ALL |
27200-D4000 |
US $375.24 |
||
|
27020
|
27020
27200-D5200 Blower Assy-Front8801--01 ~ ; S.(XIB+XT+XTT) |
27200-D5200 |
US $450.29 |
||
|
27021
|
27021
27235-D4000 Case-Blower8510--01 ~ 8801--01; ALL |
27235-D4000 |
US $50.83 |
||
|
27021
|
27021
27235-D5200 Case-Blower8801--01 ~ ; S.(XIB+XT+XTT) |
27235-D5200 |
US $44.78 |
||
|
27022
|
27022
27245-01E01
DUCT-AIR INTAKE
8801--01 ~ ; S.(XIB+XT+XTT); |
27245-01E01 |
— | ||
|
27022
|
27022
27245-28E00 DUCT-AIR INTAKE8602--01 ~ 8801--01; ALL; [B517] |
27245-28E00 |
US $23.04 |
||
|
27022
|
27022
27245-D4000 Duct-Air Intake8510--01 ~ 8602--01; ALL |
27245-D4000 |
US $27.36 |
||
|
27025
|
27025
27228-01E01 HOSE-WATER8510--01 ~ ; ALL |
27228-01E01 |
US $12.10 |
||
|
27065H
|
27065H
27227-51E00 COVER-HEATER BLOWER8801--01 ~ ; S.(XIB+XT+XTT) |
27227-51E00 |
US $5.04 |
||
|
27070
|
27070
27220-01E10 MOTOR & FAN ASSY-BLOWER8510--01 ~ 8709--01; ALL |
27220-01E10 |
US $247.68 |
||
|
27070
|
27070
27220-01E11 MOTOR & FAN ASSY-BLOWER8709--01 ~ ; ALL |
27220-01E11 |
US $247.68 |
||
|
27077Y
|
27077Y
27150-D4000 Resistance-Electric8510--01 ~ ; S |
27150-D4000 |
US $23.90 |
||
|
27080
|
27080
27730-55S60 Actuator-Air Intake Box8801--01 ~ ; S.(XIB+XT+XTT) |
27730-55S60 |
US $76.60 |
||
|
27080
|
27080
27750-D5200
Bracket-Actuator
8801--01 ~ ; S.(XIB+XT+XTT); [B517] |
27750-D5200 |
— | ||
|
27080G
|
27080G
27750-D5200
Bracket-Actuator
8801--01 ~ ; S.(XIB+XT+XTT); [B517] |
27750-D5200 |
— | ||
|
27127P
|
27127P
27250-D4000 Link-Air Door, No 38510--01 ~ 8801--01; ALL |
27250-D4000 |
US $8.78 |
||
|
27127P
|
27127P
27250-D5210
Link-Air Door, No 3
8801--01 ~ ; S.(XIB+XT+XTT); [B517] |
27250-D5210 |
— | ||
|
27127Q
|
27127Q
27250-D5200 Link-Air Door, No 48801--01 ~ ; S.(XIB+XT+XTT) |
27250-D5200 |
US $8.21 |
||
|
27127Q
|
27127Q
27251-D4000 Link-Air Door, No 48510--01 ~ 8801--01; ALL |
27251-D4000 |
US $6.91 |
||
|
27128M
|
27128M
27255-D4000 Rod-Air Door, No 18510--01 ~ 8801--01; ALL |
27255-D4000 |
US $3.46 |
||
|
27128M
|
27128M
27255-D5200 Rod-Air Door, No 18801--01 ~ ; S.(XIB+XT+XTT) |
27255-D5200 |
US $10.37 |
||
|
27128R
|
27128R
27781-D5200 Rod-Air Door, No 58801--01 ~ ; S.(XIB+XT+XTT); NO.1 |
27781-D5200 |
US $4.03 |
||
|
27128R
|
27128R
27781-D5210 Rod8801--01 ~ ; S.(XIB+XT+XTT); NO.2 |
27781-D5210 |
US $5.47 |
||
|
27165P
|
27165P
27850-01E00
DUCT-DEMISTER,RH
8510--01 ~ 8606--01; *ALL; ｶﾝﾚｲﾁ ﾖｳ[B517] |
27850-01E00 |
— | ||
|
27165P
|
27165P
27850-01E10 DUCT-DEMISTER,RH8510--01 ~ 8606--01; ALL; [B517] |
27850-01E10 |
US $95.04 |
||
|
27165P
|
27165P
27850-01E15 DUCT-DEMISTER,RH8606--01 ~ ; ALL; [B517] |
27850-01E15 |
US $95.04 |
||
|
27852H
|
27852H
27137-D4000 Holder-Rod8510--01 ~ 8801--01; ALL; NO.2 (ﾌﾀ ｱﾘ) |
27137-D4000 |
US $0.85 |
||
|
27852H
|
27852H
27173-01P00 Clip8510--01 ~ ; ALL; NO.1 |
27173-01P00 |
US $0.86 |
||
|
27852H
|
27852H
B7157-89910 Holder-Rod8510--01 ~ 8801--01; ALL; NO.2 (ﾌﾀ ﾅｼ) |
B7157-89910 |
US $0.86 |
||
|
27852H
|
27852H
27137-D4000 Holder-Rod8510--01 ~ 8801--01; ALL; NO.2 (ﾌﾀ ｱﾘ) |
27137-D4000 |
US $0.85 |
||
|
27852H
|
27852H
27173-01P00 Clip8510--01 ~ ; ALL; NO.1 |
27173-01P00 |
US $0.86 |
||
|
27852H
|
27852H
B7157-89910 Holder-Rod8510--01 ~ 8801--01; ALL; NO.2 (ﾌﾀ ﾅｼ) |
B7157-89910 |
US $0.86 |
||
