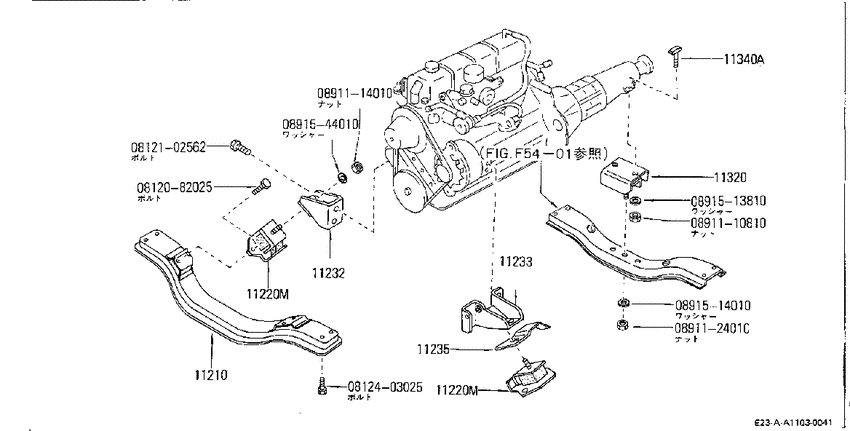

engine & transmission mounting (1980-08-01 ~ 1982-05-01; H20) Diagram Nissan CARAVAN/HOMY
- Year
- 1980 - 1982
- Sales region
- Japan
- Engine
- H20S
- transmission
- R4
- Number of doors
- 4D
- grade
- GL
- body
- B
- body type
- LB
- capacity
- 15
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812082025
|
0812082025
08120-82025
Bolt-hexagon
|
08120-82025 |
— | ||
|
0812102562
|
0812102562
0812102562
Bolt-hexagon
|
0812102562 |
— | ||
|
0812403025
|
0812403025
08124-03025
Bolt-hexagon
|
08124-03025 |
— | ||
|
0891110810
|
0891110810
08911-10810
NUT
|
08911-10810 |
— | ||
| replacement | |||||
|
0891110810
|
0891110810
089111082A NUTHEX |
089111082A |
US $0.50 |
||
|
0891114010
|
0891114010
08911-14010
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-14010 |
— | ||
|
0891124010
|
0891124010
0891124010
NUTHEX
|
0891124010 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
0891544010
|
0891544010
08915-44010
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-44010 |
— | ||
|
11210
|
11210
11210-R8100 Member-Engine Mounting, Front8008--01 ~ 8205--01; H20+SD22 |
11210-R8100 |
US $450.29 |
||
|
11220M
|
11220M
11220-Y4400 Insulator Assy-Engine Mounting, Front Lh8008--01 ~ 8205--01; H20+SD22 |
11220-Y4400 |
US $55.58 |
||
|
11220M
|
11220M
11220-Y4400 Insulator Assy-Engine Mounting, Front Lh8008--01 ~ 8205--01; H20+SD22 |
11220-Y4400 |
US $55.58 |
||
|
11232
|
11232
11232-R9000
Bracket-Engine Mounting, Rh
8008--01 ~ 8205--01; H20 |
11232-R9000 |
— | ||
|
11233
|
11233
11233-R9000 Bracket-Engine Mounting, Lh8008--01 ~ 8205--01; H20-AMB |
11233-R9000 |
US $77.33 |
||
|
11235
|
11235
11235-R9000 Plate-Heat Shield8008--01 ~ 8205--01; H20 |
11235-R9000 |
US $12.82 |
||
|
11320
|
11320
11320-R8000 Insulator-Engine Mounting, Rear8008--01 ~ 8304--01; ALL |
11320-R8000 |
US $73.58 |
||
|
11320
|
11320
11320-R8060
Insulator-Engine Mounting, Rear
8304--01 ~ ; ALL-LD20T.AT |
11320-R8060 |
— | ||
|
11340A
|
11340A
11390-K2500 Bolt8304--01 ~ ; ALL |
11390-K2500 |
US $2.45 |
||
|
11340A
|
11340A
11390-S0103 Bolt8008--01 ~ 8205--01; Z20+H20 |
11390-S0103 |
US $2.45 |
||
