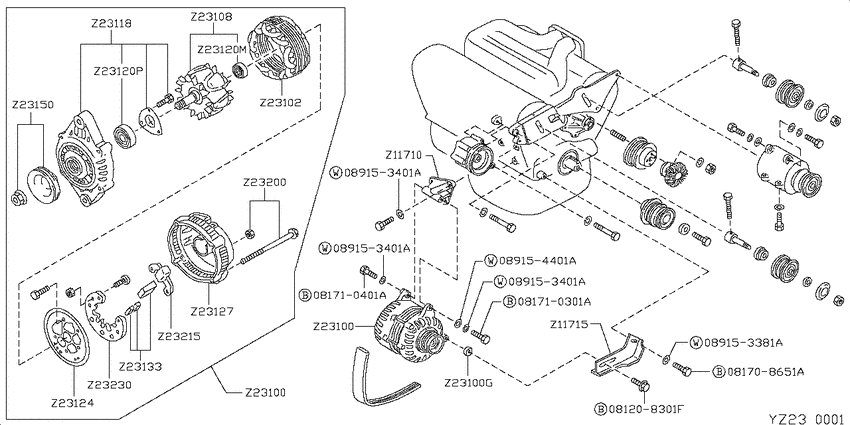

engine Electrical (1994-08-01 ~ ; オルタネーター; ﾊﾟﾗﾒﾃﾞｨｯｸ) Diagram Nissan CARAVAN/HOMY
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- VG30E
- drive
- 2WD
- transmission
- AT.F4
- grade
- DX
- body
- AMB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208301F
|
081208301F
08120-8301F Bolt-hexagon |
08120-8301F |
from US $0.57 |
||
|
081708651A
|
081708651A
08170-8651A
Bolt-hexagon
|
08170-8651A |
— | ||
|
081710301A
|
081710301A
08171-0301A Bolt-hexagon |
08171-0301A |
US $0.93 |
||
|
081710401A
|
081710401A
08171-0401A
Bolt-hexagon
|
08171-0401A |
— | ||
|
089153381A
|
089153381A
089153381A Washer |
089153381A |
from US $0.67 |
||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
089154401A
|
089154401A
089154401A
WASHERPLAIN
|
089154401A |
— | ||
|
Z11710
|
Z11710
11710-0A200 Bracket-Alternator9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
11710-0A200 |
US $126.14 |
||
|
Z11715
|
Z11715
11715-0A200 Bar-Adjusting, Alternator9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
11715-0A200 |
US $23.04 |
||
|
Z23100
|
Z23100
23100-31U02 Alternator Assy9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23100-31U02 |
US $1,960 |
||
|
Z23100
|
Z23100
11717-0A200
Spacer
9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
11717-0A200 |
— | ||
|
Z23100
|
Z23100
23100-31U02 Alternator Assy9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23100-31U02 |
US $1,960 |
||
|
Z23100
|
Z23100
11717-0A200
Spacer
9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
11717-0A200 |
— | ||
|
Z23100G
|
Z23100G
11717-0A200
Spacer
9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
11717-0A200 |
— | ||
|
Z23102
|
Z23102
23102-40U00 Stator Assy9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23102-40U00 |
US $591.89 |
||
|
Z23108
|
Z23108
23108-40U00 Rotor Assy9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23108-40U00 |
US $346.92 |
||
| replacement | |||||
|
Z23108
|
Z23108
23108-6P600 Rotor Assy9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23108-6P600 |
US $346.92 |
||
|
Z23118
|
Z23118
23118-40U00 Cover Assy-Front9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23118-40U00 |
US $111.17 |
||
| replacement | |||||
|
Z23118
|
Z23118
23118-AR00A Cover Assy-Front9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23118-AR00A |
US $146.88 |
||
|
Z23120M
|
Z23120M
23120-0M000 Bearing-Ball9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23120-0M000 |
US $42.34 |
||
|
Z23120P
|
Z23120P
23120-0M005 Bearing-Ball9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23120-0M005 |
US $40.61 |
||
|
Z23124
|
Z23124
23124-31U02 Rectifier Assy9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23124-31U02 |
US $743.40 |
||
| replacement | |||||
|
Z23124
|
Z23124
2312431U07 Rectifier Assy9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
2312431U07 |
US $743.40 |
||
|
Z23127
|
Z23127
23127-31U02 Cover Assy-Rear9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23127-31U02 |
US $988.37 |
||
|
Z23133
|
Z23133
23133-65F00 Holder Assy-Brush9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23133-65F00 |
US $49.97 |
||
|
Z23150
|
Z23150
23150-40U00 Pulley Assy9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23150-40U00 |
from US $92.16 |
||
|
Z23200
|
Z23200
23200-0M000 Screw Set9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23200-0M000 |
US $8.50 |
||
|
Z23215
|
Z23215
23215-31U02 Regulator Assy-Ic9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23215-31U02 |
US $419.14 |
||
| replacement | |||||
|
Z23215
|
Z23215
2312431U07 Rectifier Assy9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
2312431U07 |
US $743.40 |
||
|
Z23230
|
Z23230
23230-40U00 Diode Assy9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
23230-40U00 |
US $295.94 |
||
| replacement | |||||
|
Z23230
|
Z23230
2312431U07 Rectifier Assy9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
2312431U07 |
US $743.40 |
||
