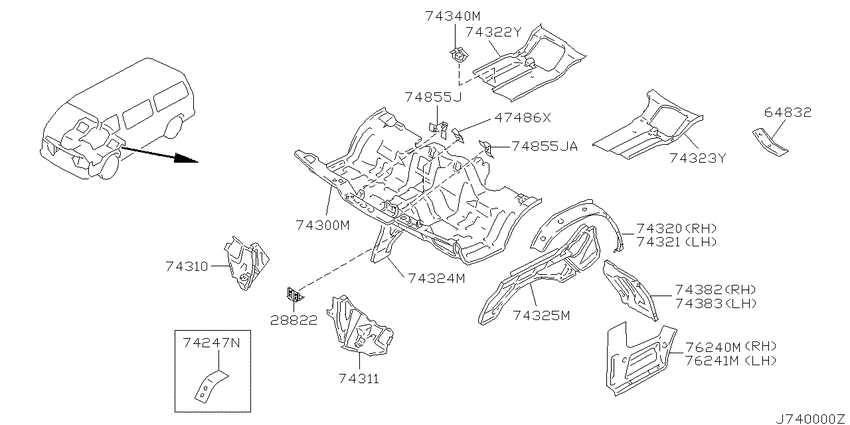

Floor panel (1999-06-01 ~ ; B +AMB) Diagram Nissan CARAVAN/HOMY
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- VG30E
- drive
- 2WD
- transmission
- AT.F4
- grade
- DX
- body
- AMB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28822
|
28822
28822-01N00 Bracket Assy-Wiper Motor9705--01 ~ 9906--01; K +AMB +B +CH |
28822-01N00 |
US $84.82 |
||
|
47486X
|
47486X
74476-01N10 Bracket-Vacuum Tube9705--01 ~ 9906--01; K +AMB +B +CH |
74476-01N10 |
US $10.94 |
||
|
64832
|
64832
64832-01N00 Bracket Air Cleaner Rear Rh9705--01 ~ 9906--01; K +AMB +B +CH |
64832-01N00 |
US $17.71 |
||
|
74247N
|
74247N
74247-01N00 Reinforce-Engine Cover Hook9705--01 ~ 9906--01; 0K.2WD.TD27 +K.4WD.TD27TI +K.4WD.GL +K.VG30E +AMB |
74247-01N00 |
US $28.37 |
||
|
74300M
|
74300M
74310-VH002 Floor-Front, Front9906--01 ~ ; *AMB |
74310-VH002 |
US $868.01 |
||
|
74300M
|
74300M
G4310-45N09 Floor-Front, Front9705--01 ~ 9906--01; K.VG30E +AMB |
G4310-45N09 |
US $868.01 |
||
|
74310
|
74310
75224-38N00 Bracket Assy-Front Cross Side, Rh9705--01 ~ 9906--01; -K.VG30E +K.(TD27+TD27TI).GLL +K.(DXR+GL) +AMB |
75224-38N00 |
US $89.14 |
||
|
74311
|
74311
75225-38N00 Bracket Assy-Front Cross Side, Lh9705--01 ~ 9906--01; -K.VG30E +K.(TD27+TD27TI).GLL +K.(DXR+GL) +AMB |
75225-38N00 |
US $89.14 |
||
|
74320
|
74320
7645001N00 Sill-Inner, Rh9705--01 ~ 9906--01; K +AMB +B +CH |
7645001N00 |
US $105.41 |
||
|
74321
|
74321
76451-01N00 Sill-Inner, Lh9705--01 ~ 9906--01; K +AMB +B +CH |
76451-01N00 |
US $105.41 |
||
|
74322Y
|
74322Y
74320-20N00 Panel-Wheel House, Rh9705--01 ~ 9906--01; !K.4WD.TD27 +K.(VG30E+TD27TI) +AMB |
74320-20N00 |
US $241.92 |
||
|
74323Y
|
74323Y
74321-25N00 Panel-Wheel House, Lh9705--01 ~ 9906--01; *K.2WD.TD27TI +K.VG30E +K.TD27.GLL +AMB +CH |
74321-25N00 |
US $241.92 |
||
|
74324M
|
74324M
74324-43N05 Wheelhouse Assy-Front, Inner Rh9705--01 ~ 9906--01; K.2WD.TD27TI +K.VG30E +AMB |
74324-43N05 |
US $105.41 |
||
|
74325M
|
74325M
74325-66N00 Wheelhouse Assy-Front Inner Lh9705--01 ~ 9906--01; K.VG30E +AMB |
74325-66N00 |
US $300.19 |
||
|
74340M
|
74340M
74350-01N01 Bracket-Front Seat Mounting, Outer Rh9705--01 ~ 9906--01; K +AMB +B +CH |
74350-01N01 |
US $35.42 |
||
|
74382
|
74382
74380-20N00 Panel-Splash, Rh9705--01 ~ 9906--01; K.(VG30E+TD27) +AMB +B +CH |
74380-20N00 |
US $104.11 |
||
|
74383
|
74383
74381-66N00 Panel-Splash, Lh9705--01 ~ 9906--01; K.VG30E +AMB |
74381-66N00 |
US $82.37 |
||
|
74855J
|
74855J
67360-01N00 Bracket-Heater9705--01 ~ 9906--01; K +AMB +B +CH |
67360-01N00 |
US $24.91 |
||
|
74855J
|
74855J
67361-01N00 Bracket-Heater9705--01 ~ 9906--01; K +AMB +B +CH |
67361-01N00 |
US $24.91 |
||
|
74855JA
|
74855JA
67361-01N00 Bracket-Heater9705--01 ~ 9906--01; K +AMB +B +CH |
67361-01N00 |
US $24.91 |
||
|
76240M
|
76240M
76240-05N02 Pillar Assy-Front Inner Lower Rh9705--01 ~ 9906--01; K +AMB +B +CH |
76240-05N02 |
US $223.20 |
||
|
76241M
|
76241M
7624105N02 Pillar Assy-Front Inner Lower Lh9705--01 ~ 9906--01; K +AMB +B +CH |
7624105N02 |
US $223.20 |
