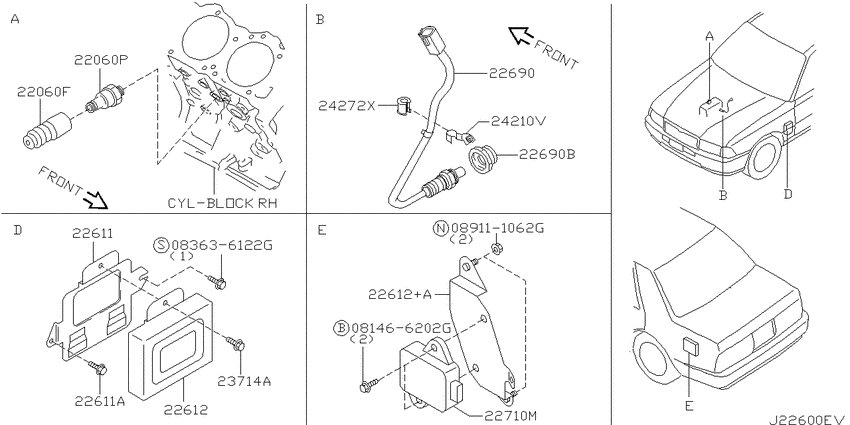

Engine control module (2004-01-01 ~ 2007-08-01; VG20P) Diagram Nissan CEDRIC/GLORIA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- VG20P
- transmission
- AT.F4
- grade
- BRO3
- body
- S
- Suspension
- RIG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466202G
|
081466202G
081466202G
Bolt-hexagon
|
081466202G |
— | ||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
22060F
|
22060F
22069-V5300 Knock Sensor Cover0401--01 ~ 0708--01; VG20P |
22069-V5300 |
US $5.62 |
||
|
22060P
|
22060P
22060-56S10 Knock Sensor0401--01 ~ 0708--01; VG20P; ﾕﾆｼｱ ｼﾞｴﾂｸｽ |
22060-56S10 |
US $181.44 |
||
|
22060P
|
22060P
22060-59S00 Knock Sensor0401--01 ~ 0708--01; VG20P; ﾐﾂﾋﾞｼ |
22060-59S00 |
US $181.44 |
||
|
22611
|
22611
23710-VS100 Engine Control Module0401--01 ~ 0408--01; VG20P |
23710-VS100 |
US $1,156.87 |
||
|
22611
|
22611
23710-VS10A Engine Control Module0408--01 ~ 0708--01; VG20P |
23710-VS10A |
US $1,156.87 |
||
|
22611
|
22611
01454-00353 SCREW0401--01 ~ 0708--01; VG20P |
01454-00353 |
US $1.73 |
||
|
22611A
|
22611A
01454-00353 SCREW0401--01 ~ 0708--01; VG20P |
01454-00353 |
US $1.73 |
||
|
22612
|
22612
23714-VS000 Bracket-Control Unit0401--01 ~ 0708--01; VG20P |
23714-VS000 |
US $60.77 |
||
|
22612
|
22612
23714-VS100 Bracket-Control Unit0401--01 ~ 0708--01; VG20P |
23714-VS100 |
US $60.77 |
||
|
22612+A
|
22612+A
23714-VS100 Bracket-Control Unit0401--01 ~ 0708--01; VG20P |
23714-VS100 |
US $60.77 |
||
|
22690
|
22690
226902A000 Heated Oxygen Sensor0401--01 ~ 0708--01; VG20P |
226902A000 |
from US $110.61 |
||
|
22690
|
22690
20607P6500 Nut0401--01 ~ 0708--01; VG20P |
20607P6500 |
from US $5.51 |
||
|
22690B
|
22690B
20607P6500 Nut0401--01 ~ 0708--01; VG20P |
20607P6500 |
from US $5.51 |
||
|
22710M
|
22710M
22710-VS110 E D U0401--01 ~ 0708--01; VG20P |
22710-VS110 |
US $563.57 |
||
|
23714A
|
23714A
23390-4M510 Bolt0401--01 ~ 0708--01; VG20P |
23390-4M510 |
US $0.86 |
||
|
24210V
|
24210V
24210-2H800 Clamp0401--01 ~ 0708--01; VG20P |
24210-2H800 |
US $7.78 |
||
|
24272X
|
24272X
24270-16V00 Protector-Harness0401--01 ~ 0708--01; VG20P |
24270-16V00 |
US $7.78 |
