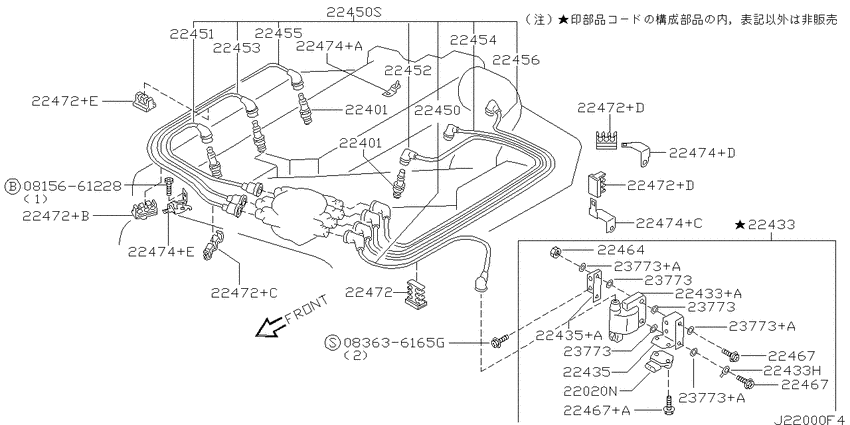

Ignition System (2004-01-01 ~ 2007-08-01; VG20P) Diagram Nissan CEDRIC/GLORIA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- VG20P
- transmission
- AT.F4
- grade
- BRO3
- body
- S
- Suspension
- RIG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0815661228
|
0815661228
08156-61228
Bolt-hexagon
|
08156-61228 |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
22020N
|
22020N
22020-53J10 Transistor Ignition Unit0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22020-53J10 |
US $116.64 |
||
|
22401
|
22401
22401VS116 Plug-Spark0401--01 ~ 0708--01; VG20P; PFR6V-10D[B512] |
22401VS116 |
US $21.60 |
||
|
22401
|
22401
22401VS116 Plug-Spark0401--01 ~ 0708--01; VG20P; PFR6V-10D[B512] |
22401VS116 |
US $21.60 |
||
|
22433
|
22433
2244856E12 COIL ASSY-IGNITION0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
2244856E12 |
US $142.77 |
||
|
22433
|
22433
2243356E11 COIL ASSY-IGNITION0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
2243356E11 |
US $116.67 |
||
|
22433
|
22433
22471-56E11 TERMINAL-IGNITION COIL0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22471-56E11 |
US $4.03 |
||
|
22433+A
|
22433+A
2243356E11 COIL ASSY-IGNITION0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
2243356E11 |
US $116.67 |
||
|
22433H
|
22433H
22471-56E11 TERMINAL-IGNITION COIL0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22471-56E11 |
US $4.03 |
||
|
22435
|
22435
22435-56E11 BRACKET-IGNITION COIL0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22435-56E11 |
US $13.10 |
||
|
22435
|
22435
22435-51E10 BRACKET-IGNITION COIL0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22435-51E10 |
US $17.42 |
||
|
22435+A
|
22435+A
22435-51E10 BRACKET-IGNITION COIL0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22435-51E10 |
US $17.42 |
||
|
22450
|
22450
22450-F6600 Cable Assy-Ignition Coil To Distributor0401--01 ~ 0708--01; VG20P; ﾔｻﾞｷ |
22450-F6600 |
US $17.42 |
||
|
22450
|
22450
22450-F6610 Cable Assy-Ignition Coil To Distributor0401--01 ~ 0708--01; VG20P; ｽﾐﾄﾓ |
22450-F6610 |
US $17.42 |
||
|
22450
|
22450
22450-VS125 Cable Set-High Tension0401--01 ~ 0708--01; VG20P |
22450-VS125 |
US $144.64 |
||
|
22450S
|
22450S
22450-VS125 Cable Set-High Tension0401--01 ~ 0708--01; VG20P |
22450-VS125 |
US $144.64 |
||
|
22451
|
22451
22451-VS100 Cable Assy-High Tension, No 10401--01 ~ 0708--01; VG20P; ﾔｻﾞｷ |
22451-VS100 |
US $22.75 |
||
|
22452
|
22452
22452-2H800 Cable Assy-High Tension, No 20401--01 ~ 0708--01; VG20P; ﾔｻﾞｷ |
22452-2H800 |
US $22.75 |
||
|
22453
|
22453
22453-VS100 Cable Assy-High Tension, No 30401--01 ~ 0708--01; VG20P; ﾔｻﾞｷ |
22453-VS100 |
US $22.75 |
||
|
22454
|
22454
22454-2H800 Cable Assy-High Tension, No 40401--01 ~ 0708--01; VG20P; ﾔｻﾞｷ |
22454-2H800 |
US $22.75 |
||
|
22455
|
22455
22455-VS100 Cable Assy-High Tension, No 50401--01 ~ 0708--01; VG20P; ﾔｻﾞｷ |
22455-VS100 |
US $26.35 |
||
|
22456
|
22456
22456-2H800 Cable Assy-High Tension, No 60401--01 ~ 0708--01; VG20P; ﾔｻﾞｷ |
22456-2H800 |
US $22.75 |
||
|
22464
|
22464
22464-N7110 Nut0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22464-N7110 |
US $0.86 |
||
|
22467
|
22467
22467-29R10 Screw0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22467-29R10 |
US $2.45 |
||
|
22467
|
22467
22467-56E11 SCREW0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22467-56E11 |
US $1.73 |
||
|
22467
|
22467
22467-29R10 Screw0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22467-29R10 |
US $2.45 |
||
|
22467
|
22467
22467-56E11 SCREW0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22467-56E11 |
US $1.73 |
||
|
22467+A
|
22467+A
22467-56E11 SCREW0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22467-56E11 |
US $1.73 |
||
|
22472
|
22472
22472-03J00 Clamp-High Tension Cable0401--01 ~ 0708--01; VG20P |
22472-03J00 |
US $2.49 |
||
|
22472
|
22472
22472-W4400 Clamp-High Tension Cable0401--01 ~ 0708--01; VG20P |
22472-W4400 |
US $3.31 |
||
|
22472
|
22472
22472-42L00 Clamp-High Tension Cable0401--01 ~ 0708--01; VG20P |
22472-42L00 |
US $7.34 |
||
|
22472
|
22472
22472-42L00 Clamp-High Tension Cable0401--01 ~ 0708--01; VG20P |
22472-42L00 |
US $7.34 |
||
|
22472
|
22472
22472-01N01 Clamp-High Tension Cable0401--01 ~ 0708--01; VG20P |
22472-01N01 |
US $1.11 |
||
|
22472+B
|
22472+B
22472-W4400 Clamp-High Tension Cable0401--01 ~ 0708--01; VG20P |
22472-W4400 |
US $3.31 |
||
|
22472+C
|
22472+C
22472-42L00 Clamp-High Tension Cable0401--01 ~ 0708--01; VG20P |
22472-42L00 |
US $7.34 |
||
|
22472+D
|
22472+D
22472-42L00 Clamp-High Tension Cable0401--01 ~ 0708--01; VG20P |
22472-42L00 |
US $7.34 |
||
|
22472+D
|
22472+D
22472-42L00 Clamp-High Tension Cable0401--01 ~ 0708--01; VG20P |
22472-42L00 |
US $7.34 |
||
|
22472+E
|
22472+E
22472-01N01 Clamp-High Tension Cable0401--01 ~ 0708--01; VG20P |
22472-01N01 |
US $1.11 |
||
|
22474+A
|
22474+A
22474-0P000 Bracket-High Tension Cable0401--01 ~ 0708--01; VG20P |
22474-0P000 |
US $17.42 |
||
|
22474+C
|
22474+C
22474-VS100 Bracket-High Tension Cable0401--01 ~ 0708--01; VG20P |
22474-VS100 |
US $17.42 |
||
|
22474+D
|
22474+D
22474-VS101 Bracket-High Tension Cable0401--01 ~ 0708--01; VG20P |
22474-VS101 |
US $17.42 |
||
|
22474+E
|
22474+E
22474-VS102 Bracket-High Tension Cable0401--01 ~ 0708--01; VG20P |
22474-VS102 |
US $17.42 |
||
|
23773
|
23773
22491-03G11 Mounting Rubber-Ignition Coil0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22491-03G11 |
US $4.90 |
||
|
23773
|
23773
22491-03G10 Mounting Rubber-Ignition Coil0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22491-03G10 |
US $4.90 |
||
|
23773
|
23773
22491-03G11 Mounting Rubber-Ignition Coil0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22491-03G11 |
US $4.90 |
||
|
23773
|
23773
22491-03G10 Mounting Rubber-Ignition Coil0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22491-03G10 |
US $4.90 |
||
|
23773
|
23773
22491-03G11 Mounting Rubber-Ignition Coil0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22491-03G11 |
US $4.90 |
||
|
23773
|
23773
22491-03G10 Mounting Rubber-Ignition Coil0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22491-03G10 |
US $4.90 |
||
|
23773+A
|
23773+A
22491-03G10 Mounting Rubber-Ignition Coil0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22491-03G10 |
US $4.90 |
||
|
23773+A
|
23773+A
22491-03G10 Mounting Rubber-Ignition Coil0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22491-03G10 |
US $4.90 |
||
|
23773+A
|
23773+A
22491-03G10 Mounting Rubber-Ignition Coil0401--01 ~ 0708--01; VG20P; ﾊﾝｼﾝ |
22491-03G10 |
US $4.90 |
