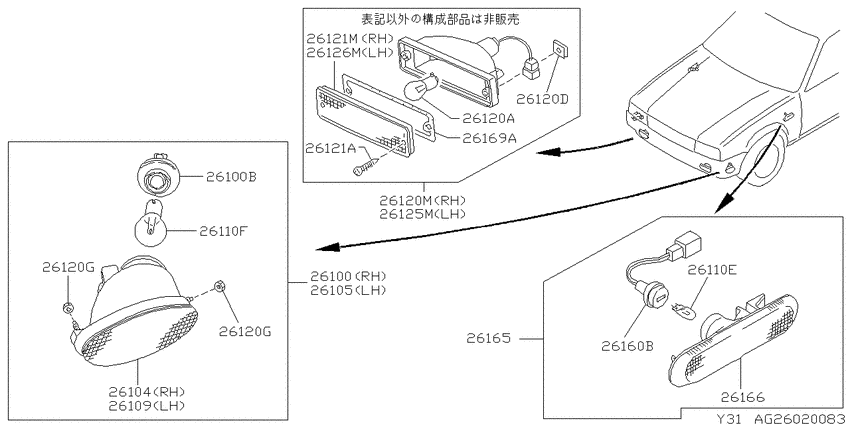

Front combination lamp (1988-01-01 ~ ; CIMA#) Diagram Nissan CEDRIC/GLORIA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- VG30D
- transmission
- AT
- grade
- CIMA1
- body
- K
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26100
|
26100
B6100-45V00 Lamp Assy-Cornering, Rh8801--01 ~ ; K.(VG30D+VG30DT); [B113] |
B6100-45V00 |
US $146.88 |
||
|
26100
|
26100
26243-50A01 Socket Assy-Cornering Lamp8801--01 ~ ; K.(VG30D+VG30DT); [B113] |
26243-50A01 |
US $12.67 |
||
|
26100B
|
26100B
26243-50A01 Socket Assy-Cornering Lamp8801--01 ~ ; K.(VG30D+VG30DT); [B113] |
26243-50A01 |
US $12.67 |
||
|
26104
|
26104
26104-45V00 Lens & Housing-Cornering Lamp, Rh8801--01 ~ ; K.(VG30D+VG30DT); [B113] |
26104-45V00 |
US $134.64 |
||
|
26105
|
26105
B6105-45V00 Lamp Assy-Cornering, Lh8801--01 ~ ; K.(VG30D+VG30DT); [B113] |
B6105-45V00 |
US $146.88 |
||
|
26109
|
26109
26109-45V00 Lens & Housing-Cornering Lamp, Lh8801--01 ~ ; K.(VG30D+VG30DT); [B113] |
26109-45V00 |
US $134.64 |
||
|
26110E
|
26110E
AY08000062
Bulb
8801--01 ~ ; CIMA# |
AY08000062 |
— | ||
| replacement | |||||
|
26110E
|
26110E
AY080-00090 BULB LICENCE_AS8801--01 ~ ; CIMA# |
AY080-00090 |
US $1.07 |
||
|
26110F
|
26110F
AY08000023
Bulb
8801--01 ~ ; K.(VG30D+VG30DT); 12V-21W ｺ-ﾅﾘﾝｸﾞﾗﾝﾌﾟ |
AY08000023 |
— | ||
| replacement | |||||
|
26110F
|
26110F
AY080-00087 Bulb (12V 21W)8801--01 ~ ; K.(VG30D+VG30DT); 12V-21W ｺ-ﾅﾘﾝｸﾞﾗﾝﾌﾟ |
AY080-00087 |
US $1.55 |
||
|
26120A
|
26120A
AY08000023
Bulb
8706--01 ~ ; S +K; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26120A
|
26120A
AY080-00087 Bulb (12V 21W)8706--01 ~ ; S +K; 12V-21W |
AY080-00087 |
US $1.55 |
||
|
26120D
|
26120D
01241-00621 NUT8706--01 ~ ; S +K; |
01241-00621 |
US $1.73 |
||
|
26120G
|
26120G
01221-00301 NUT8801--01 ~ ; K.(VG30D+VG30DT); ｺ-ﾅﾘﾝｸﾞ ﾗﾝﾌﾟ ﾖｳ |
01221-00301 |
US $1.73 |
||
|
26120G
|
26120G
01221-00301 NUT8801--01 ~ ; K.(VG30D+VG30DT); ｺ-ﾅﾘﾝｸﾞ ﾗﾝﾌﾟ ﾖｳ |
01221-00301 |
US $1.73 |
||
|
26120M
|
26120M
B613045V00 Lamp Assy-Turn Signal, Front Rh8801--01 ~ ; K.(VG30D+VG30DT); [B205] |
B613045V00 |
US $59.47 |
||
|
26121A
|
26121A
01451-00051 SCREW8801--01 ~ ; K.(VG30D+VG30DT) |
01451-00051 |
US $2.36 |
||
|
26121M
|
26121M
26131D4001 Lens-Front Turn Signal, Rh8801--01 ~ ; K.(VG30D+VG30DT); [B205] |
26131D4001 |
US $9.07 |
||
|
26125M
|
26125M
B613545V00 Lamp Assy-Turn Signal, Front Lh8801--01 ~ ; K.(VG30D+VG30DT); [B205] |
B613545V00 |
US $59.47 |
||
|
26126M
|
26126M
26136-D4001 Lens-Front Turn Signal, Lh8801--01 ~ ; K.(VG30D+VG30DT); [B205] |
26136-D4001 |
US $9.07 |
||
|
26160B
|
26160B
26249-45V00 Socket Assy-Side Flasher Lamp8801--01 ~ ; K.(VG30D+VG30DT); [B113] |
26249-45V00 |
US $11.38 |
||
|
26165
|
26165
2616545V00 Lamp Assy-Side Flasher, Lh8801--01 ~ ; K.(VG30D+VG30DT); ﾐｷﾞ & ﾋﾀﾞﾘ ｷﾖｳﾖｳ[B113] |
2616545V00 |
US $32.69 |
||
|
26166
|
26166
26166-45V00 Lens-Side Flasher Lamp, Lh8801--01 ~ ; K.(VG30D+VG30DT); [B113] |
26166-45V00 |
US $31.97 |
||
|
26169A
|
26169A
26133-D4001 Packing-Lens, Rh8801--01 ~ ; K.(VG30D+VG30DT); [B205] |
26133-D4001 |
US $3.46 |
||
