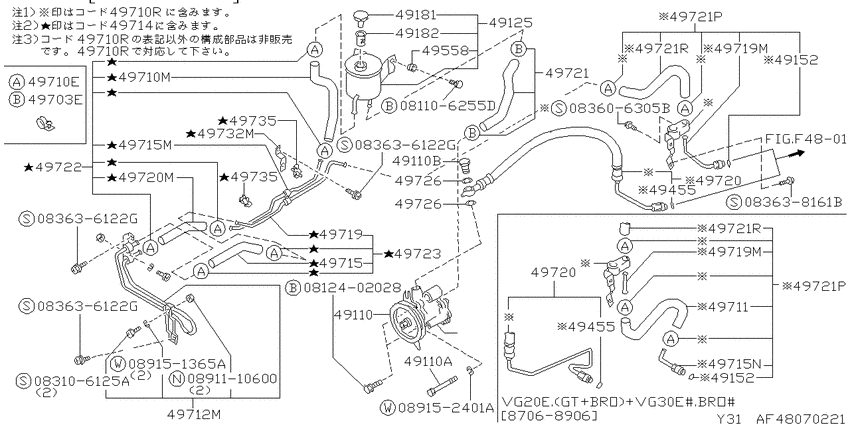

power steering control (1988-01-01 ~ 1989-08-01; 全体図; VG30D) Diagram Nissan CEDRIC/GLORIA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- VG30D
- transmission
- AT
- grade
- CIMA1
- body
- K
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081106255D
|
081106255D
08110-6255D
Bolt-hexagon
|
08110-6255D |
— | ||
|
0812402028
|
0812402028
08124-02028
Bolt-hexagon
|
08124-02028 |
— | ||
|
083106125A
|
083106125A
08310-6125A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-6125A |
— | ||
|
083606305B
|
083606305B
08360-6305B
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6305B |
— | ||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083638161B
|
083638161B
083638161B
ｽｸﾘﾕ-,ﾏｼﾝ
|
083638161B |
— | ||
|
0891110600
|
0891110600
08911-10600
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10600 |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
49110
|
49110
49110-45V00 Pump Assy-Power Steering8801--01 ~ 8908--01; VG30D |
49110-45V00 |
US $1,120.06 |
||
|
49110
|
49110
49110-71V00 Pump Assy-Power Steering8908--01 ~ ; K.VG30D |
49110-71V00 |
US $1,275.82 |
||
|
49110
|
49110
48361-55S00 Bolt8801--01 ~ 8906--01; VG30D# |
48361-55S00 |
US $4.42 |
||
| replacement | |||||
|
49110
|
49110
4836155S0A Bolt8801--01 ~ 8906--01; VG30D# |
4836155S0A |
from US $2.02 |
||
|
49110
|
49110
0161900011 BOLT8801--01 ~ 8906--01; VG30D# |
0161900011 |
from US $3.74 |
||
|
49110
|
49110
49591-03U26 Seal Kit-Power Steering Pump8908--01 ~ ; K.(VG30D+VG30DT) |
49591-03U26 |
US $19.73 |
||
|
49110
|
49110
49591-50L29
Seal Kit-Power Steering Pump
8801--01 ~ 8908--01; VG30D# |
49591-50L29 |
— | ||
| replacement | |||||
|
49110
|
49110
49591-50L88 Seal Kit-Power Steering Pump8801--01 ~ 8908--01; VG30D# |
49591-50L88 |
US $14.55 |
||
|
49110A
|
49110A
48361-55S00 Bolt8801--01 ~ 8906--01; VG30D# |
48361-55S00 |
US $4.42 |
||
| replacement | |||||
|
49110A
|
49110A
4836155S0A Bolt8801--01 ~ 8906--01; VG30D# |
4836155S0A |
from US $2.02 |
||
|
49110B
|
49110B
0161900011 BOLT8801--01 ~ 8906--01; VG30D# |
0161900011 |
from US $3.74 |
||
|
49125
|
49125
49180-43L05 Tank Assy-Reservoir8801--01 ~ 8908--01; VG30D |
49180-43L05 |
US $164.16 |
||
| replacement | |||||
|
49125
|
49125
4918043L0A Tank Assy-Reservoir8801--01 ~ 8908--01; VG30D |
4918043L0A |
US $164.16 |
||
|
49125
|
49125
49180-71V00 Tank Assy-Reservoir8908--01 ~ ; K.VG30D |
49180-71V00 |
US $201.60 |
||
|
49152
|
49152
4932803E00 SEAL-O RING8801--01 ~ 8906--01; VG30D#; ﾅｲｹｲ D=7.6MM |
4932803E00 |
from US $2.44 |
||
|
49152
|
49152
4932803E00 SEAL-O RING8801--01 ~ 8906--01; VG30D#; ﾅｲｹｲ D=7.6MM |
4932803E00 |
from US $2.44 |
||
|
49181
|
49181
49181W1705 Cap Assy-Pump8801--01 ~ 8906--01; 0VG20#+VG30E#+VG30D# RD28.(F5+FA) *RD28.R4; ﾊﾟﾜｽﾃ ﾖｳ |
49181W1705 |
from US $14.42 |
||
|
49182
|
49182
49182-42L00 Filter Assy-Pump8801--01 ~ ; VG30D# |
49182-42L00 |
US $5.55 |
||
|
49455
|
49455
4974501E00 SEAL-O RING8706--01 ~ 8906--01; VG20# +VG30E# +RD28.BRO; ﾅｲｹｲ D=6.2MM |
4974501E00 |
US $2.78 |
||
|
49455
|
49455
4974501E00 SEAL-O RING8706--01 ~ 8906--01; VG20# +VG30E# +RD28.BRO; ﾅｲｹｲ D=6.2MM |
4974501E00 |
US $2.78 |
||
|
49558
|
49558
18316S3260 Bush8801--01 ~ 8906--01; VG30D# |
18316S3260 |
from US $3.64 |
||
|
49703E
|
49703E
01555-00241 CLIP8801--01 ~ 8908--01; VG30D#; |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49703E
|
49703E
0155500861 CLIP8801--01 ~ 8908--01; VG30D#; |
0155500861 |
US $2.45 |
||
|
49710E
|
49710E
0155500691 CLAMP8801--01 ~ 8906--01; VG30D#; |
0155500691 |
from US $2.11 |
||
|
49710M
|
49710M
49725-11V00 Hose-Return, Power Steering8801--01 ~ 8906--01; VG30D#; |
49725-11V00 |
US $14.54 |
||
|
49710R
|
49710R
49710-45V00 Hose & Tube Set-Power Steering8801--01 ~ 8908--01; VG30D |
49710-45V00 |
US $239.04 |
||
|
49710R
|
49710R
49710-71V00 Hose & Tube Set-Power Steering8908--01 ~ ; K.VG30D |
49710-71V00 |
US $263.52 |
||
|
49710R
|
49710R
49710-45V00 Hose & Tube Set-Power Steering8801--01 ~ 8908--01; VG30D |
49710-45V00 |
US $239.04 |
||
|
49710R
|
49710R
49710-71V00 Hose & Tube Set-Power Steering8908--01 ~ ; K.VG30D |
49710-71V00 |
US $263.52 |
||
|
49712M
|
49712M
49790-10V05 Tube Assy-Power Steering8801--01 ~ 8908--01; VG30D |
49790-10V05 |
US $23.33 |
||
|
49714
|
49714
49790-11V00 Tube Assy-Power Steering8801--01 ~ ; VG30D |
49790-11V00 |
US $94.18 |
||
|
49715
|
49715
49725-11V02 Hose-Return, Power Steering8801--01 ~ 8906--01; VG30D; 49723 ﾉ ｺｳｾｲ |
49725-11V02 |
US $19.87 |
||
|
49715
|
49715
49726-11V00 Tube Assy-Power Steering8801--01 ~ 8906--01; VG30D |
49726-11V00 |
US $15.41 |
||
|
49715M
|
49715M
49726-11V00 Tube Assy-Power Steering8801--01 ~ 8906--01; VG30D |
49726-11V00 |
US $15.41 |
||
|
49719
|
49719
49726-11V01 Tube Assy-Power Steering8801--01 ~ 8906--01; VG30D |
49726-11V01 |
US $15.41 |
||
|
49719
|
49719
49726-15V00 Tube Assy-Power Steering8801--01 ~ 8908--01; VG30D |
49726-15V00 |
US $31.68 |
||
|
49719
|
49719
49726-71V00 Tube Assy-Power Steering8908--01 ~ ; K.VG30D |
49726-71V00 |
US $38.45 |
||
|
49719M
|
49719M
49726-15V00 Tube Assy-Power Steering8801--01 ~ 8908--01; VG30D |
49726-15V00 |
US $31.68 |
||
|
49719M
|
49719M
49726-71V00 Tube Assy-Power Steering8908--01 ~ ; K.VG30D |
49726-71V00 |
US $38.45 |
||
|
49719M
|
49719M
49726-15V00 Tube Assy-Power Steering8801--01 ~ 8908--01; VG30D |
49726-15V00 |
US $31.68 |
||
|
49719M
|
49719M
49726-71V00 Tube Assy-Power Steering8908--01 ~ ; K.VG30D |
49726-71V00 |
US $38.45 |
||
|
49720
|
49720
4972045V00 Hose Assy-Pressure, Power Steering8801--01 ~ 8908--01; VG30D |
4972045V00 |
US $191.52 |
||
|
49720
|
49720
4972071V00 Hose Assy-Pressure, Power Steering8908--01 ~ ; K.VG30D |
4972071V00 |
US $141.84 |
||
|
49720
|
49720
49725-11V01 Hose-Return, Power Steering8801--01 ~ 8906--01; VG30D |
49725-11V01 |
US $19.87 |
||
|
49720
|
49720
4972045V00 Hose Assy-Pressure, Power Steering8801--01 ~ 8908--01; VG30D |
4972045V00 |
US $191.52 |
||
|
49720
|
49720
4972071V00 Hose Assy-Pressure, Power Steering8908--01 ~ ; K.VG30D |
4972071V00 |
US $141.84 |
||
|
49720
|
49720
49725-11V01 Hose-Return, Power Steering8801--01 ~ 8906--01; VG30D |
49725-11V01 |
US $19.87 |
||
|
49720M
|
49720M
49725-11V01 Hose-Return, Power Steering8801--01 ~ 8906--01; VG30D |
49725-11V01 |
US $19.87 |
||
|
49721
|
49721
4971745V00 Hose Assy-Control Valve8801--01 ~ 8908--01; VG30D |
4971745V00 |
US $28.80 |
||
|
49721
|
49721
4971771V00 Hose Assy-Control Valve8908--01 ~ ; K.VG30D |
4971771V00 |
US $28.80 |
||
|
49721
|
49721
49721-45V00 Hose & Tube Assy-Return, Power Steering8801--01 ~ 8908--01; VG30D |
49721-45V00 |
US $79.06 |
||
|
49721
|
49721
4972171V00 Hose & Tube Assy-Return, Power Steering8908--01 ~ ; K.VG30D |
4972171V00 |
US $79.06 |
||
|
49721
|
49721
4972545V00 Hose-Valve To Reservoir Tank8801--01 ~ 8908--01; VG30D |
4972545V00 |
US $24.05 |
||
|
49721
|
49721
4972571V00 Hose-Valve To Reservoir Tank8908--01 ~ ; K.VG30D |
4972571V00 |
US $28.80 |
||
|
49721P
|
49721P
49721-45V00 Hose & Tube Assy-Return, Power Steering8801--01 ~ 8908--01; VG30D |
49721-45V00 |
US $79.06 |
||
|
49721P
|
49721P
4972171V00 Hose & Tube Assy-Return, Power Steering8908--01 ~ ; K.VG30D |
4972171V00 |
US $79.06 |
||
|
49721P
|
49721P
49721-45V00 Hose & Tube Assy-Return, Power Steering8801--01 ~ 8908--01; VG30D |
49721-45V00 |
US $79.06 |
||
|
49721P
|
49721P
4972171V00 Hose & Tube Assy-Return, Power Steering8908--01 ~ ; K.VG30D |
4972171V00 |
US $79.06 |
||
|
49721R
|
49721R
4972545V00 Hose-Valve To Reservoir Tank8801--01 ~ 8908--01; VG30D |
4972545V00 |
US $24.05 |
||
|
49721R
|
49721R
4972571V00 Hose-Valve To Reservoir Tank8908--01 ~ ; K.VG30D |
4972571V00 |
US $28.80 |
||
|
49721R
|
49721R
4972545V00 Hose-Valve To Reservoir Tank8801--01 ~ 8908--01; VG30D |
4972545V00 |
US $24.05 |
||
|
49721R
|
49721R
4972571V00 Hose-Valve To Reservoir Tank8908--01 ~ ; K.VG30D |
4972571V00 |
US $28.80 |
||
|
49722
|
49722
49721-11V00 Hose & Tube Assy-Power Steering8801--01 ~ 8908--01; VG30D# |
49721-11V00 |
US $43.34 |
||
|
49723
|
49723
49721-11V01 Hose & Tube Assy-Power Steering8801--01 ~ 8906--01; VG30D |
49721-11V01 |
US $29.52 |
||
|
49726
|
49726
49726Y0100 Washer-Copper8801--01 ~ 8906--01; VG30D# |
49726Y0100 |
from US $1.72 |
||
|
49726
|
49726
49726Y0100 Washer-Copper8801--01 ~ 8906--01; VG30D# |
49726Y0100 |
from US $1.72 |
||
|
49732M
|
49732M
49730-11V00 Bracket-Tube8801--01 ~ 8906--01; VG30D; |
49730-11V00 |
US $10.22 |
||
|
49735
|
49735
49791-28E00 CLIP8801--01 ~ 8906--01; VG30D; |
49791-28E00 |
US $8.06 |
||
|
49735
|
49735
49791-28E00 CLIP8801--01 ~ 8906--01; VG30D; |
49791-28E00 |
US $8.06 |
||
