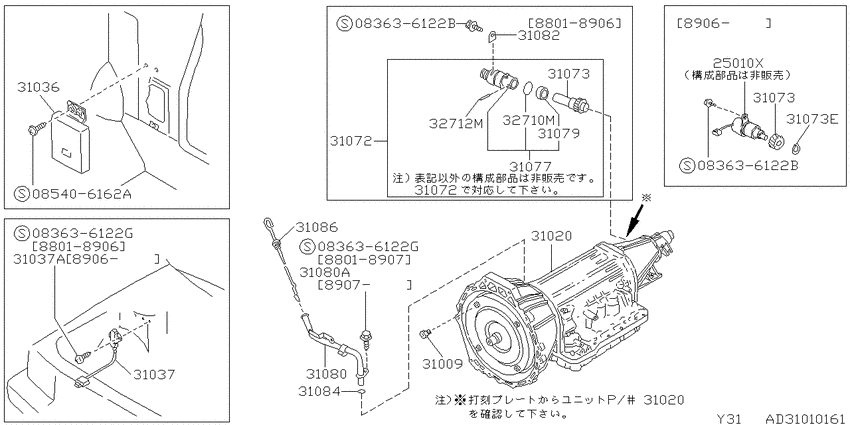

AT transmission & transaxle assembly (1988-01-01 ~ ; "アッセンブリー & フィッティング; RE4R03A VG30DT) Diagram Nissan CEDRIC/GLORIA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- VG30DT
- transmission
- AT
- grade
- CIMAL
- body
- K
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636122B
|
083636122B
08363-6122B
SCREWMACHINE
|
08363-6122B |
— | ||
|
083636122B
|
083636122B
08363-6122B
SCREWMACHINE
|
08363-6122B |
— | ||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
085406162A
|
085406162A
085406162A SCREWTAPPING |
085406162A |
US $1.93 |
||
|
25010X
|
25010X
2501061V16 Sensor Assy-Speed Meter8908--01 ~ ; VG30DT.AT |
2501061V16 |
US $106.42 |
||
|
31009
|
31009
31009-01X00 Bolt-Self Lock8801--01 ~ 8905--01; VG30D#.AT |
31009-01X00 |
US $4.18 |
||
|
31009
|
31009
3100921X00 Bolt-Self Lock8905--01 ~ ; VG30#.AT |
3100921X00 |
from US $2.65 |
||
|
31020
|
31020
31020-51X00 Transmission Assy-Automatic8801--01 ~ 8908--01; VG30DT.AT; RE4R03A |
31020-51X00 |
US $5,194 |
||
|
31020
|
31020
31020-51X06 Transmission Assy-Automatic8908--01 ~ ; VG30DT.AT; RE4R03A |
31020-51X06 |
US $5,194 |
||
|
31020
|
31020
31020-51X00 Transmission Assy-Automatic8801--01 ~ 8908--01; VG30DT.AT; RE4R03A |
31020-51X00 |
US $5,194 |
||
|
31020
|
31020
31020-51X06 Transmission Assy-Automatic8908--01 ~ ; VG30DT.AT; RE4R03A |
31020-51X06 |
US $5,194 |
||
|
31036
|
31036
31036-45V70
Control Unit-Shift
8801--01 ~ 8804--01; VG30DT.AT |
31036-45V70 |
— | ||
|
31036
|
31036
31036-45V72 Control Unit-Shift8804--01 ~ 8908--01; VG30DT.AT |
31036-45V72 |
US $525.34 |
||
|
31036
|
31036
31036-45V73 Control Unit-Shift8806--01 ~ 8906--01; VG30DT.AT |
31036-45V73 |
US $525.34 |
||
|
31036
|
31036
31036-71V10 Control Unit-Shift8908--01 ~ ; VG30DT.AT |
31036-71V10 |
US $525.34 |
||
|
31037
|
31037
31037-41L00 Resistor Assy-Auto Transmission8706--01 ~ ; AT |
31037-41L00 |
US $38.59 |
||
|
31037
|
31037
0143601161
SCREW
8905--01 ~ ; AT |
0143601161 |
— | ||
| replacement | |||||
|
31037
|
31037
08368-6125G ｽｸﾘﾕ-8905--01 ~ ; AT |
08368-6125G |
US $2.21 |
||
|
31037A
|
31037A
0143601161
SCREW
8905--01 ~ ; AT |
0143601161 |
— | ||
| replacement | |||||
|
31037A
|
31037A
08368-6125G ｽｸﾘﾕ-8905--01 ~ ; AT |
08368-6125G |
US $2.21 |
||
|
31072
|
31072
32702-58S18
Pinion Assy-Speedometer
8801--01 ~ 8906--01; VG30DT.AT; ﾌﾞﾙ- 18T |
32702-58S18 |
— | ||
| replacements | |||||
|
31072
|
31072
32703-78102 Pinion-Speedometer8801--01 ~ 8906--01; VG30DT.AT; ﾌﾞﾙ- 18T |
32703-78102 |
US $13.86 |
||
|
31072
|
31072
32707-58S10 Sleeve-Speedometer Pinion8801--01 ~ 8906--01; VG30DT.AT; ﾌﾞﾙ- 18T |
32707-58S10 |
US $11.51 |
||
|
31072
|
31072
3287314600 Pin-Retainer, Speedometer Pinion8801--01 ~ 8906--01; VG30DT.AT; ﾌﾞﾙ- 18T |
3287314600 |
US $2.21 |
||
|
31073
|
31073
32703-78102 Pinion-Speedometer8801--01 ~ 8906--01; VG30DT.AT; 18T |
32703-78102 |
US $13.86 |
||
|
31073
|
31073
32743-35F19 Pinion-Speedometer8908--01 ~ ; VG30DT.AT; 19T |
32743-35F19 |
US $24.91 |
||
|
31073
|
31073
3274435F00 Ring-Lock, Speedometer Pinion8906--01 ~ ; VG30D#.AT |
3274435F00 |
from US $0.82 |
||
|
31073
|
31073
32703-78102 Pinion-Speedometer8801--01 ~ 8906--01; VG30DT.AT; 18T |
32703-78102 |
US $13.86 |
||
|
31073
|
31073
32743-35F19 Pinion-Speedometer8908--01 ~ ; VG30DT.AT; 19T |
32743-35F19 |
US $24.91 |
||
|
31073
|
31073
3274435F00 Ring-Lock, Speedometer Pinion8906--01 ~ ; VG30D#.AT |
3274435F00 |
from US $0.82 |
||
|
31073E
|
31073E
3274435F00 Ring-Lock, Speedometer Pinion8906--01 ~ ; VG30D#.AT |
3274435F00 |
from US $0.82 |
||
|
31077
|
31077
32707-58S10 Sleeve-Speedometer Pinion8801--01 ~ 8906--01; VG30DT.AT; |
32707-58S10 |
US $11.51 |
||
|
31077
|
31077
32707F6110
Sleeve-Speedometer Pinion
8706--01 ~ 8801--01; :VG30#.AT S.RD28.SCTM.AT *RD28.(CL#+BRO).AT; *ﾀｲﾔ 215/60R15 |
32707F6110 |
— | ||
|
31079
|
31079
3270958S00 Seal-Oil, Speedometer Pinion8706--01 ~ 8906--01; AT; |
3270958S00 |
from US $0.91 |
||
|
31080
|
31080
31080-62L00 Pipe Assy-Oil Charging8706--01 ~ 8801--01; (VG20#+VG30#).AT |
31080-62L00 |
US $33.12 |
||
|
31080
|
31080
0143601141 SCREW8907--01 ~ ; AT |
0143601141 |
US $2.36 |
||
|
31080A
|
31080A
0143601141 SCREW8907--01 ~ ; AT |
0143601141 |
US $2.36 |
||
|
31082
|
31082
32718-14600
Plate-Lock, Speedometer Pinion
8706--01 ~ 8811--01; AT |
32718-14600 |
— | ||
| replacement | |||||
|
31082
|
31082
3271814601 Plate-Lock8706--01 ~ 8811--01; AT |
3271814601 |
US $2.64 |
||
|
31082
|
31082
3271814601 Plate-Lock8811--01 ~ 8906--01; AT |
3271814601 |
US $2.64 |
||
|
31084
|
31084
31084-20300 Seal-O Ring8706--01 ~ ; AT |
31084-20300 |
US $1.58 |
||
|
31086
|
31086
31086-45V05 Gauge Assy-Oil Level8801--01 ~ 9004--01; VG30DT.AT |
31086-45V05 |
US $14.11 |
||
|
31086
|
31086
3108645V15 Gauge Assy-Oil Level9004--01 ~ ; VG30DT.AT |
3108645V15 |
US $20.30 |
||
|
32710M
|
32710M
3271014600 Seal-O Ring, Speedometer Pinion8801--01 ~ 8906--01; VG30DT.AT |
3271014600 |
from US $0.67 |
||
|
32710M
|
32710M
32710P9000 Seal-O Ring, Speedometer Pinion8706--01 ~ 8801--01; AT; |
32710P9000 |
US $1.73 |
||
|
32712M
|
32712M
3287314600 Pin-Retainer, Speedometer Pinion8706--01 ~ 8906--01; AT; |
3287314600 |
US $2.21 |
||
