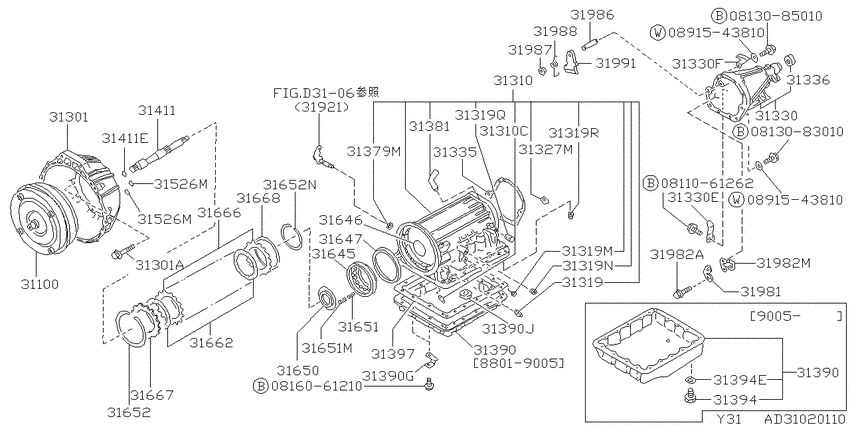

ﾄﾙｸ ｺﾝﾊﾞ-ﾀ- & ｹ-ｽ (1988-01-01 ~ ; RE4R03A VG30DT) Diagram Nissan CEDRIC/GLORIA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- VG30DT
- transmission
- AT
- grade
- CIMAL
- body
- K
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0813083010
|
0813083010
08130-83010 Bolt-hexagon |
08130-83010 |
US $3.46 |
||
|
0816061210
|
0816061210
08160-61210
Bolt-hexagon
|
08160-61210 |
— | ||
| replacement | |||||
|
0816061210
|
0816061210
08110-61225
Bolt-hexagon
|
08110-61225 |
— | ||
|
0891543810
|
0891543810
08915-43810
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43810 |
— | ||
|
0891543810
|
0891543810
08915-43810
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43810 |
— | ||
|
31100
|
31100
31100-51X00 Converter Assy-Torque8801--01 ~ ; VG30DT.AT |
31100-51X00 |
US $1,203.60 |
||
|
31301
|
31301
31300-41X01 Housing-Converter8706--01 ~ 8906--01; (VG20#+VG30#).AT |
31300-41X01 |
US $525.34 |
||
|
31301
|
31301
31301-41X03 Housing-Converter8906--01 ~ ; (VG20#+VG30#).AT |
31301-41X03 |
US $515.42 |
||
|
31301
|
31301
31309-X6600 Bolt8706--01 ~ ; AT |
31309-X6600 |
US $2.45 |
||
|
31301A
|
31301A
31309-X6600 Bolt8706--01 ~ ; AT |
31309-X6600 |
US $2.45 |
||
|
31310
|
31310
31310-41X00 Case Assy-Automatic Transmission8706--01 ~ 8801--01; AT |
31310-41X00 |
US $525.34 |
||
|
31310
|
31310
31310-51X00 Case Assy-Automatic Transmission8801--01 ~ 8908--01; VG30DT.AT |
31310-51X00 |
US $535.25 |
||
|
31310
|
31310
31310-51X02 Case Assy-Automatic Transmission8908--01 ~ ; VG30DT.AT |
31310-51X02 |
US $549.41 |
||
|
31319
|
31319
31305-41X02 Plug-Thread, Square Head8805--01 ~ ; AT; |
31305-41X02 |
US $2.45 |
||
|
31319
|
31319
31319-X0100 Plug-Thread, Square Head8706--01 ~ 8805--01; AT |
31319-X0100 |
US $2.45 |
||
|
31319
|
31319
31305-41X00 Plug-Thread9008--01 ~ ; VG30DT.AT |
31305-41X00 |
US $1.67 |
||
|
31319
|
31319
31305-41X01 Plug-Thread8710--01 ~ ; AT |
31305-41X01 |
US $2.45 |
||
|
31319
|
31319
31305-41X00 Plug-Thread8706--01 ~ 8801--01; AT; ﾛﾂｶｸ ｱﾀﾏ |
31305-41X00 |
US $1.67 |
||
|
31319
|
31319
31345-X6101 Plug8801--01 ~ ; VG30DT.AT |
31345-X6101 |
US $2.45 |
||
|
31319
|
31319
31322-21X01 Plug-Thread8801--01 ~ 9008--01; VG30DT.AT |
31322-21X01 |
US $1.73 |
||
|
31319
|
31319
31345-X6101 Plug8706--01 ~ 8801--01; AT |
31345-X6101 |
US $2.45 |
||
|
31319M
|
31319M
31305-41X00 Plug-Thread9008--01 ~ ; VG30DT.AT |
31305-41X00 |
US $1.67 |
||
|
31319N
|
31319N
31305-41X01 Plug-Thread8710--01 ~ ; AT |
31305-41X01 |
US $2.45 |
||
|
31319Q
|
31319Q
31305-41X00 Plug-Thread8706--01 ~ 8801--01; AT; ﾛﾂｶｸ ｱﾀﾏ |
31305-41X00 |
US $1.67 |
||
|
31319Q
|
31319Q
31345-X6101 Plug8801--01 ~ ; VG30DT.AT |
31345-X6101 |
US $2.45 |
||
|
31319R
|
31319R
31322-21X01 Plug-Thread8801--01 ~ 9008--01; VG30DT.AT |
31322-21X01 |
US $1.73 |
||
|
31319R
|
31319R
31345-X6101 Plug8706--01 ~ 8801--01; AT |
31345-X6101 |
US $2.45 |
||
|
31327M
|
31327M
31327-41X00 Plate-Baffle8708--01 ~ 8801--01; AT |
31327-41X00 |
US $2.45 |
||
|
31327M
|
31327M
31327-51X00 Plate-Baffle8801--01 ~ ; VG30DT.AT |
31327-51X00 |
US $2.45 |
||
|
31330
|
31330
3133041X00
Extension Assy-Rear
8706--01 ~ 8801--01; AT |
3133041X00 |
— | ||
| replacement | |||||
|
31330
|
31330
31330-41X09 Extension Assy-Rear8706--01 ~ 8801--01; AT |
31330-41X09 |
US $226.44 |
||
|
31330
|
31330
31330-51X00 Extension Assy-Rear8801--01 ~ ; VG30DT.AT |
31330-51X00 |
US $161.28 |
||
|
31330
|
31330
31376-41X05 Clip-Harness8706--01 ~ 8906--01; AT |
31376-41X05 |
US $2.45 |
||
|
31330
|
31330
31376-41X02 Clip-Harness8706--01 ~ 8904--01; AT; |
31376-41X02 |
US $1.73 |
||
|
31330
|
31330
31376-41X07 Clip-Harness8904--01 ~ 8906--01; AT; |
31376-41X07 |
US $2.45 |
||
|
31330E
|
31330E
31376-41X05 Clip-Harness8706--01 ~ 8906--01; AT |
31376-41X05 |
US $2.45 |
||
|
31330F
|
31330F
31376-41X02 Clip-Harness8706--01 ~ 8904--01; AT; |
31376-41X02 |
US $1.73 |
||
|
31330F
|
31330F
31376-41X07 Clip-Harness8904--01 ~ 8906--01; AT; |
31376-41X07 |
US $2.45 |
||
|
31335
|
31335
31338-41X00
Gasket-Extension
8706--01 ~ 8906--01; AT |
31338-41X00 |
— | ||
| replacement | |||||
|
31335
|
31335
31338-41X0A Gasket-Extension8706--01 ~ 8906--01; AT |
31338-41X0A |
US $7.76 |
||
|
31336
|
31336
31336-X8000 Seal-Oil, Rear Extension8706--01 ~ 8801--01; AT |
31336-X8000 |
US $7.63 |
||
|
31336
|
31336
3213601G10 Seal-Oil, Reduction Case8801--01 ~ ; VG30DT.AT |
3213601G10 |
US $4.92 |
||
|
31379M
|
31379M
3137541X00 Seal-Oil8706--01 ~ ; AT |
3137541X00 |
from US $2.36 |
||
|
31381
|
31381
31381-51X01 Breather-Air8801--01 ~ 8906--01; VG30DT.AT |
31381-51X01 |
US $8.93 |
||
|
31381
|
31381
31381-X0100 Breather-Air8706--01 ~ 8801--01; AT |
31381-X0100 |
US $2.45 |
||
| replacement | |||||
|
31381
|
31381
31381-41X0A
Breather-air
8706--01 ~ 8801--01; AT |
31381-41X0A |
— | ||
|
31390
|
31390
31390-51X00 Pan Assy-Oil9006--01 ~ 9308--01; VG30DT.AT |
31390-51X00 |
US $26.06 |
||
|
31390
|
31390
31390-51X02 Pan Assy-Oil9308--01 ~ ; VG30DT.AT |
31390-51X02 |
US $27.58 |
||
|
31390
|
31390
31391-41X00 Pan Assy-Oil8706--01 ~ 8801--01; AT; |
31391-41X00 |
US $25.49 |
||
|
31390
|
31390
31391-51X00 Pan Assy-Oil8801--01 ~ 9006--01; VG30DT.AT |
31391-51X00 |
US $26.06 |
||
|
31390
|
31390
21644-41X00 Bracket-Oil Cooler Tube8706--01 ~ ; AT |
21644-41X00 |
US $9.02 |
||
|
31390
|
31390
31392-X5100
Magnet
8706--01 ~ ; AT |
31392-X5100 |
— | ||
| replacement | |||||
|
31390
|
31390
313793AX0A Magnet8706--01 ~ ; AT |
313793AX0A |
from US $2.94 |
||
|
31390
|
31390
31390-51X00 Pan Assy-Oil9006--01 ~ 9308--01; VG30DT.AT |
31390-51X00 |
US $26.06 |
||
|
31390
|
31390
31390-51X02 Pan Assy-Oil9308--01 ~ ; VG30DT.AT |
31390-51X02 |
US $27.58 |
||
|
31390
|
31390
31391-41X00 Pan Assy-Oil8706--01 ~ 8801--01; AT; |
31391-41X00 |
US $25.49 |
||
|
31390
|
31390
31391-51X00 Pan Assy-Oil8801--01 ~ 9006--01; VG30DT.AT |
31391-51X00 |
US $26.06 |
||
|
31390
|
31390
21644-41X00 Bracket-Oil Cooler Tube8706--01 ~ ; AT |
21644-41X00 |
US $9.02 |
||
|
31390
|
31390
31392-X5100
Magnet
8706--01 ~ ; AT |
31392-X5100 |
— | ||
| replacement | |||||
|
31390
|
31390
313793AX0A Magnet8706--01 ~ ; AT |
313793AX0A |
from US $2.94 |
||
|
31390G
|
31390G
21644-41X00 Bracket-Oil Cooler Tube8706--01 ~ ; AT |
21644-41X00 |
US $9.02 |
||
|
31390J
|
31390J
31392-X5100
Magnet
8706--01 ~ ; AT |
31392-X5100 |
— | ||
| replacement | |||||
|
31390J
|
31390J
313793AX0A Magnet8706--01 ~ ; AT |
313793AX0A |
from US $2.94 |
||
|
31394
|
31394
3137731X06 Plug-Drain9006--01 ~ ; VG30DT.AT |
3137731X06 |
from US $4.13 |
||
|
31394
|
31394
1102601M02 Washer-Drain Plug9006--01 ~ ; VG30DT.AT |
1102601M02 |
from US $0.81 |
||
|
31394E
|
31394E
1102601M02 Washer-Drain Plug9006--01 ~ ; VG30DT.AT |
1102601M02 |
from US $0.81 |
||
|
31397
|
31397
31397-41X00 Gasket-Oil Pan8706--01 ~ 8801--01; AT |
31397-41X00 |
US $22.03 |
||
|
31397
|
31397
31397-51X00 Gasket-Oil Pan8801--01 ~ 9308--01; VG30DT.AT |
31397-51X00 |
US $24.05 |
||
| replacement | |||||
|
31397
|
31397
31397-51X01 Gasket-Oil Pan8801--01 ~ 9308--01; VG30DT.AT |
31397-51X01 |
US $24.05 |
||
|
31397
|
31397
3139751X02 Gasket-Oil Pan9308--01 ~ ; VG30DT.AT |
3139751X02 |
from US $22.40 |
||
|
31397
|
31397
31397-41X25
Gasket & Seal Kit-Auto Transmission
8706--01 ~ 8801--01; AT |
31397-41X25 |
— | ||
|
31397
|
31397
31397-51X26 Gasket & Seal Kit-Auto Transmission8801--01 ~ 8908--01; VG30DT.AT |
31397-51X26 |
US $254.88 |
||
|
31397
|
31397
31397-51X27 Gasket & Seal Kit-Auto Transmission8908--01 ~ ; VG30DT.AT |
31397-51X27 |
US $195.84 |
||
| replacement | |||||
|
31397
|
31397
31397-51X85
Gasket & Seal Kit-Auto Transmission
8908--01 ~ ; VG30DT.AT |
31397-51X85 |
— | ||
|
31411
|
31411
31411-51X00 Shaft-Input8801--01 ~ 8908--01; VG30DT.AT |
31411-51X00 |
US $78.91 |
||
|
31411
|
31411
31411-51X02 Shaft-Input8908--01 ~ ; VG30DT.AT |
31411-51X02 |
US $78.91 |
||
|
31411
|
31411
31159-X6101 Seal-O Ring8706--01 ~ 8801--01; AT |
31159-X6101 |
US $3.31 |
||
|
31411
|
31411
31526-51X00 Seal-O Ring8801--01 ~ ; VG30DT.AT |
31526-51X00 |
US $5.18 |
||
| replacement | |||||
|
31411
|
31411
3152671X01 Seal-O Ring8801--01 ~ ; VG30DT.AT |
3152671X01 |
US $5.18 |
||
|
31411E
|
31411E
31159-X6101 Seal-O Ring8706--01 ~ 8801--01; AT |
31159-X6101 |
US $3.31 |
||
|
31411E
|
31411E
31526-51X00 Seal-O Ring8801--01 ~ ; VG30DT.AT |
31526-51X00 |
US $5.18 |
||
| replacement | |||||
|
31411E
|
31411E
3152671X01 Seal-O Ring8801--01 ~ ; VG30DT.AT |
3152671X01 |
US $5.18 |
||
|
31526M
|
31526M
31526-41X06 Seal-O Ring, Converter Housing8706--01 ~ 8906--01; AT |
31526-41X06 |
US $1.73 |
||
|
31526M
|
31526M
31526-41X06 Seal-O Ring, Converter Housing8706--01 ~ 8906--01; AT |
31526-41X06 |
US $1.73 |
||
|
31645
|
31645
31645-51X00 Piston Assy-Low & Reverse Brake8801--01 ~ ; VG30DT.AT |
31645-51X00 |
US $22.46 |
||
|
31646
|
31646
31527-41X05 Seal-Lathe Cut Ring8706--01 ~ 8801--01; AT |
31527-41X05 |
US $4.03 |
||
|
31646
|
31646
31527-51X02 Seal-Lathe Cut Ring8801--01 ~ ; VG30DT.AT |
31527-51X02 |
US $8.06 |
||
|
31647
|
31647
31528-41X00 Seal-Lip8706--01 ~ 8801--01; AT |
31528-41X00 |
US $7.92 |
||
|
31647
|
31647
31528-51X00 Seal-O Ring8801--01 ~ ; VG30DT.AT |
31528-51X00 |
US $13.82 |
||
|
31650
|
31650
31656-41X00 Retainer-Low & Reverse Brake8706--01 ~ 8801--01; AT |
31656-41X00 |
US $10.51 |
||
|
31650
|
31650
31656-51X00 Retainer-Low & Reverse Brake8801--01 ~ ; VG30DT.AT |
31656-51X00 |
US $10.80 |
||
|
31651
|
31651
31505-51X02 Spring-Piston Return8801--01 ~ ; VG30DT.AT; ｱｳﾀ- |
31505-51X02 |
US $4.18 |
||
|
31651
|
31651
3152121X00 Spring-Piston Return8706--01 ~ 8801--01; AT |
3152121X00 |
US $1.73 |
||
|
31651
|
31651
31505-51X03 Spring-Piston Return8801--01 ~ ; VG30DT.AT; ｲﾝﾅ- |
31505-51X03 |
US $0.86 |
||
|
31651M
|
31651M
31505-51X03 Spring-Piston Return8801--01 ~ ; VG30DT.AT; ｲﾝﾅ- |
31505-51X03 |
US $0.86 |
||
|
31652
|
31652
31506-41X09 Ring-Snap8706--01 ~ 8801--01; AT |
31506-41X09 |
US $4.03 |
||
|
31652
|
31652
31506-51X00 Ring-Snap8801--01 ~ ; VG30DT.AT |
31506-51X00 |
US $4.18 |
||
|
31652
|
31652
31506-51X01 Ring-Snap8801--01 ~ ; VG30DT.AT |
31506-51X01 |
US $2.45 |
||
|
31652N
|
31652N
31506-51X01 Ring-Snap8801--01 ~ ; VG30DT.AT |
31506-51X01 |
US $2.45 |
||
|
31662
|
31662
31532-51X03 Plate Assy-Drive8801--01 ~ ; VG30DT.AT |
31532-51X03 |
US $32.97 |
||
|
31666
|
31666
31666-51X00 Plate-Driven8801--01 ~ ; VG30DT.AT |
31666-51X00 |
US $20.30 |
||
|
31667
|
31667
31667-41X00 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=8.0 |
31667-41X00 |
US $17.71 |
||
|
31667
|
31667
31667-41X01 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=8.2 |
31667-41X01 |
US $17.71 |
||
|
31667
|
31667
31667-41X02 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=8.4 |
31667-41X02 |
US $17.71 |
||
|
31667
|
31667
31667-41X03 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=8.6 |
31667-41X03 |
US $17.42 |
||
|
31667
|
31667
31667-41X04 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=8.8 |
31667-41X04 |
US $17.42 |
||
|
31667
|
31667
31667-41X05 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=9.0 |
31667-41X05 |
US $17.42 |
||
|
31667
|
31667
31667-41X06 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=9.2 |
31667-41X06 |
US $17.42 |
||
|
31667
|
31667
31667-51X00 Plate-Retaining8801--01 ~ ; VG30DT.AT; ｾﾝﾀｸ T=4.4 |
31667-51X00 |
US $17.71 |
||
|
31667
|
31667
31667-51X01 Plate-Retaining8801--01 ~ ; VG30DT.AT; ｾﾝﾀｸ T=4.6 |
31667-51X01 |
US $17.71 |
||
|
31667
|
31667
31667-51X02 Plate-Retaining8801--01 ~ ; VG30DT.AT; ｾﾝﾀｸ T=4.8 |
31667-51X02 |
US $17.71 |
||
|
31667
|
31667
31667-51X03 Plate-Retaining8801--01 ~ ; VG30DT.AT; ｾﾝﾀｸ T=5.0 |
31667-51X03 |
US $17.71 |
||
|
31667
|
31667
31667-51X04 Plate-Retaining8801--01 ~ ; VG30DT.AT; ｾﾝﾀｸ T=5.2 |
31667-51X04 |
US $17.71 |
||
|
31667
|
31667
31667-51X05 Plate-Retaining8801--01 ~ 8804--01; VG30DT.AT; ｾﾝﾀｸ T=5.4 |
31667-51X05 |
US $17.71 |
||
|
31667
|
31667
31667-51X06 Plate-Retaining8801--01 ~ 8804--01; VG30DT.AT; ｾﾝﾀｸ T=5.6 |
31667-51X06 |
US $17.71 |
||
|
31667
|
31667
31667-51X10 Plate-Retaining8804--01 ~ ; VG30DT.AT; ｾﾝﾀｸ T=4.2 |
31667-51X10 |
US $17.71 |
||
|
31667
|
31667
31667-51X11 Plate-Retaining8907--01 ~ ; VG30DT.AT; ｾﾚｸﾄ T=4.0 |
31667-51X11 |
US $17.71 |
||
|
31668
|
31668
31535-41X07 Plate-Dished8706--01 ~ 8801--01; AT |
31535-41X07 |
US $29.23 |
||
|
31668
|
31668
31535-51X04 Plate-Dished8801--01 ~ ; VG30DT.AT |
31535-51X04 |
US $29.81 |
||
|
31981
|
31981
31981-41X01 Support-Parking Actuator8706--01 ~ 8906--01; AT; |
31981-41X01 |
US $4.18 |
||
|
31981
|
31981
31981-41X02 Support-Parking Actuator9302--01 ~ ; AT.(R4+F4) |
31981-41X02 |
US $4.03 |
||
|
31982A
|
31982A
31377-41X00 Bolt8706--01 ~ 8906--01; AT |
31377-41X00 |
US $1.73 |
||
|
31982M
|
31982M
31982-41X02 Guide-Parking Rod8706--01 ~ 8906--01; AT; |
31982-41X02 |
US $2.45 |
||
|
31986
|
31986
31986-41X00 Shaft-Parking Pawl8706--01 ~ 8801--01; AT |
31986-41X00 |
US $4.03 |
||
|
31986
|
31986
31986-51X00 Shaft-Parking Pawl8801--01 ~ ; VG30DT.AT |
31986-51X00 |
US $4.18 |
||
|
31987
|
31987
31437-41X00 Spacer-Parking Pawl8706--01 ~ 8801--01; AT |
31437-41X00 |
US $0.86 |
||
|
31987
|
31987
31437-51X00 Spacer-Parking Pawl8801--01 ~ ; VG30DT.AT |
31437-51X00 |
US $0.86 |
||
|
31988
|
31988
31988-41X00 Spring-Return Pawl8706--01 ~ 8906--01; AT |
31988-41X00 |
US $7.92 |
||
|
31991
|
31991
31991-41X01 Pawl-Parking8706--01 ~ 8906--01; AT; |
31991-41X01 |
US $33.12 |
||
