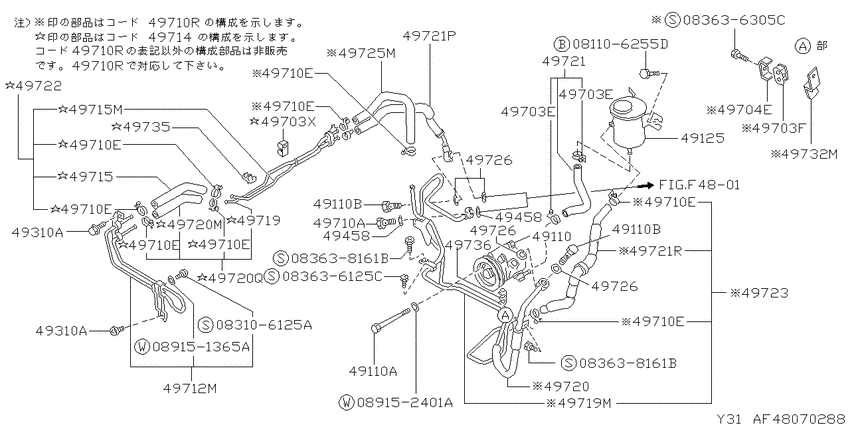

power steering control (1989-08-01 ~ ; 全体図; VG30DT) Diagram Nissan CEDRIC/GLORIA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- VG30DT
- transmission
- AT
- grade
- CIMAL
- body
- K
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081106255D
|
081106255D
08110-6255D
Bolt-hexagon
|
08110-6255D |
— | ||
|
083106125A
|
083106125A
08310-6125A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-6125A |
— | ||
|
083636125C
|
083636125C
08363-6125C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6125C |
— | ||
| replacement | |||||
|
083636125C
|
083636125C
08360-6125C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6125C |
— | ||
|
083636305C
|
083636305C
08363-6305C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6305C |
— | ||
|
083638161B
|
083638161B
083638161B
ｽｸﾘﾕ-,ﾏｼﾝ
|
083638161B |
— | ||
|
083638161B
|
083638161B
083638161B
ｽｸﾘﾕ-,ﾏｼﾝ
|
083638161B |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
US $2.21 |
||
|
49110
|
49110
49110-16V00 Pump Assy-Power Steering8801--01 ~ 8908--01; VG30DT |
49110-16V00 |
US $1,120.06 |
||
|
49110
|
49110
49110-71V15 Pump Assy-Power Steering8908--01 ~ ; K.VG30DT |
49110-71V15 |
US $1,275.82 |
||
|
49110
|
49110
48361-55S00 Bolt8801--01 ~ 8906--01; VG30D# |
48361-55S00 |
US $4.42 |
||
| replacement | |||||
|
49110
|
49110
4836155S0A Bolt8801--01 ~ 8906--01; VG30D# |
4836155S0A |
from US $2.02 |
||
|
49110
|
49110
0161900011 BOLT8801--01 ~ 8906--01; VG30D# |
0161900011 |
from US $3.76 |
||
|
49110
|
49110
49591-03U26 Seal Kit-Power Steering Pump8908--01 ~ ; K.(VG30D+VG30DT) |
49591-03U26 |
US $19.73 |
||
|
49110
|
49110
49591-50L29
Seal Kit-Power Steering Pump
8801--01 ~ 8908--01; VG30D# |
49591-50L29 |
— | ||
| replacement | |||||
|
49110
|
49110
49591-50L88 Seal Kit-Power Steering Pump8801--01 ~ 8908--01; VG30D# |
49591-50L88 |
US $14.55 |
||
|
49110A
|
49110A
48361-55S00 Bolt8801--01 ~ 8906--01; VG30D# |
48361-55S00 |
US $4.42 |
||
| replacement | |||||
|
49110A
|
49110A
4836155S0A Bolt8801--01 ~ 8906--01; VG30D# |
4836155S0A |
from US $2.02 |
||
|
49110B
|
49110B
0161900011 BOLT8801--01 ~ 8906--01; VG30D# |
0161900011 |
from US $3.76 |
||
|
49110B
|
49110B
0161900011 BOLT8801--01 ~ 8906--01; VG30D# |
0161900011 |
from US $3.76 |
||
|
49125
|
49125
49180-16V00 Tank Assy-Reservoir8801--01 ~ 8908--01; VG30DT |
49180-16V00 |
US $132.19 |
||
|
49125
|
49125
49180-71V15 Tank Assy-Reservoir8908--01 ~ ; K.VG30DT |
49180-71V15 |
US $201.60 |
||
|
49310A
|
49310A
0143601161
SCREW
8908--01 ~ ; VG30D# |
0143601161 |
— | ||
| replacement | |||||
|
49310A
|
49310A
08368-6125G ｽｸﾘﾕ-8908--01 ~ ; VG30D# |
08368-6125G |
US $2.21 |
||
|
49310A
|
49310A
0143601161
SCREW
8908--01 ~ ; VG30D# |
0143601161 |
— | ||
| replacement | |||||
|
49310A
|
49310A
08368-6125G ｽｸﾘﾕ-8908--01 ~ ; VG30D# |
08368-6125G |
US $2.21 |
||
|
49458
|
49458
4972650W00 Seal-O Ring8906--01 ~ ; <RB20P.(CLSV+BRO) +VG30D# *CA20P *RB20P.(SCTM+CL) *RD28.MT.R4; ﾊﾟﾜｽﾃ ﾖｳ |
4972650W00 |
from US $1.94 |
||
|
49458
|
49458
4972650W00 Seal-O Ring8906--01 ~ ; <RB20P.(CLSV+BRO) +VG30D# *CA20P *RB20P.(SCTM+CL) *RD28.MT.R4; ﾊﾟﾜｽﾃ ﾖｳ |
4972650W00 |
from US $1.94 |
||
|
49703E
|
49703E
01555-00241 CLIP8801--01 ~ 8908--01; VG30D#; |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49703E
|
49703E
0155500861 CLIP8801--01 ~ 8908--01; VG30D#; |
0155500861 |
US $2.45 |
||
|
49703E
|
49703E
01555-00241 CLIP8801--01 ~ 8908--01; VG30D#; |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49703E
|
49703E
0155500861 CLIP8801--01 ~ 8908--01; VG30D#; |
0155500861 |
US $2.45 |
||
|
49703F
|
49703F
49733-W1100 Insulator8801--01 ~ 8906--01; VG30DT |
49733-W1100 |
US $5.18 |
||
|
49703X
|
49703X
4973279918 Clip-Power Steering Tube8908--01 ~ ; VG30DT |
4973279918 |
US $5.18 |
||
|
49704E
|
49704E
49732-79961 Bracket-Power Steering Tube8801--01 ~ 8906--01; VG30DT |
49732-79961 |
US $4.18 |
||
|
49710A
|
49710A
49738-30P00 Bolt8908--01 ~ ; K.(VG30D+VG30DT) |
49738-30P00 |
US $5.18 |
||
|
49710E
|
49710E
0155500691 CLAMP8801--01 ~ 8906--01; VG30D#; |
0155500691 |
from US $2.11 |
||
|
49710E
|
49710E
0155500691 CLAMP8801--01 ~ 8906--01; VG30D#; |
0155500691 |
from US $2.11 |
||
|
49710E
|
49710E
0155500691 CLAMP8801--01 ~ 8906--01; VG30D#; |
0155500691 |
from US $2.11 |
||
|
49710E
|
49710E
0155500691 CLAMP8801--01 ~ 8906--01; VG30D#; |
0155500691 |
from US $2.11 |
||
|
49710E
|
49710E
0155500691 CLAMP8801--01 ~ 8906--01; VG30D#; |
0155500691 |
from US $2.11 |
||
|
49710E
|
49710E
0155500691 CLAMP8801--01 ~ 8906--01; VG30D#; |
0155500691 |
from US $2.11 |
||
|
49710E
|
49710E
0155500691 CLAMP8801--01 ~ 8906--01; VG30D#; |
0155500691 |
from US $2.11 |
||
|
49710E
|
49710E
0155500691 CLAMP8801--01 ~ 8906--01; VG30D#; |
0155500691 |
from US $2.11 |
||
|
49710R
|
49710R
49710-45V15 Hose & Tube Set-Power Steering8801--01 ~ 8908--01; VG30DT |
49710-45V15 |
US $307.27 |
||
|
49710R
|
49710R
49710-71V15 Hose & Tube Set-Power Steering8908--01 ~ ; K.VG30DT |
49710-71V15 |
US $263.52 |
||
|
49710R
|
49710R
49710-45V15 Hose & Tube Set-Power Steering8801--01 ~ 8908--01; VG30DT |
49710-45V15 |
US $307.27 |
||
|
49710R
|
49710R
49710-71V15 Hose & Tube Set-Power Steering8908--01 ~ ; K.VG30DT |
49710-71V15 |
US $263.52 |
||
|
49712M
|
49712M
49790-10V05 Tube Assy-Power Steering8908--01 ~ ; K.(VG30D+VG30DT) |
49790-10V05 |
US $23.33 |
||
|
49714
|
49714
49790-71V20 Tube Assy-Power Steering8908--01 ~ ; K.VG30DT |
49790-71V20 |
US $115.63 |
||
|
49715
|
49715
49725-71V21 Hose-Pump To Reservoir Tank8908--01 ~ ; K.VG30DT |
49725-71V21 |
US $17.57 |
||
|
49715
|
49715
49726-71V21 Tube Assy-Power Steering8908--01 ~ ; K.VG30DT |
49726-71V21 |
US $18.72 |
||
|
49715
|
49715
49726-45V15 Tube-Power Steering8801--01 ~ 8908--01; VG30DT |
49726-45V15 |
US $38.45 |
||
|
49715M
|
49715M
49726-71V21 Tube Assy-Power Steering8908--01 ~ ; K.VG30DT |
49726-71V21 |
US $18.72 |
||
|
49719
|
49719
49726-71V22 Tube Assy-Power Steering8908--01 ~ ; K.VG30DT |
49726-71V22 |
US $18.72 |
||
|
49719
|
49719
49726-45V16 Tube Assy-Power Steering8801--01 ~ 8908--01; VG30DT |
49726-45V16 |
US $38.45 |
||
|
49719
|
49719
49726-71V15 Tube Assy-Power Steering8908--01 ~ ; K.VG30DT |
49726-71V15 |
US $38.45 |
||
|
49719M
|
49719M
49726-45V16 Tube Assy-Power Steering8801--01 ~ 8908--01; VG30DT |
49726-45V16 |
US $38.45 |
||
|
49719M
|
49719M
49726-71V15 Tube Assy-Power Steering8908--01 ~ ; K.VG30DT |
49726-71V15 |
US $38.45 |
||
|
49720
|
49720
4972045V15 Hose Assy-Pressure, Power Steering8801--01 ~ 8908--01; VG30DT |
4972045V15 |
US $191.52 |
||
|
49720
|
49720
49720-71V15 Hose Assy-Pressure, Power Steering8908--01 ~ ; K.VG30DT |
49720-71V15 |
US $141.84 |
||
|
49720
|
49720
49725-71V22 Hose Assy-Pressure Valve8908--01 ~ ; K.VG30DT |
49725-71V22 |
US $24.05 |
||
|
49720
|
49720
49721-71V22 Hose Assy-Return Power Steering8908--01 ~ ; K.VG30DT |
49721-71V22 |
US $52.56 |
||
|
49720M
|
49720M
49725-71V22 Hose Assy-Pressure Valve8908--01 ~ ; K.VG30DT |
49725-71V22 |
US $24.05 |
||
|
49720Q
|
49720Q
49721-71V22 Hose Assy-Return Power Steering8908--01 ~ ; K.VG30DT |
49721-71V22 |
US $52.56 |
||
|
49721
|
49721
4971716V00 Hose Assy-Control Valve8801--01 ~ 8908--01; VG30DT |
4971716V00 |
US $38.30 |
||
|
49721
|
49721
49717-71V15 Hose Assy-Control Valve8908--01 ~ ; K.VG30DT |
49717-71V15 |
US $38.30 |
||
|
49721
|
49721
49721-45V15 Hose & Tube Assy-Return, Power Steering8801--01 ~ 8908--01; VG30DT |
49721-45V15 |
US $119.66 |
||
|
49721
|
49721
49721-71V16 Hose & Tube Assy-Return, Power Steering8908--01 ~ ; K.VG30DT |
49721-71V16 |
US $59.76 |
||
|
49721
|
49721
49725-45V15 Hose-Valve To Reservoir Tank8801--01 ~ ; VG30DT |
49725-45V15 |
US $35.86 |
||
|
49721P
|
49721P
49721-45V15 Hose & Tube Assy-Return, Power Steering8801--01 ~ 8908--01; VG30DT |
49721-45V15 |
US $119.66 |
||
|
49721P
|
49721P
49721-71V16 Hose & Tube Assy-Return, Power Steering8908--01 ~ ; K.VG30DT |
49721-71V16 |
US $59.76 |
||
|
49721R
|
49721R
49725-45V15 Hose-Valve To Reservoir Tank8801--01 ~ ; VG30DT |
49725-45V15 |
US $35.86 |
||
|
49722
|
49722
49721-11V00 Hose & Tube Assy-Power Steering8801--01 ~ 8908--01; VG30D# |
49721-11V00 |
US $43.34 |
||
|
49722
|
49722
49721-71V21 Hose Assy-Power Steering8908--01 ~ ; K.VG30DT |
49721-71V21 |
US $52.56 |
||
|
49723
|
49723
4972171V15 Hose Assy-Power Steering8908--01 ~ ; K.VG30DT |
4972171V15 |
US $100.66 |
||
|
49725M
|
49725M
49725-71V15 Hose-Return, Power Steering8908--01 ~ ; K.VG30DT |
49725-71V15 |
US $24.05 |
||
|
49726
|
49726
49726Y0100 Washer-Copper8801--01 ~ 8906--01; VG30D# |
49726Y0100 |
from US $1.72 |
||
|
49726
|
49726
49726Y0100 Washer-Copper8801--01 ~ 8906--01; VG30D# |
49726Y0100 |
from US $1.72 |
||
|
49726
|
49726
49726Y0100 Washer-Copper8801--01 ~ 8906--01; VG30D# |
49726Y0100 |
from US $1.72 |
||
|
49732M
|
49732M
49730-63V02 Bracket-Power Steering Tube8906--01 ~ ; VG20DT+VG30DT |
49730-63V02 |
US $12.53 |
||
|
49735
|
49735
49791-28E00 CLIP8908--01 ~ ; K.VG30DT |
49791-28E00 |
US $8.06 |
||
|
49736
|
49736
49791-16V00 Clip8801--01 ~ 8906--01; VG30DT |
49791-16V00 |
US $8.05 |
||
