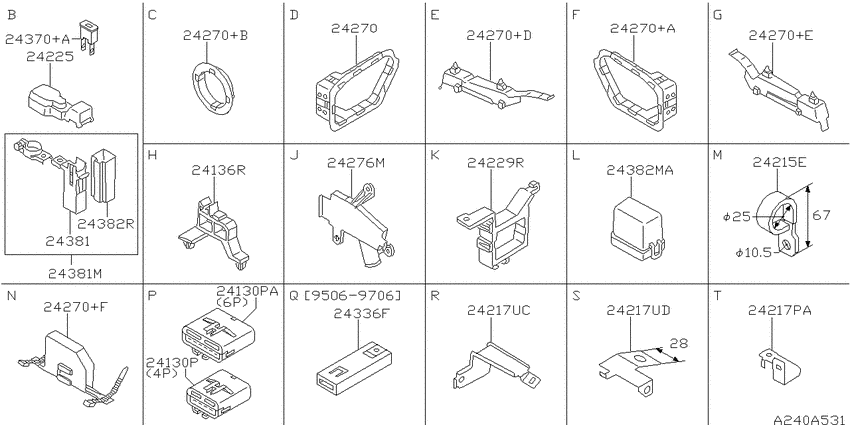

Wiring (1995-06-01 ~ 1997-06-01; &エンジン ルーム フィッティング(1); K.(VG30E+VG20E)) Diagram Nissan CEDRIC/GLORIA
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- VG30E
- drive
- 2WD
- transmission
- AT
- grade
- GT
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24130P
|
24130P
24335-79900 Diode9506--01 ~ 9601--01; K.VG30E; 4P |
24335-79900 |
US $19.58 |
||
|
24130P
|
24130P
24335-79901 Diode9506--01 ~ 9601--01; K.VG30E; 6P |
24335-79901 |
US $17.71 |
||
|
24130PA
|
24130PA
24335-79901 Diode9506--01 ~ 9601--01; K.VG30E; 6P |
24335-79901 |
US $17.71 |
||
|
24136R
|
24136R
243464P000 Bracket-Connector9506--01 ~ 9601--01; K.VG30E |
243464P000 |
US $4.61 |
||
|
24215E
|
24215E
24210-D4521 Clip9506--01 ~ 9601--01; K.VG30E |
24210-D4521 |
US $5.04 |
||
|
24217PA
|
24217PA
24239-4P000 Bracket-Harness Clip9506--01 ~ 9706--01; K.VG30E |
24239-4P000 |
US $10.94 |
||
|
24217UC
|
24217UC
24239-4P004 Bracket-Harness Clip9506--01 ~ 9601--01; K.VG30E |
24239-4P004 |
US $17.42 |
||
|
24217UD
|
24217UD
24239-9P000 Bracket-Harness Clip9506--01 ~ 9601--01; K.VG30E |
24239-9P000 |
US $17.42 |
||
|
24225
|
24225
243604P000 Cap-Terminal9506--01 ~ 9601--01; K.VG30E |
243604P000 |
US $8.73 |
||
|
24229R
|
24229R
24356-4P011 Bracket-Junction9506--01 ~ 9601--01; K.VG30E |
24356-4P011 |
US $9.65 |
||
|
24270
|
24270
24282-4P000 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
24282-4P000 |
US $7.92 |
||
|
24270
|
24270
24282-4P001 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
24282-4P001 |
US $7.92 |
||
|
24270
|
24270
24282-4P010 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
24282-4P010 |
US $8.06 |
||
|
24270
|
24270
24299-4P000 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
24299-4P000 |
US $8.06 |
||
|
24270
|
24270
24280-4P000 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
24280-4P000 |
US $8.06 |
||
|
24270
|
24270
242804P001 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
242804P001 |
US $8.06 |
||
|
24270
|
24270
24272-4P010 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
24272-4P010 |
US $7.92 |
||
|
24270
|
24270
24282-6P010 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
24282-6P010 |
US $29.38 |
||
|
24270
|
24270
24275-4P000 Protector-Harness9506--01 ~ 9706--01; K.VG30E |
24275-4P000 |
US $14.54 |
||
|
24270
|
24270
24277-4P700 Protector-Harness9506--01 ~ 9601--01; *K.VG30E; ﾏﾙﾁ AV ｼｽﾃﾑ ｼﾖｳ[A317] |
24277-4P700 |
US $24.48 |
||
|
24270
|
24270
24282-4P002 Protector-Harness9506--01 ~ 9603--01; K.VG30E |
24282-4P002 |
US $12.82 |
||
|
24270+A
|
24270+A
24282-4P001 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
24282-4P001 |
US $7.92 |
||
|
24270+B
|
24270+B
24282-4P010 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
24282-4P010 |
US $8.06 |
||
|
24270+D
|
24270+D
24280-4P000 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
24280-4P000 |
US $8.06 |
||
|
24270+E
|
24270+E
242804P001 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
242804P001 |
US $8.06 |
||
|
24270+F
|
24270+F
24272-4P010 Protector-Harness9506--01 ~ 9601--01; K.VG30E |
24272-4P010 |
US $7.92 |
||
|
24276M
|
24276M
24281-4P000 Protector-Harness9506--01 ~ 9706--01; K.VG30E |
24281-4P000 |
US $5.47 |
||
|
24336F
|
24336F
24336-C9901 Resistor9506--01 ~ 9706--01; K.VG30E |
24336-C9901 |
US $12.62 |
||
|
24370+A
|
24370+A
2437079917 Connector Assy-Fusible Link9506--01 ~ 9601--01; K.VG30E; 120A |
2437079917 |
US $13.10 |
||
|
24381
|
24381
24381-4P001 Housing-Fusible Link Holder9506--01 ~ 9601--01; K.VG30E |
24381-4P001 |
US $22.61 |
||
|
24381
|
24381
24380-4P010 Holder-Fusible Link9506--01 ~ 9601--01; K.VG30E |
24380-4P010 |
US $54.43 |
||
|
24381
|
24381
243804P410 Holder-Fusible Link9601--01 ~ 9706--01; K.(VG30E+VG20E) |
243804P410 |
US $54.43 |
||
|
24381M
|
24381M
24380-4P010 Holder-Fusible Link9506--01 ~ 9601--01; K.VG30E |
24380-4P010 |
US $54.43 |
||
|
24381M
|
24381M
243804P410 Holder-Fusible Link9601--01 ~ 9706--01; K.(VG30E+VG20E) |
243804P410 |
US $54.43 |
||
|
24382MA
|
24382MA
24382-64U21 Cover-Relay Box9506--01 ~ 9601--01; K.VG30E |
24382-64U21 |
US $16.50 |
||
|
24382R
|
24382R
24382-4P010 Cover-Fusible Link Holder9506--01 ~ 9601--01; K.VG30E |
24382-4P010 |
US $15.84 |
