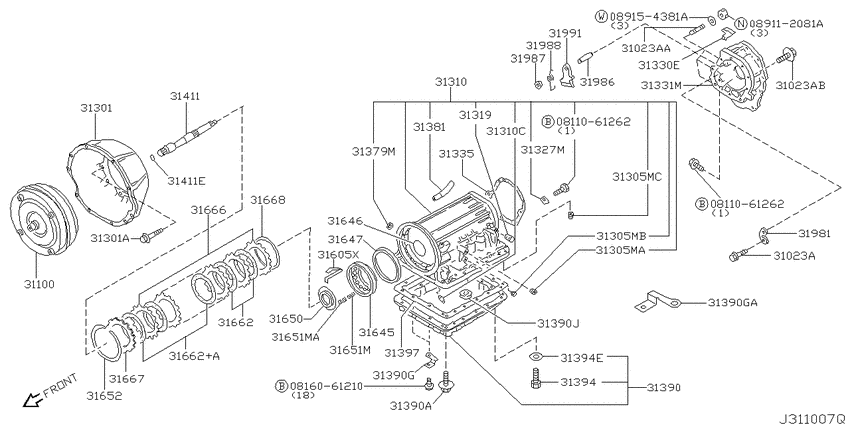

Torque converter,housing & case (2001-01-01 ~ 2003-11-01; AT.F4) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0816061210
|
0816061210
08160-61210
Bolt-hexagon
|
08160-61210 |
— | ||
| replacement | |||||
|
0816061210
|
0816061210
08110-61225
Bolt-hexagon
|
08110-61225 |
— | ||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
31023A
|
31023A
31377-41X00 Bolt0101--01 ~ 0311--01; AT.F4 |
31377-41X00 |
US $1.73 |
||
|
31023A
|
31023A
31377-41X02 Bolt0101--01 ~ 0311--01; AT.F4 |
31377-41X02 |
US $5.47 |
||
|
31023A
|
31023A
31377-41X20 Bolt0101--01 ~ 0311--01; AT.F4 |
31377-41X20 |
US $2.45 |
||
|
31023AA
|
31023AA
31377-41X02 Bolt0101--01 ~ 0311--01; AT.F4 |
31377-41X02 |
US $5.47 |
||
|
31023AB
|
31023AB
31377-41X20 Bolt0101--01 ~ 0311--01; AT.F4 |
31377-41X20 |
US $2.45 |
||
|
31100
|
31100
31100-55X01 Converter Assy-Torque0101--01 ~ 0311--01; AT.F4 |
31100-55X01 |
US $1,203.60 |
||
|
31301
|
31301
31301-55X00 Housing-Converter0101--01 ~ 0311--01; AT.F4 |
31301-55X00 |
US $574.90 |
||
|
31301
|
31301
31309-X6600 Bolt0101--01 ~ 0311--01; AT.F4 |
31309-X6600 |
US $2.45 |
||
|
31301A
|
31301A
31309-X6600 Bolt0101--01 ~ 0311--01; AT.F4 |
31309-X6600 |
US $2.45 |
||
|
31305MA
|
31305MA
31305-41X00 Plug-Thread0101--01 ~ 0311--01; AT.F4 |
31305-41X00 |
US $1.67 |
||
|
31305MB
|
31305MB
31305-41X01 Plug-Thread0101--01 ~ 0311--01; AT.F4 |
31305-41X01 |
US $2.45 |
||
|
31305MC
|
31305MC
31305-51X01 Plug-Thread0101--01 ~ 0311--01; AT.F4 |
31305-51X01 |
US $1.73 |
||
|
31310
|
31310
31310-55X01 Case Assy-Automatic Transmission0101--01 ~ 0311--01; AT.F4 |
31310-55X01 |
US $549.41 |
||
|
31310
|
31310
31308-41X00 Pin-Dowel0101--01 ~ 0311--01; AT.F4 |
31308-41X00 |
US $2.45 |
||
|
31310C
|
31310C
31308-41X00 Pin-Dowel0101--01 ~ 0311--01; AT.F4 |
31308-41X00 |
US $2.45 |
||
|
31319
|
31319
31345-X6101 Plug0101--01 ~ 0311--01; AT.F4 |
31345-X6101 |
US $2.45 |
||
|
31327M
|
31327M
31327-51X01 Plate-Baffle0101--01 ~ 0311--01; AT.F4 |
31327-51X01 |
US $2.45 |
||
|
31330E
|
31330E
31376-55X04 Clip-Harness0101--01 ~ 0311--01; AT.F4 |
31376-55X04 |
US $3.31 |
||
|
31331M
|
31331M
31331-51X10 Case-Adapter0101--01 ~ 0311--01; AT.F4 |
31331-51X10 |
US $420.55 |
||
|
31335
|
31335
31338-51X00 Gasket-Extension0101--01 ~ 0311--01; AT.F4 |
31338-51X00 |
US $21.17 |
||
|
31379M
|
31379M
3137541X00 Seal-Oil0101--01 ~ 0311--01; AT.F4 |
3137541X00 |
from US $2.36 |
||
|
31381
|
31381
31381-41X01 Breather-Air0101--01 ~ 0311--01; AT.F4 |
31381-41X01 |
US $9.07 |
||
|
31390
|
31390
31390-51X05 Pan Assy-Oil0101--01 ~ 0311--01; AT.F4 |
31390-51X05 |
US $26.06 |
||
|
31390
|
31390
3137741X06 Bolt0101--01 ~ 0311--01; AT.F4 |
3137741X06 |
from US $1.13 |
||
|
31390
|
31390
21644-41X00 Bracket-Oil Cooler Tube0101--01 ~ 0311--01; AT.F4 |
21644-41X00 |
US $9.02 |
||
|
31390
|
31390
21644-41X01
Bracket-Oil Cooler Tube
0101--01 ~ 0311--01; AT.F4 |
21644-41X01 |
— | ||
|
31390
|
31390
3137941X00 Magnet0110--01 ~ 0311--01; AT.F4 |
3137941X00 |
US $4.18 |
||
|
31390
|
31390
31392-X5100
Magnet
0101--01 ~ 0110--01; AT.F4 |
31392-X5100 |
— | ||
| replacement | |||||
|
31390
|
31390
313793AX0A Magnet0101--01 ~ 0110--01; AT.F4 |
313793AX0A |
from US $2.94 |
||
|
31390A
|
31390A
3137741X06 Bolt0101--01 ~ 0311--01; AT.F4 |
3137741X06 |
from US $1.13 |
||
|
31390G
|
31390G
21644-41X00 Bracket-Oil Cooler Tube0101--01 ~ 0311--01; AT.F4 |
21644-41X00 |
US $9.02 |
||
|
31390G
|
31390G
21644-41X01
Bracket-Oil Cooler Tube
0101--01 ~ 0311--01; AT.F4 |
21644-41X01 |
— | ||
|
31390GA
|
31390GA
21644-41X01
Bracket-Oil Cooler Tube
0101--01 ~ 0311--01; AT.F4 |
21644-41X01 |
— | ||
|
31390J
|
31390J
3137941X00 Magnet0110--01 ~ 0311--01; AT.F4 |
3137941X00 |
US $4.18 |
||
|
31390J
|
31390J
31392-X5100
Magnet
0101--01 ~ 0110--01; AT.F4 |
31392-X5100 |
— | ||
| replacement | |||||
|
31390J
|
31390J
313793AX0A Magnet0101--01 ~ 0110--01; AT.F4 |
313793AX0A |
from US $2.94 |
||
|
31394
|
31394
3137731X06 Plug-Drain0101--01 ~ 0311--01; AT.F4 |
3137731X06 |
from US $4.13 |
||
|
31394
|
31394
1102601M02 Washer-Drain Plug0101--01 ~ 0311--01; AT.F4 |
1102601M02 |
from US $0.81 |
||
|
31394E
|
31394E
1102601M02 Washer-Drain Plug0101--01 ~ 0311--01; AT.F4 |
1102601M02 |
from US $0.81 |
||
|
31397
|
31397
3139751X02 Gasket-Oil Pan0101--01 ~ 0311--01; AT.F4 |
3139751X02 |
from US $22.40 |
||
|
31397
|
31397
31397-51X91 Gasket & Seal Kit-Auto Transmission0101--01 ~ 0112--01; AT.F4 |
31397-51X91 |
US $254.88 |
||
|
31397
|
31397
31397-51X92 Gasket & Seal Kit-Auto Transmission0112--01 ~ 0308--01; AT.F4 |
31397-51X92 |
US $254.88 |
||
|
31397
|
31397
31397-55X25 Gasket & Seal Kit-Auto Transmission0308--01 ~ 0311--01; AT.F4 |
31397-55X25 |
US $254.88 |
||
|
31411
|
31411
31411-51X01 Shaft-Input0101--01 ~ 0311--01; AT.F4 |
31411-51X01 |
US $78.91 |
||
|
31411
|
31411
31526-51X00 Seal-O Ring0101--01 ~ 0112--01; AT.F4 |
31526-51X00 |
US $5.18 |
||
| replacement | |||||
|
31411
|
31411
3152671X01 Seal-O Ring0101--01 ~ 0112--01; AT.F4 |
3152671X01 |
US $5.18 |
||
|
31411
|
31411
3152671X01 Seal-O Ring0112--01 ~ 0311--01; AT.F4 |
3152671X01 |
US $5.18 |
||
|
31411E
|
31411E
31526-51X00 Seal-O Ring0101--01 ~ 0112--01; AT.F4 |
31526-51X00 |
US $5.18 |
||
| replacement | |||||
|
31411E
|
31411E
3152671X01 Seal-O Ring0101--01 ~ 0112--01; AT.F4 |
3152671X01 |
US $5.18 |
||
|
31411E
|
31411E
3152671X01 Seal-O Ring0112--01 ~ 0311--01; AT.F4 |
3152671X01 |
US $5.18 |
||
|
31605X
|
31605X
31605-41X20 Spring0101--01 ~ 0311--01; AT.F4 |
31605-41X20 |
US $4.03 |
||
|
31645
|
31645
31645-51X02 Piston Assy-Low & Reverse Brake0101--01 ~ 0311--01; AT.F4 |
31645-51X02 |
US $23.83 |
||
|
31646
|
31646
31527-51X02 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31527-51X02 |
US $8.06 |
||
|
31647
|
31647
31528-51X00 Seal-O Ring0101--01 ~ 0311--01; AT.F4 |
31528-51X00 |
US $13.82 |
||
|
31650
|
31650
31656-51X02 Retainer-Low & Reverse Brake0101--01 ~ 0311--01; AT.F4 |
31656-51X02 |
US $10.39 |
||
|
31651M
|
31651M
31505-51X05 Spring-Piston Return0101--01 ~ 0311--01; AT.F4 |
31505-51X05 |
US $4.42 |
||
|
31651M
|
31651M
31505-51X06 Spring-Piston Return0101--01 ~ 0311--01; AT.F4 |
31505-51X06 |
US $0.97 |
||
|
31651MA
|
31651MA
31505-51X06 Spring-Piston Return0101--01 ~ 0311--01; AT.F4 |
31505-51X06 |
US $0.97 |
||
|
31652
|
31652
31506-51X00 Ring-Snap0101--01 ~ 0311--01; AT.F4 |
31506-51X00 |
US $4.18 |
||
|
31662
|
31662
31532-51X03 Plate Assy-Drive0101--01 ~ 0311--01; AT.F4 |
31532-51X03 |
US $32.97 |
||
|
31662
|
31662
31532-51X10 Plate Assy-Drive0101--01 ~ 0311--01; AT.F4 |
31532-51X10 |
US $29.81 |
||
|
31662+A
|
31662+A
31532-51X10 Plate Assy-Drive0101--01 ~ 0311--01; AT.F4 |
31532-51X10 |
US $29.81 |
||
|
31666
|
31666
31666-51X01 Plate-Driven0101--01 ~ 0311--01; AT.F4 |
31666-51X01 |
US $20.30 |
||
|
31667
|
31667
31667-51X00 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X00 |
US $17.71 |
||
|
31667
|
31667
31667-51X01 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X01 |
US $17.71 |
||
|
31667
|
31667
31667-51X02 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X02 |
US $17.71 |
||
|
31667
|
31667
31667-51X03 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=5.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X03 |
US $17.71 |
||
|
31667
|
31667
31667-51X04 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=5.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X04 |
US $17.71 |
||
|
31667
|
31667
31667-51X05 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=5.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X05 |
US $17.71 |
||
|
31667
|
31667
31667-51X06 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=5.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X06 |
US $17.71 |
||
|
31667
|
31667
31667-51X07 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=5.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X07 |
US $17.71 |
||
|
31667
|
31667
31667-51X08 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=6.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X08 |
US $17.71 |
||
|
31667
|
31667
31667-51X09 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=6.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X09 |
US $17.71 |
||
|
31667
|
31667
31667-51X10 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X10 |
US $17.71 |
||
|
31667
|
31667
31667-51X11 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X11 |
US $17.71 |
||
|
31667
|
31667
31667-51X12 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=3.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-51X12 |
US $17.71 |
||
|
31668
|
31668
31535-51X04 Plate-Dished0101--01 ~ 0311--01; AT.F4 |
31535-51X04 |
US $29.81 |
||
|
31981
|
31981
31981-41X02 Support-Parking Actuator0101--01 ~ 0311--01; AT.F4 |
31981-41X02 |
US $4.03 |
||
|
31986
|
31986
31986-51X00 Shaft-Parking Pawl0101--01 ~ 0311--01; AT.F4 |
31986-51X00 |
US $4.18 |
||
|
31987
|
31987
31437-51X00 Spacer-Parking Pawl0101--01 ~ 0311--01; AT.F4 |
31437-51X00 |
US $0.86 |
||
|
31988
|
31988
31988-41X00 Spring-Return Pawl0101--01 ~ 0311--01; AT.F4 |
31988-41X00 |
US $7.92 |
||
|
31991
|
31991
31991-41X01 Pawl-Parking0101--01 ~ 0311--01; AT.F4 |
31991-41X01 |
US $33.12 |
||
