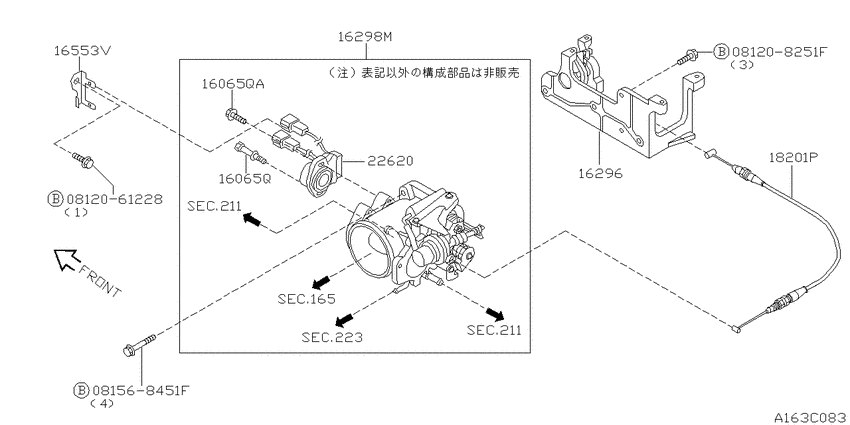

Throttle chamber (1998-09-01 ~ ; "トラクション コントロール無 仕様; VH41DE) Diagram Nissan CIMA
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- 41TR
- body
- S
- Suspension
- 2WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081568451F
|
081568451F
08156-8451F
ﾎﾞﾙﾄ
|
08156-8451F |
— | ||
|
16065Q
|
16065Q
16065-6P001 Screw9606--01 ~ 9709--01; !ACT.VH41DE +VH41DE.(41LV+41TR).AT |
16065-6P001 |
US $3.46 |
||
|
16065Q
|
16065Q
16065-6P002 Screw9606--01 ~ 9709--01; !ACT.VH41DE +VH41DE.(41LV+41TR).AT |
16065-6P002 |
US $3.46 |
||
|
16065Q
|
16065Q
16065-6P000 Screw9606--01 ~ 9709--01; !ACT.VH41DE +VH41DE.(41LV+41TR).AT |
16065-6P000 |
US $3.46 |
||
|
16065QA
|
16065QA
16065-6P002 Screw9606--01 ~ 9709--01; !ACT.VH41DE +VH41DE.(41LV+41TR).AT |
16065-6P002 |
US $3.46 |
||
|
16296
|
16296
18919-6P000 Drum-Accelerator9606--01 ~ 9709--01; VH41DE |
18919-6P000 |
US $269.28 |
||
|
16298M
|
16298M
161196P000 Chamber Assy-Throttle9606--01 ~ 9709--01; !ACT.VH41DE +VH41DE.(41LV+41TR).AT |
161196P000 |
US $2,142 |
||
|
16298M
|
16298M
16119-6P010 Chamber Assy-Throttle9809--01 ~ 9911--01; 32WD.IRS.VH41DE.41LV +2WD.ACT.VH41DE +VH41DE.41TR.AT |
16119-6P010 |
US $2,142 |
||
|
165
|
Air cleaner
165
|
||||
|
165
|
Air cleaner
165
|
||||
|
165
|
Air cleaner
165
|
||||
|
16553V
|
16553V
24236-6P000 Bracket-Conn Sensor9606--01 ~ 9709--01; VH41DE |
24236-6P000 |
US $4.90 |
||
|
18201P
|
18201P
18201-6P010 New Genuine Part9606--01 ~ 9709--01; VH41DE |
18201-6P010 |
US $39.74 |
||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
22620
|
22620
226206P010 Throttle Position Switch9606--01 ~ 9709--01; VH41DE |
226206P010 |
US $177.12 |
||
|
22620
|
22620
226206P005 Sensor-Throttle Valve9606--01 ~ 9709--01; !ACT.VH41DE +VH41DE.(41LV+41TR).AT |
226206P005 |
US $116.93 |
||
