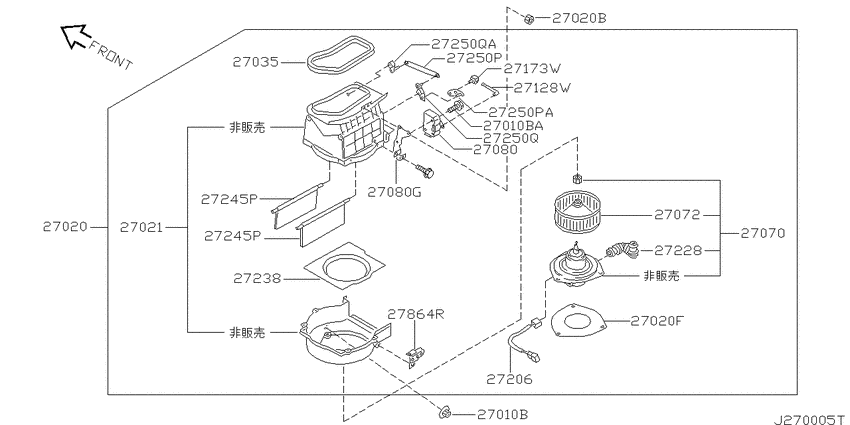

Heater & blower unit (1999-11-01 ~ ; ブロア モーター; S) Diagram Nissan CIMA
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- VQ30DET
- transmission
- AT
- grade
- 30L
- body
- S
- Suspension
- 2WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27010B
|
27010B
27111-4P000 Screw9606--01 ~ 9709--01; S; ﾌﾗﾝｼﾞ ﾅﾂﾄ |
27111-4P000 |
US $1.73 |
||
|
27010B
|
27010B
27111-0E003 SCREW9606--01 ~ 9709--01; S |
27111-0E003 |
US $2.59 |
||
| replacement | |||||
|
27010B
|
27010B
27111-0E00A
Screw
9606--01 ~ 9709--01; S |
27111-0E00A |
— | ||
|
27010BA
|
27010BA
27111-0E003 SCREW9606--01 ~ 9709--01; S |
27111-0E003 |
US $2.59 |
||
| replacement | |||||
|
27010BA
|
27010BA
27111-0E00A
Screw
9606--01 ~ 9709--01; S |
27111-0E00A |
— | ||
|
27020
|
27020
27200-4P000 Blower Assy-Front9606--01 ~ 9607--01; S |
27200-4P000 |
US $542.33 |
||
|
27020
|
27020
27200-4P005 Blower Assy-Front9607--01 ~ 9704--01; S |
27200-4P005 |
US $542.33 |
||
|
27020
|
27020
27200-4P006 Blower Assy-Front9704--01 ~ 9705--01; S |
27200-4P006 |
US $542.33 |
||
|
27020
|
27020
27200-4P007 Blower Assy-Front9705--01 ~ 9709--01; S |
27200-4P007 |
US $647.11 |
||
|
27020
|
27020
27200-4P008 Blower Assy-Front9812--01 ~ ; S |
27200-4P008 |
US $594.72 |
||
|
27020
|
27020
0122500371 NUT9606--01 ~ 9608--01; S |
0122500371 |
US $1.73 |
||
|
27020
|
27020
0122500561 NUT9905--01 ~ ; S |
0122500561 |
from US $0.57 |
||
|
27020
|
27020
01225-00861 NUT9608--01 ~ 9709--01; S |
01225-00861 |
US $4.18 |
||
|
27020
|
27020
27233-4P000 Bracket-Blower9606--01 ~ 9607--01; S |
27233-4P000 |
US $11.38 |
||
|
27020
|
27020
27233-4P007 Bracket-Blower9704--01 ~ 9709--01; S |
27233-4P007 |
US $12.53 |
||
|
27020B
|
27020B
0122500371 NUT9606--01 ~ 9608--01; S |
0122500371 |
US $1.73 |
||
|
27020B
|
27020B
0122500561 NUT9905--01 ~ ; S |
0122500561 |
from US $0.57 |
||
|
27020B
|
27020B
01225-00861 NUT9608--01 ~ 9709--01; S |
01225-00861 |
US $4.18 |
||
|
27020F
|
27020F
27233-4P000 Bracket-Blower9606--01 ~ 9607--01; S |
27233-4P000 |
US $11.38 |
||
|
27020F
|
27020F
27233-4P007 Bracket-Blower9704--01 ~ 9709--01; S |
27233-4P007 |
US $12.53 |
||
|
27021
|
27021
27235-4P000 Case-Blower9606--01 ~ 9709--01; S |
27235-4P000 |
US $137.66 |
||
|
27035
|
27035
27152-4P000 Seal9606--01 ~ 9709--01; S |
27152-4P000 |
US $2.02 |
||
|
27070
|
27070
27220-4P001 Motor & Fan Assy-Blower9606--01 ~ 9607--01; S |
27220-4P001 |
US $273.60 |
||
|
27070
|
27070
27220-4P005 Motor & Fan Assy-Blower9607--01 ~ 9705--01; S |
27220-4P005 |
US $273.60 |
||
|
27070
|
27070
27220-4P007 Motor & Fan Assy-Blower9705--01 ~ 9709--01; S |
27220-4P007 |
US $320.02 |
||
|
27070
|
27070
27220-4P008 Motor & Fan Assy-Blower9812--01 ~ ; S |
27220-4P008 |
US $294.53 |
||
|
27072
|
27072
27230-4P000 Fan-Blower9606--01 ~ 9709--01; S |
27230-4P000 |
US $27.07 |
||
|
27080
|
27080
27730-4P000
Actuator-Air Intake Box
9606--01 ~ 9709--01; S |
27730-4P000 |
— | ||
|
27080
|
27080
27750-4P060 Bracket-Actuator9606--01 ~ 9709--01; S |
27750-4P060 |
US $5.90 |
||
|
27080G
|
27080G
27750-4P060 Bracket-Actuator9606--01 ~ 9709--01; S |
27750-4P060 |
US $5.90 |
||
|
27128W
|
27128W
27781-4P060 Rod-Air Door, No 69606--01 ~ 9709--01; S |
27781-4P060 |
US $4.18 |
||
|
27173W
|
27173W
27137-D4000 Holder-Rod9606--01 ~ 9709--01; S |
27137-D4000 |
US $0.85 |
||
|
27206
|
27206
27206-4P000 Harness Assy-Sub9606--01 ~ 9607--01; S |
27206-4P000 |
US $8.93 |
||
|
27206
|
27206
27206-4P005 Harness Assy-Sub9607--01 ~ 9709--01; S |
27206-4P005 |
US $12.38 |
||
|
27228
|
27228
27228-0E002 HOSE-MOTOR9606--01 ~ 9709--01; S |
27228-0E002 |
US $12.10 |
||
|
27238
|
27238
27238-4P000 Bellmouth-Intake9606--01 ~ 9709--01; S |
27238-4P000 |
US $10.80 |
||
|
27245P
|
27245P
27245-4P000 Door-Intake Blower, Front9606--01 ~ 9709--01; S |
27245-4P000 |
US $16.27 |
||
|
27245P
|
27245P
27245-4P000 Door-Intake Blower, Front9606--01 ~ 9709--01; S |
27245-4P000 |
US $16.27 |
||
|
27250P
|
27250P
27250-4P000 Lever Assy-Intake Door, Front9606--01 ~ 9709--01; S |
27250-4P000 |
US $2.02 |
||
|
27250P
|
27250P
27250-4P060 Lever Assy-Intake Door, Front9606--01 ~ 9709--01; S |
27250-4P060 |
US $2.02 |
||
|
27250PA
|
27250PA
27250-4P060 Lever Assy-Intake Door, Front9606--01 ~ 9709--01; S |
27250-4P060 |
US $2.02 |
||
|
27250Q
|
27250Q
27253-4P000 Lever9606--01 ~ 9709--01; S |
27253-4P000 |
US $2.02 |
||
|
27250Q
|
27250Q
27253-4P060 Lever9606--01 ~ 9709--01; S |
27253-4P060 |
US $2.02 |
||
|
27250QA
|
27250QA
27253-4P060 Lever9606--01 ~ 9709--01; S |
27253-4P060 |
US $2.02 |
||
|
27864R
|
27864R
24230-4P000 Bracket9606--01 ~ 9709--01; S |
24230-4P000 |
US $5.90 |
||
