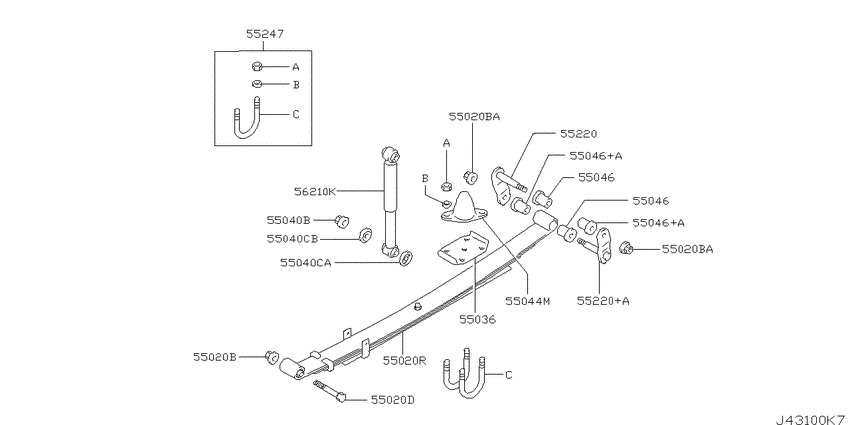

Rear suspension (2003-10-01 ~ ; T.3G83) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 2WD
- transmission
- 4AT
- grade
- GL
- body
- T
- Roof
- SR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55020B
|
55020B
01223-6A0A0 ﾅﾂﾄ0709--01 ~ ; T.3G83 |
01223-6A0A0 |
US $3.74 |
||
|
55020B
|
55020B
012236A0A6 ﾅﾂﾄ0310--01 ~ 0709--01; T.3G83 |
012236A0A6 |
US $3.02 |
||
|
55020B
|
55020B
012256A0A8 Nut0310--01 ~ ; T.3G83; ﾌﾗﾝｼﾞ､D=10 |
012256A0A8 |
US $1.87 |
||
|
55020BA
|
55020BA
012256A0A8 Nut0310--01 ~ ; T.3G83; ﾌﾗﾝｼﾞ､D=10 |
012256A0A8 |
US $1.87 |
||
|
55020BA
|
55020BA
012256A0A8 Nut0310--01 ~ ; T.3G83; ﾌﾗﾝｼﾞ､D=10 |
012256A0A8 |
US $1.87 |
||
|
55020D
|
55020D
01115-6A0A5 ﾎﾞﾙﾄ0310--01 ~ ; T.3G83 |
01115-6A0A5 |
US $9.22 |
||
|
55020R
|
55020R
55020-6A0A2 ｽﾌﾟﾘﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾘ-ﾌ ﾘﾔ0310--01 ~ ; F*T.3G83.(SD+DX) +*T.3G83.GL.5MT +*T.3G83.4AT +*3G83.(SD/AC+DX/AC+DX/M) |
55020-6A0A2 |
US $314.35 |
||
|
55020R
|
55020R
55020-6A0A3 ｽﾌﾟﾘﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾘ-ﾌ ﾘﾔ0310--01 ~ ; =T.3G83.(SD+DX) +T.3G83.GL.5MT +T.3G83.4AT +3G83.(SD/AC+DX/AC) |
55020-6A0A3 |
US $218.88 |
||
|
55020R
|
55020R
550206A0A5 ｽﾌﾟﾘﾝｸﾞ ｱﾂｼｰ0310--01 ~ ; A*T.3G83.(SD+DX) +*T.3G83.GL.5MT +*T.3G83.4AT +*3G83.(SD/AC+DX/AC) |
550206A0A5 |
US $236.16 |
||
|
55036
|
55036
55036-6A0A0 ｼ-ﾄ,ﾗﾊﾞ- ﾘﾔ ｽﾌﾟﾘﾝｸﾞ0310--01 ~ ; T.3G83 |
55036-6A0A0 |
US $13.10 |
||
|
55040B
|
55040B
012236A0A2 Nut0310--01 ~ ; T.3G83 |
012236A0A2 |
US $1.87 |
||
|
55040CA
|
55040CA
013316A0A4 ﾜﾂｼﾔ-0310--01 ~ ; ﾊV.(2WD+4WD).HR.3G83.DX.3AT +V.SR.3G83.3AT +V.3G83.SD.3AT +V.3G83.GL.4AT +T.3G83.(4AT+3AT) +W.2WD.HR.3G83.E.4AT +W.4WD.HR.3G83.E/FOUR.4AT +HR.3G83.SD/2S.3AT +HR/RV.3G83.3AT +3G83.(G+G/FOUR).4AT +3G83.5MT; D=14 |
013316A0A4 |
US $3.17 |
||
|
55040CB
|
55040CB
013316A0A3 Washer0310--01 ~ ; ﾊV.(2WD+4WD).HR.3G83.DX.3AT +V.SR.3G83.3AT +V.3G83.SD.3AT +V.3G83.GL.4AT +T.3G83.(4AT+3AT) +W.2WD.HR.3G83.E.4AT +W.4WD.HR.3G83.E/FOUR.4AT +HR.3G83.SD/2S.3AT +HR/RV.3G83.3AT +3G83.(G+G/FOUR).4AT +3G83.5MT; 11 |
013316A0A3 |
US $3.89 |
||
|
55044M
|
55044M
550446A0A0 ｽﾄﾂﾊﾟ-0310--01 ~ ; A*T.3G83.(SD+DX) +*T.3G83.GL.5MT +*T.3G83.4AT +*3G83.(SD/AC+DX/AC) |
550446A0A0 |
US $27.79 |
||
|
55044M
|
55044M
55044-6A0A2 ｽﾄﾂﾊﾟ-,ｱ-ﾑ ﾌﾞﾂｼﾕ0310--01 ~ ; BT.3G83.(SD+DX) +T.3G83.GL.5MT +T.3G83.4AT +3G83.(SD/AC+DX/AC+DX/M) |
55044-6A0A2 |
US $27.79 |
||
|
55046
|
55046
550466A0A0 ﾘﾝｸ ﾌﾞﾂｼﾕ0310--01 ~ ; T.3G83; 25X47.5 ﾘﾔ ｱｯﾊﾟｰ |
550466A0A0 |
US $3.17 |
||
|
55046
|
55046
550466A0A1 ﾌﾞﾂｼﾕ,ｽﾌﾟﾘﾝｸﾞ0310--01 ~ ; T.3G83; ﾘｱ ﾛｱ |
550466A0A1 |
US $5.04 |
||
|
55046
|
55046
550466A0A0 ﾘﾝｸ ﾌﾞﾂｼﾕ0310--01 ~ ; T.3G83; 25X47.5 ﾘﾔ ｱｯﾊﾟｰ |
550466A0A0 |
US $3.17 |
||
|
55046
|
55046
550466A0A1 ﾌﾞﾂｼﾕ,ｽﾌﾟﾘﾝｸﾞ0310--01 ~ ; T.3G83; ﾘｱ ﾛｱ |
550466A0A1 |
US $5.04 |
||
|
55046+A
|
55046+A
550466A0A1 ﾌﾞﾂｼﾕ,ｽﾌﾟﾘﾝｸﾞ0310--01 ~ ; T.3G83; ﾘｱ ﾛｱ |
550466A0A1 |
US $5.04 |
||
|
55046+A
|
55046+A
550466A0A1 ﾌﾞﾂｼﾕ,ｽﾌﾟﾘﾝｸﾞ0310--01 ~ ; T.3G83; ﾘｱ ﾛｱ |
550466A0A1 |
US $5.04 |
||
|
55220
|
55220
54220-6A0A0 ｼﾔﾂｸﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ0310--01 ~ ; T.3G83 |
54220-6A0A0 |
US $14.98 |
||
|
55220
|
55220
54220-6A0A1 ｼﾔﾂｸﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ0310--01 ~ ; T.3G83 |
54220-6A0A1 |
US $14.98 |
||
|
55220+A
|
55220+A
54220-6A0A1 ｼﾔﾂｸﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ0310--01 ~ ; T.3G83 |
54220-6A0A1 |
US $14.98 |
||
|
55247
|
55247
552476A0A1 ｸﾘﾂﾌﾟ0310--01 ~ ; =T.3G83.(SD+DX) +T.3G83.GL.5MT +T.3G83.4AT +3G83.(SD/AC+DX/AC); 120 |
552476A0A1 |
US $9.94 |
||
|
55247
|
55247
55247-6A0A2 ｸﾘﾂﾌﾟ,ﾘﾔ ｽﾌﾟﾘﾝｸﾞ0310--01 ~ ; A*T.3G83.(SD+DX) +*T.3G83.GL.5MT +*T.3G83.4AT +*3G83.(SD/AC+DX/AC) |
55247-6A0A2 |
US $9.22 |
||
|
56210K
|
56210K
56210-6A0A2 ｱﾌﾞｿ-ﾊﾞ- ｷﾂﾄ,ｼﾖﾂｸ ﾘﾔ0310--01 ~ ; A*T.3G83.(SD+DX) +*T.3G83.GL.5MT +*T.3G83.4AT +*3G83.(SD/AC+DX/AC) |
56210-6A0A2 |
US $96.19 |
||
|
56210K
|
56210K
562106A0A3 Rrｼﾖﾂｸ ｱﾌﾞｿ-ﾊﾞ-0310--01 ~ ; BT.3G83.(SD+DX) +T.3G83.GL.5MT +T.3G83.4AT +3G83.(SD/AC+DX/AC+DX/M) |
562106A0A3 |
US $96.19 |
