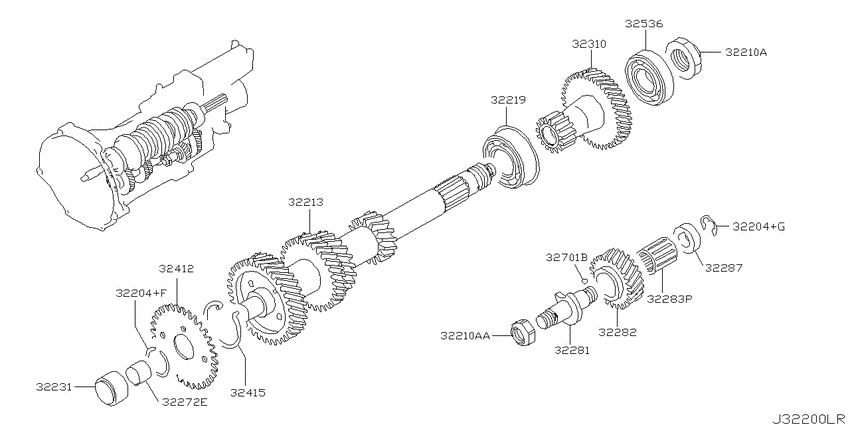

Transmission gear (2003-10-01 ~ ; カウンタ シャフト; (V+T).5MT +(E+E/FOUR).5MT) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 2WD
- transmission
- 5MT
- grade
- SD
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32204+F
|
32204+F
31376-6A0A1 Ring-Snap0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT |
31376-6A0A1 |
US $1.87 |
||
|
32204+G
|
32204+G
31376-6A0A0 Ring-Snap0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT |
31376-6A0A0 |
US $2.59 |
||
|
32210A
|
32210A
32236-6A0A0 Nut0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT; ﾛｯｸ,14 |
32236-6A0A0 |
US $4.46 |
||
|
32210A
|
32210A
32236-6A0A0 Nut0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT; ﾛｯｸ,14 |
32236-6A0A0 |
US $4.46 |
||
|
32210AA
|
32210AA
32236-6A0A0 Nut0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT; ﾛｯｸ,14 |
32236-6A0A0 |
US $4.46 |
||
|
32213
|
32213
32212-6A0A0 Gear-Counter0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT |
32212-6A0A0 |
US $285.12 |
||
|
32219
|
32219
32219-6A0A0 Bearing-Counter Shaft0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT; ﾎﾞｰﾙ,40 |
32219-6A0A0 |
US $17.57 |
||
|
32231
|
32231
21030-6A0A0 Bearing-Counter Shaft0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT |
21030-6A0A0 |
US $8.06 |
||
|
32272E
|
32272E
32275-6A0A0 Spacer-Pilot Bearing0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT |
32275-6A0A0 |
US $7.92 |
||
|
32281
|
32281
32281-6A0A0 Shaft-Reverse Idler0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT |
32281-6A0A0 |
US $102.24 |
||
|
32282
|
32282
32282-6A0A0 Gear-Reverse Idler0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT; N=16 |
32282-6A0A0 |
US $50.40 |
||
|
32283P
|
32283P
32283-6A0A0 Bearing-Reverse Idler Gear0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT; ﾆｰﾄﾞﾙ,20 |
32283-6A0A0 |
US $9.22 |
||
|
32287
|
32287
32620-6A0A0 Washer-Thrust, Reverse Idler0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT; 8 |
32620-6A0A0 |
US $5.33 |
||
|
32310
|
32310
32310-6A0A0 Gear-Overdrive, Counter0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT; N=41.15 |
32310-6A0A0 |
US $205.92 |
||
|
32412
|
32412
32412-6A0A0 Gear-Sub, Counter Drive Gear0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT |
32412-6A0A0 |
US $28.51 |
||
|
32415
|
32415
32415-6A0A0 Spring-Ring0310--01 ~ ; 5MT |
32415-6A0A0 |
US $4.03 |
||
|
32536
|
32536
32536-6A0A0 Bearing-Counter Gear, Front0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT; ﾎﾞｰﾙ,42 |
32536-6A0A0 |
US $17.57 |
||
|
32701B
|
32701B
32720-6A0A0 Ball-Steel0310--01 ~ ; (V+T).5MT +(E+E/FOUR).5MT; 3/16 |
32720-6A0A0 |
US $1.87 |
