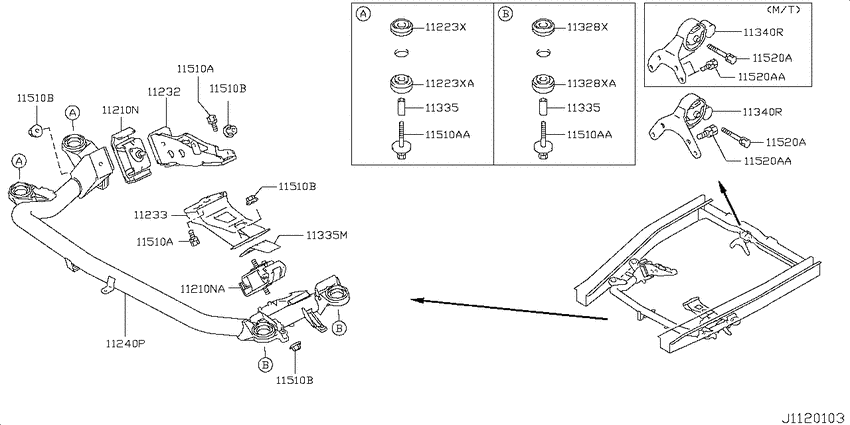

Engine & transmission mounting (2007-05-01 ~ ; 3G83.G) Diagram Nissan CLIPPER
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 2WD
- transmission
- 4AT
- grade
- G
- body
- W
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11210N
|
11210N
11210-6A0A1 Insulator Assy-Engine Mounting0310--01 ~ ; 2WD.3G83; ﾐｷﾞｶﾞﾜ |
11210-6A0A1 |
US $63.52 |
||
|
11210N
|
11210N
11210-6A00A Insulator Assy-Engine Mounting0705--01 ~ ; 3G83.G; ﾋﾀﾞﾘ |
11210-6A00A |
US $57.17 |
||
|
11210NA
|
11210NA
11210-6A00A Insulator Assy-Engine Mounting0705--01 ~ ; 3G83.G; ﾋﾀﾞﾘ |
11210-6A00A |
US $57.17 |
||
|
11223X
|
11223X
112236A0A0 Cushon-Engine Mounting0705--01 ~ ; 3G83.G |
112236A0A0 |
US $9.50 |
||
|
11223X
|
11223X
11221-6A0A0 Cushon-Engine Mounting0705--01 ~ ; 3G83.G |
11221-6A0A0 |
US $12.67 |
||
|
11223XA
|
11223XA
11221-6A0A0 Cushon-Engine Mounting0705--01 ~ ; 3G83.G |
11221-6A0A0 |
US $12.67 |
||
|
11232
|
11232
11232-6A00A Bracket-Engine Mounting, Rh0705--01 ~ ; 3G83.G |
11232-6A00A |
US $66.96 |
||
|
11233
|
11233
11232-6A0A1 Bracket-Engine Mounting, Lh0310--01 ~ ; 2WD.3G83 |
11232-6A0A1 |
US $82.66 |
||
|
11240P
|
11240P
11240-6A00A Member Assy-Engine Mounting0705--01 ~ ; 3G83.G |
11240-6A00A |
US $159.84 |
||
|
11328X
|
11328X
11328-6A00B Cushon-Engine Mounting0705--01 ~ ; 3G83.G |
11328-6A00B |
US $9.50 |
||
|
11328X
|
11328X
11328-6A00A Cushon-Engine Mounting0705--01 ~ ; 3G83.G |
11328-6A00A |
US $12.67 |
||
|
11328XA
|
11328XA
11328-6A00A Cushon-Engine Mounting0705--01 ~ ; 3G83.G |
11328-6A00A |
US $12.67 |
||
|
11335
|
11335
11336-6A0A0 Spacer0310--01 ~ ; 2WD.3G83 |
11336-6A0A0 |
US $3.02 |
||
|
11335
|
11335
11335-6A00B Plate-Engine Mounting Member, Lh0705--01 ~ ; 3G83.G |
11335-6A00B |
US $9.94 |
||
|
11335
|
11335
11336-6A0A0 Spacer0310--01 ~ ; 2WD.3G83 |
11336-6A0A0 |
US $3.02 |
||
|
11335
|
11335
11335-6A00B Plate-Engine Mounting Member, Lh0705--01 ~ ; 3G83.G |
11335-6A00B |
US $9.94 |
||
|
11335M
|
11335M
11335-6A00B Plate-Engine Mounting Member, Lh0705--01 ~ ; 3G83.G |
11335-6A00B |
US $9.94 |
||
|
11340R
|
11340R
11340-6A0A6 Insulator Assy-Engine Mounting, Rear Rh0310--01 ~ ; 2WD.3G83.4AT |
11340-6A0A6 |
US $59.88 |
||
|
11340R
|
11340R
11340-6A0A6 Insulator Assy-Engine Mounting, Rear Rh0310--01 ~ ; 2WD.3G83.4AT |
11340-6A0A6 |
US $59.88 |
||
|
11510A
|
11510A
01121-6A0C9 Bolt0310--01 ~ ; 2WD.3G83; ﾜｯｼｬ ﾂｷ,10X25 |
01121-6A0C9 |
US $2.45 |
||
|
11510A
|
11510A
01121-6A0E0 Bolt0310--01 ~ ; 2WD.3G83; ﾜｯｼｬ ﾂｷ,10X85 |
01121-6A0E0 |
US $4.46 |
||
|
11510A
|
11510A
01121-6A0C9 Bolt0310--01 ~ ; 2WD.3G83; ﾜｯｼｬ ﾂｷ,10X25 |
01121-6A0C9 |
US $2.45 |
||
|
11510A
|
11510A
01121-6A0E0 Bolt0310--01 ~ ; 2WD.3G83; ﾜｯｼｬ ﾂｷ,10X85 |
01121-6A0E0 |
US $4.46 |
||
|
11510AA
|
11510AA
01121-6A0E0 Bolt0310--01 ~ ; 2WD.3G83; ﾜｯｼｬ ﾂｷ,10X85 |
01121-6A0E0 |
US $4.46 |
||
|
11510AA
|
11510AA
01121-6A0E0 Bolt0310--01 ~ ; 2WD.3G83; ﾜｯｼｬ ﾂｷ,10X85 |
01121-6A0E0 |
US $4.46 |
||
|
11510B
|
11510B
012256A0A8 Nut0310--01 ~ ; 2WD.3G83; ﾌﾗﾝｼﾞ､D=10 |
012256A0A8 |
US $1.87 |
||
|
11510B
|
11510B
012256A0A8 Nut0310--01 ~ ; 2WD.3G83; ﾌﾗﾝｼﾞ､D=10 |
012256A0A8 |
US $1.87 |
||
|
11510B
|
11510B
012256A0A8 Nut0310--01 ~ ; 2WD.3G83; ﾌﾗﾝｼﾞ､D=10 |
012256A0A8 |
US $1.87 |
||
|
11510B
|
11510B
012256A0A8 Nut0310--01 ~ ; 2WD.3G83; ﾌﾗﾝｼﾞ､D=10 |
012256A0A8 |
US $1.87 |
||
|
11520A
|
11520A
113356A0A2 Bolt0310--01 ~ ; 2WD.3G83; ﾜｯｼｬ ﾂｷ,10X74 |
113356A0A2 |
US $6.19 |
||
|
11520A
|
11520A
01121-6A0C9 Bolt0705--01 ~ ; 3G83.E.4AT +3G83.G |
01121-6A0C9 |
US $2.45 |
||
|
11520A
|
11520A
113356A0A2 Bolt0310--01 ~ ; 2WD.3G83; ﾜｯｼｬ ﾂｷ,10X74 |
113356A0A2 |
US $6.19 |
||
|
11520A
|
11520A
01121-6A0C9 Bolt0705--01 ~ ; 3G83.E.4AT +3G83.G |
01121-6A0C9 |
US $2.45 |
||
|
11520AA
|
11520AA
01121-6A0C9 Bolt0705--01 ~ ; 3G83.E.4AT +3G83.G |
01121-6A0C9 |
US $2.45 |
||
|
11520AA
|
11520AA
01121-6A0C9 Bolt0705--01 ~ ; 3G83.E.4AT +3G83.G |
01121-6A0C9 |
US $2.45 |
