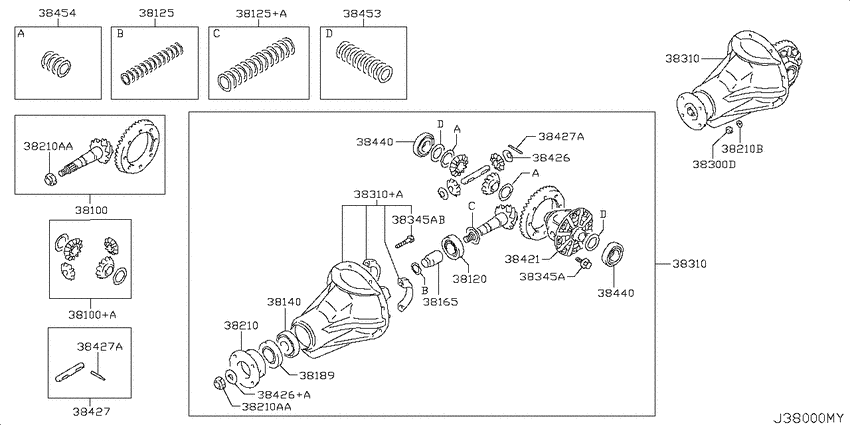

Rear final drive (2007-05-01 ~ ; LSD無; 3G83.(G+G/FOUR)) Diagram Nissan CLIPPER
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 2WD
- transmission
- 4AT
- grade
- G
- body
- W
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38100
|
38100
38100-6A00C Gear Set-Final Drive0705--01 ~ ; 3G83.(G+G/FOUR); 5.625 |
38100-6A00C |
US $532.42 |
||
|
38100
|
38100
38100-6A00A Gear Set-Final Drive0705--01 ~ ; 3G83.(G+G/FOUR) |
38100-6A00A |
US $243.36 |
||
|
38100+A
|
38100+A
38100-6A00A Gear Set-Final Drive0705--01 ~ ; 3G83.(G+G/FOUR) |
38100-6A00A |
US $243.36 |
||
|
38120
|
38120
38120-6A00B Bearing-Drive Pinion, Rear0705--01 ~ ; 3G83.(G+G/FOUR); TAPER ROLLER,72.00X24.25-35.00 |
38120-6A00B |
US $37.44 |
||
|
38125
|
38125
38127-6A00B Washer-Adjust, Drive Pinion Bearing0705--01 ~ ; 3G83.(G+G/FOUR) |
38127-6A00B |
US $72.14 |
||
|
38125
|
38125
38127-6A00A Washer-Adjust, Drive Pinion Bearing0705--01 ~ ; 3G83.(G+G/FOUR) |
38127-6A00A |
US $50.40 |
||
|
38125+A
|
38125+A
38127-6A00A Washer-Adjust, Drive Pinion Bearing0705--01 ~ ; 3G83.(G+G/FOUR) |
38127-6A00A |
US $50.40 |
||
|
38140
|
38140
38120-6A00A Bearing-Drive Pinion, Front0705--01 ~ ; 3G83.(G+G/FOUR); TAPER ROLLER,62.00X18.25-25.00 |
38120-6A00A |
US $27.94 |
||
|
38165
|
38165
38165-6A00A Spacer-Drive Pinion Bearing0705--01 ~ ; 3G83.(G+G/FOUR); SELECT USE 57.72 |
38165-6A00A |
US $12.24 |
||
|
38165
|
38165
38165-6A00B Spacer-Drive Pinion Bearing0705--01 ~ ; 3G83.(G+G/FOUR); SELECT USE 57.08 |
38165-6A00B |
US $8.78 |
||
|
38189
|
38189
38189-6A00A Seal-Oil, Drive Pinion0705--01 ~ ; 3G83.(G+G/FOUR) |
38189-6A00A |
US $9.79 |
||
|
38210
|
38210
38210-6A00B
ﾌﾗﾝｼﾞ ｱﾂｾﾝﾌﾞﾘ-,ｺﾝﾊﾟﾆｵﾝ
0705--01 ~ ; 3G83.(G+G/FOUR) |
38210-6A00B |
— | ||
|
38210
|
38210
382166A0A0 Nut0310--01 ~ ; 3G83; ﾛｯｸ18 |
382166A0A0 |
US $6.34 |
||
|
38210
|
38210
382156A0A2 Washer-Drive Pinion0310--01 ~ ; 3G83; ｽﾌﾟﾘﾝｸﾞ,8 |
382156A0A2 |
US $2.02 |
||
|
38210AA
|
38210AA
382166A0A0 Nut0310--01 ~ ; 3G83; ﾛｯｸ18 |
382166A0A0 |
US $6.34 |
||
|
38210AA
|
38210AA
382166A0A0 Nut0310--01 ~ ; 3G83; ﾛｯｸ18 |
382166A0A0 |
US $6.34 |
||
|
38210B
|
38210B
382156A0A2 Washer-Drive Pinion0310--01 ~ ; 3G83; ｽﾌﾟﾘﾝｸﾞ,8 |
382156A0A2 |
US $2.02 |
||
|
38300D
|
38300D
305476A0A0 Nut0310--01 ~ ; 3G83; D=8 |
305476A0A0 |
US $2.02 |
||
|
38310
|
38310
383106A00H
ｷﾞﾔ ｷﾔﾘﾔ
0705--01 ~ ; 3G83.(G+G/FOUR) |
383106A00H |
— | ||
|
38310
|
38310
38310-6A00G Carrier Compl-Gear0705--01 ~ ; 3G83.(G+G/FOUR) |
38310-6A00G |
US $260.64 |
||
|
38310
|
38310
383106A00H
ｷﾞﾔ ｷﾔﾘﾔ
0705--01 ~ ; 3G83.(G+G/FOUR) |
383106A00H |
— | ||
|
38310
|
38310
38310-6A00G Carrier Compl-Gear0705--01 ~ ; 3G83.(G+G/FOUR) |
38310-6A00G |
US $260.64 |
||
|
38310+A
|
38310+A
38310-6A00G Carrier Compl-Gear0705--01 ~ ; 3G83.(G+G/FOUR) |
38310-6A00G |
US $260.64 |
||
|
38345A
|
38345A
38215-6A0A0 Bolt0310--01 ~ ; 3G83; ﾌﾗﾝｼﾞ,10X17.5 |
38215-6A0A0 |
US $3.02 |
||
|
38345A
|
38345A
01111-6A00B Bolt0705--01 ~ ; 3G83.(G+G/FOUR); ﾜｯｼｬ ﾂｷ,10X50 |
01111-6A00B |
US $2.59 |
||
|
38345AB
|
38345AB
01111-6A00B Bolt0705--01 ~ ; 3G83.(G+G/FOUR); ﾜｯｼｬ ﾂｷ,10X50 |
01111-6A00B |
US $2.59 |
||
|
38421
|
38421
38421-6A00B Case-Differential0705--01 ~ ; 3G83.(G+G/FOUR) |
38421-6A00B |
US $375.24 |
||
|
38426
|
38426
38426-6A00A Washer-Thrust, Pinion Mate0705--01 ~ ; 3G83.(G+G/FOUR); ｽﾌﾟﾘﾝｸﾞ17.3 |
38426-6A00A |
US $3.89 |
||
|
38426
|
38426
384266A0A3 Washer-Output Shaft0310--01 ~ ; 3G83; ﾌﾟﾚｰﾝ,18.5 |
384266A0A3 |
US $4.61 |
||
|
38426+A
|
38426+A
384266A0A3 Washer-Output Shaft0310--01 ~ ; 3G83; ﾌﾟﾚｰﾝ,18.5 |
384266A0A3 |
US $4.61 |
||
|
38427
|
38427
38427-6A00A Shaft-Pinion Mate0705--01 ~ ; 3G83.(G+G/FOUR) |
38427-6A00A |
US $35.28 |
||
|
38427
|
38427
38428-6A00A Pin-Lock, Pinion Shaft0705--01 ~ ; 3G83.(G+G/FOUR); ﾋﾟﾝ ﾛｯｸ,5X54 |
38428-6A00A |
US $3.60 |
||
|
38427A
|
38427A
38428-6A00A Pin-Lock, Pinion Shaft0705--01 ~ ; 3G83.(G+G/FOUR); ﾋﾟﾝ ﾛｯｸ,5X54 |
38428-6A00A |
US $3.60 |
||
|
38427A
|
38427A
38428-6A00A Pin-Lock, Pinion Shaft0705--01 ~ ; 3G83.(G+G/FOUR); ﾋﾟﾝ ﾛｯｸ,5X54 |
38428-6A00A |
US $3.60 |
||
|
38440
|
38440
38440-6A00A Bearing-Differential Side0705--01 ~ ; 3G83.(G+G/FOUR); TAPER ROLLER,72.00X18.25-35.00 |
38440-6A00A |
US $24.19 |
||
|
38440
|
38440
38440-6A00A Bearing-Differential Side0705--01 ~ ; 3G83.(G+G/FOUR); TAPER ROLLER,72.00X18.25-35.00 |
38440-6A00A |
US $24.19 |
||
|
38453
|
38453
38453-6A0A0 Shim-Adjust, Side Bearing0705--01 ~ ; 3G83.(G+G/FOUR) |
38453-6A0A0 |
US $8.21 |
||
|
38454
|
38454
38454-6A0A4
ｽﾍﾟ-ｻ-,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ｻｲﾄﾞ
0310--01 ~ ; 妓.3G83.5MT +HR.3G83.SD/2S +HR/RV.3G83 +3G83.(SD+SP/F+SP/FL+SP/F/R+SP/FL/P+SD/AC+DX/AC+PA/VAN+DX/M) +3G83.(DX+GL).5MT +3G83.DX.3AT +3G83.4AT |
38454-6A0A4 |
— |
