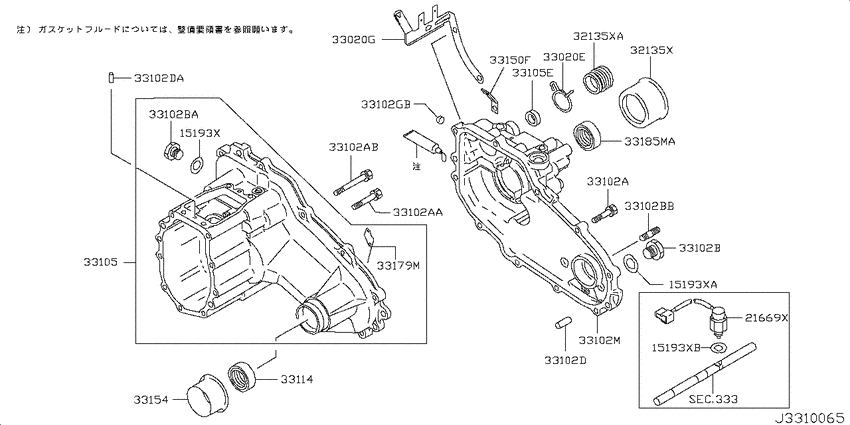

Transfer case (2003-10-01 ~ ; 7.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.DUMP.5MT) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 5MT
- grade
- DX
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15193X
|
15193X
321186A0A1 Gasket0310--01 ~ ; 4WD.3G83 |
321186A0A1 |
US $2.02 |
||
|
15193X
|
15193X
32118-6A0A0 Gasket0310--01 ~ ; 4WD.3G83 |
32118-6A0A0 |
US $3.02 |
||
|
15193X
|
15193X
054126A0A0 Gasket0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
054126A0A0 |
US $0.86 |
||
|
15193XA
|
15193XA
32118-6A0A0 Gasket0310--01 ~ ; 4WD.3G83 |
32118-6A0A0 |
US $3.02 |
||
|
15193XB
|
15193XB
054126A0A0 Gasket0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
054126A0A0 |
US $0.86 |
||
|
21669X
|
21669X
21669-6A0A1 Switch-Thermal0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
21669-6A0A1 |
US $13.25 |
||
|
32135X
|
32135X
32107-6A0A0 Gutter-Oil0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
32107-6A0A0 |
US $6.62 |
||
|
32135X
|
32135X
33141-6A0A0 Cover-Dust, Transfer0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33141-6A0A0 |
US $8.21 |
||
|
32135XA
|
32135XA
33141-6A0A0 Cover-Dust, Transfer0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33141-6A0A0 |
US $8.21 |
||
|
33020E
|
33020E
25052-6A0A0 Clamp0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR); 34 |
25052-6A0A0 |
US $5.76 |
||
|
33020G
|
33020G
31069-6A0A1 Bracket0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT |
31069-6A0A1 |
US $8.21 |
||
|
33102A
|
33102A
01121-6A0C8 Bolt0310--01 ~ ; 抃.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M) +3G83.E/FOUR.5MT; ﾜｯｼｬ ﾂｷ,8X45 |
01121-6A0C8 |
US $2.88 |
||
|
33102A
|
33102A
33201-6A0A1 Bolt0310--01 ~ ; 抃.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M) +3G83.E/FOUR.5MT; ﾜｯｼｬ ﾂｷ,8X120 |
33201-6A0A1 |
US $6.05 |
||
|
33102A
|
33102A
33201-6A0A4 Bolt0310--01 ~ ; 祁.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M); ﾜｯｼｬ ﾂｷ,8X75 |
33201-6A0A4 |
US $1.44 |
||
|
33102AA
|
33102AA
01121-6A0C8 Bolt0310--01 ~ ; 抃.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M) +3G83.E/FOUR.5MT; ﾜｯｼｬ ﾂｷ,8X45 |
01121-6A0C8 |
US $2.88 |
||
|
33102AB
|
33102AB
33201-6A0A1 Bolt0310--01 ~ ; 抃.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M) +3G83.E/FOUR.5MT; ﾜｯｼｬ ﾂｷ,8X120 |
33201-6A0A1 |
US $6.05 |
||
|
33102B
|
33102B
32139-6A0A1 Plug-Welch0310--01 ~ ; 4WD.3G83 |
32139-6A0A1 |
US $3.74 |
||
|
33102B
|
33102B
32135-6A0A3 Plug0310--01 ~ ; 4WD.3G83 |
32135-6A0A3 |
US $6.62 |
||
|
33102B
|
33102B
33207-6A0A0 Bolt0310--01 ~ ; 4WD.3G83; ｽﾀｯﾄﾞ,10X20 |
33207-6A0A0 |
US $2.02 |
||
|
33102BA
|
33102BA
32135-6A0A3 Plug0310--01 ~ ; 4WD.3G83 |
32135-6A0A3 |
US $6.62 |
||
|
33102BB
|
33102BB
33207-6A0A0 Bolt0310--01 ~ ; 4WD.3G83; ｽﾀｯﾄﾞ,10X20 |
33207-6A0A0 |
US $2.02 |
||
|
33102D
|
33102D
32105-6A0A0 Pin-Dowel0310--01 ~ ; 歎.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M+G/FOUR) +3G83.(DUMP+E/FOUR).5MT; ﾀﾞｳｴﾙ,10X20 |
32105-6A0A0 |
US $2.59 |
||
|
33102D
|
33102D
01522-6A0A0 Pin0310--01 ~ ; 歎.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR+G/FOUR).5MT; ﾀﾞｳｴﾙ,6X14 |
01522-6A0A0 |
US $2.45 |
||
|
33102DA
|
33102DA
01522-6A0A0 Pin0310--01 ~ ; 歎.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR+G/FOUR).5MT; ﾀﾞｳｴﾙ,6X14 |
01522-6A0A0 |
US $2.45 |
||
|
33102M
|
33102M
33102-6A0A0 Case-Transfer, Rear0310--01 ~ ; V.4WD.3G83.5MT +3G83.E/FOUR.5MT |
33102-6A0A0 |
US $337.01 |
||
|
33105
|
33105
33105-6A0A2 Case-Transfer, Front0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT |
33105-6A0A2 |
US $509.76 |
||
|
33105
|
33105
33111-6A0A0 Seal-Oil0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33111-6A0A0 |
US $6.19 |
||
|
33105E
|
33105E
33111-6A0A0 Seal-Oil0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33111-6A0A0 |
US $6.19 |
||
|
33114
|
33114
38189-6A0A0 Seal-Oil, Transfer Case0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
38189-6A0A0 |
US $7.06 |
||
|
33150F
|
33150F
24210-6A0A4 Clip0310--01 ~ ; ､V.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) +3G83.G/FOUR.5MT |
24210-6A0A4 |
US $2.45 |
||
|
33154
|
33154
33154-6A0A0 Cover-Front, Transfer Case0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33154-6A0A0 |
US $5.76 |
||
|
33179M
|
33179M
33149-6A0A0 Gutter-Oil0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33149-6A0A0 |
US $6.19 |
||
|
33185MA
|
33185MA
321366A0A0 Seal-Oil, Rear Extension0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
321366A0A0 |
US $5.04 |
||
|
333
|
Transfer shift lever,fork & control
333
|
||||
