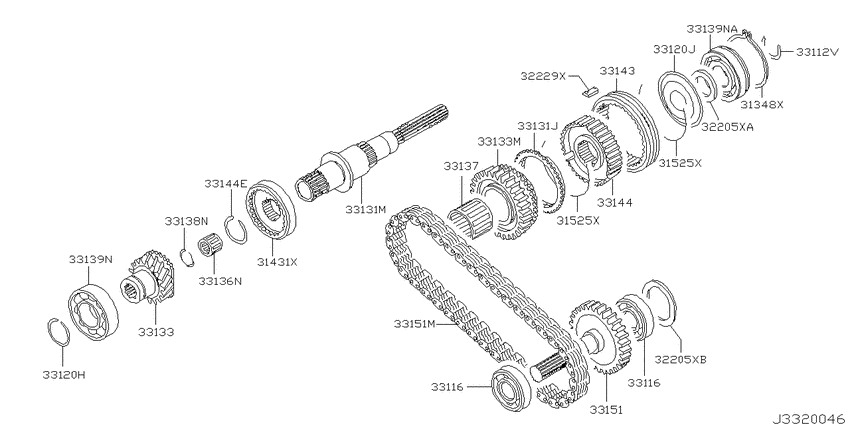

Transfer gear (2003-10-01 ~ ; V.4WD.3G83.5MT +3G83.E/FOUR.5MT) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 5MT
- grade
- DX
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31348X
|
31348X
31348-6A0A0 Ring-Snap0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR); 58.6 |
31348-6A0A0 |
US $10.22 |
||
|
31431X
|
31431X
31431-6A0A2 Gear-Internal0310--01 ~ ; V.4WD.3G83.5MT +3G83.E/FOUR.5MT |
31431-6A0A2 |
US $91.73 |
||
|
31525X
|
31525X
31525-6A0A6 Ring-Seal0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
31525-6A0A6 |
US $3.31 |
||
|
31525X
|
31525X
31525-6A0A6 Ring-Seal0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
31525-6A0A6 |
US $3.31 |
||
|
32205XA
|
32205XA
32205-6A0A1 Spacer0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR); 4 |
32205-6A0A1 |
US $5.33 |
||
|
32205XB
|
32205XB
32205-6A0A0 Spacer0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
32205-6A0A0 |
US $12.67 |
||
|
32229X
|
32229X
32229-6A0A0 Key-Counter Gear0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
32229-6A0A0 |
US $4.18 |
||
|
33112V
|
33112V
33112-6A0A0 Ring-Snap0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR); ｾﾝﾀｸ ｼﾖｳ 1.45 |
33112-6A0A0 |
US $3.46 |
||
|
33112V
|
33112V
33112-6A0A1 Ring-Snap0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR); ｾﾝﾀｸ ｼﾖｳ 1.57 |
33112-6A0A1 |
US $3.46 |
||
|
33112V
|
33112V
33112-6A0A2 Ring-Snap0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR); ｾﾝﾀｸ ｼﾖｳ 1.69 |
33112-6A0A2 |
US $3.46 |
||
|
33112V
|
33112V
33112-6A0A3 Ring-Snap0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR); ｾﾝﾀｸ ｼﾖｳ 1.81 |
33112-6A0A3 |
US $3.46 |
||
|
33112V
|
33112V
33112-6A0A4 Ring-Snap0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR); ｾﾝﾀｸ ｼﾖｳ 1.93 |
33112-6A0A4 |
US $3.46 |
||
|
33116
|
33116
33116-6A0A0 Bearing-Main, Transfer Rear0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR); ﾎﾞｰﾙ,47 |
33116-6A0A0 |
US $8.21 |
||
|
33116
|
33116
33116-6A0A0 Bearing-Main, Transfer Rear0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR); ﾎﾞｰﾙ,47 |
33116-6A0A0 |
US $8.21 |
||
|
33120H
|
33120H
33138-6A0A0 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; 28.1 |
33138-6A0A0 |
US $3.74 |
||
|
33120J
|
33120J
33121-6A0A0 Plate-Lock0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33121-6A0A0 |
US $6.34 |
||
|
33131J
|
33131J
33158-6A0A0 Ring-Retaining0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33158-6A0A0 |
US $45.07 |
||
|
33131M
|
33131M
33131-6A0A0 Shaft-Main, Transfer0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT |
33131-6A0A0 |
US $285.12 |
||
|
33133
|
33133
33133-6A0A1 Gear-High, Transfer0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; N=19 |
33133-6A0A1 |
US $182.88 |
||
|
33133
|
33133
33133-6A0A0 Sprocket-Front Drive0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33133-6A0A0 |
US $85.68 |
||
|
33133M
|
33133M
33133-6A0A0 Sprocket-Front Drive0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33133-6A0A0 |
US $85.68 |
||
|
33136N
|
33136N
32264-6A0A3 Bearing-Needle0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ﾆｰﾄﾞﾙ |
32264-6A0A3 |
US $14.26 |
||
|
33137
|
33137
33137-6A0A0 Bearing-Needle0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR); ﾆｰﾄﾞﾙ,40 |
33137-6A0A0 |
US $19.58 |
||
|
33138N
|
33138N
33138-6A0A2 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.55 |
33138-6A0A2 |
US $3.46 |
||
|
33138N
|
33138N
33138-6A0A3 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.60 |
33138-6A0A3 |
US $3.46 |
||
|
33138N
|
33138N
33138-6A0A4 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.65 |
33138-6A0A4 |
US $3.46 |
||
|
33138N
|
33138N
33138-6A0A5 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.70 |
33138-6A0A5 |
US $3.46 |
||
|
33138N
|
33138N
33138-6A0A6 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.75 |
33138-6A0A6 |
US $3.46 |
||
|
33138N
|
33138N
33138-6A0A7 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.80 |
33138-6A0A7 |
US $3.46 |
||
|
33138N
|
33138N
33138-6A0A8 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.85 |
33138-6A0A8 |
US $3.46 |
||
|
33139N
|
33139N
33139-6A0A1 Bearing-Ball0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ﾎﾞｰﾙ,62 |
33139-6A0A1 |
US $19.87 |
||
|
33139N
|
33139N
33139-6A0A3 Bearing-Ball0310--01 ~ ; V.4WD.3G83.5MT +3G83.E/FOUR.5MT; ﾎﾞｰﾙ,62 |
33139-6A0A3 |
US $30.82 |
||
|
33139NA
|
33139NA
33139-6A0A3 Bearing-Ball0310--01 ~ ; V.4WD.3G83.5MT +3G83.E/FOUR.5MT; ﾎﾞｰﾙ,62 |
33139-6A0A3 |
US $30.82 |
||
|
33143
|
33143
32606-6A0A0 Sleeve-Coupling0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
32606-6A0A0 |
US $152.64 |
||
|
33144
|
33144
33144-6A0A0 Hub-Coupling Sleeve0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33144-6A0A0 |
US $17.28 |
||
|
33144
|
33144
33145-6A0A0 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.42 |
33145-6A0A0 |
US $3.46 |
||
|
33144
|
33144
33145-6A0A1 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.46 |
33145-6A0A1 |
US $3.46 |
||
|
33144
|
33144
33145-6A0A2 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.50 |
33145-6A0A2 |
US $3.46 |
||
|
33144
|
33144
33145-6A0A3 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.54 |
33145-6A0A3 |
US $3.46 |
||
|
33144
|
33144
33145-6A0A4 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.58 |
33145-6A0A4 |
US $3.46 |
||
|
33144E
|
33144E
33145-6A0A0 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.42 |
33145-6A0A0 |
US $3.46 |
||
|
33144E
|
33144E
33145-6A0A1 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.46 |
33145-6A0A1 |
US $3.46 |
||
|
33144E
|
33144E
33145-6A0A2 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.50 |
33145-6A0A2 |
US $3.46 |
||
|
33144E
|
33144E
33145-6A0A3 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.54 |
33145-6A0A3 |
US $3.46 |
||
|
33144E
|
33144E
33145-6A0A4 Ring-Snap0310--01 ~ ; 儀.4WD.3G83.5MT +T.4WD.3G83.(SD+DX+GL).5MT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN).5MT +3G83.(SP/FL/P+DX/M) +3G83.(DUMP+E/FOUR).5MT; ｾﾝﾀｸ ｼﾖｳ 1.58 |
33145-6A0A4 |
US $3.46 |
||
|
33151
|
33151
33151-6A0A0 Shaft-Drive, Front0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33151-6A0A0 |
US $198.72 |
||
|
33151
|
33151
33152-6A0A0 Chain-Front Drive, Transfer0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33152-6A0A0 |
US $88.70 |
||
|
33151M
|
33151M
33152-6A0A0 Chain-Front Drive, Transfer0310--01 ~ ; 天.4WD.3G83 +T.4WD.3G83.(SD+DX) +T.4WD.3G83.GL.5MT +T.4WD.3G83.4AT +4WD.3G83.(SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +3G83.(SP/FL/P+DUMP+DX/M+E/FOUR) |
33152-6A0A0 |
US $88.70 |
