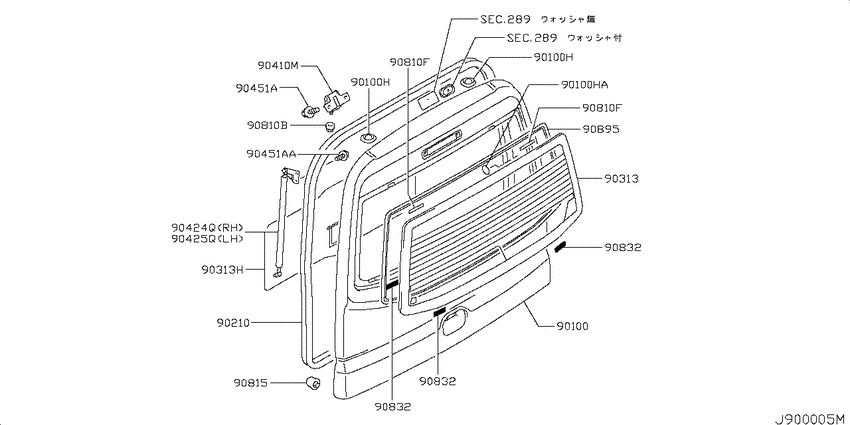

Back door panel & fitting (2003-10-01 ~ ; 標準バン､ ワゴン; V +W) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 4AT
- grade
- GL
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
289
|
Windshield washer
289
|
||||
|
90100
|
90100
90100-6A0A2 ﾄﾞｱ,ﾊﾞﾂｸ0310--01 ~ 0410--01; 0*V.(2WD+4WD).HR.3G83.DX.3AT +*V.HR.DX.5MT +*V.GL |
90100-6A0A2 |
US $1,053.50 |
||
|
90100
|
90100
90100-6A0A3 ﾄﾞｱ,ﾊﾞﾂｸ0310--01 ~ 0410--01; -V.(2WD+4WD).HR.3G83.DX.3AT +V.HR.DX.5MT +V.GL |
90100-6A0A3 |
US $1,053.50 |
||
|
90100
|
90100
90100-6A0A7 ﾄﾞｱ,ﾊﾞﾂｸ0310--01 ~ 0410--01; 0*V.(2WD+4WD).HR.3G83.DX.3AT +*V.HR.DX.5MT +*V.GL |
90100-6A0A7 |
US $1,053.50 |
||
|
90100
|
90100
90100-6A0A9 ﾄﾞｱ,ﾊﾞﾂｸ0410--01 ~ ; -V.(2WD+4WD).HR.3G83.DX.3AT +V.HR.DX.5MT +V.GL |
90100-6A0A9 |
US $868.01 |
||
|
90100
|
90100
90100-6A0B0 ﾄﾞｱ,ﾊﾞﾂｸ0410--01 ~ ; 0*V.(2WD+4WD).HR.3G83.DX.3AT +*V.HR.DX.5MT +*V.GL |
90100-6A0B0 |
US $868.01 |
||
|
90100
|
90100
90100-6A0B3 ﾄﾞｱ,ﾊﾞﾂｸ0410--01 ~ ; 0*V.(2WD+4WD).HR.3G83.DX.3AT +*V.HR.DX.5MT +*V.GL |
90100-6A0B3 |
US $868.01 |
||
|
90100
|
90100
062126A0A0 ﾌﾟﾗｸﾞ0310--01 ~ ; V; PLASTIC,30 |
062126A0A0 |
US $2.59 |
||
|
90100H
|
90100H
062126A0A0 ﾌﾟﾗｸﾞ0310--01 ~ ; V; PLASTIC,30 |
062126A0A0 |
US $2.59 |
||
|
90100H
|
90100H
062126A0A0 ﾌﾟﾗｸﾞ0310--01 ~ ; V; PLASTIC,30 |
062126A0A0 |
US $2.59 |
||
|
90210
|
90210
768426A0A5 ｳｴｻﾞ- ｽﾄﾘﾂﾌﾟ0310--01 ~ ; GV.(2WD+4WD).HR.3G83.DX.3AT +V.HR.(SD+SD/2S) +V.HR.DX.5MT +V.HR/RV +V.GL |
768426A0A5 |
US $79.63 |
||
|
90313
|
90313
90301-6A00A ｶﾞﾗｽ,ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ0604--01 ~ ; *V.GL |
90301-6A00A |
US $423.38 |
||
|
90313
|
90313
903016A0A0 ﾊﾞﾂｸ ﾄﾞｱ ｶﾞﾗｽ0310--01 ~ 0512--01; 0*V.(2WD+4WD).HR.3G83.DX.3AT +*V.HR.DX.5MT +*V.GL |
903016A0A0 |
US $305.86 |
||
|
90313
|
90313
90301-6A0A1 ｶﾞﾗｽ,ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ0310--01 ~ 0512--01; V.(DX+GL); ｸﾞﾘ-ﾝ |
90301-6A0A1 |
US $369.58 |
||
|
90313
|
90313
90301-6A0A3 ｶﾞﾗｽ,ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ0310--01 ~ 0512--01; G*V.2WD.HR.DX.3AT +*V.4WD.HR.3G83.DX.3AT +*V.HR.DX.5MT +*V.DX.4AT +*V.GL |
90301-6A0A3 |
US $525.34 |
||
|
90313
|
90313
G93106A0A0 ｽｸﾘ-ﾝ,ﾘﾔ ｳｲﾝﾄﾞｳ0310--01 ~ ; V +W |
G93106A0A0 |
US $9.50 |
||
|
90313H
|
90313H
G93106A0A0 ｽｸﾘ-ﾝ,ﾘﾔ ｳｲﾝﾄﾞｳ0310--01 ~ ; V +W |
G93106A0A0 |
US $9.50 |
||
|
90410M
|
90410M
904006A0A1 ﾊﾞﾂｸ ﾄﾞｱ ﾋﾝｼﾞ0310--01 ~ ; V +W |
904006A0A1 |
US $30.10 |
||
|
90424Q
|
90424Q
904506A0A6 ﾊﾞﾂｸ ﾄﾞｱ ｽﾃ- r0310--01 ~ ; |V.(2WD+4WD).HR.3G83.DX.3AT +V.HR.DX.5MT +V.GL +W.2WD.HR.3G83.E.4AT +W.4WD.HR.3G83.E/FOUR.4AT +W.(E/FOUR+E).5MT +W.(G/FOUR+G); ﾗﾍﾞﾙ:ｺﾞｰﾙﾄﾞ |
904506A0A6 |
US $91.01 |
||
|
90425Q
|
90425Q
904516A0A4 ﾊﾞﾂｸ ﾄﾞｱ ｽﾃ- l0310--01 ~ ; -V.(2WD+4WD).HR.3G83.DX.3AT +V.HR.DX.5MT +V.GL; ﾗﾍﾞﾙ:ｺﾞｰﾙﾄﾞ |
904516A0A4 |
US $91.01 |
||
|
90451A
|
90451A
01454-6A0A0 Screw0310--01 ~ ; V +W |
01454-6A0A0 |
US $1.87 |
||
|
90451A
|
90451A
014546A0A1 ｽｸﾘﾕ-0310--01 ~ 0703--01; V |
014546A0A1 |
US $2.02 |
||
|
90451A
|
90451A
01454-6A0C8
ｽｸﾘﾕ-
0703--01 ~ ; OV.(2WD+4WD).HR.3G83.DX.3AT +V.(SR+HR/RV) +V.HR.(SD+SD/2S) +V.HR.DX.5MT +V.GL +W |
01454-6A0C8 |
— | ||
|
90451AA
|
90451AA
014546A0A1 ｽｸﾘﾕ-0310--01 ~ 0703--01; V |
014546A0A1 |
US $2.02 |
||
|
90451AA
|
90451AA
01454-6A0C8
ｽｸﾘﾕ-
0703--01 ~ ; OV.(2WD+4WD).HR.3G83.DX.3AT +V.(SR+HR/RV) +V.HR.(SD+SD/2S) +V.HR.DX.5MT +V.GL +W |
01454-6A0C8 |
— | ||
|
90810B
|
90810B
012256A0B4 Nut0310--01 ~ ; 9V.(SR+HR/RV) +V.HR.(SD+SD/2S) +V.HR.DX.(5MT+3AT) +V.GL +W |
012256A0B4 |
US $2.02 |
||
|
90810F
|
90810F
727666A0A0 Joint-Windshield Moulding0310--01 ~ ; 9V.(SR+HR/RV) +V.HR.(SD+SD/2S) +V.HR.DX.(5MT+3AT) +V.GL +W |
727666A0A0 |
US $2.02 |
||
|
90810F
|
90810F
727666A0A0 Joint-Windshield Moulding0310--01 ~ ; 9V.(SR+HR/RV) +V.HR.(SD+SD/2S) +V.HR.DX.(5MT+3AT) +V.GL +W |
727666A0A0 |
US $2.02 |
||
|
90815
|
90815
905266A0A0 ﾊﾞﾝﾊﾟ- ﾗﾊﾞ-0310--01 ~ ; V +W |
905266A0A0 |
US $4.18 |
||
|
90832
|
90832
728256A0A0 ﾓ-ﾙ ﾌｱｽﾅ-0310--01 ~ ; 9V.(SR+HR/RV) +V.HR.(SD+SD/2S) +V.HR.DX.(5MT+3AT) +V.GL +W |
728256A0A0 |
US $4.03 |
||
|
90832
|
90832
728256A0A0 ﾓ-ﾙ ﾌｱｽﾅ-0310--01 ~ ; 9V.(SR+HR/RV) +V.HR.(SD+SD/2S) +V.HR.DX.(5MT+3AT) +V.GL +W |
728256A0A0 |
US $4.03 |
||
|
90832
|
90832
728256A0A0 ﾓ-ﾙ ﾌｱｽﾅ-0310--01 ~ ; 9V.(SR+HR/RV) +V.HR.(SD+SD/2S) +V.HR.DX.(5MT+3AT) +V.GL +W |
728256A0A0 |
US $4.03 |
||
|
90895
|
90895
90895-6A0A0 ﾀﾞﾑ ﾗﾊﾞ-0310--01 ~ ; 9V.(SR+HR/RV) +V.HR.(SD+SD/2S) +V.HR.DX.(5MT+3AT) +V.GL +W; L=3316 |
90895-6A0A0 |
US $16.13 |
||
