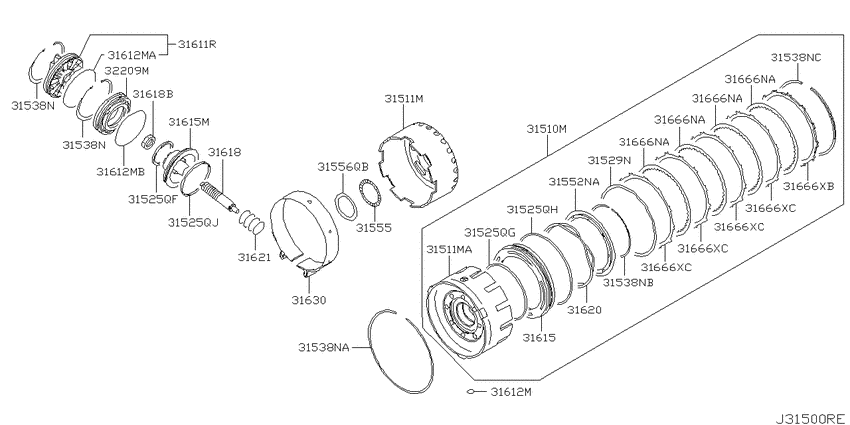

Clutch & band servo (2003-10-01 ~ ; サーボ パーツ; 4AT) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 4AT
- grade
- GL
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31510M
|
31510M
31510-6A0A0 Clutch Assy-Reverse0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31510-6A0A0 |
US $577.73 |
||
|
31511M
|
31511M
31511-6A0A0 Drum-Reverse Clutch0310--01 ~ ; 4AT |
31511-6A0A0 |
US $104.54 |
||
|
31511M
|
31511M
31511-6A0A1 Drum-Reverse Clutch0310--01 ~ ; 4AT |
31511-6A0A1 |
US $181.44 |
||
|
31511MA
|
31511MA
31511-6A0A1 Drum-Reverse Clutch0310--01 ~ ; 4AT |
31511-6A0A1 |
US $181.44 |
||
|
31525QF
|
31525QF
31525-6A0B4 Ring-Seal0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT; 42 |
31525-6A0B4 |
US $6.77 |
||
|
31525QG
|
31525QG
31525-6A0A9 Ring-Seal0310--01 ~ ; 4AT; 102.4 |
31525-6A0A9 |
US $6.05 |
||
|
31525QH
|
31525QH
31525-6A0A8 Ring-Seal0310--01 ~ ; 4AT; 127 |
31525-6A0A8 |
US $6.91 |
||
|
31525QJ
|
31525QJ
31525-6A0B5 Ring-Seal0310--01 ~ 0406--01; V.GL.4AT +T.4AT; 65.5 |
31525-6A0B5 |
US $9.22 |
||
|
31525QJ
|
31525QJ
31525-6A0B9 Ring-Seal0406--01 ~ ; 4AT; 70 |
31525-6A0B9 |
US $6.77 |
||
|
31529N
|
31529N
31529-6A0A0 Plate-Dished0310--01 ~ ; 4AT |
31529-6A0A0 |
US $4.75 |
||
|
31538N
|
31538N
315386A0A3 Ring-Snap0310--01 ~ ; 4AT; 85.5 |
315386A0A3 |
US $8.21 |
||
|
31538N
|
31538N
31538-6A0A4 Ring-Snap0310--01 ~ ; 4AT; 149.5 |
31538-6A0A4 |
US $8.06 |
||
|
31538N
|
31538N
31538-6A0A5 Ring-Snap0310--01 ~ ; 4AT; 95.5 |
31538-6A0A5 |
US $6.77 |
||
|
31538N
|
31538N
31538-6A0A6 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.6 |
31538-6A0A6 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0A7 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.8 |
31538-6A0A7 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0A8 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.0 |
31538-6A0A8 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0A9 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.2 |
31538-6A0A9 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0B0 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.4 |
31538-6A0B0 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0B1 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.6 |
31538-6A0B1 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0B2 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.8 |
31538-6A0B2 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0B3 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.5 |
31538-6A0B3 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B4 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.7 |
31538-6A0B4 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B5 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.9 |
31538-6A0B5 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B6 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.1 |
31538-6A0B6 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B7 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.3 |
31538-6A0B7 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B8 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.5 |
31538-6A0B8 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B9 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.7 |
31538-6A0B9 |
US $6.05 |
||
|
31538N
|
31538N
315386A0A3 Ring-Snap0310--01 ~ ; 4AT; 85.5 |
315386A0A3 |
US $8.21 |
||
|
31538N
|
31538N
31538-6A0A4 Ring-Snap0310--01 ~ ; 4AT; 149.5 |
31538-6A0A4 |
US $8.06 |
||
|
31538N
|
31538N
31538-6A0A5 Ring-Snap0310--01 ~ ; 4AT; 95.5 |
31538-6A0A5 |
US $6.77 |
||
|
31538N
|
31538N
31538-6A0A6 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.6 |
31538-6A0A6 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0A7 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.8 |
31538-6A0A7 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0A8 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.0 |
31538-6A0A8 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0A9 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.2 |
31538-6A0A9 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0B0 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.4 |
31538-6A0B0 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0B1 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.6 |
31538-6A0B1 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0B2 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.8 |
31538-6A0B2 |
US $9.22 |
||
|
31538N
|
31538N
31538-6A0B3 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.5 |
31538-6A0B3 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B4 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.7 |
31538-6A0B4 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B5 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.9 |
31538-6A0B5 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B6 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.1 |
31538-6A0B6 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B7 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.3 |
31538-6A0B7 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B8 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.5 |
31538-6A0B8 |
US $6.05 |
||
|
31538N
|
31538N
31538-6A0B9 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.7 |
31538-6A0B9 |
US $6.05 |
||
|
31538NA
|
31538NA
31538-6A0A4 Ring-Snap0310--01 ~ ; 4AT; 149.5 |
31538-6A0A4 |
US $8.06 |
||
|
31538NB
|
31538NB
31538-6A0A5 Ring-Snap0310--01 ~ ; 4AT; 95.5 |
31538-6A0A5 |
US $6.77 |
||
|
31538NC
|
31538NC
31538-6A0A6 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.6 |
31538-6A0A6 |
US $9.22 |
||
|
31538NC
|
31538NC
31538-6A0A7 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.8 |
31538-6A0A7 |
US $9.22 |
||
|
31538NC
|
31538NC
31538-6A0A8 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.0 |
31538-6A0A8 |
US $9.22 |
||
|
31538NC
|
31538NC
31538-6A0A9 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.2 |
31538-6A0A9 |
US $9.22 |
||
|
31538NC
|
31538NC
31538-6A0B0 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.4 |
31538-6A0B0 |
US $9.22 |
||
|
31538NC
|
31538NC
31538-6A0B1 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.6 |
31538-6A0B1 |
US $9.22 |
||
|
31538NC
|
31538NC
31538-6A0B2 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.8 |
31538-6A0B2 |
US $9.22 |
||
|
31538NC
|
31538NC
31538-6A0B3 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.5 |
31538-6A0B3 |
US $6.05 |
||
|
31538NC
|
31538NC
31538-6A0B4 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.7 |
31538-6A0B4 |
US $6.05 |
||
|
31538NC
|
31538NC
31538-6A0B5 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.9 |
31538-6A0B5 |
US $6.05 |
||
|
31538NC
|
31538NC
31538-6A0B6 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.1 |
31538-6A0B6 |
US $6.05 |
||
|
31538NC
|
31538NC
31538-6A0B7 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.3 |
31538-6A0B7 |
US $6.05 |
||
|
31538NC
|
31538NC
31538-6A0B8 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.5 |
31538-6A0B8 |
US $6.05 |
||
|
31538NC
|
31538NC
31538-6A0B9 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.7 |
31538-6A0B9 |
US $6.05 |
||
|
31552NA
|
31552NA
31552-6A0A1 Retainer-Spring0310--01 ~ ; 4AT |
31552-6A0A1 |
US $7.92 |
||
|
31555
|
31555
31555-6A0A0 Bearing-Needle, Thrust0310--01 ~ ; 4AT; ｽﾗｽﾄ |
31555-6A0A0 |
US $15.84 |
||
|
31555
|
31555
31508-6A0A2 Washer-Thrust0310--01 ~ ; 4AT; 1.4 |
31508-6A0A2 |
US $9.36 |
||
|
31555
|
31555
31508-6A0A3 Washer-Thrust0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.0 & 1.4 |
31508-6A0A3 |
US $11.38 |
||
|
31555
|
31555
31508-6A0A4 Washer-Thrust0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.4 & 1.8 |
31508-6A0A4 |
US $11.38 |
||
|
31555
|
31555
31508-6A0A5 Washer-Thrust0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 1.8 & 2.2 |
31508-6A0A5 |
US $11.38 |
||
|
31555
|
31555
31508-6A0A6 Washer-Thrust0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ 2.2 & 2.6 |
31508-6A0A6 |
US $11.38 |
||
|
31556QB
|
31556QB
31429-6A0A3 Race-Bearing0310--01 ~ ; 4AT |
31429-6A0A3 |
US $4.61 |
||
|
31611R
|
31611R
316116A0A0 Switch, A/t Kickdown Servo0310--01 ~ ; 4AT |
316116A0A0 |
US $67.68 |
||
|
31612M
|
31612M
315266A00A Seal-O Ring0509--01 ~ ; (V+W).4AT; 9.8 |
315266A00A |
US $1.87 |
||
|
31612M
|
31612M
315266A0A9 Seal-O Ring0310--01 ~ 0509--01; V.GL.4AT +T.4AT; 9.8 |
315266A0A9 |
US $3.60 |
||
|
31612M
|
31612M
31612-6A0A3 Seal-O Ring0310--01 ~ ; 4AT |
31612-6A0A3 |
US $6.34 |
||
|
31612M
|
31612M
31612-6A0A4 Seal-O Ring0310--01 ~ ; 4AT; 72 |
31612-6A0A4 |
US $6.05 |
||
|
31612MA
|
31612MA
31612-6A0A3 Seal-O Ring0310--01 ~ ; 4AT |
31612-6A0A3 |
US $6.34 |
||
|
31612MB
|
31612MB
31612-6A0A4 Seal-O Ring0310--01 ~ ; 4AT; 72 |
31612-6A0A4 |
US $6.05 |
||
|
31615
|
31615
31615-6A0A1 Piston-Band Servo0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31615-6A0A1 |
US $43.63 |
||
|
31615
|
31615
31615-6A0A3 Piston-Overdrive Servo0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31615-6A0A3 |
US $11.23 |
||
|
31615M
|
31615M
31615-6A0A3 Piston-Overdrive Servo0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31615-6A0A3 |
US $11.23 |
||
|
31618
|
31618
31618-6A0A3 Stem-Band Servo Piston0310--01 ~ ; 4AT |
31618-6A0A3 |
US $42.05 |
||
|
31618
|
31618
01125-6A0E1 Nut0310--01 ~ ; 4AT; 16 |
01125-6A0E1 |
US $2.88 |
||
|
31618B
|
31618B
01125-6A0E1 Nut0310--01 ~ ; 4AT; 16 |
01125-6A0E1 |
US $2.88 |
||
|
31620
|
31620
31620-6A0A1 Spring-Cushion, Band Servo0310--01 ~ ; 4AT |
31620-6A0A1 |
US $11.23 |
||
|
31621
|
31621
31621-6A0A0 Spring-Piston Return0310--01 ~ ; 4AT |
31621-6A0A0 |
US $2.88 |
||
|
31630
|
31630
31630-6A0A1 Band Assy-Brake0310--01 ~ ; 4AT |
31630-6A0A1 |
US $72.86 |
||
|
31666NA
|
31666NA
31666-6A0A8 Plate-Driven0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31666-6A0A8 |
US $31.54 |
||
|
31666NA
|
31666NA
31666-6A0A8 Plate-Driven0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31666-6A0A8 |
US $31.54 |
||
|
31666NA
|
31666NA
31666-6A0A8 Plate-Driven0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31666-6A0A8 |
US $31.54 |
||
|
31666NA
|
31666NA
31666-6A0A8 Plate-Driven0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31666-6A0A8 |
US $31.54 |
||
|
31666XB
|
31666XB
31666-6A0A4 Plate-Driven0310--01 ~ ; 4AT |
31666-6A0A4 |
US $28.51 |
||
|
31666XC
|
31666XC
31666-6A0A5 Plate-Driven0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31666-6A0A5 |
US $26.35 |
||
|
31666XC
|
31666XC
31666-6A0A5 Plate-Driven0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31666-6A0A5 |
US $26.35 |
||
|
31666XC
|
31666XC
31666-6A0A5 Plate-Driven0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31666-6A0A5 |
US $26.35 |
||
|
31666XC
|
31666XC
31666-6A0A5 Plate-Driven0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31666-6A0A5 |
US $26.35 |
||
|
32209M
|
32209M
32209-6A0A0 Sleeve, A/t Kickdown Servo Piston0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
32209-6A0A0 |
US $13.25 |
