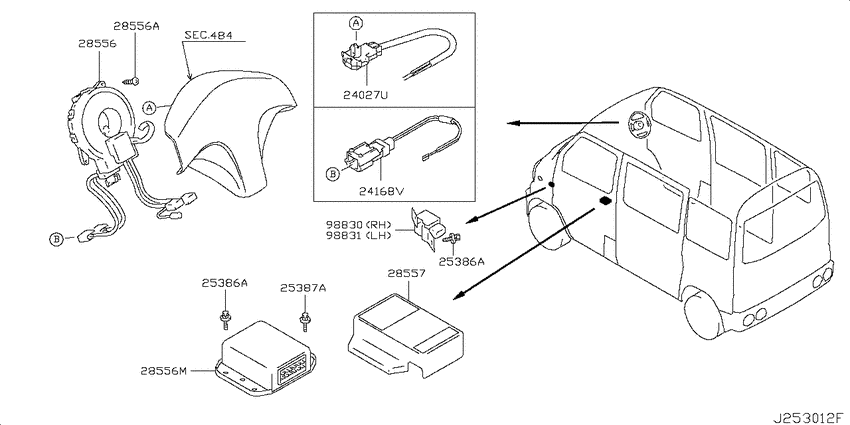

Electrical unit (2003-10-01 ~ ; ｴｱﾊﾞｯｸﾞ ｺﾝﾄﾛｰﾙ ﾕﾆｯﾄ; V +T +W) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 4AT
- grade
- GL
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24027U
|
24027U
24028-6A0A1 Harness-Sub0310--01 ~ 0410--01; ﾊﾞｸﾊ ﾖｳ |
24028-6A0A1 |
US $42.05 |
||
|
24168V
|
24168V
24168-6A0A0 Harness-Sub0310--01 ~ 0410--01; ﾊﾞｸﾊ ﾖｳ |
24168-6A0A0 |
US $34.56 |
||
|
25386A
|
25386A
01125-6A0C8 Bolt0310--01 ~ ; V +W; 6X16 |
01125-6A0C8 |
US $1.44 |
||
|
25386A
|
25386A
01125-6A0C8 Bolt0310--01 ~ ; V +W; 6X16 |
01125-6A0C8 |
US $1.44 |
||
|
25387A
|
25387A
011216A0L3 Bolt0706--01 ~ ; V +T; 6X16 |
011216A0L3 |
US $2.59 |
||
|
25387A
|
25387A
681906A0A0 Bolt0310--01 ~ 0706--01; V +T; 6X16 |
681906A0A0 |
US $2.45 |
||
|
28556
|
28556
285566A0A0 Sensor-Air Bag0310--01 ~ 0410--01; ､*V.(2WD+4WD).HR.3G83.DX.3AT +*V.(SR+HR/RV) +*V.HR.(SD+SD/2S) +*V.HR.DX.5MT +*V.GL +*T.2WD +*T.4WD.(SD+DX+GL+SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +*T.(SP/FL/P+DUMP) |
285566A0A0 |
US $237.60 |
||
|
28556
|
28556
285566A0A5 Sensor-Air Bag0410--01 ~ ; FV +T.(SD+DX+SP/F+SP/FL+SP/F/R+SP/FL/P+SD/AC+DX/AC+DUMP+PA/VAN+DX/M) +W |
285566A0A5 |
US $195.84 |
||
|
28556
|
28556
011416A0A3 Screw0310--01 ~ ; V +T +W; 3X12 |
011416A0A3 |
US $2.02 |
||
|
28556
|
28556
285566A0A2 Sensor & Diagnosis-Air Bag0310--01 ~ 0410--01; ¥*V.(2WD+4WD).HR.3G83.DX.3AT +*V.(SR+HR/RV) +*V.HR.(SD+SD/2S) +*V.HR.DX.5MT +*V.GL +*T.PA/VAN |
285566A0A2 |
US $805.70 |
||
|
28556
|
28556
28556-6A0A4 Sensor & Diagnosis-Air Bag0310--01 ~ 0410--01; E*V.(SR+HR/RV) +*V.HR.(SD+SD/2S) +*V.HR.DX.(5MT+3AT) +*V.GL +*T.PA/VAN |
28556-6A0A4 |
US $805.70 |
||
|
28556
|
28556
28556-6A0A6 Sensor & Diagnosis-Air Bag0410--01 ~ ; V +W |
28556-6A0A6 |
US $805.70 |
||
|
28556A
|
28556A
011416A0A3 Screw0310--01 ~ ; V +T +W; 3X12 |
011416A0A3 |
US $2.02 |
||
|
28556M
|
28556M
285566A0A2 Sensor & Diagnosis-Air Bag0310--01 ~ 0410--01; ¥*V.(2WD+4WD).HR.3G83.DX.3AT +*V.(SR+HR/RV) +*V.HR.(SD+SD/2S) +*V.HR.DX.5MT +*V.GL +*T.PA/VAN |
285566A0A2 |
US $805.70 |
||
|
28556M
|
28556M
28556-6A0A4 Sensor & Diagnosis-Air Bag0310--01 ~ 0410--01; E*V.(SR+HR/RV) +*V.HR.(SD+SD/2S) +*V.HR.DX.(5MT+3AT) +*V.GL +*T.PA/VAN |
28556-6A0A4 |
US $805.70 |
||
|
28556M
|
28556M
28556-6A0A6 Sensor & Diagnosis-Air Bag0410--01 ~ ; V +W |
28556-6A0A6 |
US $805.70 |
||
|
28557
|
28557
285576A0A0 Cover0310--01 ~ 0410--01; ､*V.(2WD+4WD).HR.3G83.DX.3AT +*V.(SR+HR/RV) +*V.HR.(SD+SD/2S) +*V.HR.DX.5MT +*V.GL +*T.2WD +*T.4WD.(SD+DX+GL+SP/F+SP/FL+SP/F/R+SD/AC+DX/AC+PA/VAN) +*T.(SP/FL/P+DUMP) |
285576A0A0 |
US $8.21 |
||
|
484
|
Steering wheel
484
|
||||
|
484
|
Steering wheel
484
|
||||
|
484
|
Steering wheel
484
|
||||
|
484
|
Steering wheel
484
|
||||
|
484
|
Steering wheel
484
|
||||
|
484
|
Steering wheel
484
|
||||
|
98830
|
98830
988306A0A0 ｾﾝｻ-,ｻｲﾄﾞ ｴｱ-0310--01 ~ ; V +W |
988306A0A0 |
US $177.12 |
||
|
98831
|
98831
988316A0A0 ｾﾝｻ-,ｻｲﾄﾞ ｴｱ-0310--01 ~ ; V +W |
988316A0A0 |
US $177.12 |
||
