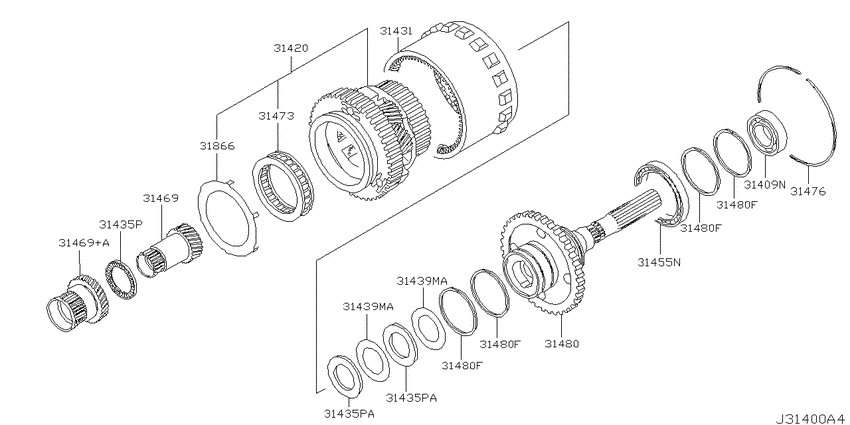

Governor,power train & planetary gear (2003-10-01 ~ ; 4AT) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 4AT
- grade
- GL
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31420
|
31420
31420-6A0A0 Carrier Assy-Front Planet0310--01 ~ ; 4AT |
31420-6A0A0 |
US $757.56 |
||
|
31431
|
31431
31431-6A0A3 Gear-Internal0310--01 ~ ; 4AT |
31431-6A0A3 |
US $286.56 |
||
|
31435P
|
31435P
31407-6A0A2 Bearing-Needle, Thrust0310--01 ~ ; 4AT |
31407-6A0A2 |
US $7.49 |
||
|
31435P
|
31435P
31435-6A0A4 Bearing-Needle, Thrust0310--01 ~ ; 4AT; 0.8 |
31435-6A0A4 |
US $7.49 |
||
|
31435PA
|
31435PA
31435-6A0A4 Bearing-Needle, Thrust0310--01 ~ ; 4AT; 0.8 |
31435-6A0A4 |
US $7.49 |
||
|
31435PA
|
31435PA
31435-6A0A4 Bearing-Needle, Thrust0310--01 ~ ; 4AT; 0.8 |
31435-6A0A4 |
US $7.49 |
||
|
31439MA
|
31439MA
31439-6A0A8 Race-Bearing0310--01 ~ ; 4AT; 0.8 |
31439-6A0A8 |
US $5.76 |
||
|
31439MA
|
31439MA
31439-6A0A8 Race-Bearing0310--01 ~ ; 4AT; 0.8 |
31439-6A0A8 |
US $5.76 |
||
|
31455N
|
31455N
31455-6A0A0 Bearing-Needle0310--01 ~ ; 4AT |
31455-6A0A0 |
US $25.63 |
||
|
31469
|
31469
31469-6A0A2 Gear-Sun, Rear0310--01 ~ ; 4AT |
31469-6A0A2 |
US $139.10 |
||
|
31469
|
31469
31469-6A0A3 Gear-Sun, Rear0310--01 ~ ; 4AT |
31469-6A0A3 |
US $145.44 |
||
|
31469+A
|
31469+A
31469-6A0A3 Gear-Sun, Rear0310--01 ~ ; 4AT |
31469-6A0A3 |
US $145.44 |
||
|
31473
|
31473
31473-6A0A2 Clutch Assy-One Way0310--01 ~ ; 4AT |
31473-6A0A2 |
US $132.34 |
||
|
31476
|
31476
31476-6A0A6 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ T=2.0 |
31476-6A0A6 |
US $4.61 |
||
|
31476
|
31476
31476-6A0A7 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ T=2.1 |
31476-6A0A7 |
US $4.61 |
||
|
31476
|
31476
31476-6A0A8 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ T=2.2 |
31476-6A0A8 |
US $4.61 |
||
|
31476
|
31476
31476-6A0A9 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ T=1.8 |
31476-6A0A9 |
US $4.61 |
||
|
31476
|
31476
31476-6A0B0 Ring-Snap0310--01 ~ ; 4AT; ｾﾝﾀｸ ｼﾖｳ T=1.9 |
31476-6A0B0 |
US $4.61 |
||
|
31480
|
31480
31480-6A0A2 Shaft Assy-Output0310--01 ~ ; (V+T).4WD.4AT +E/FOUR.4AT |
31480-6A0A2 |
US $184.32 |
||
|
31480
|
31480
31525-6A0B1 Ring-Seal0310--01 ~ ; 4AT; 50.2 |
31525-6A0B1 |
US $3.89 |
||
|
31480F
|
31480F
31525-6A0B1 Ring-Seal0310--01 ~ ; 4AT; 50.2 |
31525-6A0B1 |
US $3.89 |
||
|
31480F
|
31480F
31525-6A0B1 Ring-Seal0310--01 ~ ; 4AT; 50.2 |
31525-6A0B1 |
US $3.89 |
||
|
31480F
|
31480F
31525-6A0B1 Ring-Seal0310--01 ~ ; 4AT; 50.2 |
31525-6A0B1 |
US $3.89 |
||
|
31480F
|
31480F
31525-6A0B1 Ring-Seal0310--01 ~ ; 4AT; 50.2 |
31525-6A0B1 |
US $3.89 |
||
|
31866
|
31866
31866-6A0A0 Plate-Retainer0310--01 ~ ; 4AT |
31866-6A0A0 |
US $3.46 |
