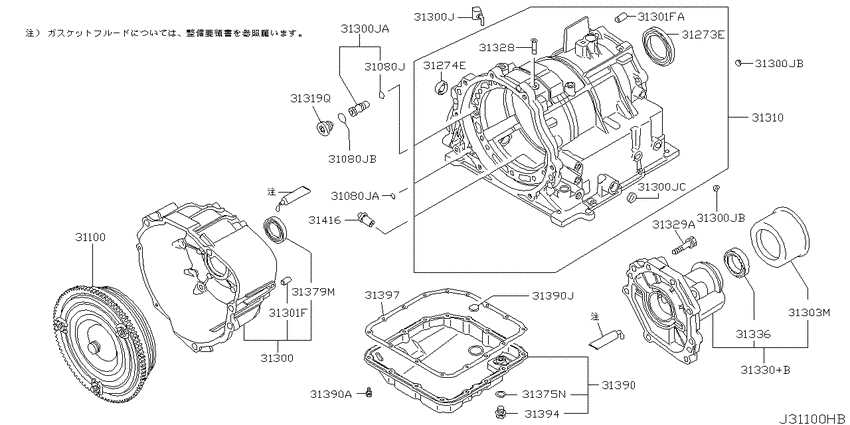

Torque converter,housing & case (2003-10-01 ~ ; 4AT) Diagram Nissan CLIPPER
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 4AT
- grade
- GL
- body
- V
- Roof
- HR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31080J
|
31080J
315266A00A Seal-O Ring0509--01 ~ ; 4AT; 9.8 |
315266A00A |
US $1.87 |
||
|
31080J
|
31080J
315266A0A9 Seal-O Ring0310--01 ~ 0509--01; V.GL.4AT +T.4AT; 9.8 |
315266A0A9 |
US $3.60 |
||
|
31080J
|
31080J
310846A0A3 Seal-O Ring0310--01 ~ ; 4AT; 5.8 |
310846A0A3 |
US $2.59 |
||
|
31080J
|
31080J
31526-6A0A5 Seal-O Ring0310--01 ~ ; 4AT; 13.5 |
31526-6A0A5 |
US $4.46 |
||
|
31080JA
|
31080JA
310846A0A3 Seal-O Ring0310--01 ~ ; 4AT; 5.8 |
310846A0A3 |
US $2.59 |
||
|
31080JB
|
31080JB
31526-6A0A5 Seal-O Ring0310--01 ~ ; 4AT; 13.5 |
31526-6A0A5 |
US $4.46 |
||
|
31100
|
31100
31100-6A0A1 Converter Assy-Torque0310--01 ~ ; (V+T).4AT +(E+E/FOUR).4AT |
31100-6A0A1 |
US $1,492.99 |
||
|
31273E
|
31273E
312776A0A0 Seal-Oil0310--01 ~ ; 4WD.4AT |
312776A0A0 |
US $13.25 |
||
|
31274E
|
31274E
31933-6A0A2 Seal-Oil0310--01 ~ ; 4AT |
31933-6A0A2 |
US $11.52 |
||
|
31300
|
31300
31300-6A0A1 Housing Assy-Converter0310--01 ~ ; 4AT |
31300-6A0A1 |
US $375.24 |
||
|
31300
|
31300
01642-6A00A Plug-Filler0310--01 ~ ; 4AT |
01642-6A00A |
US $8.93 |
||
|
31300
|
31300
01642-6A0A0 Plug-Filler0310--01 ~ ; 4AT |
01642-6A0A0 |
US $36.86 |
||
|
31300
|
31300
01642-6A0A2 Plug-Filler0310--01 ~ ; 4AT; 10 |
01642-6A0A2 |
US $2.30 |
||
|
31300
|
31300
01642-6A0A3 Plug-Filler0310--01 ~ ; 4AT; 16 |
01642-6A0A3 |
US $2.02 |
||
|
31300J
|
31300J
01642-6A00A Plug-Filler0310--01 ~ ; 4AT |
01642-6A00A |
US $8.93 |
||
|
31300J
|
31300J
01642-6A0A0 Plug-Filler0310--01 ~ ; 4AT |
01642-6A0A0 |
US $36.86 |
||
|
31300J
|
31300J
01642-6A0A2 Plug-Filler0310--01 ~ ; 4AT; 10 |
01642-6A0A2 |
US $2.30 |
||
|
31300J
|
31300J
01642-6A0A3 Plug-Filler0310--01 ~ ; 4AT; 16 |
01642-6A0A3 |
US $2.02 |
||
|
31300JA
|
31300JA
01642-6A0A0 Plug-Filler0310--01 ~ ; 4AT |
01642-6A0A0 |
US $36.86 |
||
|
31300JB
|
31300JB
01642-6A0A2 Plug-Filler0310--01 ~ ; 4AT; 10 |
01642-6A0A2 |
US $2.30 |
||
|
31300JB
|
31300JB
01642-6A0A2 Plug-Filler0310--01 ~ ; 4AT; 10 |
01642-6A0A2 |
US $2.30 |
||
|
31300JC
|
31300JC
01642-6A0A3 Plug-Filler0310--01 ~ ; 4AT; 16 |
01642-6A0A3 |
US $2.02 |
||
|
31301F
|
31301F
32105-6A0A0 Pin-Dowel0310--01 ~ ; 4AT; ﾀﾞｳｴﾙ,10X20 |
32105-6A0A0 |
US $2.59 |
||
|
31301F
|
31301F
32105-6A0A0 Pin-Dowel0310--01 ~ ; 4AT; ﾀﾞｳｴﾙ,10X20 |
32105-6A0A0 |
US $2.59 |
||
|
31301FA
|
31301FA
32105-6A0A0 Pin-Dowel0310--01 ~ ; 4AT; ﾀﾞｳｴﾙ,10X20 |
32105-6A0A0 |
US $2.59 |
||
|
31310
|
31310
31310-6A0A1 Case Assy-Automatic Transmission0310--01 ~ ; 4WD.4AT |
31310-6A0A1 |
US $790.13 |
||
|
31310
|
31310
01151-6A0A0 Stud-Fix Converter Housing0310--01 ~ ; (V+T).4AT +3AT |
01151-6A0A0 |
US $3.89 |
||
|
31310
|
31310
32133-6A0A0 Nut-Transmission Case0310--01 ~ ; (V+T).4AT +3AT |
32133-6A0A0 |
US $1.87 |
||
|
31319Q
|
31319Q
01642-6A0A1 Plug-Thread0310--01 ~ ; 4AT; 20.5 |
01642-6A0A1 |
US $5.90 |
||
|
31328
|
31328
31328-6A0A0 Tube-Lubricant0310--01 ~ ; 4AT |
31328-6A0A0 |
US $2.02 |
||
|
31329A
|
31329A
01125-6A00L Bolt0612--01 ~ ; 3AT +4AT; ﾜｯｼｬ ﾂｷ,8X35 |
01125-6A00L |
US $1.44 |
||
|
31329A
|
31329A
12315-6A0A2 Bolt0310--01 ~ 0612--01; 3AT +4AT; ﾜｯｼｬ ﾂｷ,8X35 |
12315-6A0A2 |
US $2.45 |
||
|
31375N
|
31375N
313756A0A2 Seal-Oil0310--01 ~ ; 4AT |
313756A0A2 |
US $2.59 |
||
|
31379M
|
31379M
31375-6A0A1 Seal-Oil0310--01 ~ ; 4AT |
31375-6A0A1 |
US $10.94 |
||
|
31390
|
31390
31390-6A0A1 Pan Assy-Oil0310--01 ~ ; 4AT |
31390-6A0A1 |
US $66.10 |
||
|
31390
|
31390
011256A0B6 Bolt0310--01 ~ ; 3AT +4AT; ﾜｯｼｬ ﾂｷ,6X12 |
011256A0B6 |
US $2.16 |
||
|
31390
|
31390
01125-6A0A7 Bolt0310--01 ~ ; (V+T).4AT +3AT |
01125-6A0A7 |
US $3.74 |
||
|
31390
|
31390
313966A0A1 Magnet0310--01 ~ ; 4AT |
313966A0A1 |
US $2.88 |
||
|
31390A
|
31390A
011256A0B6 Bolt0310--01 ~ ; 3AT +4AT; ﾜｯｼｬ ﾂｷ,6X12 |
011256A0B6 |
US $2.16 |
||
|
31390A
|
31390A
01125-6A0A7 Bolt0310--01 ~ ; (V+T).4AT +3AT |
01125-6A0A7 |
US $3.74 |
||
|
31390J
|
31390J
313966A0A1 Magnet0310--01 ~ ; 4AT |
313966A0A1 |
US $2.88 |
||
|
31394
|
31394
31394-6A0A1 Plug-Drain0310--01 ~ ; 4AT; 14 |
31394-6A0A1 |
US $4.61 |
||
|
31397
|
31397
31397-6A0A1 Gasket-Oil Pan0310--01 ~ ; 4AT |
31397-6A0A1 |
US $21.02 |
||
|
31416
|
31416
31416-6A0A0 Shaft-Intermediate0310--01 ~ ; 4AT |
31416-6A0A0 |
US $6.19 |
